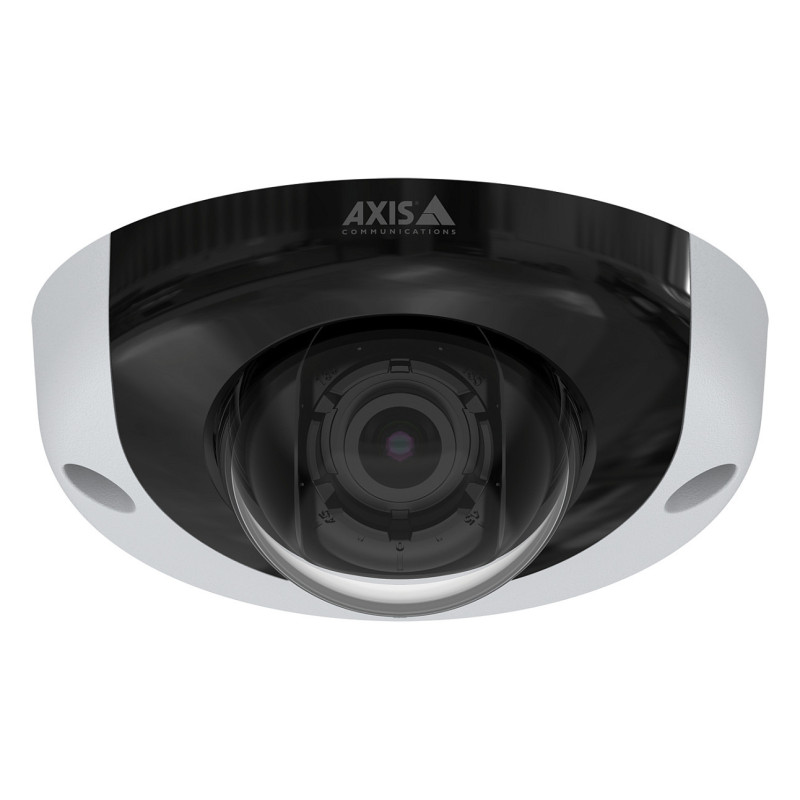

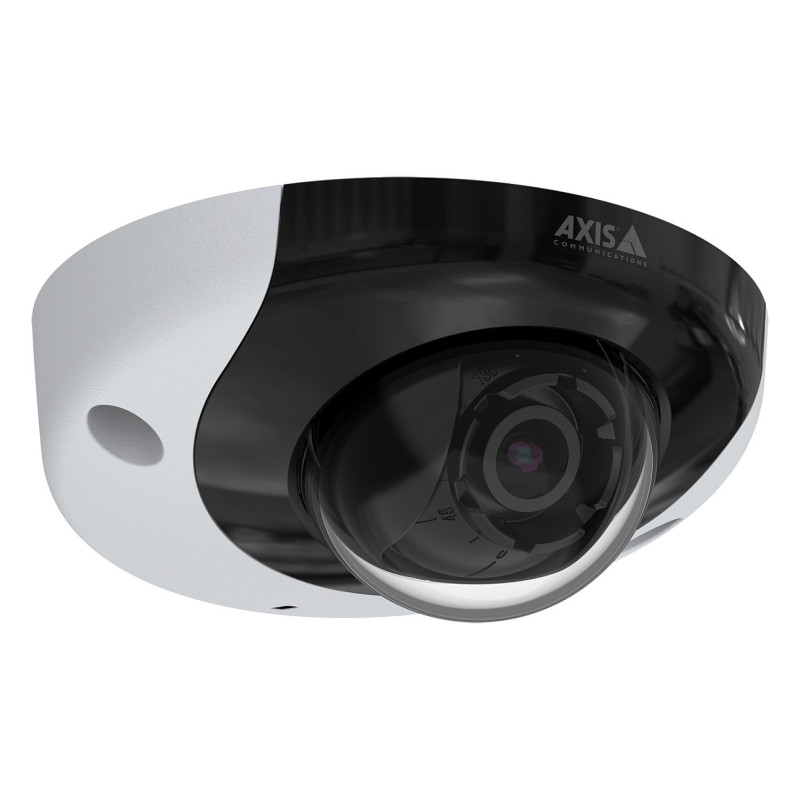

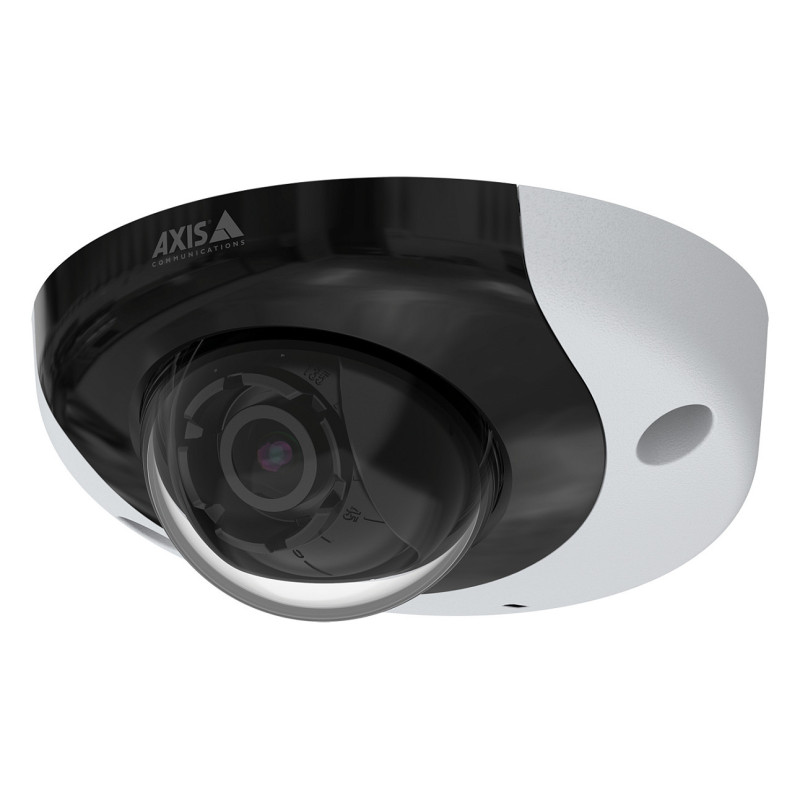

Axis 01932-021 security camera

Axis 01932-021. Type: IP security camera, Connectivity technology: Wired, PTZ modes: Digital PTZ. Mounting type: Ceiling, Product colour: Black, White, Form factor: Dome. Minimum illumination: 0.01 lx, Angle of rotation: 350°, Lens viewing angle, horizontal: 110°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.9 mm (1 / 2.9"). Fixed focal length: 2.8 mm
Specifically designed for onboard surveillance, AXIS P3935-LR complies with all relevant transportation industry regulations including EN50155, EN45545, and NFPA 130. Featuring Axis Lightfinder and Axis Forensic WDR, it delivers true colors and great detail in challenging light or near darkness. It includes built-in invisible IR LEDs (940 nm) for video surveillance in complete darkness. Enclosed in an IK10-, IP66-, IP67-rated metal casing, this robust, vandal-resistant camera features a built-in microphone for audio surveillance and detection. Furthermore, enhanced security features prevent unauthorized access and safeguard your system.

Performance

Type: IP security camera
Connectivity technology: Wired
PTZ control: Yes
PTZ modes: Digital PTZ
Preset points: Yes
Wide Dynamic Range (WDR): Yes
Day/night mode: Yes
Certification: EN 55032 Class A, EN 55035, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), VCCI Class A, RCM AS/NZS CISPR 32 Class A, KCC KN32 Class A, KN35, EN 50121-4, EN 50121-3-2, IEC 62236-4, ECE R10 rev.05 (E approval), EN 50498, IEC/EN/UL 62368-1, CAN/CSA C22.2 No. 62368-1, EN 45545, UN ECE R118, NFPA 130, IEC 62471, IEC/EN 61373 Category 1 Class B, IEC/EN 60529 IP66, IEC/EN 60529 IP67, NEMA 250 Type 4X, IEC/EN 62262 IK10, IEC 60721-3-5 Class 5M3 (vibration and shock), EN 50155 Class OT2/ST2 (2017 Class TX), IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-27, IEC 60068-2-64, IEC 60068-2-78, NIST SP500-267

Design

Form factor: Dome
Mounting type: Ceiling
Product colour: Black, White
Housing material: Aluminium
International Protection (IP) code: IP66, IP67
IK code: IK10
Fog proof: Yes

Camera

Camera pan control: Yes
Camera tilt control: Yes
Minimum illumination: 0.01 lx
Angle of rotation: 350°
Lens viewing angle, horizontal: 110°
Lens viewing angle, vertical: 62°
Tilt angle range: 15 - 90°
Pan range: -30 - 30°

Image sensor

Number of sensors: 1
Optical sensor size: 25.4 / 2.9 mm (1 / 2.9")
Progressive scan: Yes
Sensor type: CMOS

Lens system

Number of lenses: 1
Fixed focal length: 2.8 mm

Night vision

Night vision: Yes
Night vision distance: 15 m
LED type: IR
Infra-red wavelength: 940 nm

Video

Maximum resolution: 1920 x 1080 pixels
Total megapixels: 2 MP
Video compression formats: AVC, H.264, H.265, HEVC, M-JPEG, MPEG4
Supported graphics resolutions: 160 x 120, 160 x 90, 1280 x 960, 1920 x 1080 (HD 1080)
Frame rate: 45 fps
Video streaming: Yes
Image quality adjustment: Brightness, Contrast, Sharpness
Privacy masking: Yes
Text caption overlay: Yes
Image stabilizer: Yes
Bit rate control: Variable Bit Rate (VBR)

Audio

Audio system: 1-way
Audio formats supported: AAC-LC, G.711, LPCM, PCM
Sample rate: 48 kHz

Network

Ethernet LAN: Yes
Ethernet interface type: Fast Ethernet
Networking standards: IEEE 802.1x, IEEE 802.3af, IEEE 802.3at
Supported network protocols: IPv4, IPv6 USGv6, HTTP, HTTPS, SSL/TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP, SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SRTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH, LLDP, MQTT
Number of users: 8 user(s)
Quality of Service (QoS) support: Yes
Streaming method: Multicast

Storage

Card reader integrated: Yes
Flash memory: 512 MB

Ports interfaces

Microphone in: Yes

Security

Password protection: Yes
Video motion detection: Yes
Active tampering alarm: Yes
IP address filtering: Yes
HTTPS encryption: Yes

Power

Power source type: PoE
Power consumption (typical): 6.6 W
Power consumption (max): 11.8 W

Operational conditions

Operating temperature (T-T): -40 - 55 °C
Storage temperature (T-T): -40 - 65 °C
Operating relative humidity (H-H): 10 - 95%

Weight dimensions

Width: 110 mm
Depth: 110 mm
Height: 49.4 mm
Weight: 410 g

Packaging content

Number of cameras: 10
Manual: Yes

Logistics data

Harmonized System (HS) code: 85258900
