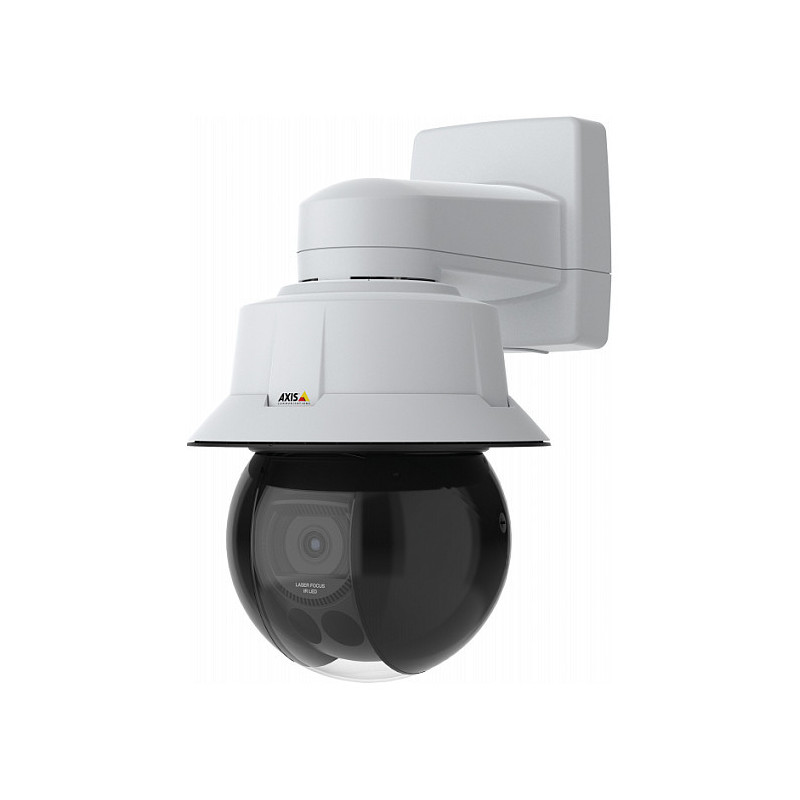

Axis 01924-003 security camera

Axis 01924-003. Type: IP security camera, Placement supported: Indoor outdoor, Connectivity technology: Wired. Mounting type: Wall, Product colour: Black, White, Form factor: Dome. Minimum illumination: 0.001 lx, Lens viewing angle, horizontal: 60.6°, Lens viewing angle, vertical: 36.5°. Sensor type: CMOS, Optical sensor size: 25.4 / 2 mm (1 / 2"). Optical zoom: 31x, Digital zoom: 12x, Focal length range: 6.91 - 214.64 mm
AXIS Q6315-LE is a high-speed PTZ camera offering HDTV 1080p resolution. It features IR illumination and day/night functionality for surveillance in pitch darkness. With 31x optical zoom, laser focus for precise focus and quick-zoom functionality, it allows you to easily follow fast-moving objects. It includes orientation aid and autotracking 2 with click and track functionality. Privacy masking with mosaic lets you pixelate whole areas of the scene. Plus, with chameleon masking, it automatically changes the color in the masking depending on the background color of the image. Furthermore, the TPM module ensures secure storage of all cryptographic keys and certificates.

Performance

Type: IP security camera
Placement supported: Indoor outdoor
Connectivity technology: Wired
Feature: PTZ control
Feature: Tour recording
Feature: Preset points
Feature: Wide Dynamic Range (WDR)
Feature: Day/night mode
Feature: Infrared (IR) cut-off filter

Design

Form factor: Dome
Mounting type: Wall
Product colour: Black, White
Housing material: Aluminium, Polycarbonate (PC)
International Protection (IP) code: IP66, IP67
IK code: IK10
Feature: Fog proof

Camera

Minimum illumination: 0.001 lx
Lens viewing angle, horizontal: 60.6°
Lens viewing angle, vertical: 36.5°
Tilt angle range: -90 - 20°
Tilt speed: 550 °/sec
Pan range: 0 - 360°
Pan speed: 550 °/sec
Camera shutter speed: 111000 - 1/2 s

Image sensor

Number of sensors: 1
Optical sensor size: 25.4 / 2 mm (1 / 2")
Feature: Progressive scan
Sensor type: CMOS

Lens system

Feature: Zoom capability
Optical zoom: 31x
Digital zoom: 12x
Number of lenses: 1
Focal length range: 6.91 - 214.64 mm
Feature: Auto focus
Maximum aperture number: 4.6
Minimum aperture number: 1.36

Night vision

Feature: Night vision
Night vision distance: 300 m
LED type: IR
Infra-red wavelength: 850 nm

Video

Maximum resolution: 1920 x 1080 pixels
Video formats supported: AVC, H.264, H.265, HEVC, M-JPEG, MPEG4
Supported graphics resolutions: 320 x 180, 1920 x 1080 (HD 1080)
Frame rate: 60 fps
Feature: Video streaming
Image quality adjustment: Brightness, Colour depth, Sharpness
Feature: Privacy masking
Feature: Text caption overlay
Feature: Image stabilizer
Bit rate control: Variable Bit Rate (VBR)

Network

Feature: Ethernet LAN
Ethernet interface type: Fast Ethernet, Gigabit Ethernet
Networking standards: IEEE 802.1x, IEEE 802.3bt
Feature: Quality of Service (QoS) support
Streaming method: Multicast

Storage

Feature: Card reader integrated
Compatible memory cards: SD, SDHC, SDXC
Flash memory: 512 MB

Ports interfaces

Ethernet LAN (RJ-45) ports: 1

Security

Feature: Password protection
Feature: IP address filtering
Security algorithms: EAP-TLS
Feature: HTTPS encryption
Feature: Digest authentication

Management features

Behavior analysis: Line crossing detection

Power

Power source type: AC
AC input voltage: 100-240 V
Power consumption (typical): 17 W
Power consumption (max): 51 W

Operational conditions

Operating temperature (T-T): -50 - 50 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 10 - 100%
Storage relative humidity (H-H): 5 - 95%

Weight dimensions

Height: 261 mm
Diameter: 23.9 cm
Weight: 4.8 kg

Other features

Doesn't contain: PVC

Logistics data

Harmonized System (HS) code: 85258900
