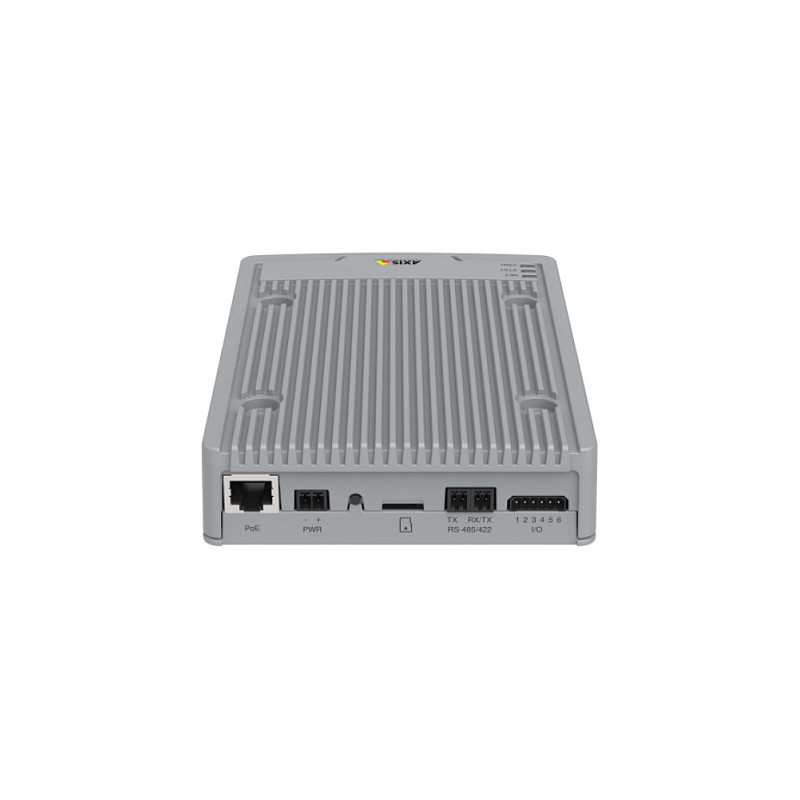

Axis 01680-001 video servers / encoder

Axis 01680-001. Maximum video resolution: 1920 x 1080 pixels, Maximum frame rate: 30 fps, Video compression formats: AVC, H.264, H.265, HEVC, MPEG4. Internal memory: 1024 MB, Flash memory: 512 MB, Compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC. Product colour: Grey, LED indicators: Status, Certification: EMC EN 55032 Class A, EN 61000-3-2, EN 61000-3-3, EN 55024, EN 61000-6-1, EN 61000-6-2, FCC Part.... Supported network protocols: IPv4, IPv6 USGv6, HTTP, HTTPS, SSL/TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour,..., Copper ethernet cabling technology: 10BASE-T, 100BASE-T, 1000BASE-T, Networking standards: IEEE 802.3af, IEEE 802.3at. Security algorithms: HTTPS
AXIS P7304 is a full-featured, 4-channel video encoder that adds the benefits of IP surveillance to any analog camera system. It supports standard and HD analog cameras up to 4K resolution, and analog PTZ cameras. Enhanced security features such as signed firmware and secure boot ensure the integrity and authenticity of the encoder's firmware. Plus, Zipstream with support for H.264/H.265 video compression significantly reduces bandwidth and storage requirements. The encoder features two-way audio, I/O ports, and a memory card slot for edge storage. It also comes with intelligent analytics such as motion detection, audio detection and tampering alarm.

Video

Maximum video resolution: 1920 x 1080 pixels
Maximum frame rate: 30 fps
Video compression formats: AVC, H.264, H.265, HEVC, MPEG4
NTSC resolutions: 720x480 pixels
PAL resolutions: 720x576 pixels
Channels quantity: 4 channels

Performance

Internal memory: 1024 MB
Flash memory: 512 MB
Card reader integrated: Yes
Compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC
PTZ control: Yes
Image settings: Brightness, Color, Compression, Contrast, Mirroring, Privacy mask, Rotation, Sharpness

Design

Product colour: Grey
LED indicators: Status
Wall mountable: Yes
Certification: EMC EN 55032 Class A, EN 61000-3-2, EN 61000-3-3, EN 55024, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-003 Class A, VCCI Class A, RCM AS/NZS CISPR 32 Class A, KC KN32 Class A, KC KN35, IEC/EN 62368-1, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78, NIST SP500-267

Network

Supported network protocols: IPv4, IPv6 USGv6, HTTP, HTTPS, SSL/TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP, SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SRTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH
Quality of Service (QoS) support: Yes
Power over Ethernet (PoE): Yes
Copper ethernet cabling technology: 10BASE-T, 100BASE-T, 1000BASE-T
Networking standards: IEEE 802.3af, IEEE 802.3at

Security

Security algorithms: HTTPS
Video motion detection: Yes
IP address filtering: Yes
Audio detection: Yes
Active tampering alarm: Yes

Ports interfaces

Line-in: Yes
Line-out: Yes
BNC input ports: 4
Ethernet LAN (RJ-45) ports: 1
RS-485 ports: 2
I/O terminal ports: 1
Microphone in: Yes

Power

Power consumption (typical): 8.2 W

Weight dimensions

Width: 187 mm
Height: 37 mm
Weight: 650 g

Packaging content

Manual: Yes

Operational conditions

Operating temperature (T-T): 0 - 50 °C
Storage temperature (T-T): -40 - 65 °C
Operating relative humidity (H-H): 10 - 85%
