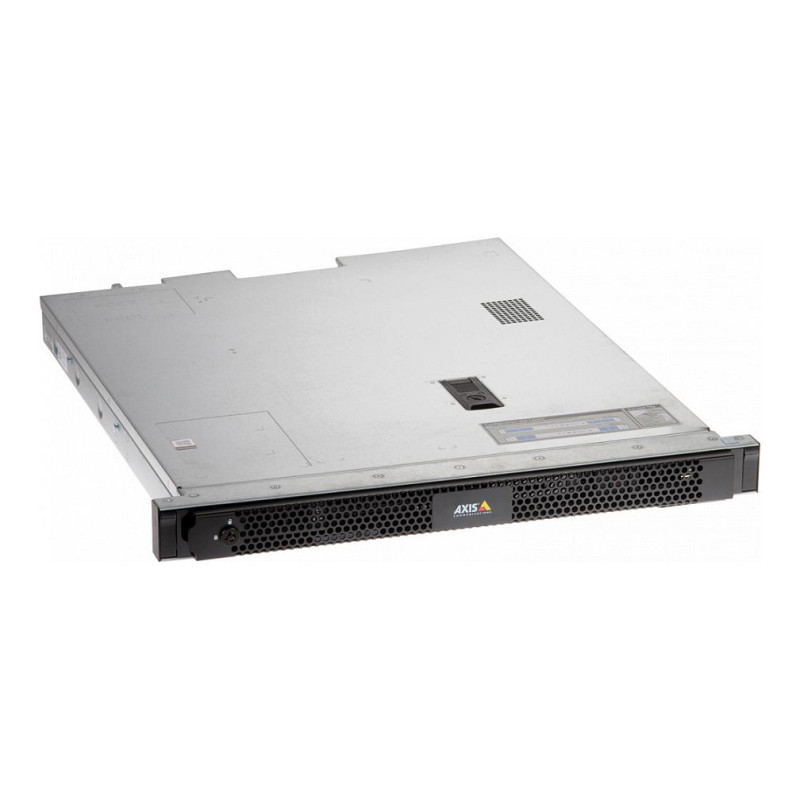

Axis 01618-001 network video recorder

Axis 01618-001. Internal memory: 8000 MB, Operating system installed: Windows 10 IoT Enterprise. HDD capacity: 8 TB, RAID levels: 0, 1. Ethernet LAN data rates: 1000,10000 Mbit/s, Compatible memory cards: SD. Rack capacity: 1U, Certification: EMC EN 55032 Class A, EN 55024, EN 61000-3-2, EN 61000-3-3, FCC Part 15 Subpart B Class A,.... Power consumption (max): 500 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz

AXIS Camera Station S1116 Recorder is an out-of-the-box ready rack server validated for reliable high-definition surveillance up to 4K. For quick and easy installation, AXIS S1116 is preconfigured and preloaded with AXIS Camera Station video management software including licenses for 16 channels plus all necessary system software. The system configuration can easily be imported from AXIS Site Designer, and AXIS Camera Station lets users take full advantage of Axis wide range of video surveillance devices. With enterprise-grade hard disks, operating system stored on solid-state drive (SSD), and expandable storage capacity, AXIS S1116 provides high-performance and reliability for your system.

Performance

Internal memory: 8000 MB
Operating system installed: Windows 10 IoT Enterprise

Hard drive

Number of HDDs installed: 1
HDD capacity: 8 TB
Number of HDDs supported: 3
Feature: RAID support
RAID levels: 0, 1

Ports & interfaces

Ethernet LAN (RJ-45) ports: 1
Ethernet LAN data rates: 1000,10000 Mbit/s
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 3
Feature: Card reader integrated
Compatible memory cards: SD

Features

Feature: Rack mounting
Rack capacity: 1U

Power

Power consumption (max): 500 W
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Output current: 3.7 A

Operational conditions

Operating temperature (T-T): 10 - 35 °C
Operating relative humidity (H-H): 10 - 85%
Storage temperature (T-T): -40 - 65 °C

Weight & dimensions

Width: 589 mm
Depth: 482 mm
Height: 43 mm
Weight: 9.6 kg
