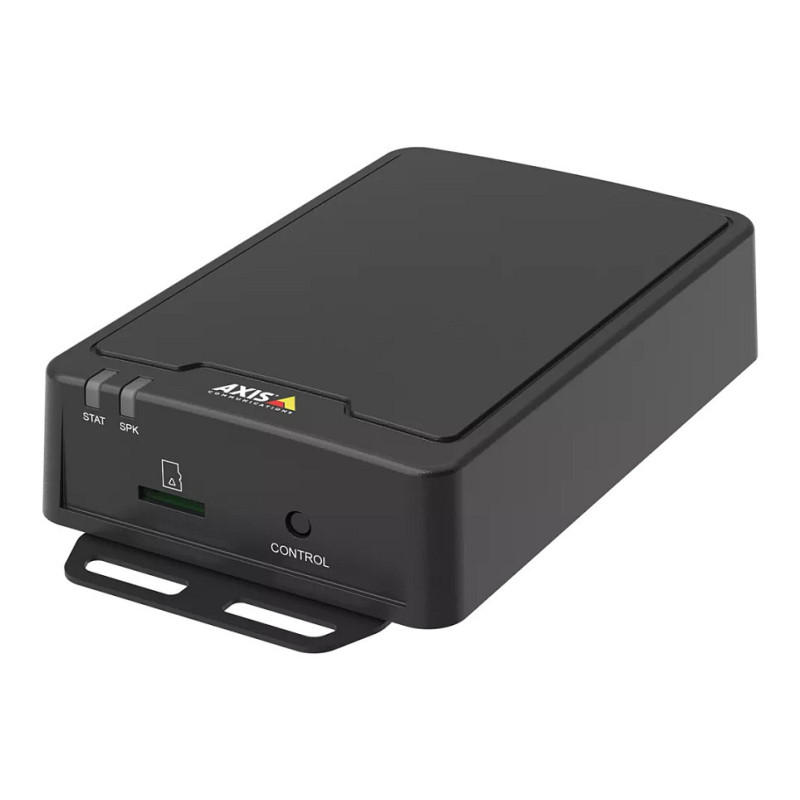

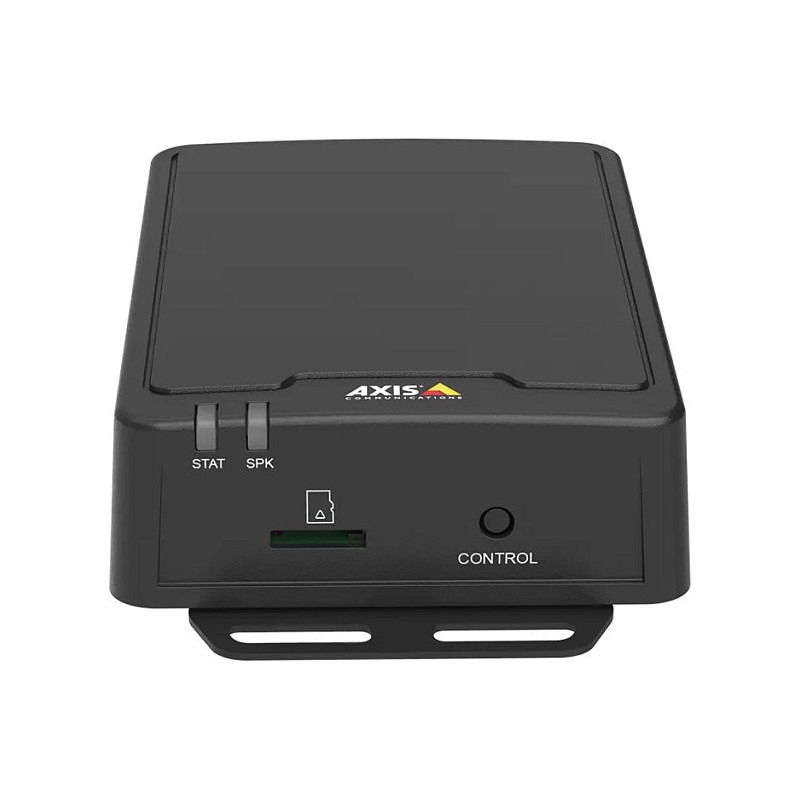

Axis 01558-001 audio amplifier

Axis 01558-001. RMS rated power: 15 W, Frequency range: 20 - 20000 Hz. Headphone connectivity: 3.5 mm, Ethernet LAN data rates: 100 Mbit/s. Width: 140 mm, Depth: 75 mm, Height: 29 mm. Certification: EN 55032 Class A, EN 61000-3-2, EN 61000-3-3, EN 55035, EN 61000-6-1, EN 61000-6-2, FCC Part 15...
AXIS C8210 Network Audio Amplifier is a smart migration tool for transforming any passive speaker, independent of brand or design, into a network speaker. It allows you to enjoy the benefits of network audio, such as zone management for announcements (live, scheduled, or triggered) and background music. Together with audio management software from Axis it is easy to build a scalable and flexible solution with central control as well as integrating it with other systems such as VoIP or network cameras.

Audio

RMS rated power: 15 W
Frequency range: 20 - 20000 Hz

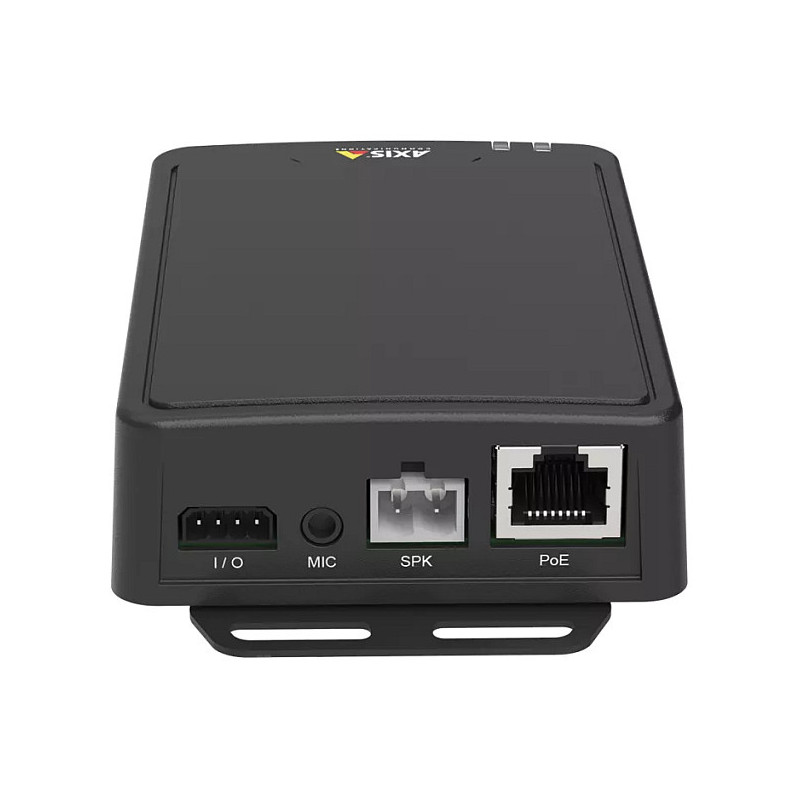

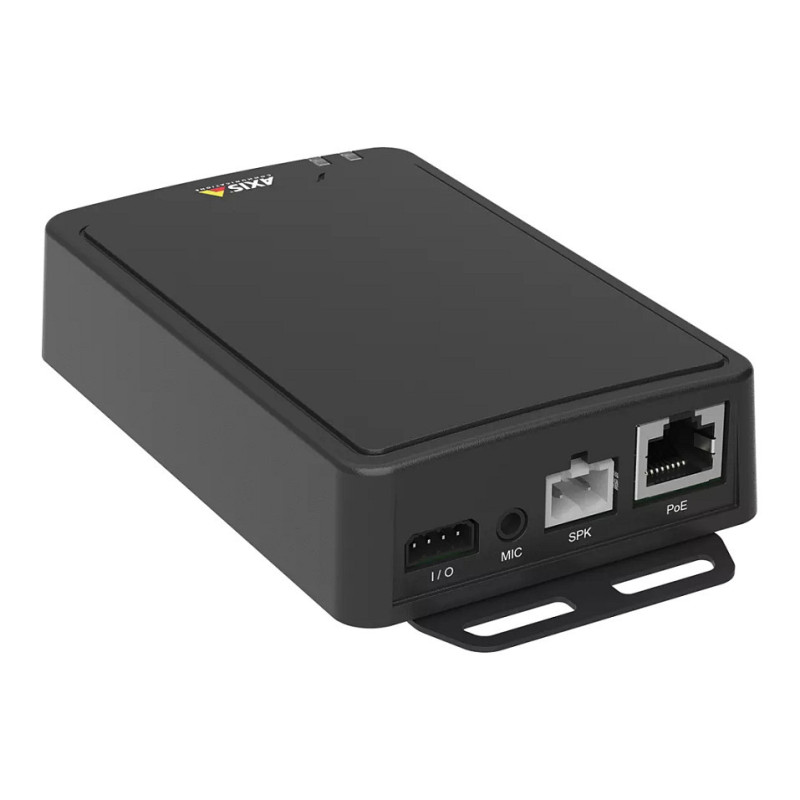

Ports interfaces

Headphone outputs: 1
Headphone connectivity: 3.5 mm
Ethernet LAN (RJ-45) ports: 1
Ethernet LAN data rates: 100 Mbit/s

Technical details

Connectivity technology: Wired
Product colour: Black
Material: Metal

Display

Built-in display: No

Weight dimensions

Width: 140 mm
Depth: 75 mm
Height: 29 mm
Weight: 257 g

Operational conditions

Operating temperature (T-T): -20 - 50 °C
Storage temperature (T-T): -40 - 65 °C

Certificates

Certification: EN 55032 Class A, EN 61000-3-2, EN 61000-3-3, EN 55035, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-003 Class A, VCCI Class A, RCM AS/NZS CISPR 32 Class AIEC/EN/UL 62368-1IEC/EN 60529 IP20, UL2043 Plenum rated, NEMA 250 Type 1, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27

Logistics data

Harmonized System (HS) code: 85184000
