AV Presentation System - LINDY HDBaseT Presentation System with Control Keyboard, 4K@30Hz, HDMI, USB, Black
Product reference:
14-4002888382885
The HDBaseT presentation system allows you to transmit audio and video signals over long distances using a single Cat.5e/6 cable, supporting resolutions up to 3840x2160@30Hz. It has multiple input options, including HDMI, VGA, and USB, as well as a control keyboard for easy control in collaborative environments.
AV Presentation System - LINDY HDBaseT Presentation System with Control Keyboard, 4K@30Hz, HDMI, USB, Black
Product reference:
14-4002888382885
The HDBaseT presentation system allows you to transmit audio and video signals over long distances using a single Cat.5e/6 cable, supporting resolutions up to 3840x2160@30Hz. It has multiple input options, including HDMI, VGA, and USB, as well as a control keyboard for easy control in collaborative environments.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
8 - 9
business days
LINDY HDBaseT Presentation System with Control Keyboard, 4K@30Hz, HDMI, USB, Black
The HDBaseT Delivery System allows you to transmit audio and video signals over long distances using a single Cat.5e/6 cable, supporting resolutions up to 3840x2160@30Hz. It has multiple input options, including HDMI, VGA and USB, as well as a control keyboard for easier control in collaborative environments.
- Effortlessly transmits HDMI video and audio signals over long distances up to 70m 1080p resolution and 40m 4K resolution.
- Multiple input options are included: 2x HDMI, 1x VGA and USB, making it versatile for a variety of devices.

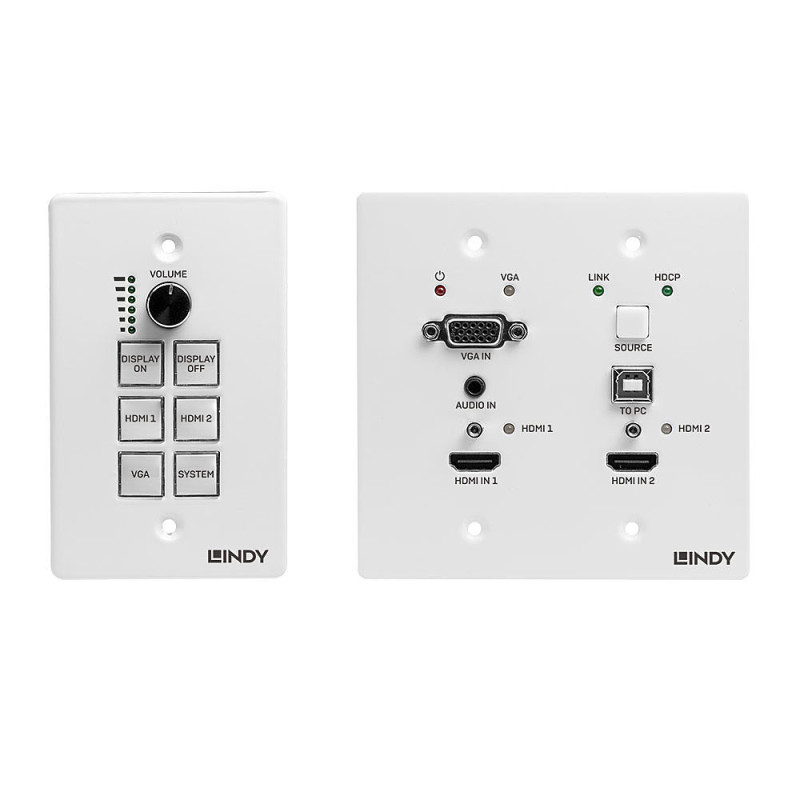

- Easy operation with a wall-mounted control key for convenient operation in delivery environments.
- Supports HDCP and CEC passthrough to ensure compatibility with a wide range of devices.
Features | |
|---|---|
| Product Type | HDBaseT Delivery System |
| Transmission Protocol | HDBaseT |
| Maximum Resolution | 3840x2160@30Hz |
| Input Options | 2x HDMI, 1x VGA, 1x USB |
| Management Method | Wall control key |
Specifications | |
| AV Interface | HDMI |
| Interface Standard | HDMI 2.0 |
| Supported Bandwidth | 10.2Gbps |
| Maximum Distance | 70m (1920x1080@60Hz), 40m (3840x2160@60Hz) |
| HDCP Support | Transmission |
| EDID Transmission Support | Transmission |
| Supported Audio Transmission | Transmission |
| Transmission Medium | 1 x Cat.5e/6 |
| Chipset | VS210 |
Connectors | |
| Sender Input | 2x HDMI (Female), 1x VGA (Female), 1x USB Type B (Female), 1x 3.5mm Audio (Female) |
| Sender Output | 1x RJ45 (Female) |
| Receiver Input | 1x RJ45 (Female), 1x RS-232 (Terminal Block), 1x Microphone (Terminal Block) |

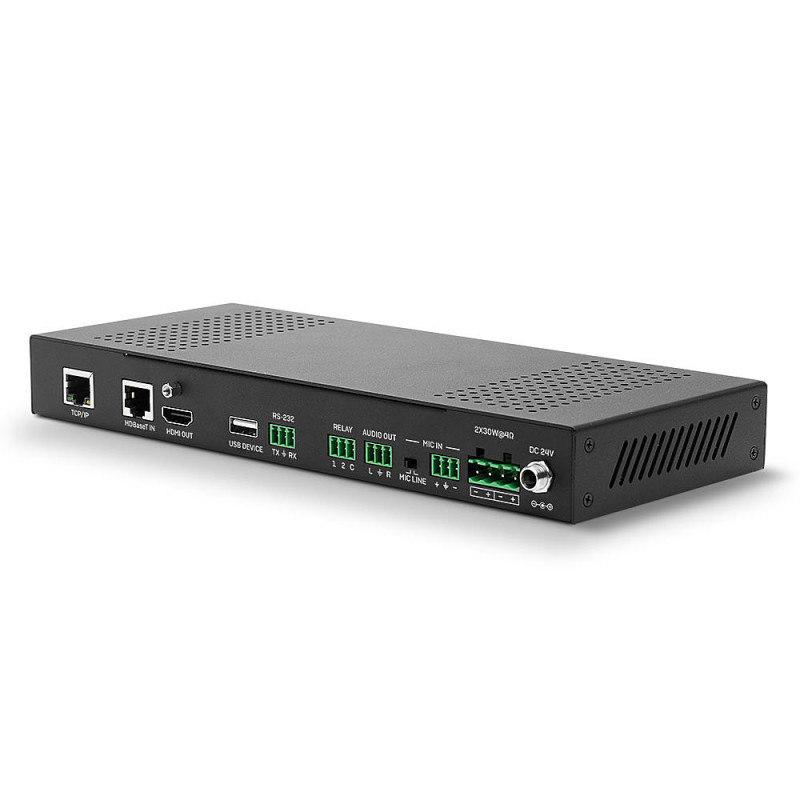

| Receiver Output | 1x HDMI (Female), 1x USB Type A (Female), 1 Relay (Terminal Block), 1x Audio Output (Terminal Block), 1x Amplifier Output (Terminal Block) |
| Power supply | 5.5/2.1mm DC socket |
Physical Properties | |
| Dimensions (Sender) | 115.9mm x 114.3mm x 38.7mm |
| Dimensions (Receiver) | 250mm x 104mm x 30mm |
| Dimensions (Control Panel) | 70mm x 32mm x 115mm |
| Housing Material | Metal |
| Net Weight | 1.227kg (2.71lb) |
| Operating Temperature | 0°C - 40°C (32°F - 104°F) |
| Storage Temperature | -20°C - 60°C (-4°F - 140°F) |
| Humidity | 20-90% RH (non-condensing) |
| Power Requirements | 24VDC 3.75A |
| Color | Transmitter: White, Receiver: Black, Control Panel: White |
www.lindy.lt
| Height | 110mm |
| Length | 275 mm |
| Weight | 1600g |
| Width | 300mm |
