AV Accessory - LINDY Cat.6 HDMI 4K60 USB 2.0 IR HDBaseT KVM Accessory 150 m
Product reference:
14-4002888393843
Extend HDMI and USB signals up to 150m using HDBaseT technology, which supports resolutions up to 3840x2160@60Hz. The device features PoC, IR support, and 18Gbps bandwidth.
AV Accessory - LINDY Cat.6 HDMI 4K60 USB 2.0 IR HDBaseT KVM Accessory 150 m
Product reference:
14-4002888393843
Extend HDMI and USB signals up to 150m using HDBaseT technology, which supports resolutions up to 3840x2160@60Hz. The device features PoC, IR support, and 18Gbps bandwidth.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
8 - 9
business days

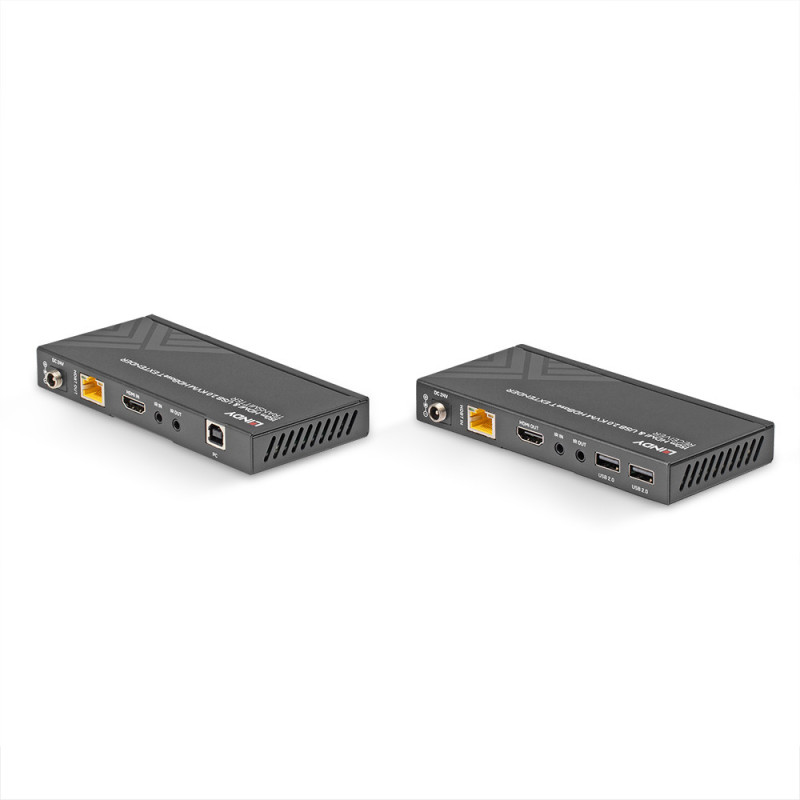

LINDY Cat.6 HDMI 4K60 USB 2.0 IR HDBaseT KVM Accessory 150 m
Extend HDMI and USB signals up to 150m using HDBaseT technology, supporting resolutions up to 3840x2160@60Hz. Features include PoC, IR support, and 18Gbps bandwidth.
- Extends HDMI 4K60 video up to 150 m (492.12 ft) with USB 2.0 and IR support.
- Supports the highest resolution 3840x2160@60Hz with 18Gbps bandwidth.
- There is Power over Cable (PoC) and a long-range mode, allowing for various installations.
- Many connections are included for easy integration: HDMI, USB, and IR ports.
Features | |
|---|---|
| Product type | AV Attachment |
| Model | 150m Cat.6 HDMI 4K60, USB 2.0 IR HDBaseT KVM extender |
Specifications | |
| AV interface | HDMI® |
| Interface standard | HDMI® 2.0, USB 2.0 |
| Maximum distance | 100 m (328.08 ft) at 3840x2160@60Hz; 150 m (492.12 ft) at 1920x1080@60Hz |
| HDCP support | 2.2 |
| EDID bandwidth | DIP switch with copy function |
| IR support | 20 - 60KHz |
| Transmission protocol | HDBaseT |
| Chipset | VS010-A0 |

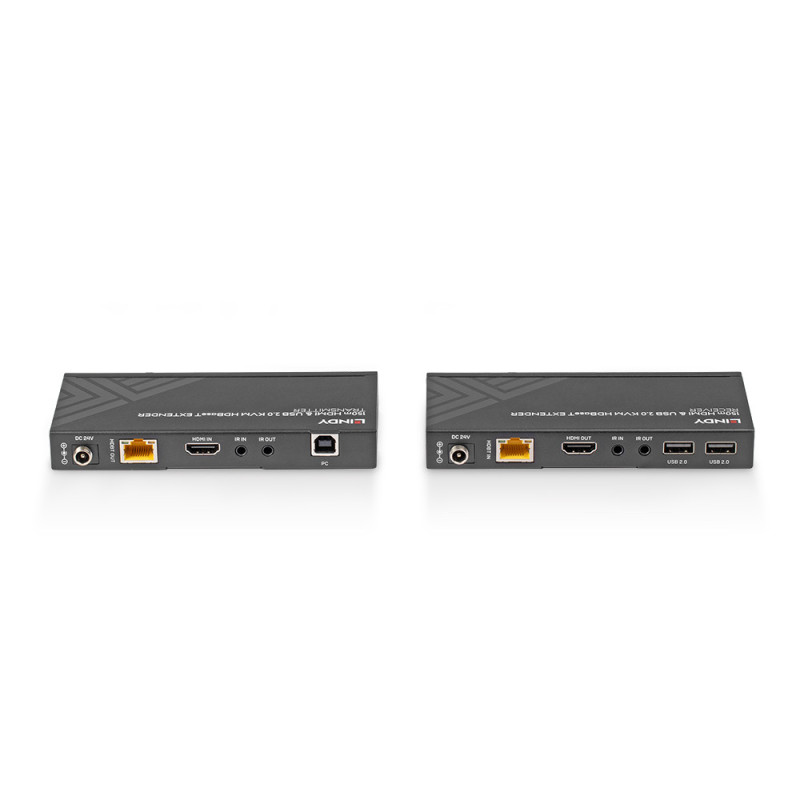

Connectors | |
| Sender input | HDMI® Type A (Female), USB Type B (Female), 3.5mm IR (Female) |
| Sender output | RJ-45 (Female), 3.5mm AND (Female) |
| Receiver input | RJ-45 (Female), 3.5mm AND (Female) |
| Receiver output | HDMI® Type A (Female), 2 x USB Type A (Female), 3.5mm IR (Female) |
| Power connector | 5.5/2.1mm |
Physical properties | |
| Dimensions (approximate) | 140x65x18mm (5.51x2.56x0.71in) per unit |
| Housing | Metal |
| Net weight | 0.79kg (1.74lb) |
| Working temperature | 0°C - 40°C (32°F - 104°F) |
| Storage temperature | -20°C - 60°C (-4°F - 140°F) |
| Humidity | 20 - 90% RH (non-condensing) |
| Power requirements | 24VDC 1A |
| Color | Black |
Additional information | |
| Special features | Power over Cable (PoC), Long range mode |
| Product compliance | CE, UKCA, FCC, RoHS, REACH California Proposition 65 |
www.lindy.lt
| Height | 75 mm |
| Length | 245 mm |
| Weight | 1020 grams |
| Width | 185 mm |
