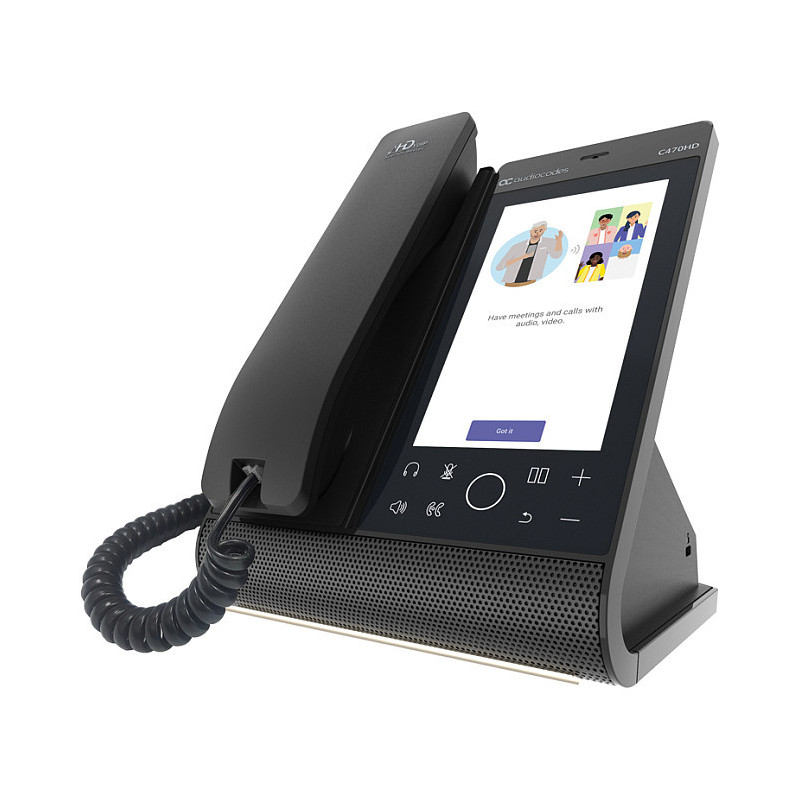

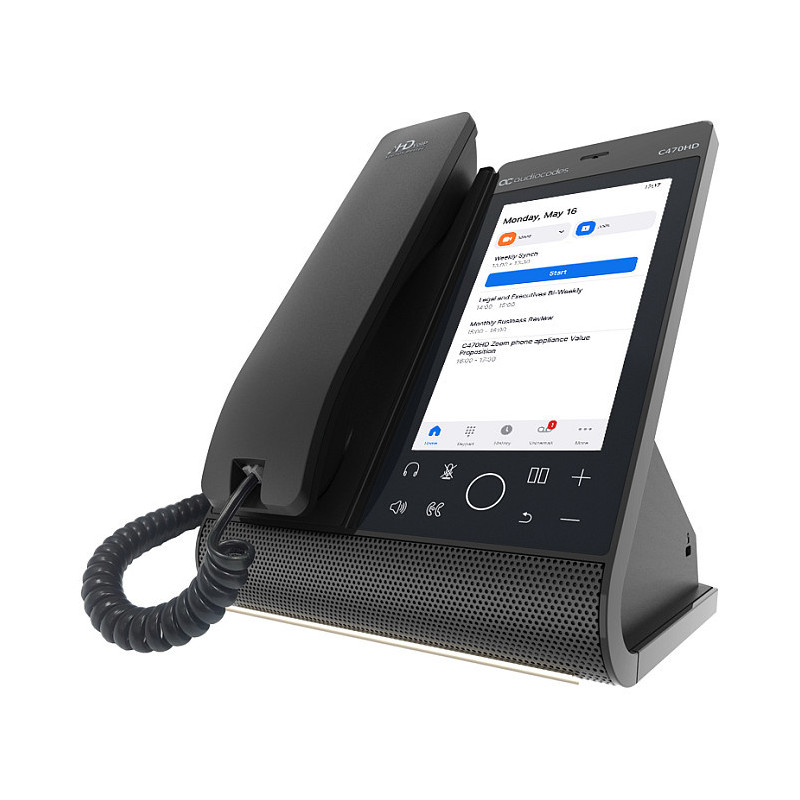

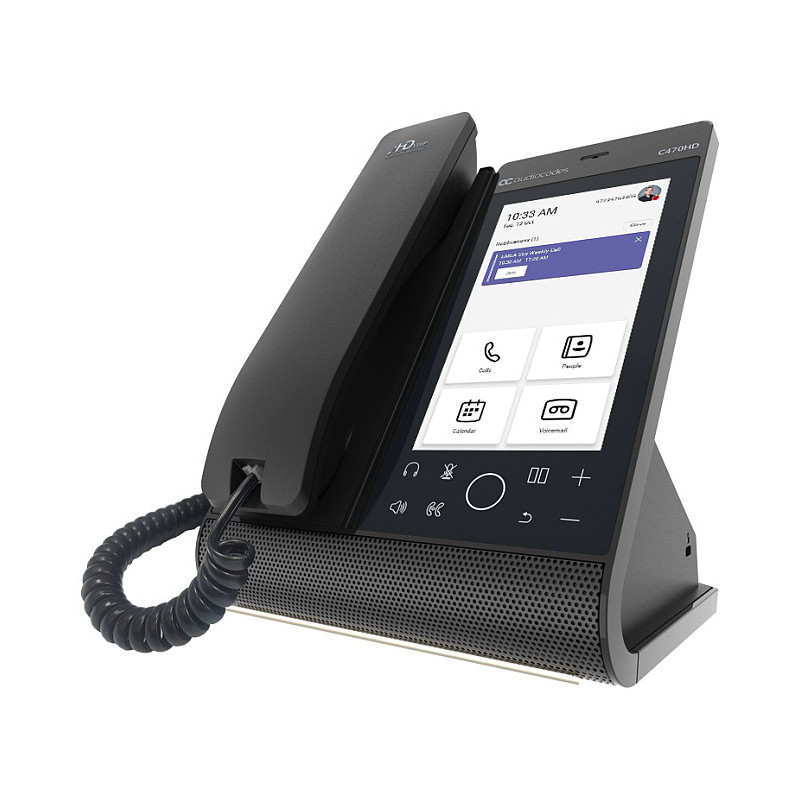

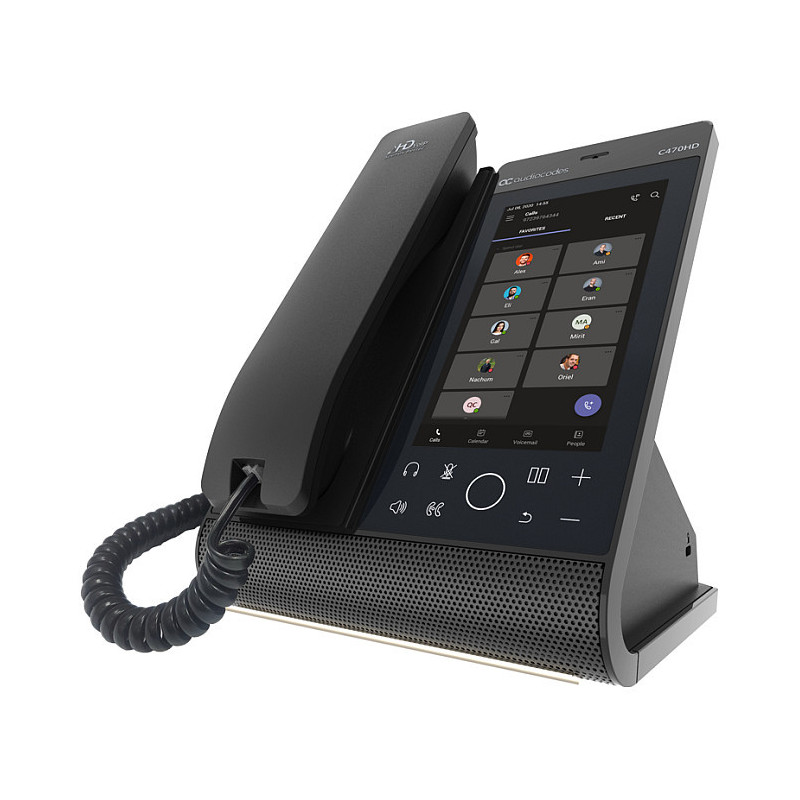

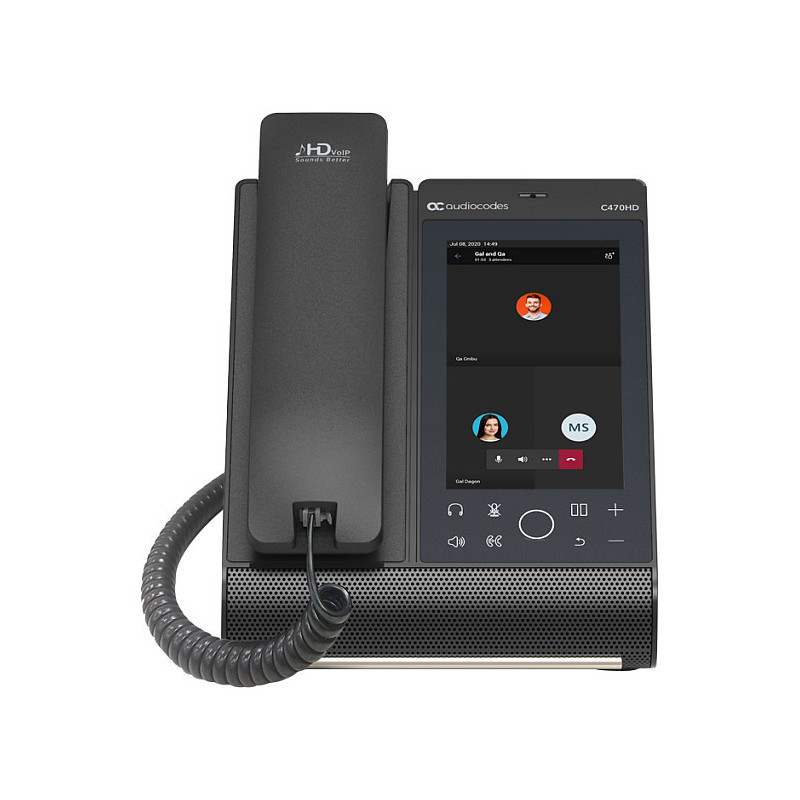

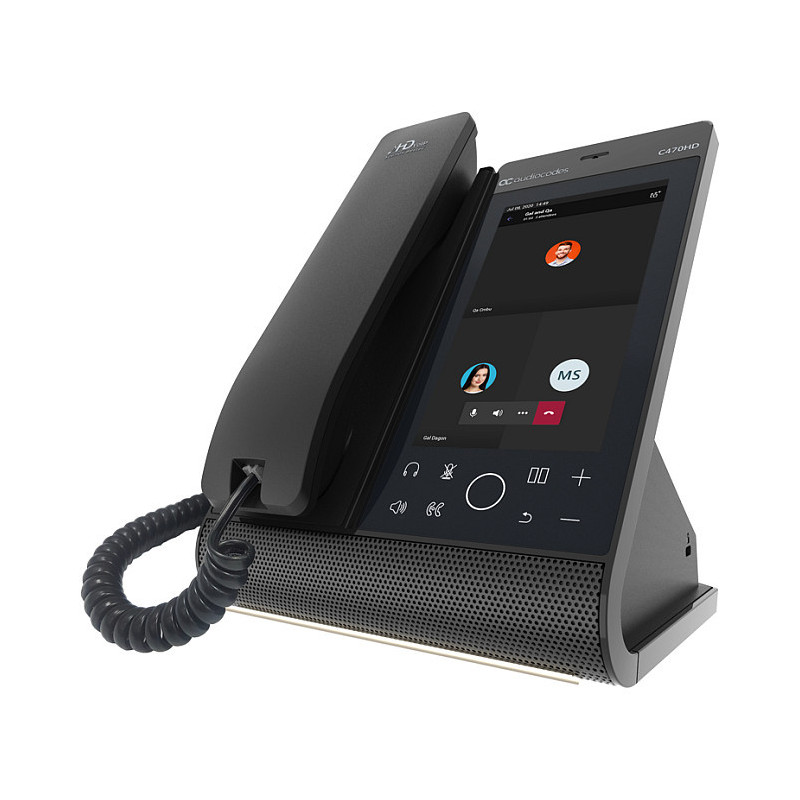

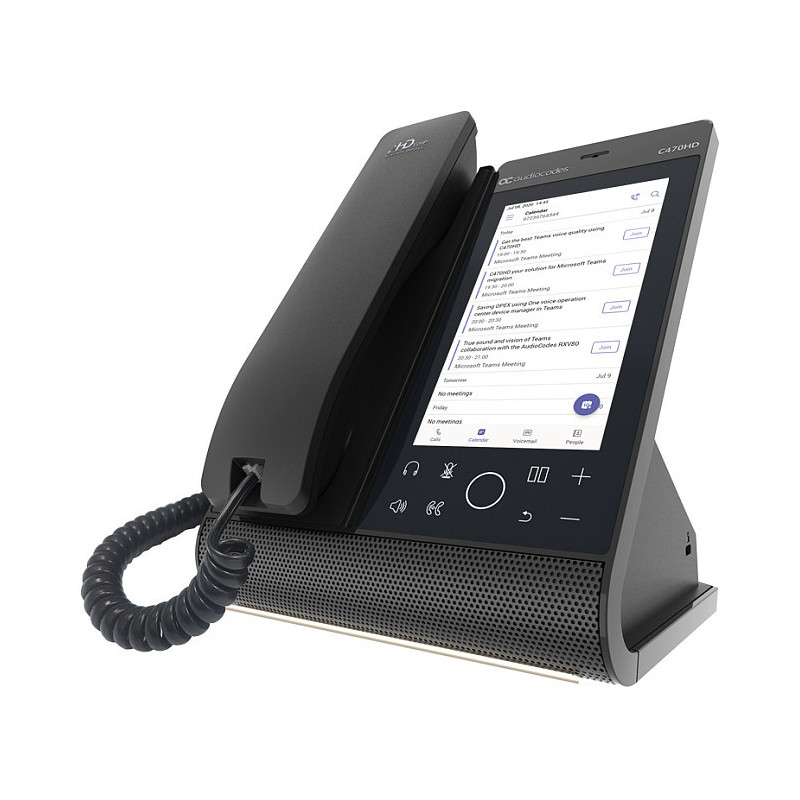

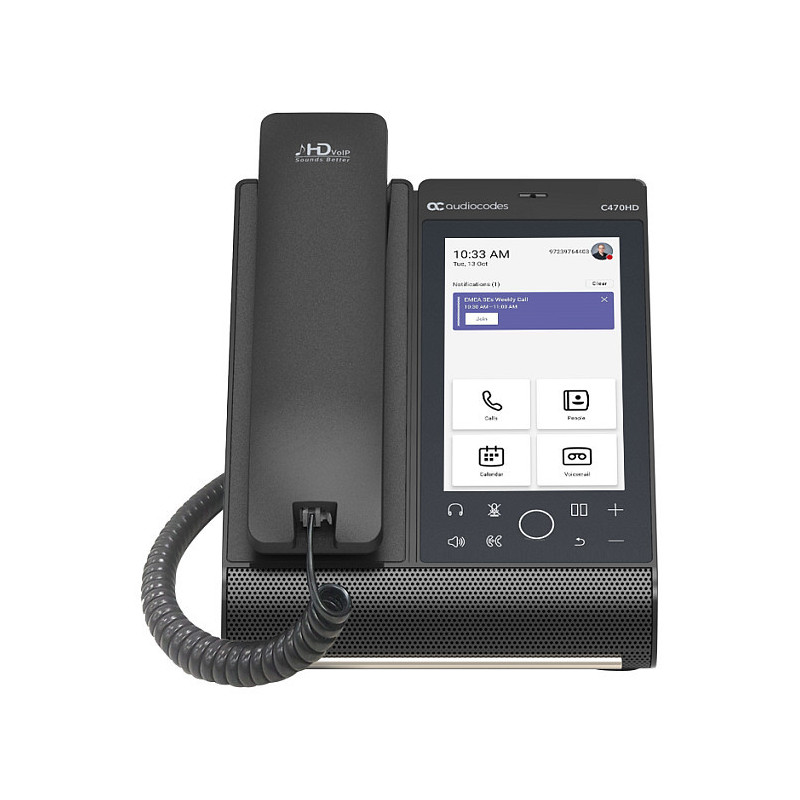

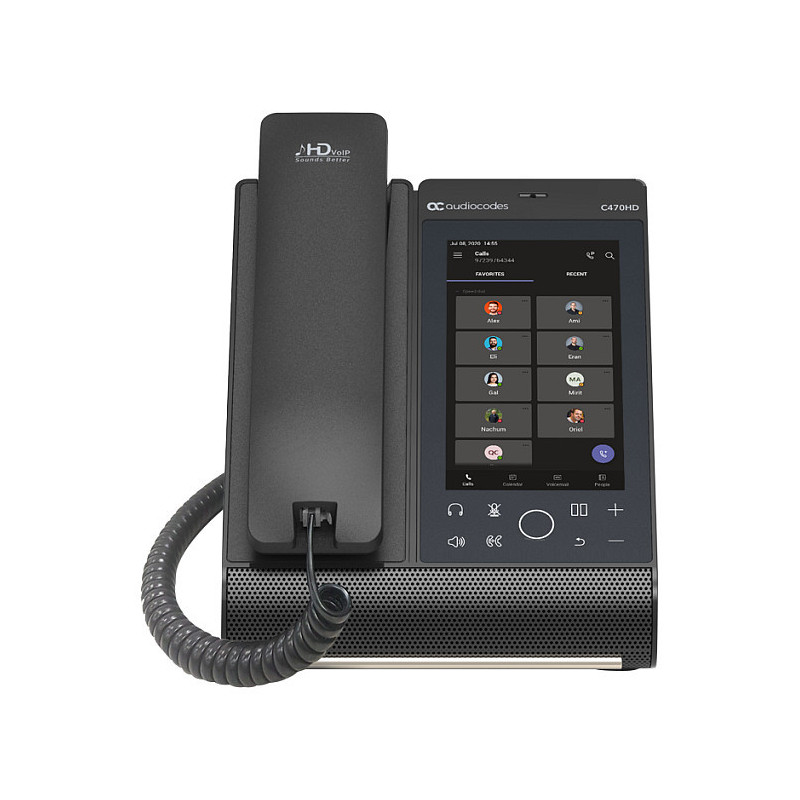

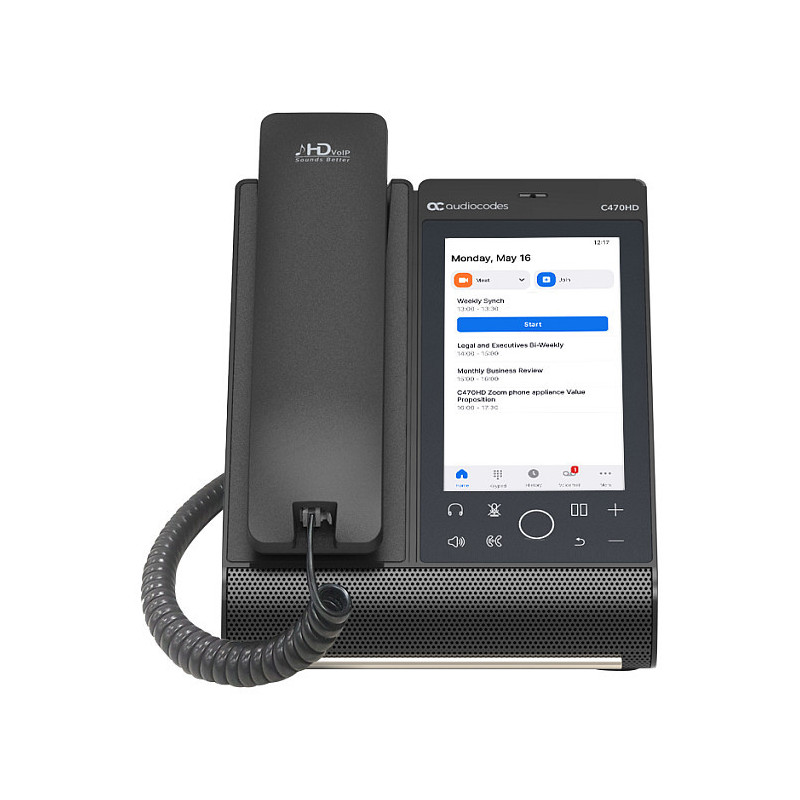

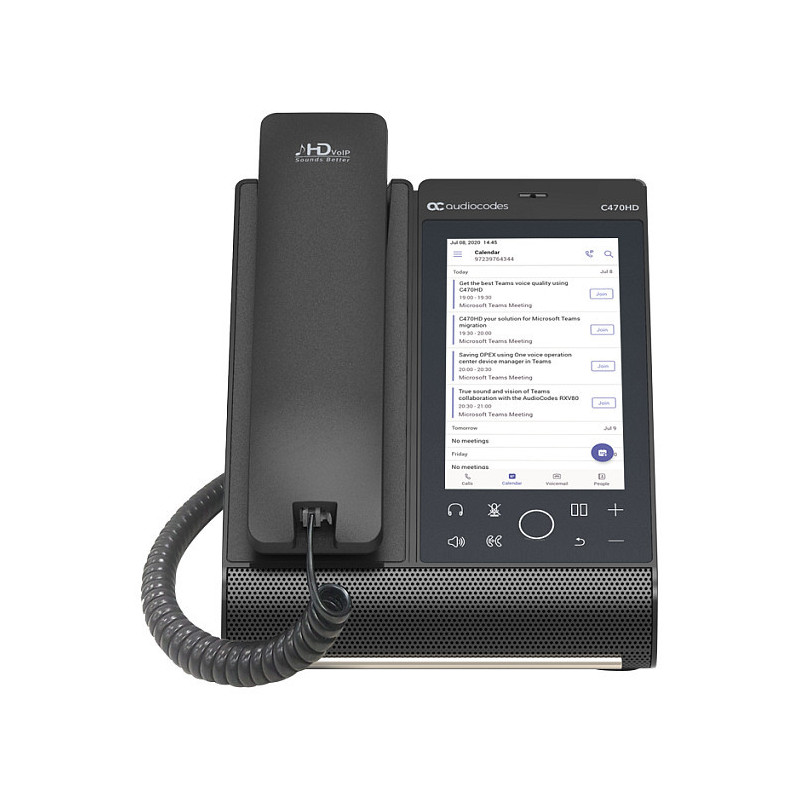

AudioCodes C470HD IP phone

AudioCodes Teams C470HD Total Touch IP-Phone PoE GbE with integrated BT and Dual Band Wi-Fi. Product type: IP Phone, Product colour: Black, Handset type: Wired handset. Operating system installed: Android. Display: TFT, Display diagonal: 14 cm (5.5"), Display resolution: 720 x 1280 pixels. Voice codecs: G.711, G.722, G.729, Silk. Ethernet LAN interface type: Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000 Mbit/s, Wi-Fi standards: 802.11b, 802.11g, Wi-Fi 4 (802.11n)

The AudioCodes Microsoft Teams-native C470HD IP phone is a feature-rich, executive high-end business phone for Microsoft Teams. The C470HD is equipped with a large, single surface, full touch interface, incorporating an exceptionally sharp 5.5" color touch screen, with optional support for Wi-Fi and Bluetooth.

Design

Product type: IP Phone
Handset type: Wired handset
Product colour: Black
Mounting: Desk

Performance

Operating system installed: Android
Operating system version: 9.0

Phone features

Feature: Full duplex

Management features

Feature: Firmware upgradeable

Display

Display: TFT
Display diagonal: 14 cm (5.5")
Display resolution: 720 x 1280 pixels
Feature: Touchscreen

Audio

Feature: Speakerphone
Voice codecs: G.711, G.722, G.729, Silk
Feature: Echo cancellation
Feature: Voice activity detection
Feature: Adaptive jitter buffers
Feature: Comfort noise generation (CNG)
Feature: Packet loss concealment (PLC)

Network

Feature: Ethernet LAN
Ethernet LAN interface type: Gigabit Ethernet
Ethernet LAN data rates: 10,100,1000 Mbit/s
Feature: Wi-Fi
Wi-Fi standards: 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Feature: Bluetooth
Bluetooth version: 5.0
Security algorithms: 802.1x RADIUS, HTTPS, TLS
Networking standards: IEEE 802.3af

Ports & interfaces

USB 2.0 ports quantity: 1
Ethernet LAN (RJ-45) ports: 2
RJ-9 ports quantity: 1
WAN connection type: RJ-45
Feature: Cable lock slot

Certificates

Feature: Sustainability compliance
Compliance certificates: Federal Communications Commission (FCC)

Power

Feature: Power over Ethernet (PoE)
AC adapter input voltage: 100 - 240 V
AC adapter output voltage: 12 V
AC adapter output current: 2 A

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -20 - 70 °C

Weight & dimensions

Width: 180 mm
Depth: 165 mm
Height: 230 mm
Weight: 1.2 kg
Package width: 238 mm
Package depth: 275 mm
Package height: 174 mm
Package weight: 1.74 kg

Packaging content

Feature: Base station
Handset: Yes
Number of handles included: 1 pc(s)
Cables included: LAN (RJ-45)

Logistics data

Master (outer) case gross weight: 12.3 kg
Master (outer) case length: 540 mm
Master (outer) case width: 490 mm
Master (outer) case height: 308 mm
