ATEN CL5708MW rack console

ATEN CL5708MW. Display diagonal: 43.9 cm (17.3"), Display resolution: 1920 x 1080 pixels, Display: LCD. Keyboard port type: USB, PS/2, Mouse port type: USB, PS/2, Video port type: VGA. Keyboard language: German, Keyboard layout: QWERTZ. Power consumption (typical): 15.4 W, AC adapter input voltage: 100 - 240 V, AC adapter frequency: 50/60 Hz. Width: 689.2 mm, Height: 44 mm, Depth: 480 mm

The CL5708 Slideaway - LCD KVM Switch series is a control unit that allows access to multiple computers from a single PS/2 or USB KVM (keyboard, video, and mouse) console. A single CL5708 can control up to 8 or 16 computers. As many as 31 additional KVM switches can be daisy-chained to the CL5708, so that up to 256 computers can all be controlled from a single KVM console.

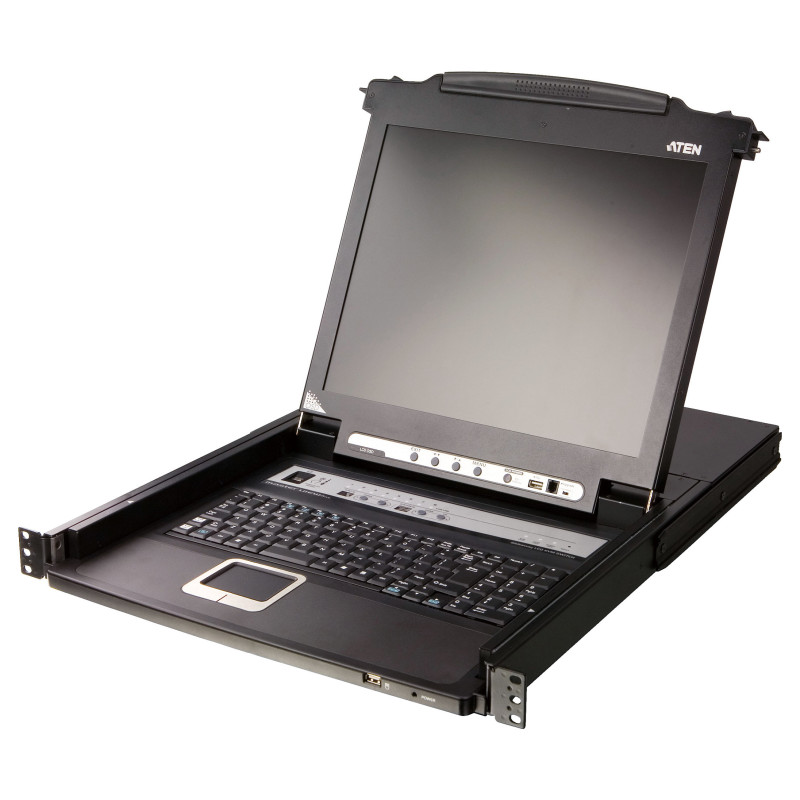

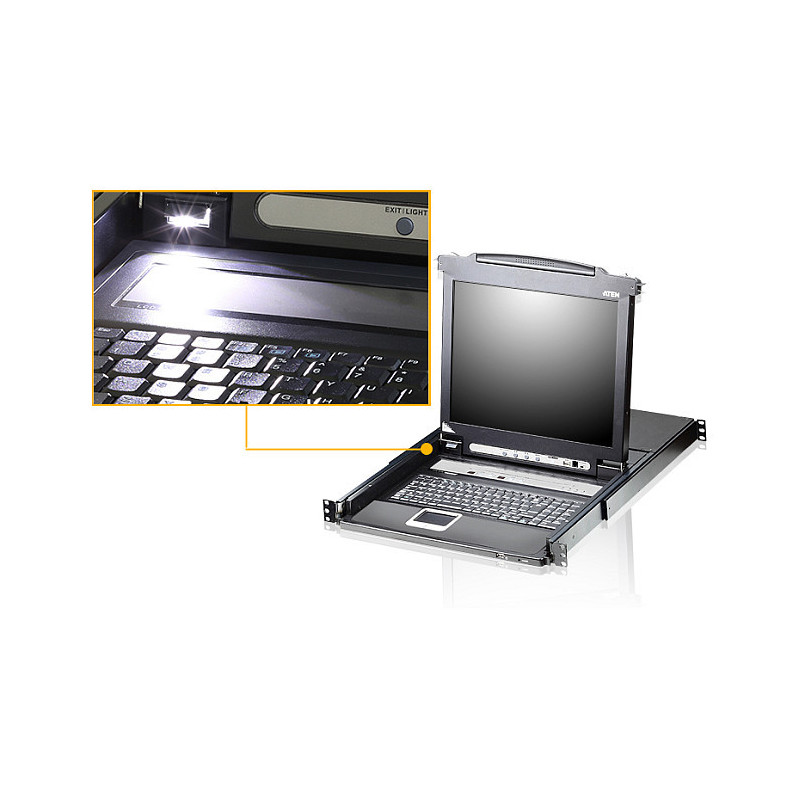

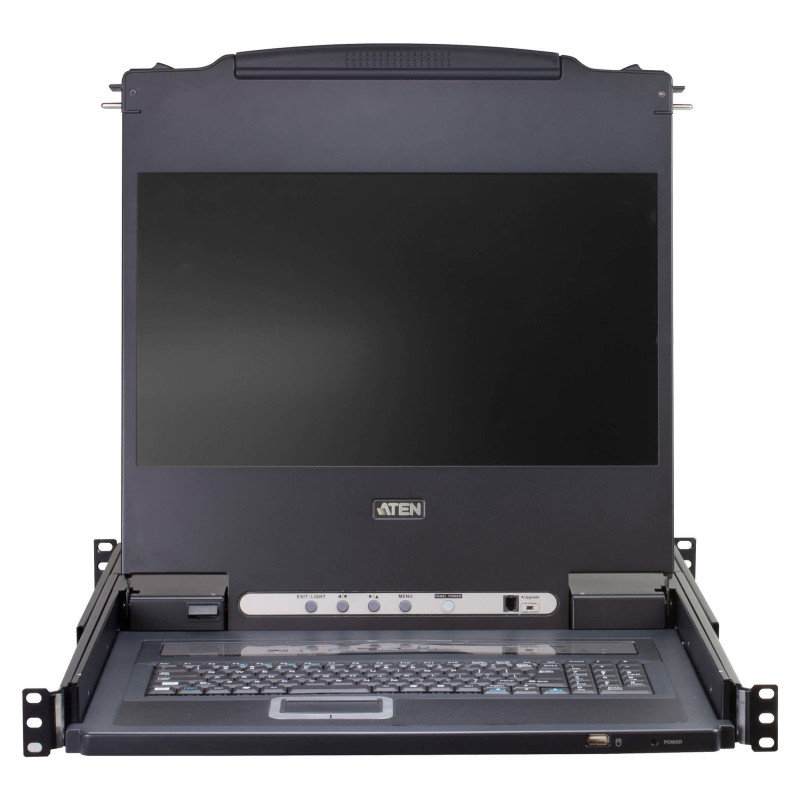

The CL5708 offers a space-saving, streamlined approach to KVM switch technology by integrating a keyboard, 17", 17.3" or 19" LED-backlit LCD monitor, and touchpad in a 1U rack-mountable sliding housing. To enhance security, the CL5708 offers the option to use a fingerprint identification system for controlling access to both the CL5708 itself and the servers it commands.

The CL5708 is built on a modular design. The KVM section can be detached from the switch section for convenient maintenance and repair.

Display

Display diagonal: 43.9 cm (17.3")
Display resolution: 1920 x 1080 pixels
Display: LCD
Display brightness: 250 cd/m²
Contrast ratio (typical): 800:1
Viewing angle, horizontal: 170°
Viewing angle, vertical: 170°
Feature: On Screen Display (OSD)
Pixel pitch: 0.1989 x 0.1989 mm
Response time: 16 ms
Supported resolutions: 1280 x 1024 @75 Hz; DDC2B, 1920 x 1200 @ 60 Hz

Technical details

Material: Metal, Plastic
Product colour: Black
Feature: Hot-Plug support
Operating relative humidity (H-H): 0 - 85%
Feature: Built-in KVM switch
KVM switch ports quantity: 8
Maximum resolution: 1920 x 1200 pixels
Feature: Rack mounting
Console port: SPHD-18
Feature: Daisy chain
Number of computers controlled: 256
Feature: On/off switch
LED indicators: Yes
Feature: Push button
Auto scan delay (min): 1 s
Auto scan delay (max): 255 s
Compliance certificates: RoHS
Rack capacity: 1U
Country of origin: China

Ports & interfaces

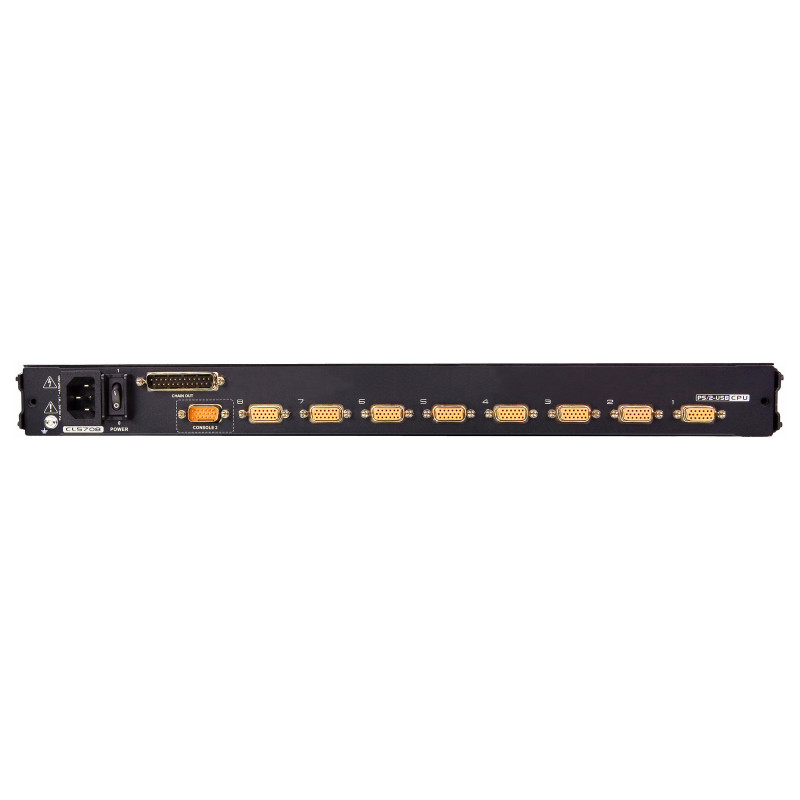

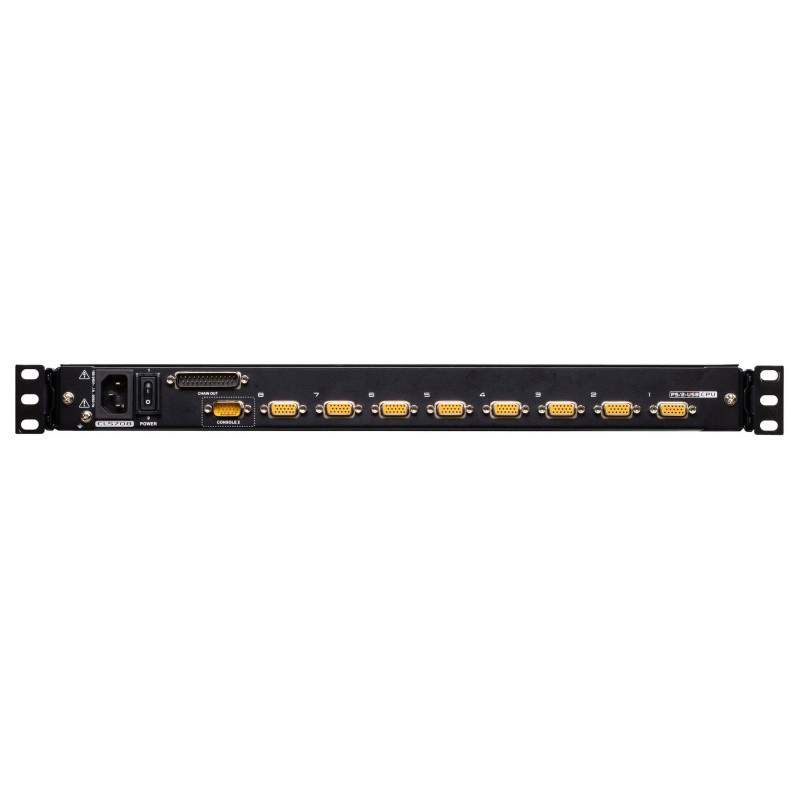

VGA (D-Sub) ports quantity: 8
Keyboard port type: USB, PS/2
Mouse port type: USB, PS/2
Video port type: VGA

Keyboard

Feature: Built-in touchpad
Keyboard language: German
Keyboard layout: QWERTZ
Feature: Hot keys

Power

Power consumption (typical): 15.4 W
AC adapter input voltage: 100 - 240 V
AC adapter frequency: 50/60 Hz
Input current: 1 A
Feature: AC (power) in

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -20 - 60 °C

System requirements

Windows operating systems supported: Yes
Mac operating systems supported: Yes
Linux operating systems supported: Yes

Weight & dimensions

Width: 689.2 mm
Height: 44 mm
Depth: 480 mm
Weight: 13.4 kg

Packaging data

Package weight: 17.1 kg
Package width: 668 mm
Package depth: 833 mm
Package height: 135 mm

Packaging content

Cables included: AC, KVM
Feature: Quick installation guide
Feature: Manual
Feature: Rack mount kit

Logistics data

Master (outer) case width: 668 mm
Master (outer) case length: 833 mm
Master (outer) case height: 135 mm
Master (outer) case gross weight: 17.1 kg
