ASSMANN Electronic DN-651118 network switch

ASSMANN Electronic DN-651118. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 5. Full duplex. MAC address table: 4000 entries, Switching capacity: 10 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab. DC input voltage: 48 - 57 V. Wall mountable

Ports interfaces

Basic switching RJ-45 Ethernet ports quantity: 5
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)

Network

Networking standards: IEEE 802.3, IEEE 802.3ab
10G support: No
Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T
Cable types supported: Cat3, Cat4, Cat5
Full duplex: Yes
Flow control support: Yes
Auto MDI/MDI-X: Yes
MAC address auto-learning supported: Yes
MAC address auto-aging supported: Yes

Data transmission

Switching capacity: 10 Gbit/s
MAC address table: 4000 entries
Store-and-forward: Yes

Design

Product colour: Black, Blue

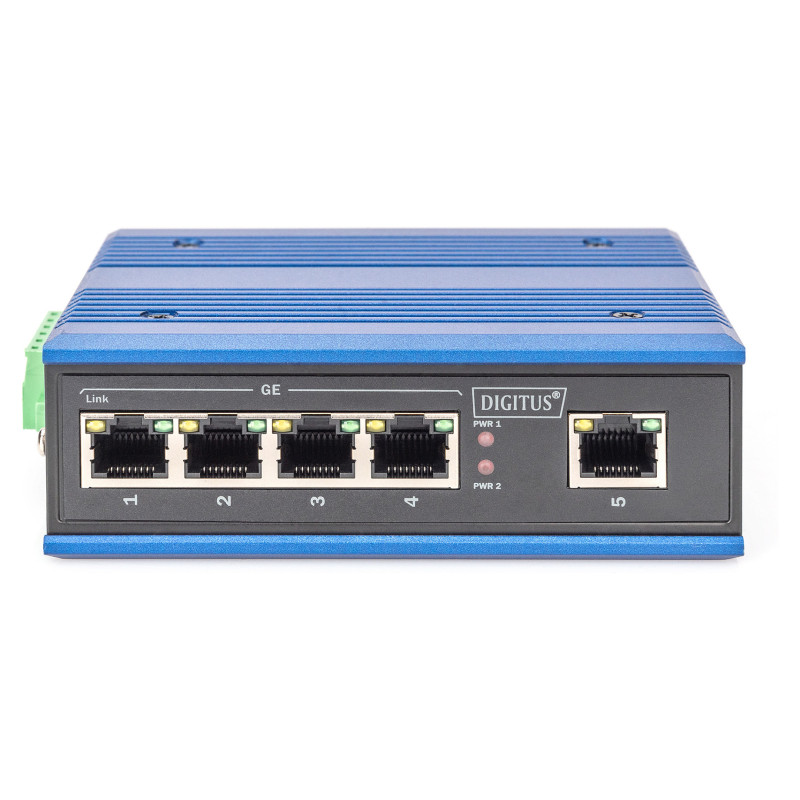

LED indicators: Yes
Wall mountable: Yes

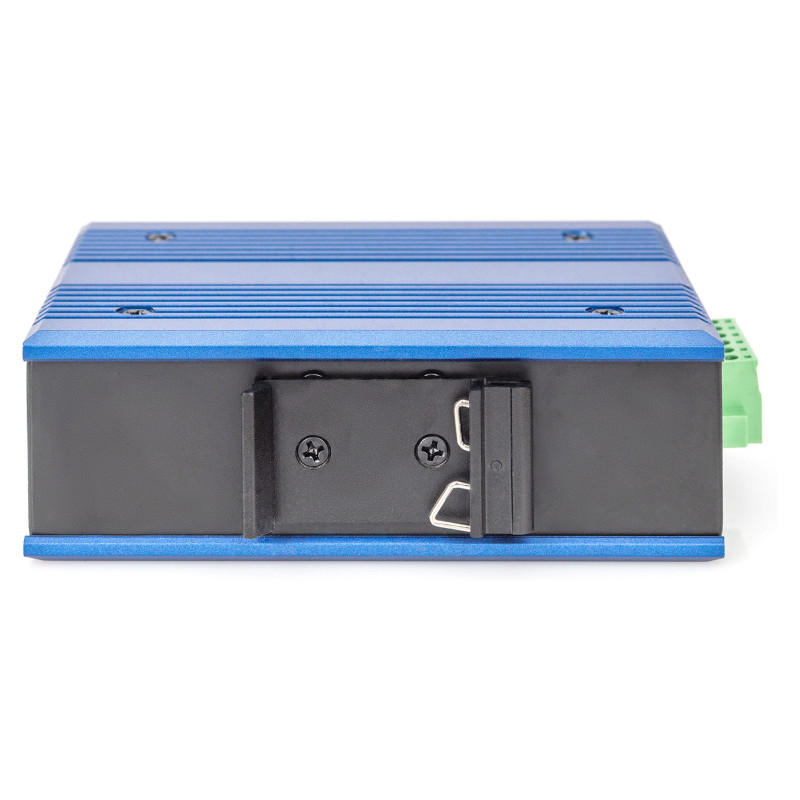

DIN rail mounting: Yes
Number of fans: 0 fan(s)

Power

Power supply included: No
Redundant power supply (RPS) support: Yes

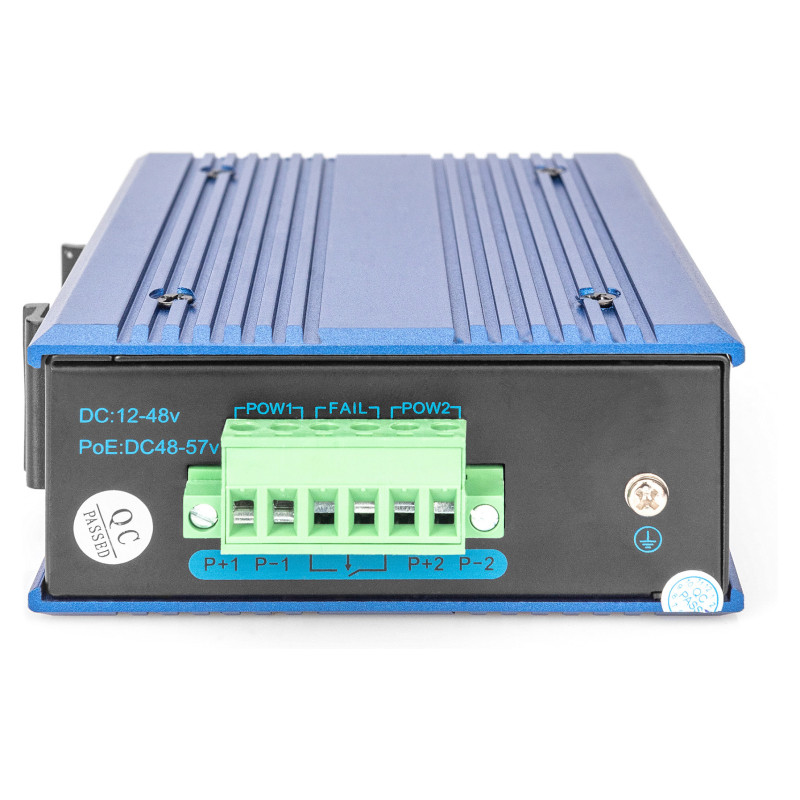

DC input voltage: 48 - 57 V

Power over Ethernet (PoE)

Power over Ethernet (PoE): No

Operational conditions

Operating temperature (T-T): -40 - 85 °C
Storage temperature (T-T): -40 - 85 °C
Operating relative humidity (H-H): 0 - 95%
Storage relative humidity (H-H): 0 - 95%

Weight dimensions

Width: 86 mm
Depth: 128 mm
Height: 34 mm

Packaging content

User guide: Yes

Logistics data

Harmonized System (HS) code: 85176990
