Extralink EX.3807 network switch

Extralink PoE Switch ARES 16x Gigabit PoE/PoE+, 2x SFP, 1x Console, 150W, Managed. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 16. Switching optical modules type: Gigabit Ethernet. MAC address table: 8000 entries, Switching capacity: 36 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ab, IEEE 802.3ad, IEEE.... Power over Ethernet (PoE). Rack mounting, Form factor: 1U

Extralink ARES - fully manageable, gigabit, 16-port switch

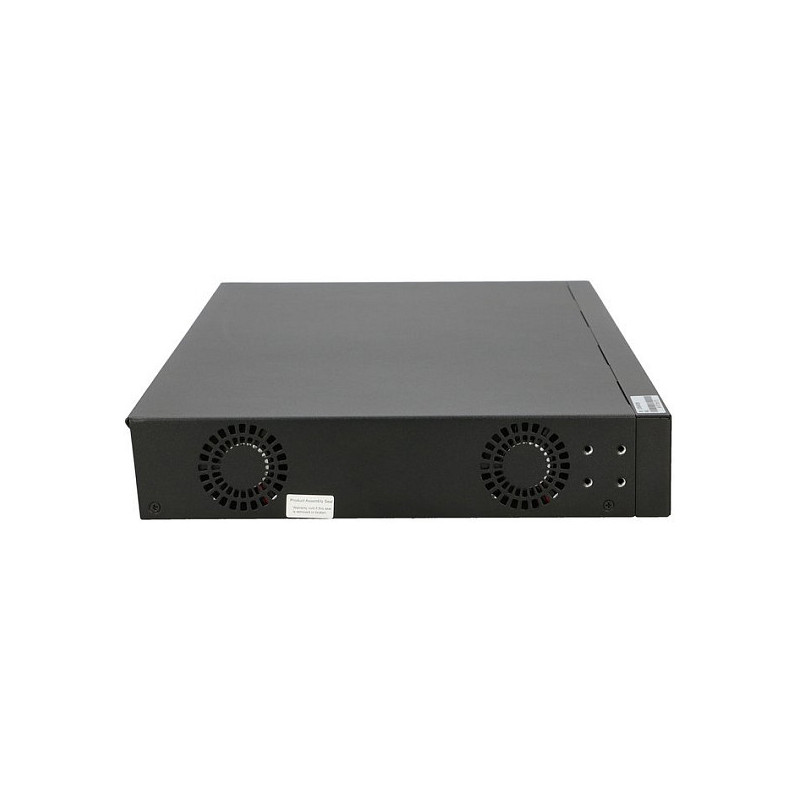

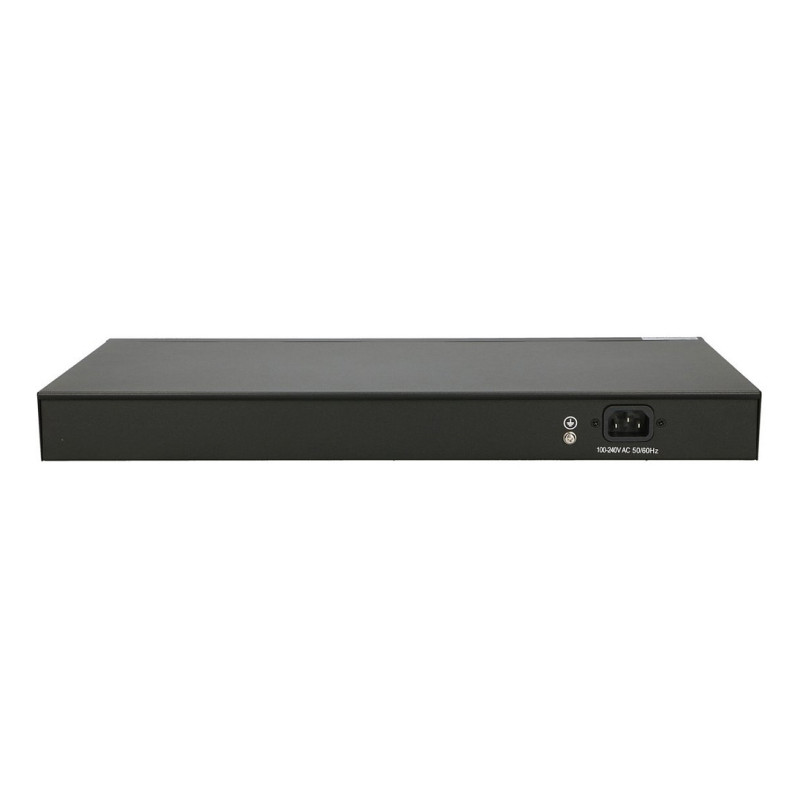

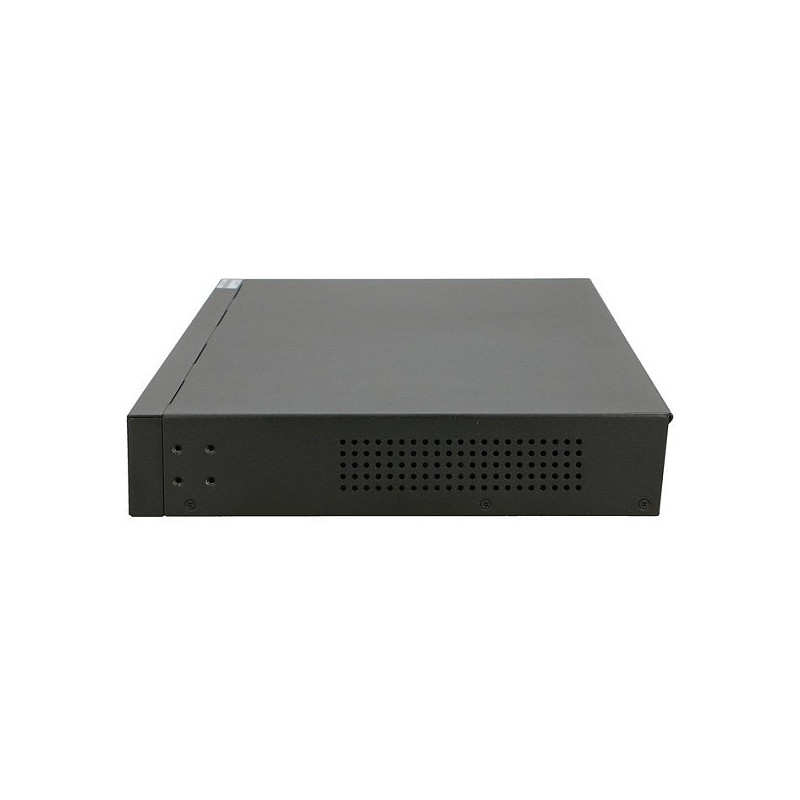

Extralink ARES is an Ethernet POE switch with 16 Gigabit Base-T and 2 Gigabit optical ports (1 console port, 16 Gigabit POE ports, 2 Gigabit SFP ports, standard 220 V AC power supply, 330 W POE power, cooling fan, 1U, 19" rackmountable).

Management features

Switch type: Managed
Switch layer: L2
Feature: Web-based management

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 16
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
SFP module slots quantity: 2

Network

Cable types supported: Cat5e, Cat6, Fiber
Feature: Flow control support
Feature: Auto-sensing
Feature: Auto-negotiation

Optical fiber

Switching optical modules type: Gigabit Ethernet

Data transmission

Switching capacity: 36 Gbit/s
Forwarding rate: 23.8 Mpps
MAC address table: 8000 entries
Feature: Store-and-forward
Feature: Jumbo frames support

Security

DHCP features: DHCP snooping
Feature: Access Control List (ACL)
Feature: IGMP snooping
Feature: Loop protection

Multicast features

Feature: Multicast support

Design

Feature: Rack mounting
Form factor: 1U
Product colour: Black, Grey
Housing material: Metal
Feature: Reset button

Power

Power source: AC
Feature: Power supply included
AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz

Power over Ethernet (PoE)

Feature: Power over Ethernet (PoE)
Power over Ethernet (PoE) ports quantity: 16
Power over Ethernet plus (PoE+) ports quantity: 16
Power over Ethernet (PoE) voltage: 48 V
Power over Ethernet (PoE) power per port: 46 W
Total Power over Ethernet (PoE) budget: 150 W

Weight & dimensions

Width: 440 mm
Depth: 180 mm
Height: 44 mm

Packaging content

Feature: Quick start guide
Feature: User guide
Feature: Manual
