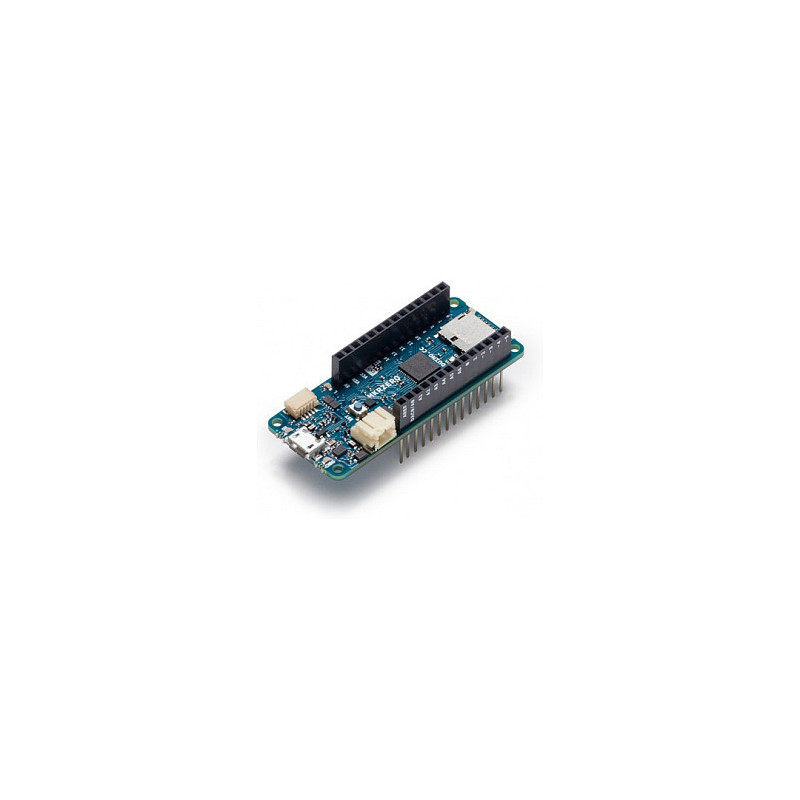

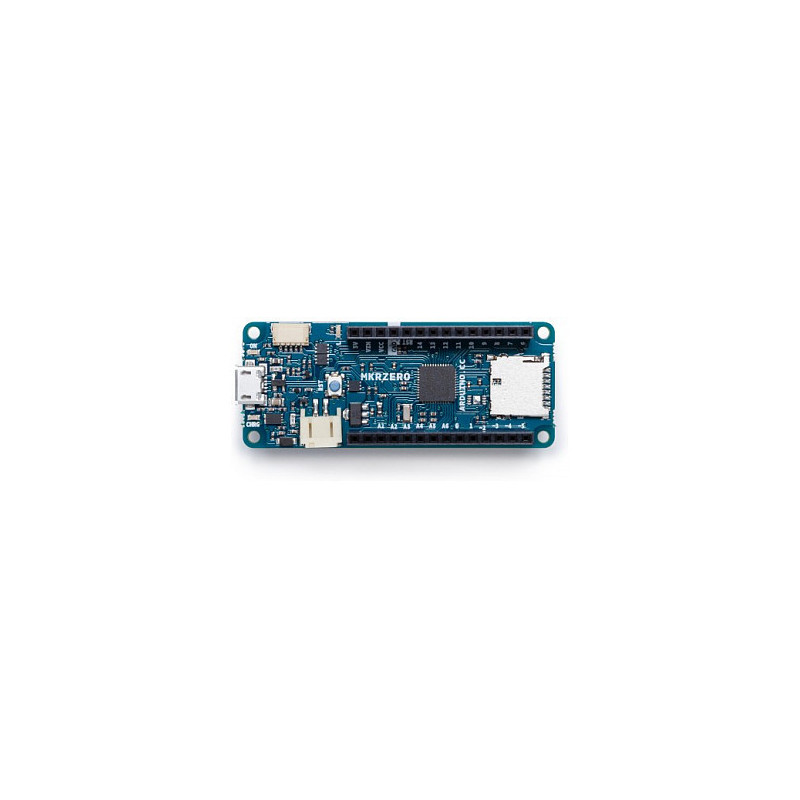

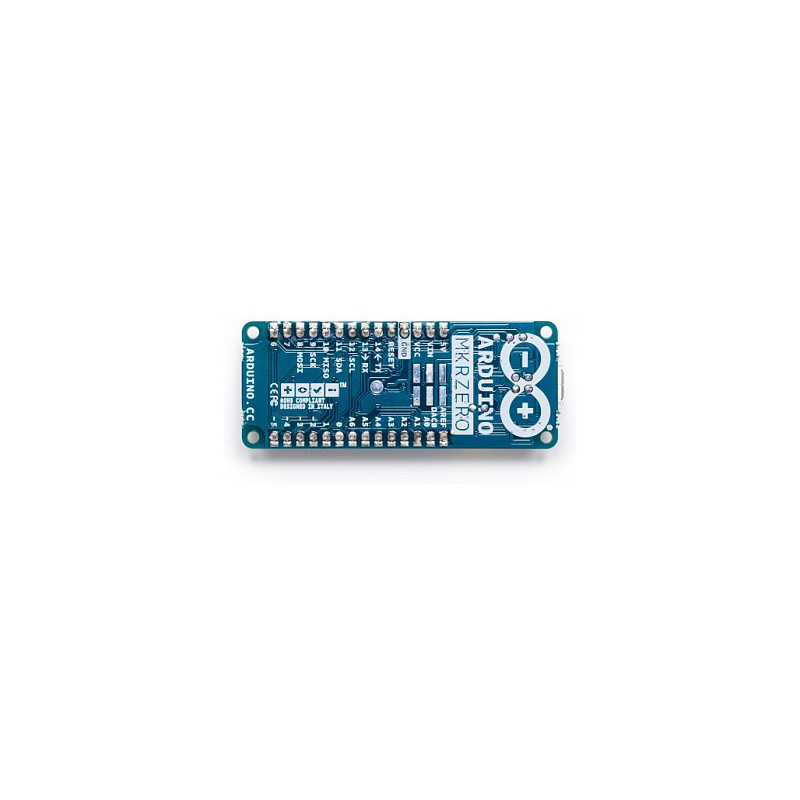

Arduino MKR ZERO development board
Product reference: 29-7630049200470

Arduino MKR ZERO, ARM Cortex M0+, 48 MHz, 256 KB, 32 KB, Arduino, Compute module

Arduino MKR ZERO development board

Product reference: 29-7630049200470

Arduino MKR ZERO, ARM Cortex M0+, 48 MHz, 256 KB, 32 KB, Arduino, Compute module

You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
69,16
Product in warehouse

Guarantee
24 month

Delivery from Europe in
5 - 10
business days

Your message has been successfully sent!
Fill in the required fields*

Arduino MKR ZERO. Processor model: ARM Cortex M0+. Memory clock speed: 48 MHz, Flash memory (microcontroller): 256 KB, SRAM (Static Random Access Memory): 32 KB. Form factor: Arduino, Board type: Compute module. DC current per I/O pin: 7 mA
The MKR ZERO brings you the power of a Zero in the smaller format established by the MKR form factor. The MKR ZERO board acts as a great educational tool for learning about 32-bit application development. It has an on-board SD connector with dedicated SPI interfaces (SPI1) that allows you to play with MUSIC files with no extra hardware! The board is powered by Atmel's SAMD21 MCU, which features a 32-bit ARM Cortex® M0+ core.
Warning: Unlike most Arduino Genuino boards, the MKRZero runs at 3.3V. The maximum voltage that the I/O pins can tolerate is 3.3V. Applying voltages higher than 3.3V to any I/O pin could damage the board.
The board contains everything needed to support the microcontroller; simply connect it to a computer with a micro-USB cable or power it by a LiPo battery. The battery voltage can also be monitored since a connection between the battery and the analog converter of the board exists.

Processor

Processor model: ARM Cortex M0+

Memory

Memory clock speed: 48 MHz
Flash memory (microcontroller): 256 KB
SRAM (Static Random Access Memory): 32 KB

Ports interfaces

USB ports quantity: 1
UART: Yes
I2C interface: Yes

Features

Form factor: Arduino
Board type: Compute module

Power

DC current per I/O pin: 7 mA


Weight0.022 kg
Manufacturer codeABX00012
