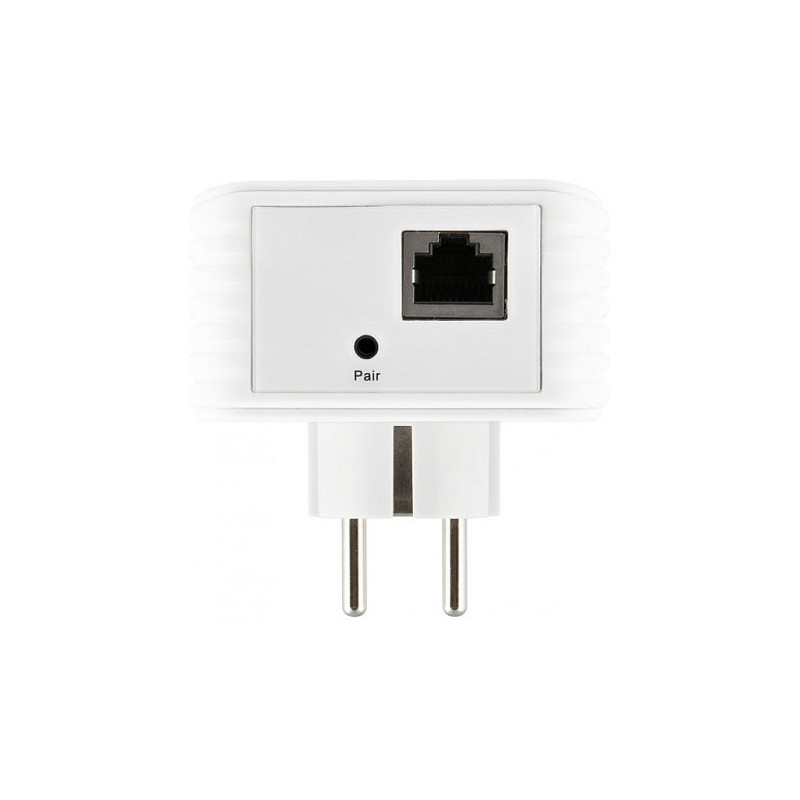

ALLNET ALL1681203 PowerLine network adapter

ALLNET ALL1681203. Maximum data transfer rate: 1200 Mbit/s, Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, Ethernet LAN interface type: Gigabit Ethernet. Power consumption (typical): 32 W, Power consumption (standby): 3 W, AC input voltage: 85-265 V. Product colour: White, Housing material: Plastic, Certification: CE. Width: 65 mm, Depth: 30 mm, Height: 115 mm. Compliance certificates: RoHS

Performance

Maximum data transfer rate: 1200 Mbit/s
Feature: Ethernet LAN
Ethernet LAN interface type: Gigabit Ethernet
Ethernet LAN data rates: 10,100,1000 Mbit/s
Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T
Ethernet LAN (RJ-45) ports: 1
Power over Ethernet (PoE) ports quantity: 1
Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3at
PowerLine standard: HomePlug AV2
Modulation: 8-QAM, 16-QAM, 64-QAM, 256-QAM, 4096-QAM, BPSK, OFDM, QPSK, ROBO
Security algorithms: 128-bit AES
Chipset: Qualcomm QCA7500 + QCA8334
Feature: Encryption button
Frequency range: 2 - 68 MHz
Feature: Quality of Service (QoS) support
Feature: Plug and Play

Power

Power consumption (typical): 32 W
Power consumption (standby): 3 W
AC input voltage: 85-265 V
Feature: Power over Ethernet (PoE)
Power over Ethernet (PoE) power per port: 30 W

Design

LED indicators: Yes
Product colour: White
Housing material: Plastic
Certification: CE

System requirements

Windows operating systems supported: Yes

Operational conditions

Operating temperature (T-T): 0 - 70 °C
Storage temperature (T-T): -10 - 70 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 10 - 95%

Weight & dimensions

Width: 65 mm
Depth: 30 mm
Height: 115 mm
Weight: 300 g

Certificates

Compliance certificates: RoHS

Packaging content

Quantity per pack: 1 pc(s)
Feature: Manual
Cables included: LAN (RJ-45)
