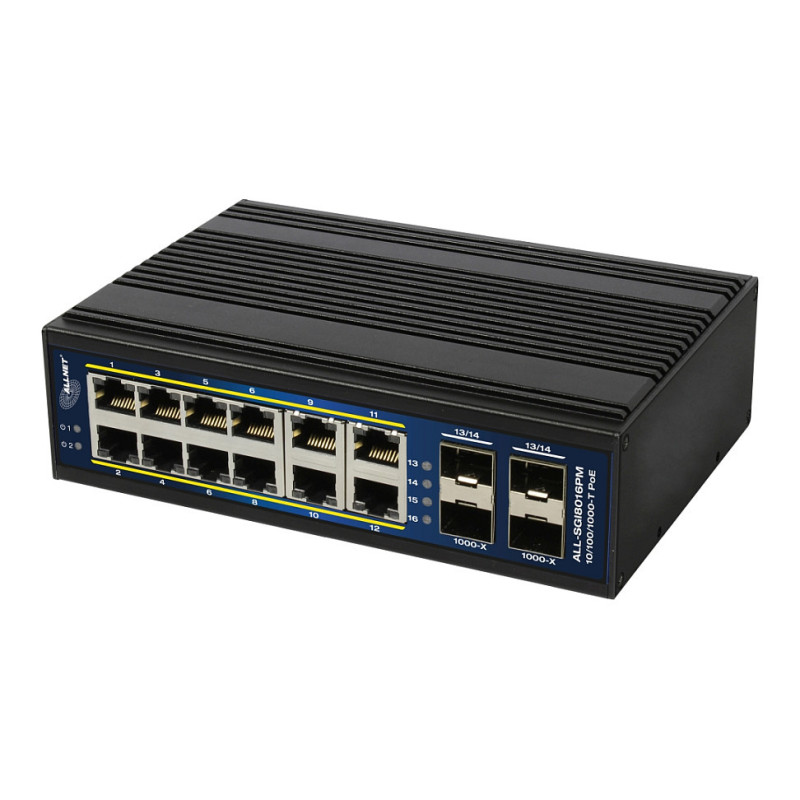

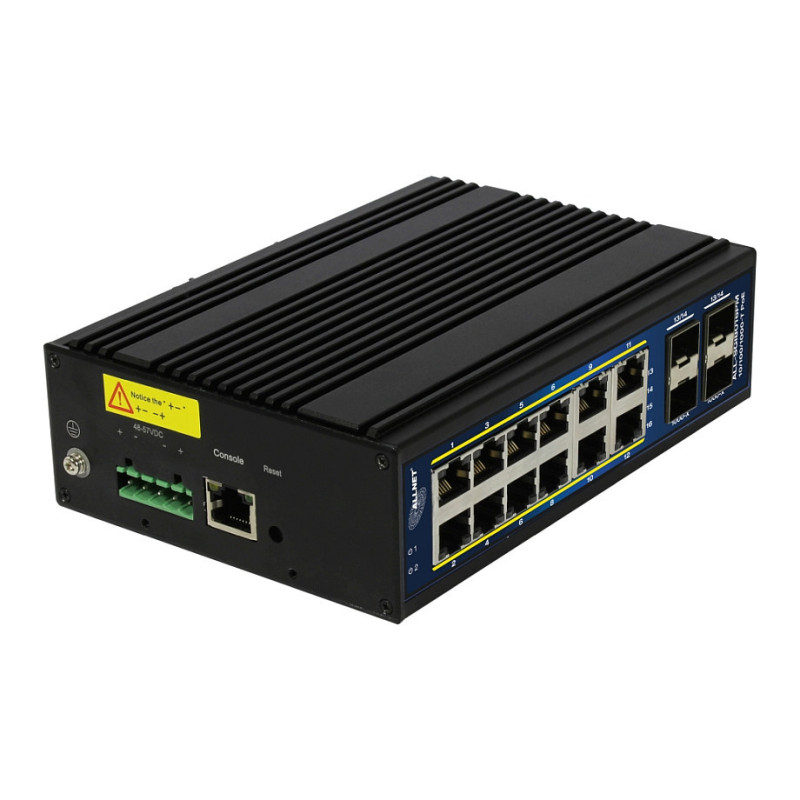

ALLNET ALL-SGI8016PM network switch

ALLNET ALL-SGI8016PM. Switch type: Managed, Switch layer: L2+/L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 12, Installed SFP modules quantity: 4. Full duplex. MAC address table: 16000 entries, Switching capacity: 32 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE.... DC input voltage: 48 - 57 V. Power over Ethernet (PoE). Wall mountable

Management features

Switch type: Managed
Switch layer: L2+/L3
Feature: Quality of Service (QoS) support
Feature: ARP inspection

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 12
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity: 12
Installed SFP modules quantity: 4

Network

Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T
Cable types supported: Cat5e, Cat6
Feature: Port mirroring
Feature: Full duplex
Feature: Flow control support
Feature: Link aggregation
Feature: Broadcast storm control
Feature: Spanning tree protocol
Ethernet LAN data rates: 10,100,1000 Mbit/s
Feature: Auto-negotiation
Feature: VLAN support
Virtual LAN features: MAC address-based VLAN, Multicast VLAN, Port-based VLAN, Private VLAN, Protocol-based VLAN, Stacked VLAN, Tagged VLAN
Number of VLANs: 4000

Data transmission

Switching capacity: 32 Gbit/s
Throughput: 23.8 Mpps
MAC address table: 16000 entries
Number of queues: 4

Security

DHCP features: DHCP snooping
Feature: Access Control List (ACL)
Feature: IGMP snooping
Security algorithms: SSH, SSH-2, SSL/TLS
Feature: MAC address filtering
Feature: Loop protection
Feature: BPDU filtering/protection
Authentication: Guest VLAN, Port-based authentication
Authentication type: RADIUS, TACACS+
Queue scheduling algorithms: SP, WRR+SP, Weighted Round Robin (WRR)

Multicast features

Feature: Multicast support

Protocols

Feature: GARP VLAN Registration Protocol (GVRP)
Routing protocols: OSPF, RIP

Design

Product colour: Black
Housing material: Metal
LED indicators: Yes
International Protection (IP) code: IP40
Feature: Wall mountable

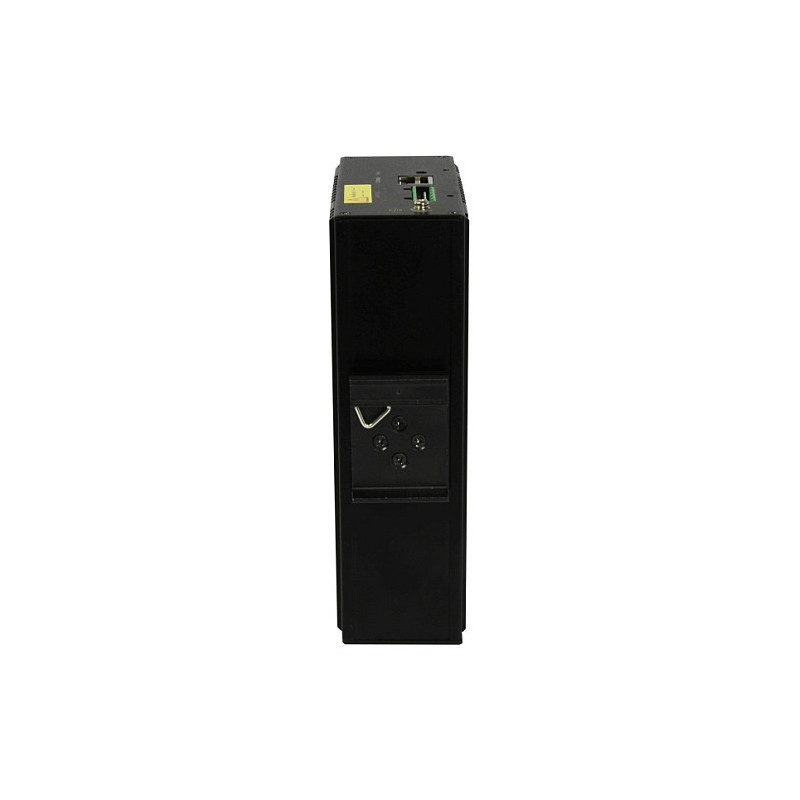

Feature: DIN rail mounting

Performance

Feature: Fanless

Power

Feature: Power supply included
Feature: Redundant power supply (RPS) support
DC input voltage: 48 - 57 V
Power consumption (max): 20 W

Power over Ethernet (PoE)

Feature: Power over Ethernet (PoE)
Power over Ethernet (PoE) ports quantity: 12
Power over Ethernet (PoE) power per port: 30 W

Operational conditions

Operating temperature (T-T): -40 - 75 °C
Storage temperature (T-T): -40 - 85 °C
Operating relative humidity (H-H): 0 - 95%

Weight & dimensions

Width: 165 mm
Depth: 114 mm
Height: 46 mm
Weight: 530 g
