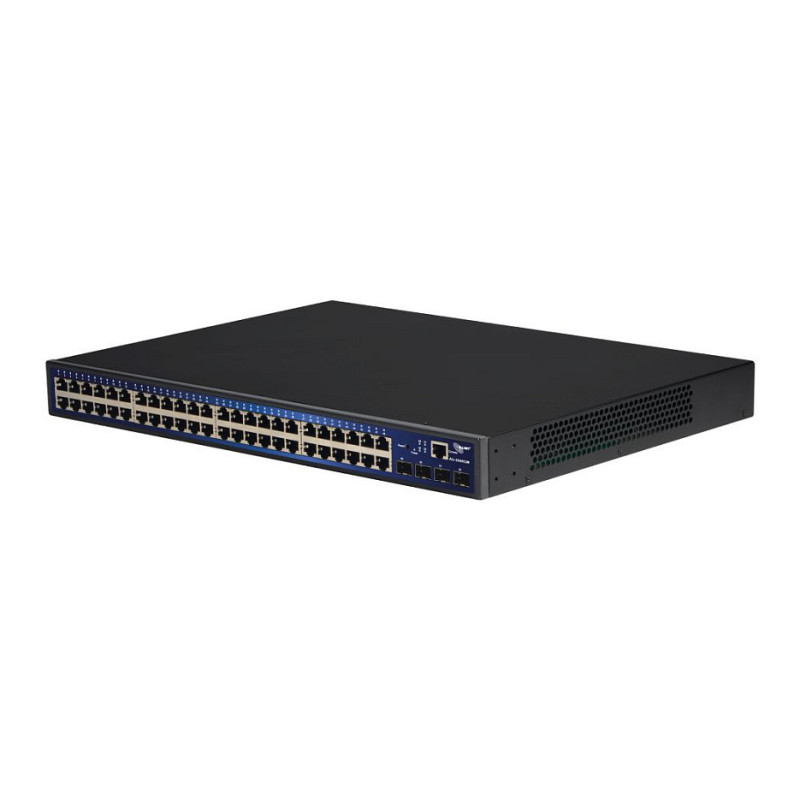

ALLNET ALL-SG8452M network switch

ALLNET ALL-SG8452M. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 48, Console port: RJ-45. Full duplex. Switching capacity: 104 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE...

The ALL-SG8452M is a 48 Ports seamless network device. This device integrates 1000Mbps Gigabit Ethernet, 100Mbps Fast Ethernet and 10Mbps Ethernet network capabilities in a highly flexible package.

With 48-10/100/1000Mbps Auto-Negotiation RJ45 ports, all UTP ports support Auto MDI/MDIX function. The Switch with a low-cost, easy-to-use, high performance upgrade your old network to a 1000Mbps Gigabit network. It is essential to helping solve network bottlenecks that frequently develop as more advanced computer user and newer applications continue to demand greater network resources.

Management features

Switch type: Managed
Switch layer: L2
Feature: Quality of Service (QoS) support
Feature: Web-based management

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 48
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
SFP module slots quantity: 4
Fiber optic connector: MiniGBIC
Console port: RJ-45

Network

Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x
Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T
Feature: Port mirroring
Feature: Full duplex
Feature: Flow control support
Feature: Link aggregation
Feature: Broadcast storm control
Feature: Auto MDI/MDI-X
Feature: Auto-negotiation
Feature: MAC address auto-learning supported
Feature: VLAN support
Virtual LAN features: Tagged VLAN, Port-based VLAN
Number of VLANs: 4000

Data transmission

Switching capacity: 104 Gbit/s
Feature: Store-and-forward
Feature: Jumbo frames support
Packet forwarding rate (1 Gbps): 1488000 pps
Packet forwarding rate (100 Mbps): 148800 pps
Packet forwarding rate (10 Mbps): 14880 pps

Security

Feature: Access Control List (ACL)
Feature: IGMP snooping
Security algorithms: SNMP
Feature: MAC address filtering

Multicast features

Feature: Multicast support
Number of multicast groups filtered: 256

Design

Product colour: Black
Housing material: Metal
LED indicators: Activity, Link, Speed

Power

AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz
Output voltage: 12 V
Output current: 4 A

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 5 - 90%

Weight & dimensions

Width: 440 mm
Depth: 330 mm
Height: 44 mm

Certificates

Certification: EMC/FCC, CE Class B; Safety/LVD EN60950-1
