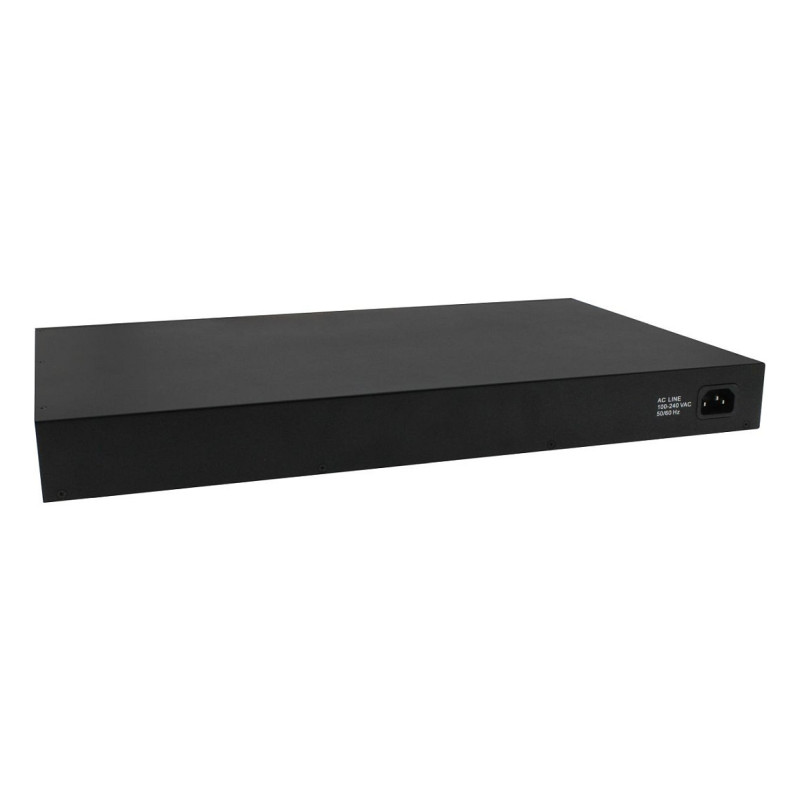

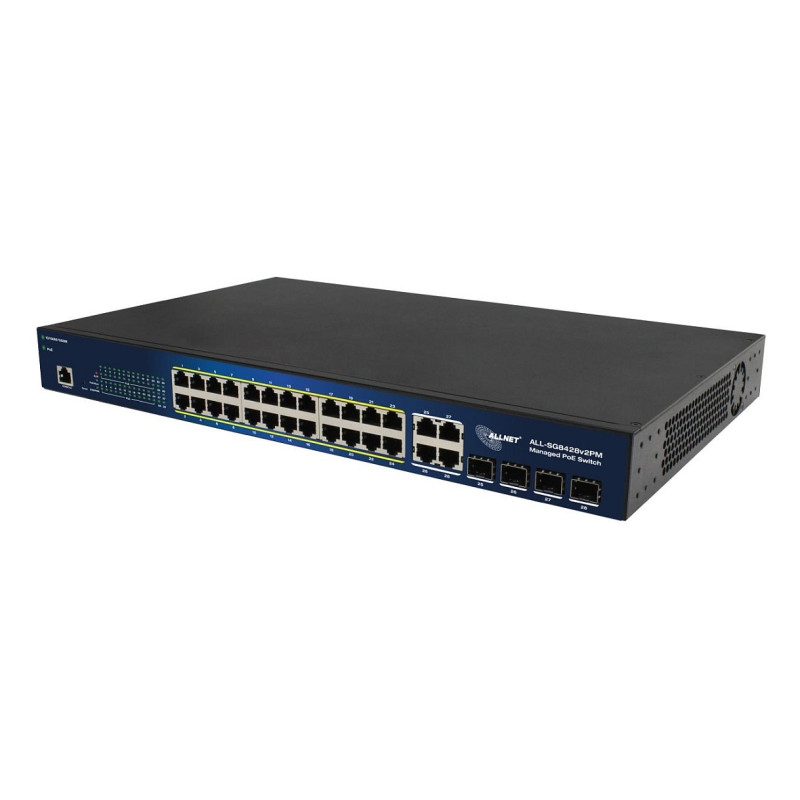

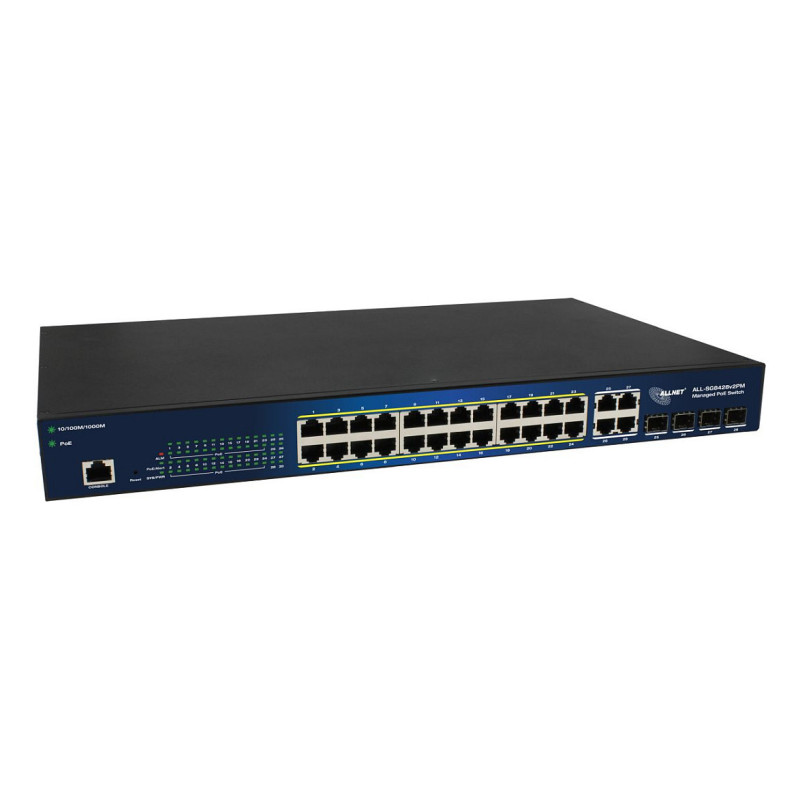

ALLNET ALL-SG8428V2PM network switch

ALLNET ALL-SG8428V2PM. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24. Full duplex. MAC address table: 8000 entries, Switching capacity: 56 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE.... Power connector: AC-in jack. Power over Ethernet (PoE). Rack mounting

Management features

Switch type: Managed
Switch layer: L2
Feature: Quality of Service (QoS) support

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 24
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity: 24
Combo SFP ports quantity: 4
Power connector: AC-in jack

Network

Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T
Feature: Full duplex
Feature: Half duplex
Feature: Flow control support
Feature: Link aggregation
Feature: Broadcast storm control
Feature: Rate limiting
Feature: Spanning tree protocol
Ethernet LAN data rates: 10,100,1000 Mbit/s
Feature: VLAN support
Virtual LAN features: Voice VLAN

Data transmission

Switching capacity: 56 Gbit/s
Forwarding rate: 41.66 Mpps
MAC address table: 8000 entries
Feature: Jumbo frames support
Jumbo frames: 10000
Packet buffer memory: 4.1 MB

Security

DHCP features: DHCP snooping
Feature: Access Control List (ACL)
Feature: IGMP snooping
Feature: SSH/SSL support
Feature: BPDU filtering/protection
Queue scheduling algorithms: Strict Priority Queue (SPQ), Weighted Round Robin (WRR)

Multicast features

Feature: Multicast support

Protocols

Feature: GARP VLAN Registration Protocol (GVRP)
IPv4 & IPv6 features: IPv4/IPv6 access-control list (ACL)

Design

Feature: Rack mounting
Product colour: Black
Feature: Reset button
LED indicators: Alarm, LAN, PoE, Power, System
Number of fans: 2 fan(s)

Performance

Internal memory: 1024 MB
Flash memory: 16 MB

Power

Power source: AC/PoE
Feature: Power supply included
AC input voltage: 100 - 240 V
Power consumption (max): 450 W

Power over Ethernet (PoE)

Feature: Power over Ethernet (PoE)
Power over Ethernet (PoE) ports quantity: 24
Power over Ethernet (PoE) power per port: 30 W
Total Power over Ethernet (PoE) budget: 370 W

Other features

Warranty period: 2 year(s)

Operational conditions

Operating temperature (T-T): -5 - 50 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 5 - 90%

Weight & dimensions

Width: 441 mm
Depth: 270 mm
Height: 45 mm
Weight: 5.7 kg

Packaging content

Feature: Manual
