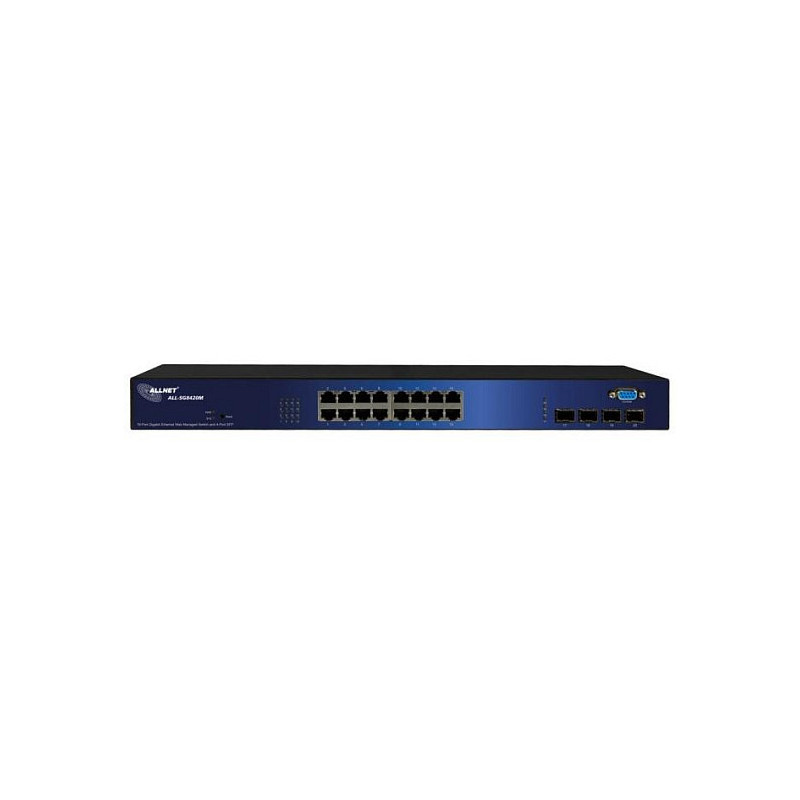

ALLNET ALL-SG8420M

ALLNET ALL-SG8420M. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 16. Full duplex. MAC address table: 8000 entries, Switching capacity: 32 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE.... Rack mounting, Form factor: 19U

Management features

Switch type: Managed
Switch layer: L2
Feature: Quality of Service (QoS) support
Feature: Web-based management
Feature: System event log

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 16
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Combo SFP ports quantity: 4

Network

Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T
Feature: Port mirroring
Feature: Full duplex
Feature: Flow control support
Feature: Link aggregation
Feature: Broadcast storm control
Feature: Auto MDI/MDI-X
Feature: Spanning tree protocol
Feature: VLAN support
Virtual LAN features: Tagged VLAN, Port-based VLAN
Number of VLANs: 64

Optical fiber

Fiber ethernet cabling technology: 1000BASE‑LX, 1000BASE‑SX

Data transmission

Switching capacity: 32 Gbit/s
MAC address table: 8000 entries
Feature: Store-and-forward
Number of queues: 8
Feature: Jumbo frames support
Jumbo frames: 10000
Packet forwarding rate (1 Gbps): 1488000 pps
Packet forwarding rate (100 Mbps): 148800 pps
Packet forwarding rate (10 Mbps): 14880 pps

Security

DHCP features: DHCP client
Feature: IGMP snooping
Security algorithms: HTTPS, SNMP, SSL/TLS
Feature: Loop protection
Authentication: Port-based authentication

Multicast features

Number of multicast groups filtered: 256

Protocols

Supported network protocols: IPv6, HTTP/HTTPS, TELNET, SNMP, TFTP, PING, PHCPv6

Design

Feature: Rack mounting
Form factor: 19U
Product colour: Black
Feature: Reset button
LED indicators: Activity, Link, Power
Safety: LVD EN60950-1

Performance

Feature: Firmware upgradeable
Buffer size: 524.8 KB

Power

AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz
Power consumption (max): 15 W

Operational conditions

Operating temperature (T-T): 0 - 55 °C
Storage temperature (T-T): -20 - 90 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 5 - 90%

Weight & dimensions

Width: 441 mm
Depth: 131 mm
Height: 44 mm
Weight: 3.2 kg

Certificates

Certification: FCC A, EMC/FCC, CE B
