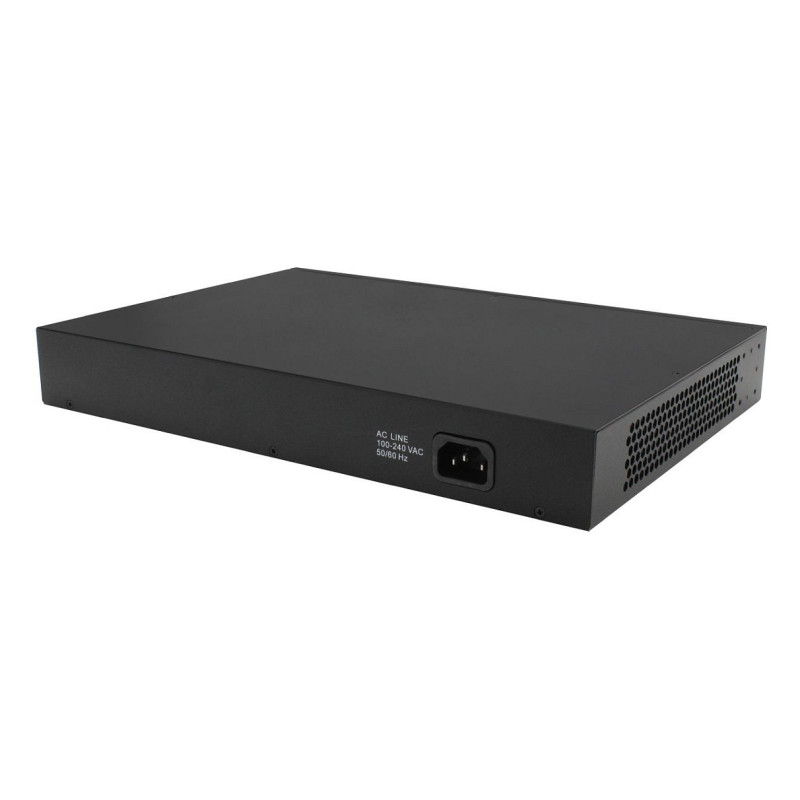

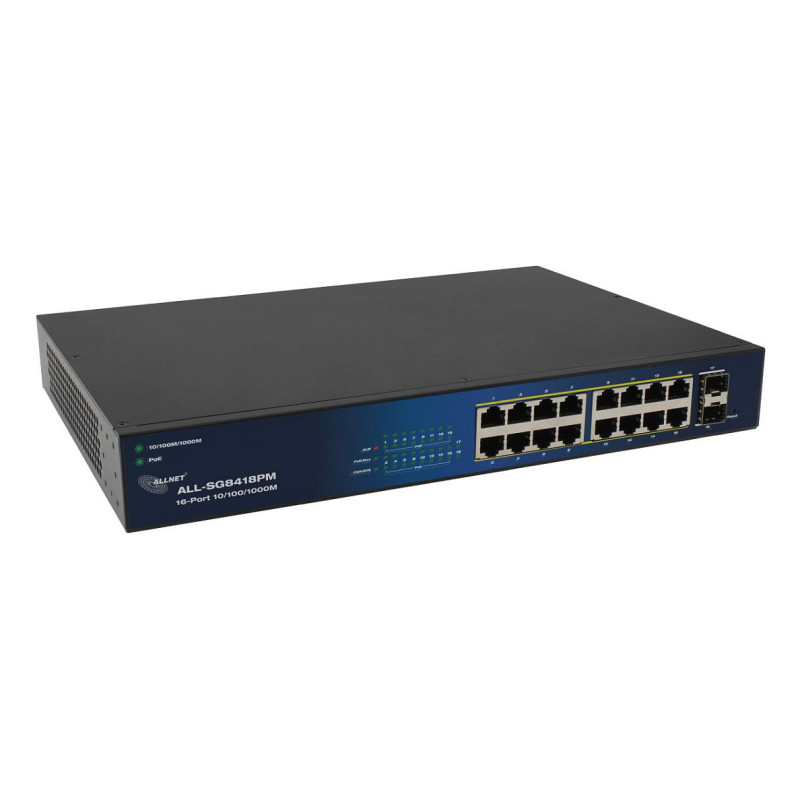

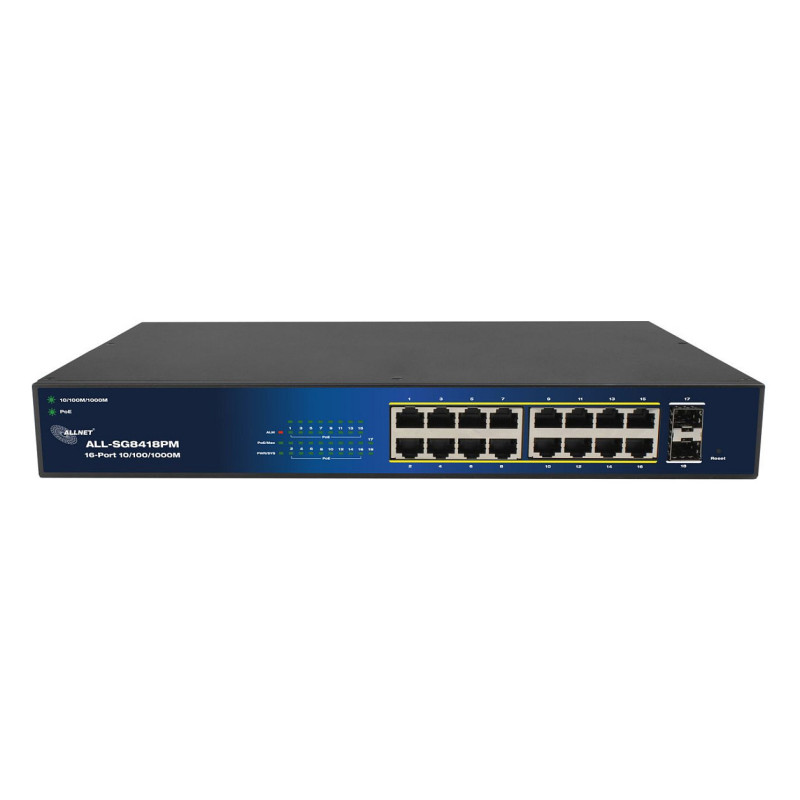

ALLNET ALL-SG8418PM network switch

ALLNET ALL-SG8418PM. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 18. Full duplex. MAC address table: 8000 entries, Switching capacity: 36 Gbit/s. Networking standards: IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z. Power over Ethernet (PoE). Rack mounting, Form factor: 19U

Management features

Switch type: Managed
Switch layer: L2
Feature: Quality of Service (QoS) support
Feature: Web-based management
Feature: Cloud-managed
Feature: ARP inspection
Feature: System event log

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 18
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity: 18
SFP module slots quantity: 2

Network

Networking standards: IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Copper ethernet cabling technology: 10BASE-T, 10BASE-TX, 1000BASE-LX, 1000BASE-SX, 1000BASE-T
Feature: Port mirroring
Feature: Full duplex
Feature: Broadcast storm control

Data transmission

Switching capacity: 36 Gbit/s
MAC address table: 8000 entries
Feature: Store-and-forward
Feature: Jumbo frames support
Jumbo frames: 9000
Packet buffer memory: 4.1 MB

Security

Feature: Access Control List (ACL)
Feature: Loop protection
Feature: BPDU filtering/protection
MAC address entries: Static MAC address entries

Multicast features

Feature: Multicast support
Multicast features: Controllable multicast

Protocols

IPv4 & IPv6 features: IPv4/IPv6 access-control list (ACL)

Design

Feature: Rack mounting
Form factor: 19U
Product colour: Black
Feature: Reset button

Performance

Internal memory: 1024 MB
Flash memory: 16 MB

Power

Power source: AC
AC input voltage: 100 - 240 V
Power consumption (typical): 280 W

Power over Ethernet (PoE)

Feature: Power over Ethernet (PoE)
Power over Ethernet (PoE) power per port: 30 W
Total Power over Ethernet (PoE) budget: 240 W

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 5 - 90%

Weight & dimensions

Width: 441 mm
Depth: 44 mm
Height: 190 mm
Weight: 6.2 kg

Certificates

Compliance certificates: REACH, RoHS
