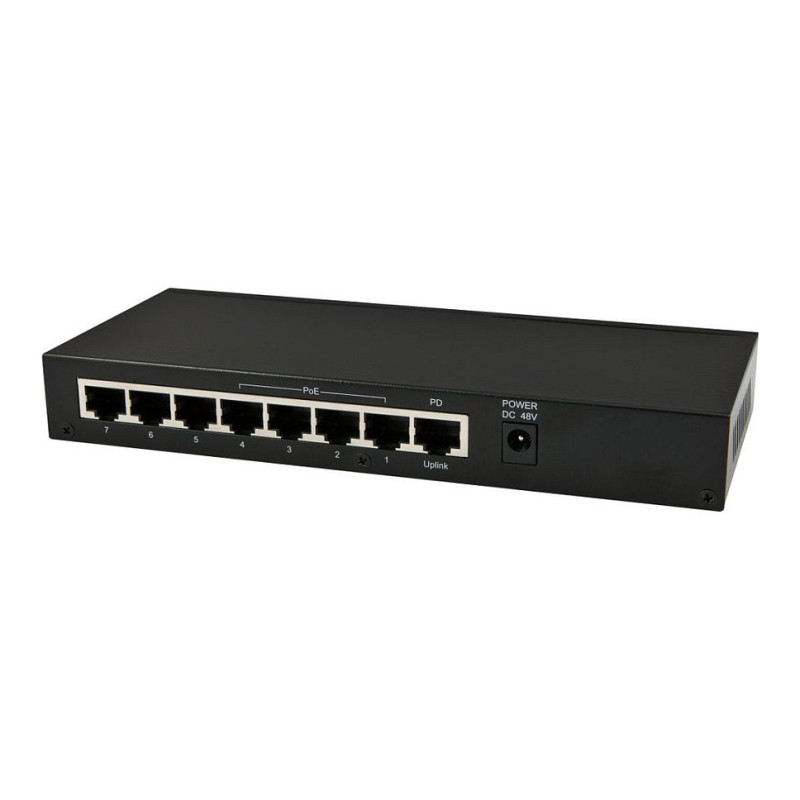

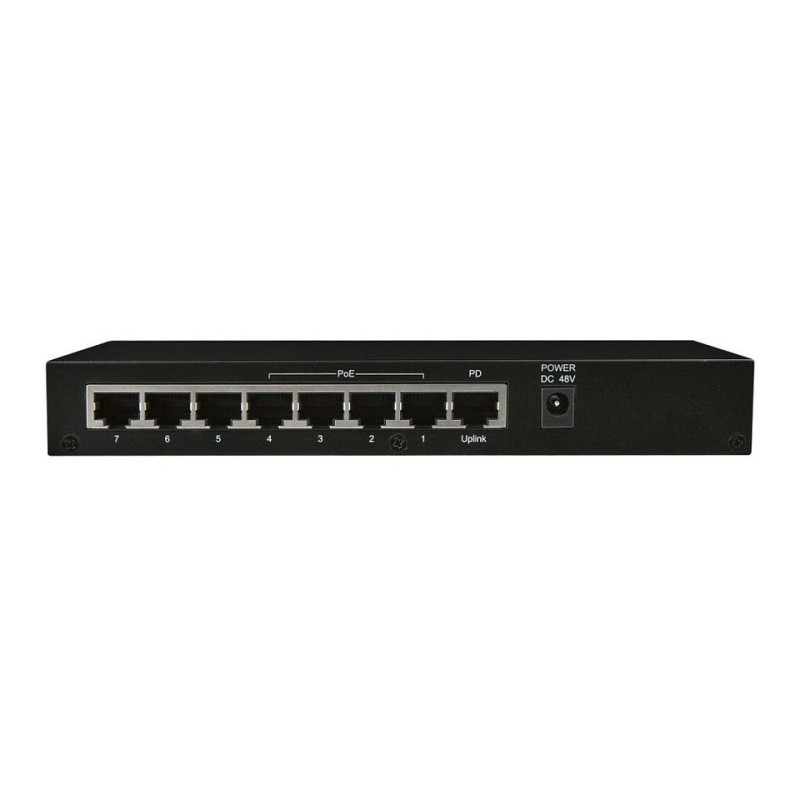

ALLNET ALL-SG8208PD network switch

ALLNET ALL-SG8208PD. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. Full duplex. MAC address table: 4000 entries. Networking standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x. Power over Ethernet (PoE)

The device is a powerful, high-performance Gigabit Ethernet Switch, with all 8 ports capable of 10/100/1000Mbps auto-negotiation operation (NWay), which means the switch could automatically negotiate with the connected partners on the network speed and duplex mode. It is ideal for micro-segmenting large networks into smaller, connected subnets for improved performance, enabling the bandwidth demanding multimedia and

imaging applications. Moreover, the 10/100/1000Mbps auto-sensing ability provides an easy way to migrate 10/100Mbps to 1000Mbps network with no pain.

This switch supports PoE pass-through, having both PD (Powered Device) and PSE (Power Sourcing Equipment) features in one single device, which means the switch could get power from the PD port by connecting to a PSE device and supply power on the 4 PSE ports for connected devices via CAT 5e or better twisted cables. By integrating the data transmitting cable and power cord, it eliminates the effort constructing your network. You could easily connect a Wireless AP or a VoIP phone (PD devices) to this switch without looking outlets for them. Over current protection and circuit shorting protection are also supported to ensure the safety.

The switch is plug-n-play without any software to configure and also fully compliant with all kinds of network protocols. Moreover, the rich diagnostic LED indicators on the front-panel provide the operating status of individual port and whole system.

Management features

Switch type: Unmanaged

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 8
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)

Network

Networking standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T
Cable types supported: Cat5, Cat5e
Feature: Full duplex

Data transmission

MAC address table: 4000 entries
Feature: Store-and-forward
Packet forwarding rate (1 Gbps): 1488000 pps
Packet forwarding rate (100 Mbps): 148800 pps
Packet forwarding rate (10 Mbps): 14880 pps

Design

Product colour: Black
Housing material: Metal
LED indicators: Activity, Link, Power, Status, System

Performance

Buffer size: 128 KB

Power

Input voltage: 48 V
Power consumption (typical): 36 W

Power over Ethernet (PoE)

Feature: Power over Ethernet (PoE)

Operational conditions

Operating temperature (T-T): 0 - 50 °C
Operating relative humidity (H-H): 10 - 90%

Weight & dimensions

Width: 85 mm
Depth: 115 mm
Height: 26 mm
Weight: 400 g

Certificates

Certification: FCC Class B, CE
