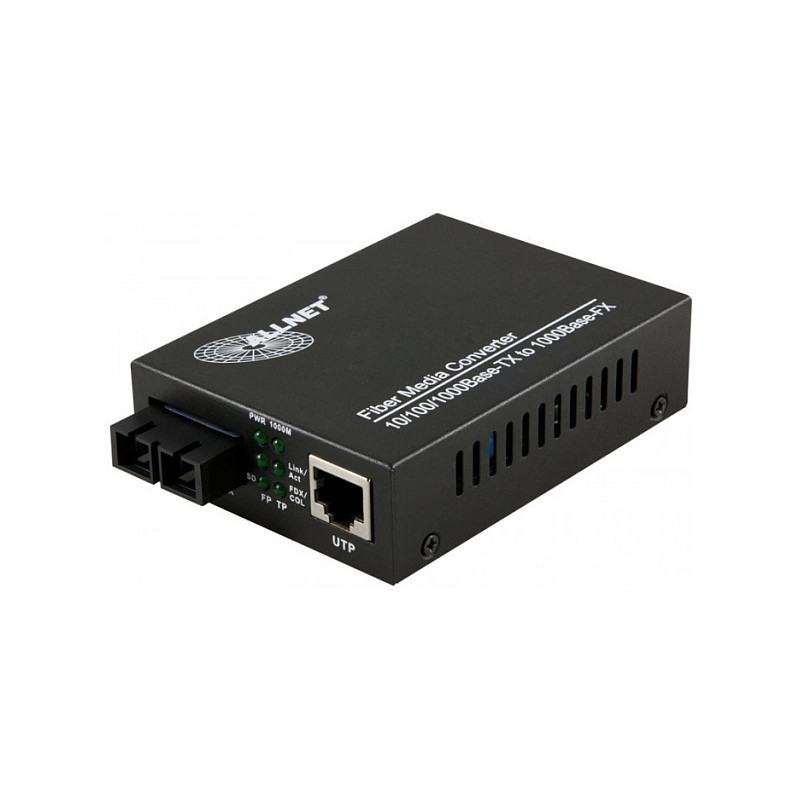

ALLNET ALL-MC105G-SC-SM network media converter

ALLNET ALL-MC105G-SC-SM. Maximum data transfer rate: 1000 Mbit/s, Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, Ethernet interface type: Gigabit Ethernet. Maximum transfer distance: 20000 m, Fiber mode structure: Single-mode. LED indicators: Link, Power, Product colour: Black. Fiber optic connector: SC, Connectivity technology: Wired. Power consumption (max): 3 W

Network

Maximum data transfer rate: 1000 Mbit/s
Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Ethernet interface type: Gigabit Ethernet
Ethernet LAN data rates: 10,100,1000 Mbit/s
Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-LX, 1000BASE-T
Fiber ethernet cabling technology: 1000BASE-LX
Flow control support: Yes
Auto MDI/MDI-X: Yes
Auto-negotiation: Yes
Duplex system: Full, Half
Cable types supported: Cat5, Cat5e, Cat6

Performance

Maximum transfer distance: 20000 m
Fiber mode structure: Single-mode

Features

Internal: No
LED indicators: Link, Power
Product colour: Black

Ports interfaces

Connectivity technology: Wired
Ethernet LAN (RJ-45) ports: 1
Fiber ports quantity: 1
Fiber optic connector: SC
DC-in jack: Yes

Power

Power consumption (max): 3 W

Weight dimensions

Width: 71 mm
Depth: 94 mm
Height: 26 mm
Weight: 230 g

Operational conditions

Operating temperature (T-T): 0 - 50 °C
Storage temperature (T-T): -20 - 70 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 10 - 90%

Certificates

Certification: CE
