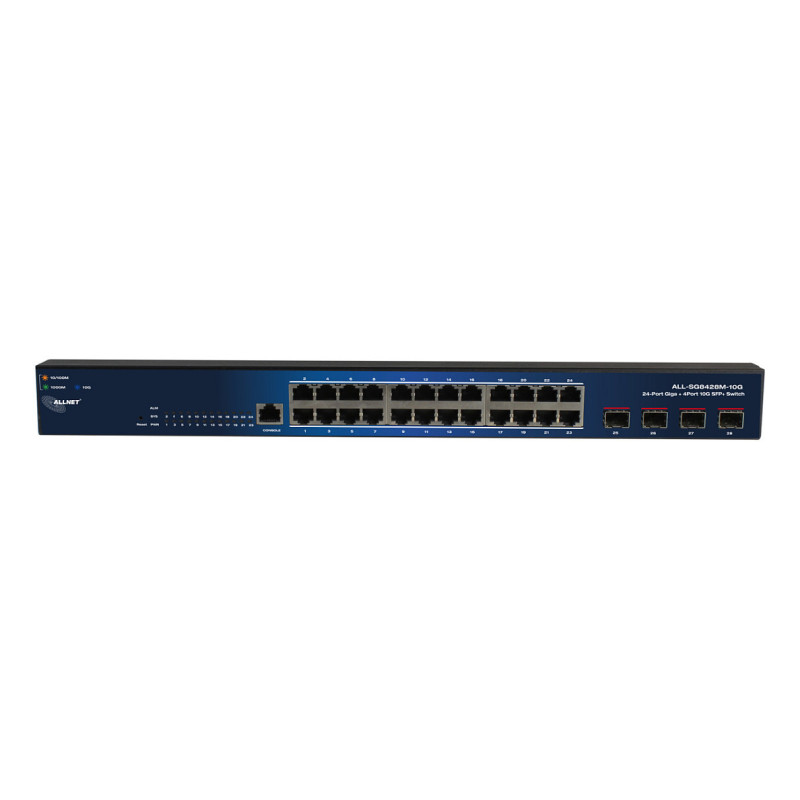

ALLNET 219585

ALLNET 219585. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24, Console port: RJ-45. Full duplex. MAC address table: 16000 entries, Switching capacity: 128 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3az, IEEE 802.3u. Rack mounting

Management features

Switch type: Managed
Switch layer: L2
Feature: Quality of Service (QoS) support
Feature: Web-based management
Feature: ARP inspection

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 24
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity: 24
SFP+ module slots quantity: 4
Console port: RJ-45

Network

Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3az, IEEE 802.3u
Feature: 10G support
Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T
Feature: Port mirroring
Feature: Full duplex
Feature: Half duplex
Feature: Flow control support
Feature: Link aggregation
Feature: Broadcast storm control
Feature: Rate limiting
Feature: Spanning tree protocol
Ethernet LAN data rates: 10,100,1000,10000 Mbit/s
Feature: MAC address auto-aging supported
Feature: VLAN support

Data transmission

Switching capacity: 128 Gbit/s
Forwarding rate: 95.2 Mpps
MAC address table: 16000 entries
Feature: Jumbo frames support
Jumbo frames: 12000

Security

Feature: Access Control List (ACL)
Feature: MAC address filtering
Feature: SSH/SSL support
Authentication type: AAA, RADIUS, TACACS+

Multicast features

Feature: Multicast support

Design

Feature: Rack mounting
Feature: Stackable
Product colour: Black
Feature: Reset button

Performance

Feature: Built-in processor
Memory type: DDR-SDRAM
Internal memory: 1000 MB
Flash memory: 16 MB
Feature: Fanless

Power

Power source: AC
Feature: Power supply included
AC input voltage: 90 - 264 V
AC input frequency: 47/63 Hz

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 5 - 90%

Weight & dimensions

Width: 441 mm
Depth: 196 mm
Height: 44 mm

Certificates

Compliance certificates: REACH, RoHS
