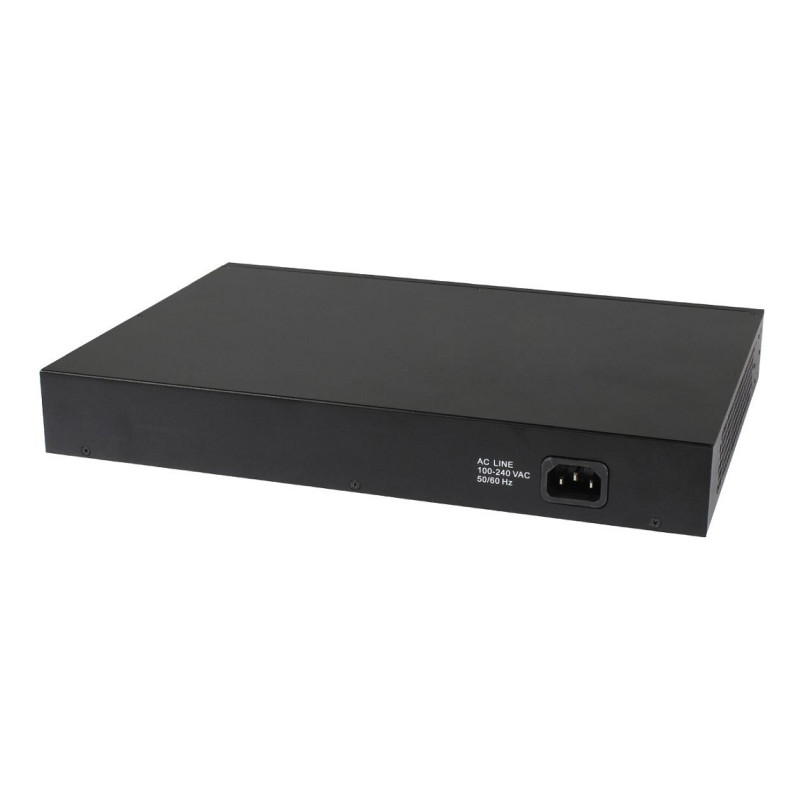

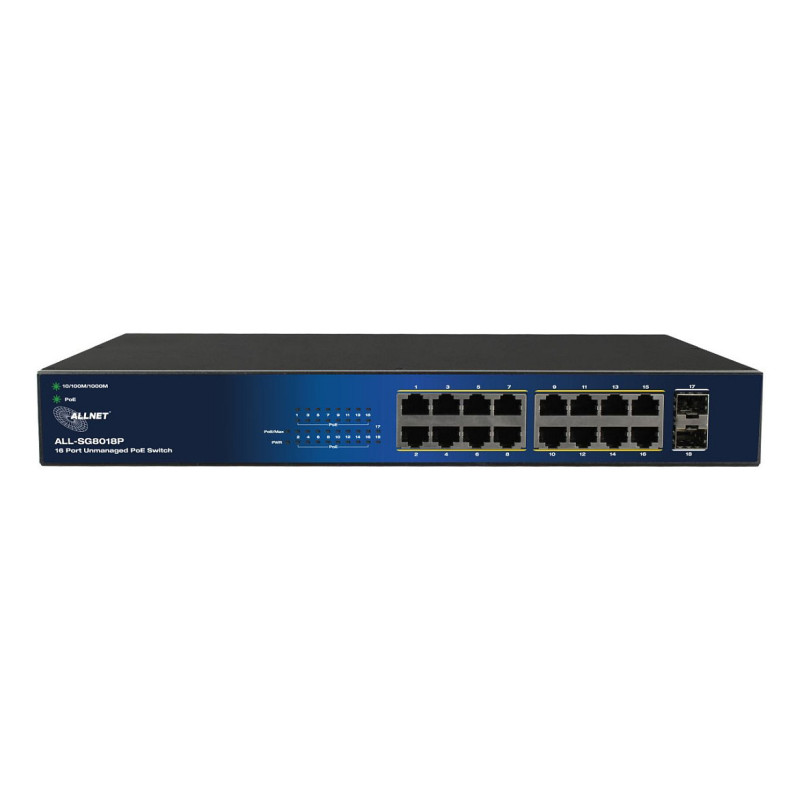

ALLNET 211783

ALLNET 211783. Switch type: Unmanaged, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 16, Installed SFP modules quantity: 2. MAC address table: 8000 entries, Switching capacity: 36 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE.... Power over Ethernet (PoE)

Management features

Switch type: Unmanaged
Switch layer: L2
Feature: Web-based management

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 16
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity: 16
Installed SFP modules quantity: 2
Power cables quantity: 1

Network

Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 100BASE-T
Feature: Auto MDI/MDI-X
Ethernet LAN data rates: 10,100,1000 Mbit/s

Optical fiber

Fiber ethernet cabling technology: 1000BASE‑LX, 1000BASE‑SX

Data transmission

Switching capacity: 36 Gbit/s
MAC address table: 8000 entries
Feature: Store-and-forward
Feature: Jumbo frames support
Jumbo frames: 10
Packet buffer memory: 4.1 MB

Design

Feature: Stackable
Product colour: Black

Performance

Feature: Built-in processor
Processor model: Realtek RTL8382L
Feature: Fanless

Power

Power source: AC
AC input voltage: 100 - 240 V
Power consumption (typical): 280 W

Power over Ethernet (PoE)

Feature: Power over Ethernet (PoE)
Power over Ethernet (PoE) ports quantity: 16
Power over Ethernet (PoE) power per port: 30 W
Total Power over Ethernet (PoE) budget: 240 W

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 5 - 90%

Weight & dimensions

Width: 330 mm
Depth: 230 mm
Height: 44 mm

Certificates

Compliance certificates: ANSI, CE, Electromagnetic Compatibility (EMC), Federal Communications Commission (FCC), Low Voltage Directive (LVD), REACH, RoHS
