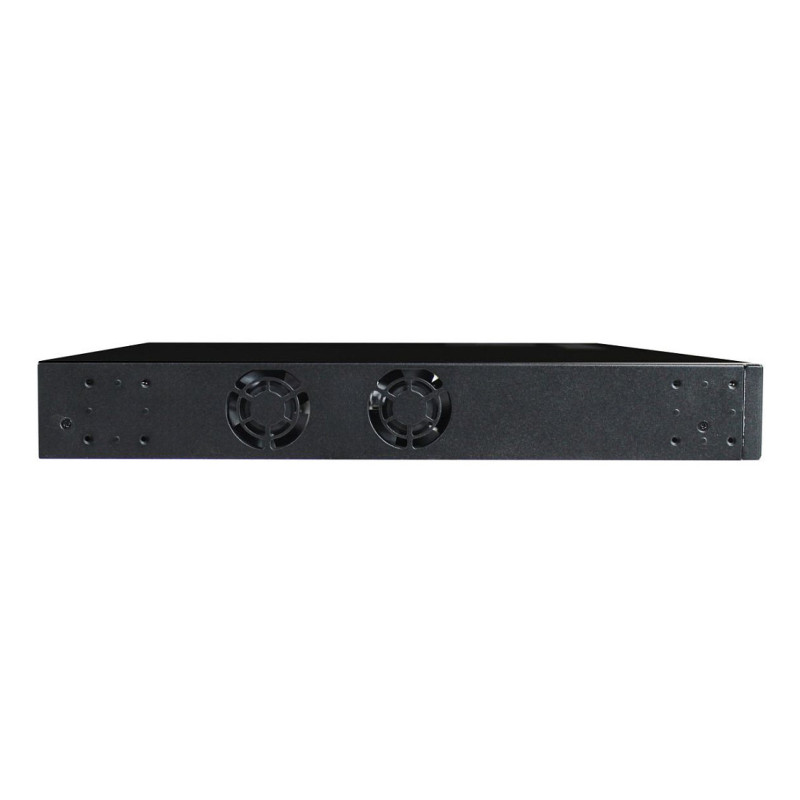

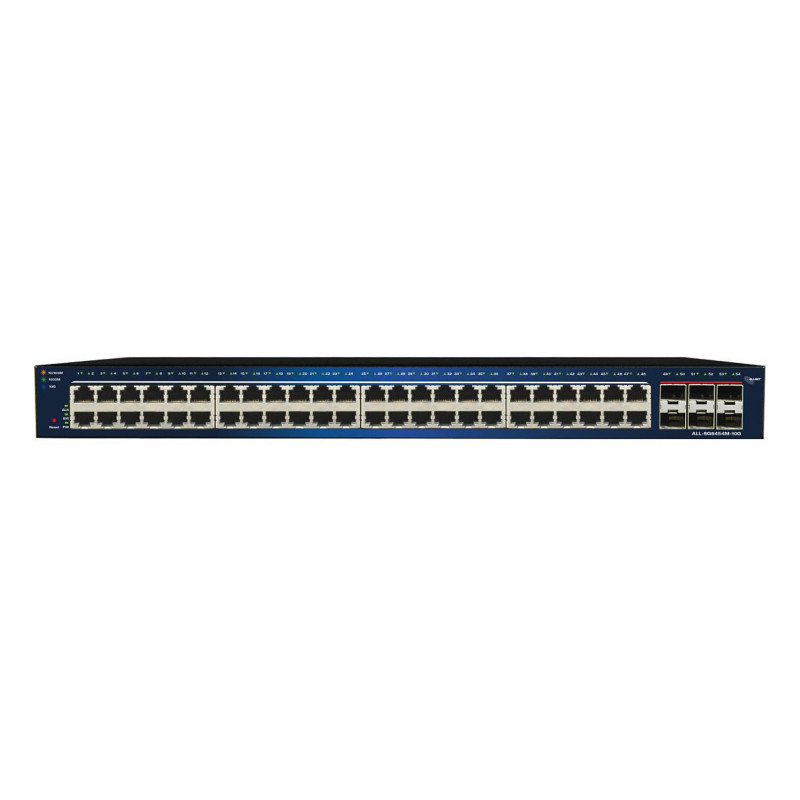

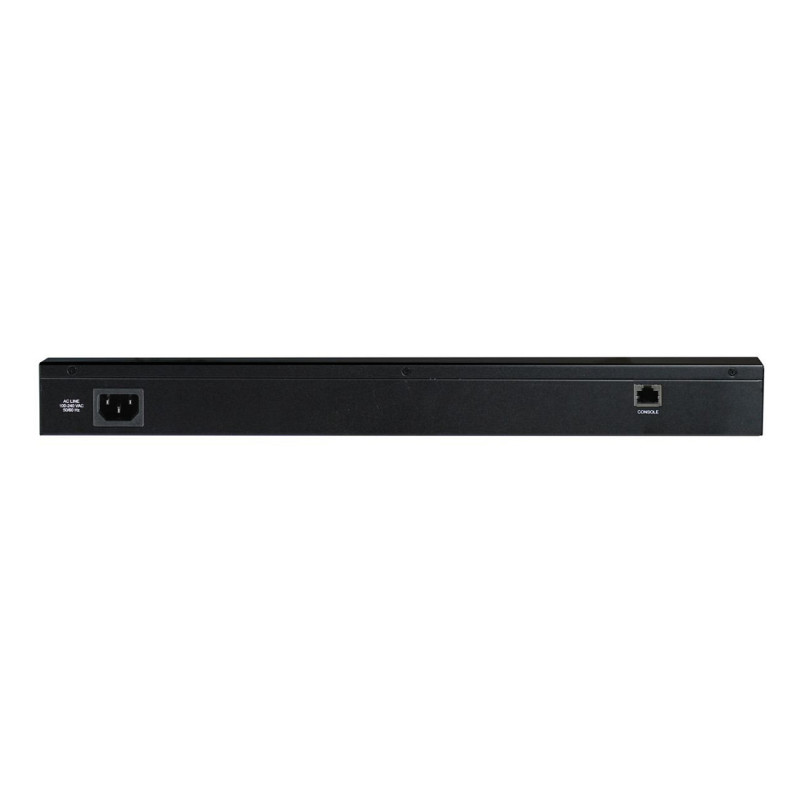

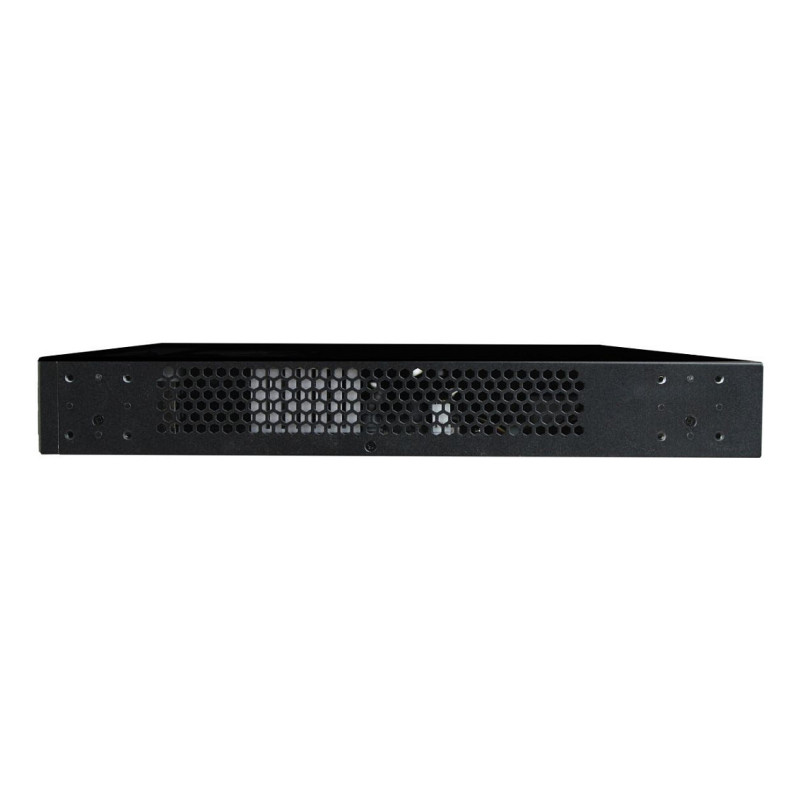

ALLNET 209905

ALLNET 209905. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 48. Full duplex. MAC address table: 32000 entries, Switching capacity: 176 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3az, IEEE 802.3u. Rack mounting

Management features

Switch type: Managed
Switch layer: L2
Feature: Quality of Service (QoS) support
Feature: Web-based management
Feature: ARP inspection
Feature: Configuring Location Settings (CLI)
Feature: System event log

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 48
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity: 48
SFP+ module slots quantity: 6

Network

Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3az, IEEE 802.3u
Feature: 10G support
Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T
Feature: Port mirroring
Feature: Full duplex
Feature: Half duplex
Feature: Flow control support
Feature: Link aggregation
Feature: Broadcast storm control
Feature: Rate limiting
Feature: Spanning tree protocol
Ethernet LAN data rates: 10,100,1000,10000 Mbit/s
Feature: MAC address auto-aging supported
Feature: VLAN support

Data transmission

Switching capacity: 176 Gbit/s
Forwarding rate: 129.3 Mpps
MAC address table: 32000 entries
Feature: Static route
Feature: Jumbo frames support
Jumbo frames: 12000

Security

Feature: Access Control List (ACL)
Feature: IGMP snooping
Feature: MAC address filtering
Feature: SSH/SSL support
Feature: Loop protection
Feature: BPDU filtering/protection
Feature: IP-MAC-Port binding

Multicast features

Feature: Multicast support
Multicast MAC address table: 32000 entries

Design

Feature: Rack mounting
Feature: Stackable
Product colour: Black
Feature: Reset button
LED indicators: Alarm, Link, Power, Power fail, System

Performance

Feature: Built-in processor
Memory type: DDR-SDRAM
Internal memory: 4000 MB
Flash memory: 64 MB

Power

Power source: AC
Feature: Power supply included
AC input voltage: 90 - 264 V
AC input frequency: 47/63 Hz

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 5 - 90%

Weight & dimensions

Width: 441 mm
Depth: 270 mm
Height: 45 mm

Certificates

Compliance certificates: REACH, RoHS
