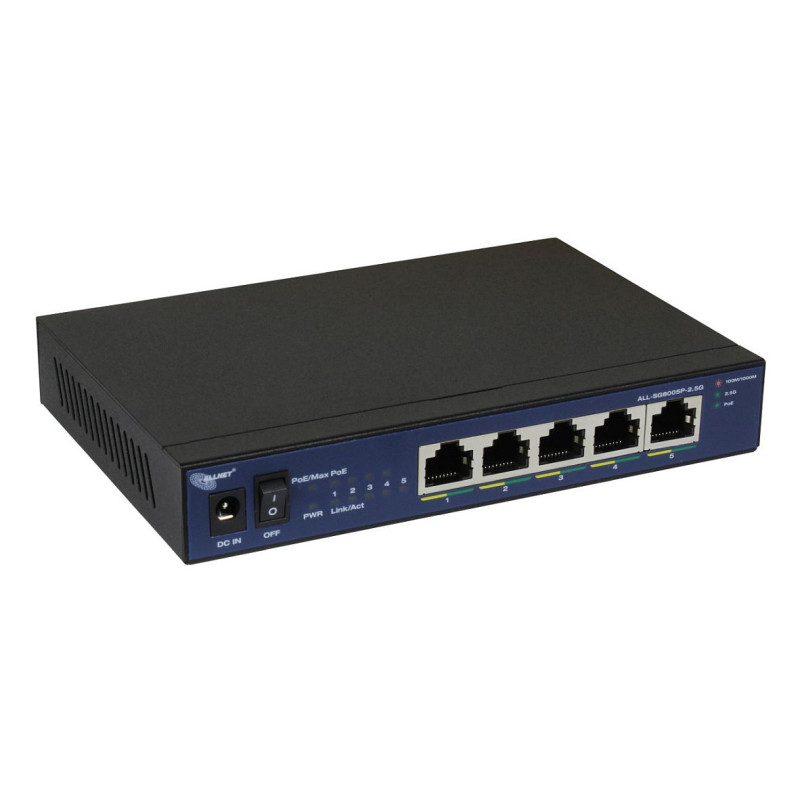

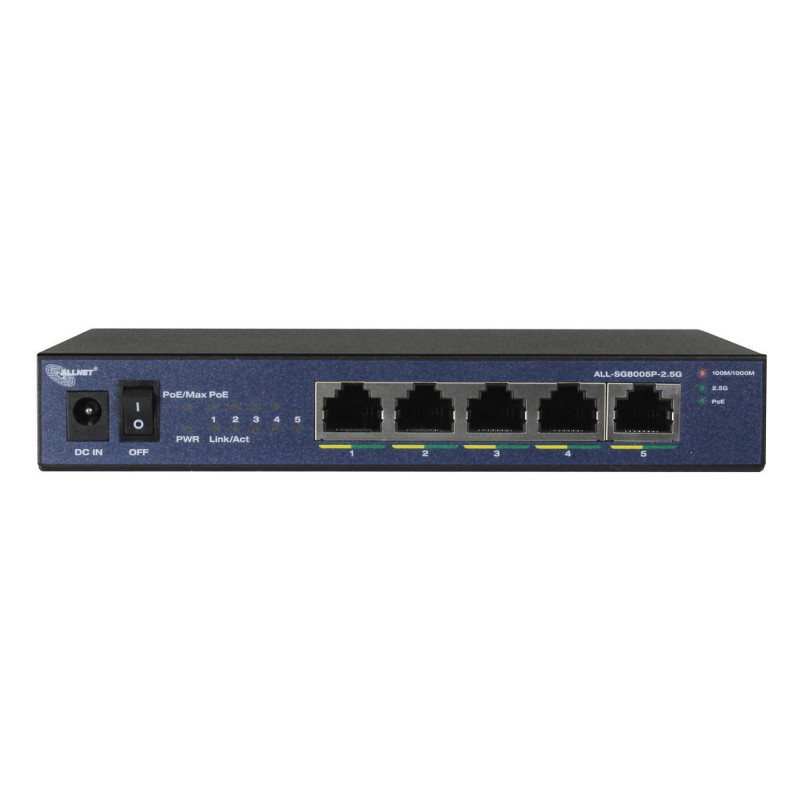

ALLNET 201875

ALLNET 201875. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: 2.5G Ethernet (100/1000/2500), Basic switching RJ-45 Ethernet ports quantity: 5. MAC address table: 16000 entries. Networking standards: IEEE 802.3af, IEEE 802.3at. DC input voltage: 55 V. Power over Ethernet (PoE). Wall mountable, Form factor: Desktop/Wall-Mounting

Management features

Switch type: Unmanaged
Feature: Web-based management

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 5
Basic switching RJ-45 Ethernet ports type: 2.5G Ethernet (100/1000/2500)
2.5G Ethernet (copper) ports quantity: 5

Network

Networking standards: IEEE 802.3af, IEEE 802.3at
Copper ethernet cabling technology: 100BASE-TX, 1000BASE-T, 2500BASE-T
Ethernet LAN data rates: 2500 Mbit/s

Data transmission

MAC address table: 16000 entries
Feature: Jumbo frames support
Jumbo frames: 12
Packet buffer memory: 12 MB

Design

Form factor: Desktop/Wall-Mounting
Product colour: Black
LED indicators: Link, PoE, Power
Feature: Wall mountable

Performance

Feature: Built-in processor
Processor model: Realtek RTL8371

Power

Power source: DC
Feature: Power supply included
Number of power supply units: 1
AC input voltage: 100 - 240 V
DC input voltage: 55 V
Input current: 1.3 A
Input voltage: 55 V
Power consumption (typical): 50 W

Power over Ethernet (PoE)

Feature: Power over Ethernet (PoE)
Power over Ethernet (PoE) ports quantity: 5
Power over Ethernet (PoE) power per port: 30 W
Total Power over Ethernet (PoE) budget: 55 W

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 5 - 90%

Weight & dimensions

Width: 160 mm
Depth: 110 mm
Height: 26 mm

Certificates

Compliance certificates: CE, REACH, RoHS
