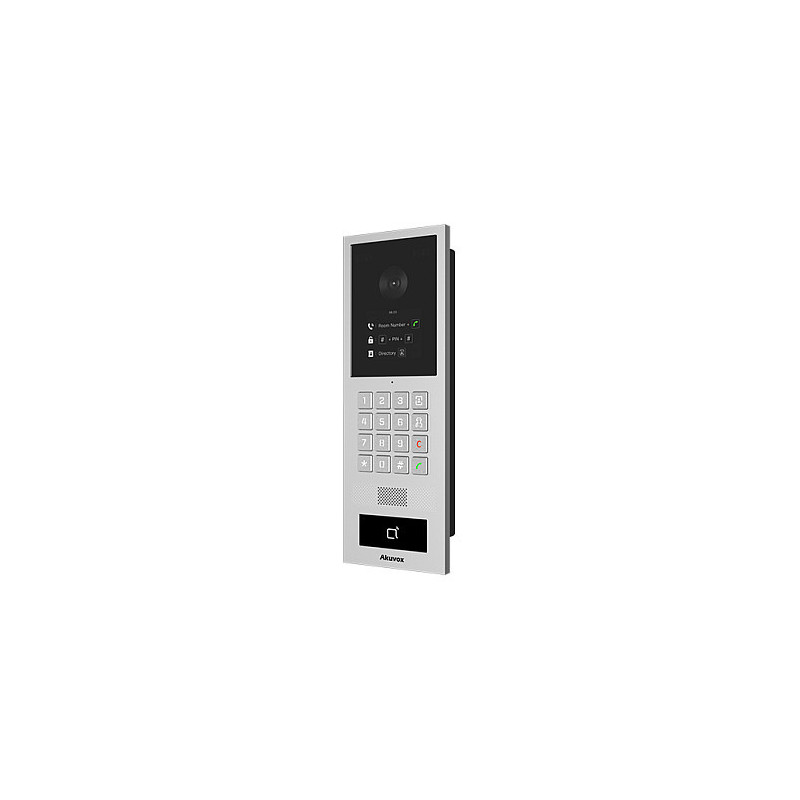

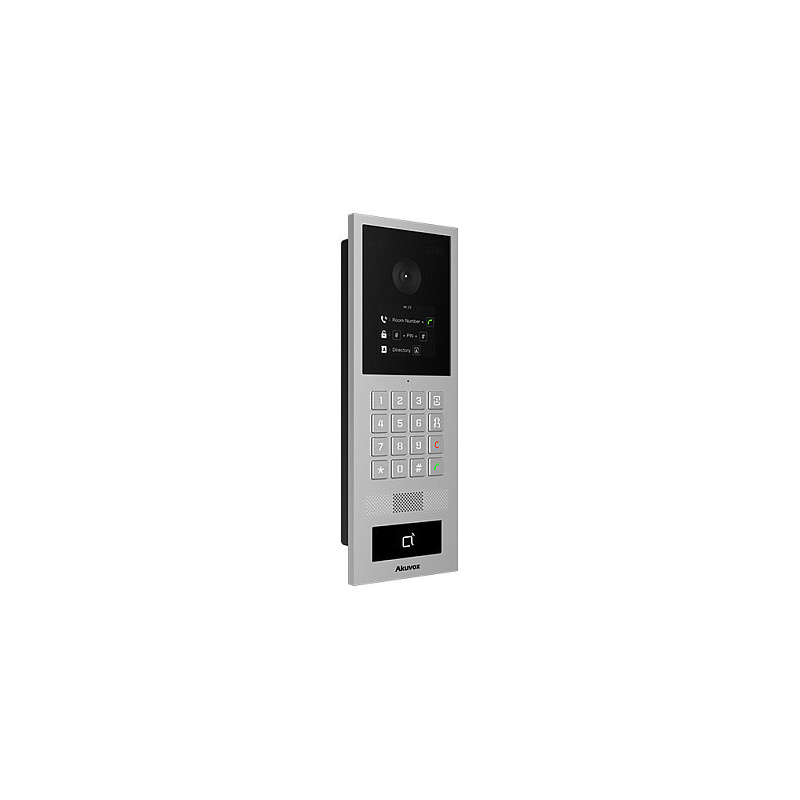

Akuvox S532 video intercom system

Akuvox S532. Display diagonal: 7.11 cm (2.8"), Video formats supported: H.264. Megapixel (approx.): 2 MP, Maximum video resolution: 1920 x 1080 pixels, Supported video modes: 720p, 1080p. LED type: IR. Audio system: 2-way, Voice codecs: G.711a, G.711u, G.722. Product colour: Grey, International Protection (IP) code: IP66, IK code: IK08

S532 is where the old meets the new. It is a smart SIP door phone that houses an IP-to-analog conversion module, offering an outstanding solution for analog intercom upgrade.

Technical details

Connectivity technology: Wired
Feature: Colour
Feature: Speakerphone
Maximum number of cameras supported: 1
Feature: RFID reader
Feature: Echo cancellation
Feature: Wall mountable
Feature: Built-in microphone
White balance: Auto
Relay inputs: 4

Display

Display diagonal: 7.11 cm (2.8")
Video formats supported: H.264

Camera

Megapixel (approx.): 2 MP
Maximum video resolution: 1920 x 1080 pixels
Supported video modes: 720p, 1080p
Sensor type: CMOS
Maximum frame rate: 30 fps
Minimum illumination: 0.1 lx
Viewing angle, horizontal: 130°
Viewing angle, vertical: 90°
Feature: Motion sensor

Night vision

Feature: Night vision
LED type: IR

Audio

Feature: Built-in speaker(s)
Number of speakers: 1
Audio system: 2-way
Voice codecs: G.711a, G.711u, G.722

Design

Product colour: Grey
International Protection (IP) code: IP66
Feature: Smartphone support
IK code: IK08
Feature: Vandal-proof
Outdoor unit housing material: Aluminium
Control type: Buttons

Storage

Feature: Memory card slot
Compatible memory cards: MicroSD (TransFlash)

Outdoor unit

RS-485 ports (transmitter): 1
Channel bandwidth (transmitter): 13.56 MHz

Network

Ethernet LAN data rates: 10,100 Mbit/s
Ethernet LAN (RJ-45) ports: 1
Feature: Bluetooth
Feature: Power over Ethernet (PoE)

Software

Operating system installed: Linux

Management features

Feature: Web-based management

Operational conditions

Door station operating temperature (T-T): -40 - 60 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 10 - 90%

Weight & dimensions

Door station dimensions (WxDxH): 310 x 106 x 37.8 mm

Packaging data

Feature: Outdoor unit included
