Ajax IndoorCam

Ajax IndoorCam. Type: IP security camera, Placement supported: Indoor, Connectivity technology: Wireless. Mounting type: Ceiling/Wall/Desk, Product colour: Black, Form factor: Box. Lens viewing angle, horizontal: 110°, Lens viewing angle, vertical: 60°. Sensor type: CMOS. Night vision distance: 8 m, LED type: IR

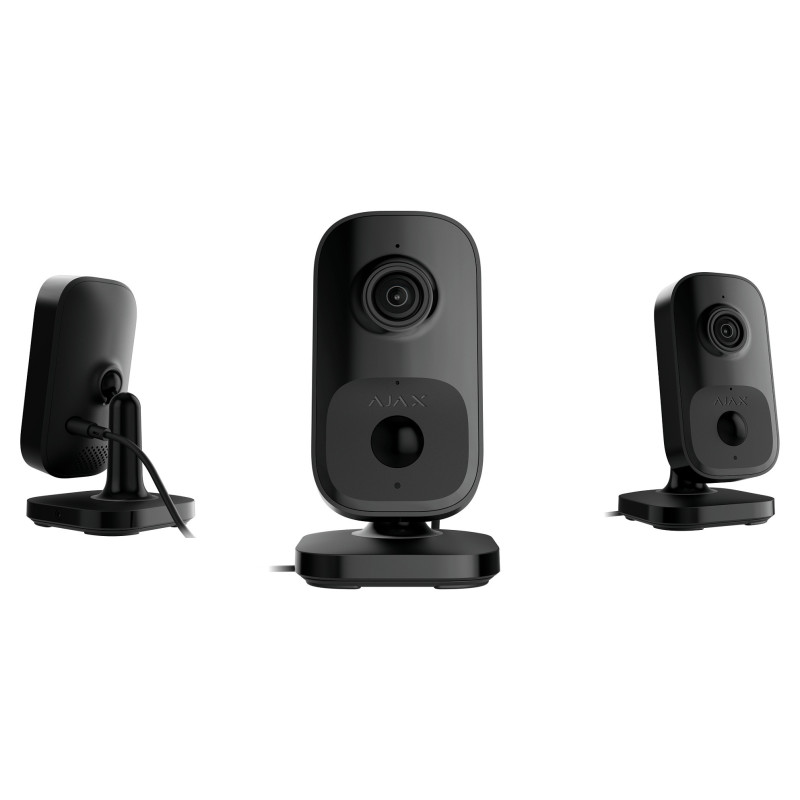

Indoor Wi-Fi security camera with PIR motion detector and built-in AI

IndoorCam is a Wi-Fi security camera with built-in AI, PIR sensor, and control via Ajax apps. It features smart infrared (IR) backlight, movement detection, and object recognition. The camera allows users to view archived videos and watch live streams. It is designed for indoor use only.

IndoorCam is connected to the system via Wi-Fi and can be paired with a hub as a backup communication channel. The recorded videos can be stored on an Ajax NVR added to the same network or on the Ajax Cloud Storage archive according to subscription.

Performance

Type: IP security camera
Placement supported: Indoor
Connectivity technology: Wireless
Feature: Day/night mode
Feature: Infrared (IR) cut-off filter
Feature: Remote viewing

Design

Form factor: Box
Mounting type: Ceiling/Wall/Desk
Product colour: Black
LED indicators: Status
International Protection (IP) code: IP20

Camera

Lens viewing angle, horizontal: 110°
Lens viewing angle, vertical: 60°

Image sensor

Sensor type: CMOS

Night vision

Feature: Night vision
Night vision distance: 8 m
LED type: IR

Video

Maximum resolution: 2688 x 1520 pixels
Total megapixels: 4 MP
Video compression formats: H.264
Supported graphics resolutions: 2688 x 1520
Feature: Smart IR

Audio

Audio system: 2-way
Feature: Built-in microphone
Number of microphones: 1
Voice codecs: G.722

Network

Networking standards: IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Feature: Wi-Fi
Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n)

Security

Feature: Video motion detection
Alert notification type: Push notification
Feature: Motion sensor
Motion sensor technology: Passive infrared (PIR) sensor

Power

DC output voltage: 12
DC output current: 1 A

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 0 - 90%

Weight & dimensions

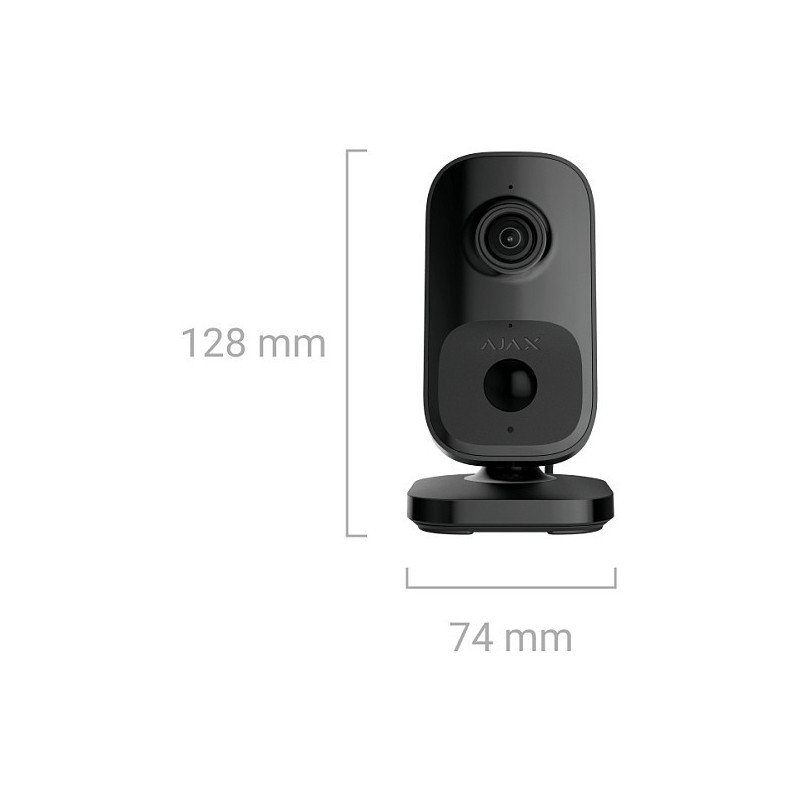

Width: 74 mm
Depth: 76 mm
Height: 128 mm
Weight: 235 g

Packaging content

Number of cameras: 1

Other features

Warranty period: 2 year(s)
