AirLancer ON-Q30 network antenna

AirLancer ON-Q30. Antenna gain level (max): 10 dBi, Frequency band: 2.4 - 5.875 GHz, Gain: 10 dBi. Antenna type: Directional antenna, Antenna connector type: N-type, Voltage Standing Wave Ratio (VSWR): 1.5:1 - 2.0:1. Width: 370 mm, Depth: 30 mm, Height: 370 mm. Package width: 385 mm, Package depth: 385 mm, Package height: 105 mm. Quantity per pack: 1 pc(s)

30° outdoor Wi-Fi sector antenna with 4x4 MIMO

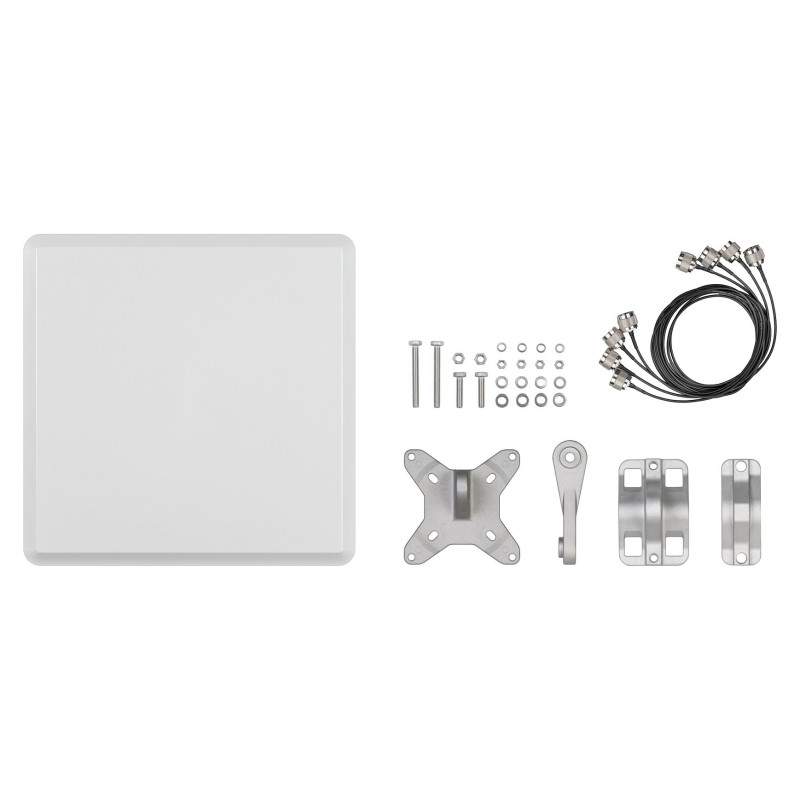

The weatherproof LANCOM sector antenna AirLancer ON-Q30 with a beam angle of 30° is ideal for Wi-Fi coverage in high-density environments such as stadiums and concert halls. With 4x4 MIMO support and dual-band capability on all four ports, the antenna offers a reliable Wi-Fi connection even with a high client density, especially in combination with the LANCOM outdoor access point OX-6402. Cables and adapters are included in the mounting kit for attachment to walls or masts.

Application scenario

Wi-Fi coverage in high-density environments
In areas with a high user density, such as airports, exhibition centers, or stadiums, reliable Wi-Fi coverage for all clients in the network can pose particular challenges. This is where the use of Wi-Fi sector antennas is ideal. These can be used to focus the Wi-Fi signal and thus increase the signal strength and quality in a specific area. By avoiding unplanned signal scattering in all directions, interference and overlaps with other networks can be reduced at the same time, which also increases the Wi-Fi quality.

Comparison of the LANCOM Wi-Fi outdoor antennas
In which application scenario and with which LANCOM access points are the LANCOM Wi-Fi accessories best suited? What is the safest way to connect access points and antennas outdoors?

Get to know the different types of antennas in the AirLancer portfolio and compare features such as frequency bands, antenna gain, connectors, and cables.

Performance

Frequency band: 2.4 - 5.875 GHz
Gain: 10 dBi
Antenna gain (2.4 GHz): 10 dBi
Antenna gain (5 GHz): 10 dBi
Impedance: 50 Ω
Horizontal beam width: 30°
Vertical beam width: 30°
Horizontal beam width (2.4 GHz): 30°
Vertical beam width (2.4 GHz): 30°
Horizontal beam width (5 GHz): 30°
Vertical beam width (5 GHz): 30°
Antenna gain level (max): 10 dBi

Features

Antenna type: Directional antenna
Antenna connector type: N-type
Voltage Standing Wave Ratio (VSWR): 1.5:1 - 2.0:1
Product colour: Light grey
Housing material: Plastic
Feature: Ultraviolet (UV) resistant
Mounting: Wall/Pole
Compatible products: OX-6402, LX-6402, OW-602

Weight & dimensions

Width: 370 mm
Depth: 30 mm
Height: 370 mm
Weight: 2.2 kg

Packaging data

Package width: 385 mm
Package depth: 385 mm
Package height: 105 mm

Packaging content

Quantity per pack: 1 pc(s)
Feature: Mounting kit

Logistics data

Customs product code (TARIC): 85177000
Country of origin: Taiwan
