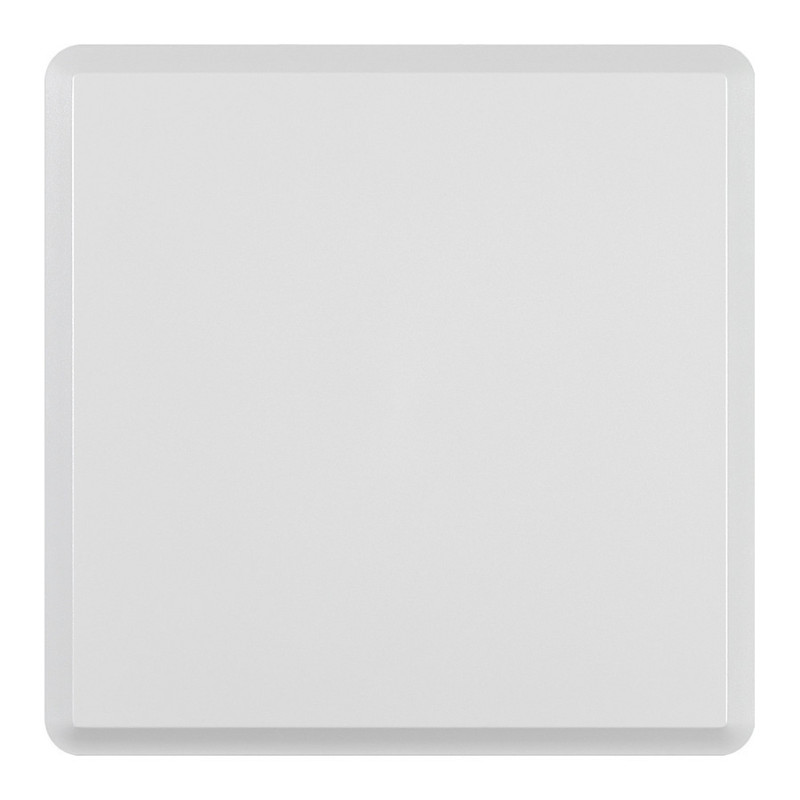

AirLancer ON-D8a network antenna

AirLancer ON-D8a. Antenna gain level (max): 21 dBi, Frequency band: 4.9 - 5.9 GHz, Impedance: 50 Ω. Antenna type: Directional antenna, Antenna connector type: N-type, Polarization: Dual linear polarization. Width: 370 mm, Depth: 30 mm, Height: 370 mm. Package width: 385 mm, Package depth: 385 mm, Package height: 105 mm. Quantity per pack: 1 pc(s)
8° outdoor Wi-Fi directional antenna with 2x2 MIMO

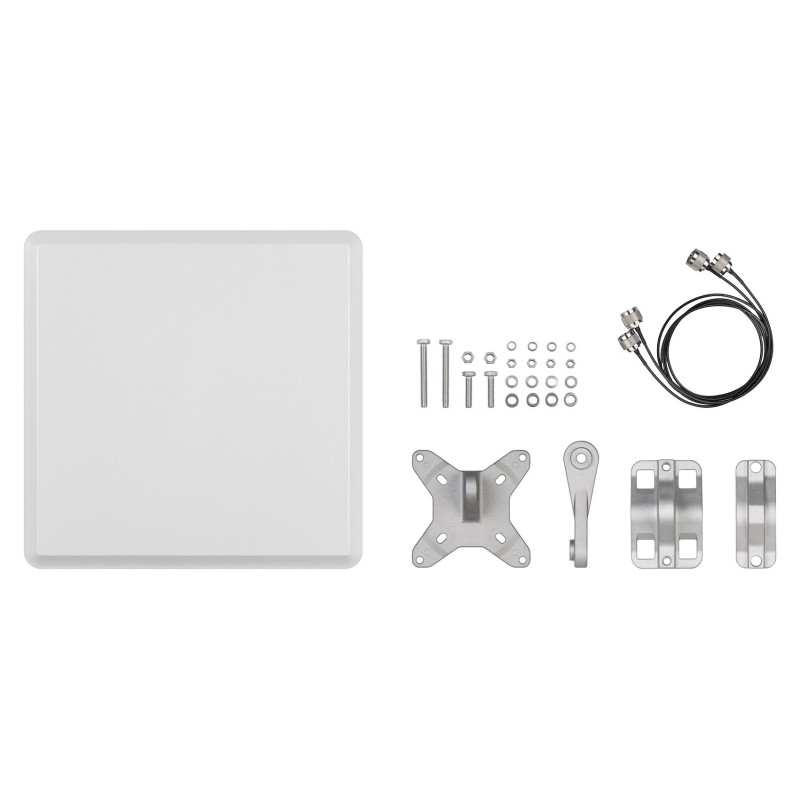

The weatherproof LANCOM outdoor directional antenna AirLancer ON-D8a is ideal for establishing high-speed point-to-point links for bridging long distances via Wi-Fi in outdoor areas. Thanks to 2x2 MIMO technology, radio links with reliably high performance can be established, especially in combination with the LANCOM Outdoor Access Point OW-602. Cables and adapters are included in the mounting kit for attachment to walls or masts.
Application scenario
High-speed point-to-point connections (P2P)
With P2P connections, extensive areas with long distances can be bridged outdoors in a targeted manner and thus buildings located at different distances can be securely connected to each other via Wi-Fi. By setting up a wireless network with directional antennas, neither complex cabling nor an expensive dedicated line for network expansions are required.
Comparison of the LANCOM Wi-Fi outdoor antennas
In which application scenario and with which LANCOM access points are the LANCOM Wi-Fi accessories best suited? What is the safest way to connect access points and antennas outdoors?
Get to know the different types of antennas in the AirLancer portfolio and compare features such as frequency bands, antenna gain, connectors, and cables.

Performance

Frequency band: 4.9 - 5.9 GHz
Impedance: 50 Ω
Horizontal beam width: 8°
Vertical beam width: 8°
Antenna gain level (max): 21 dBi

Features

Antenna type: Directional antenna

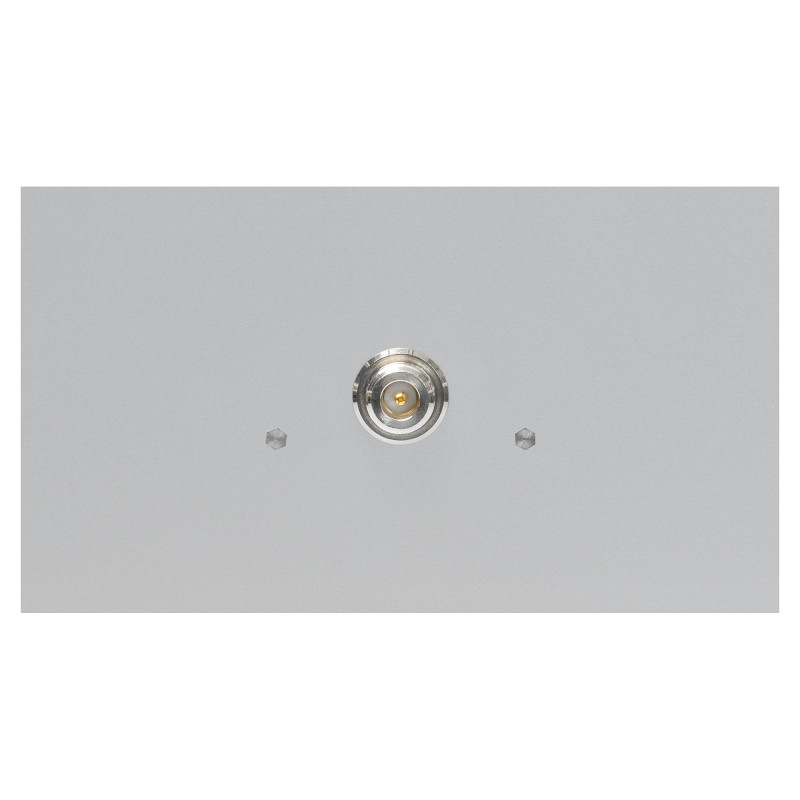

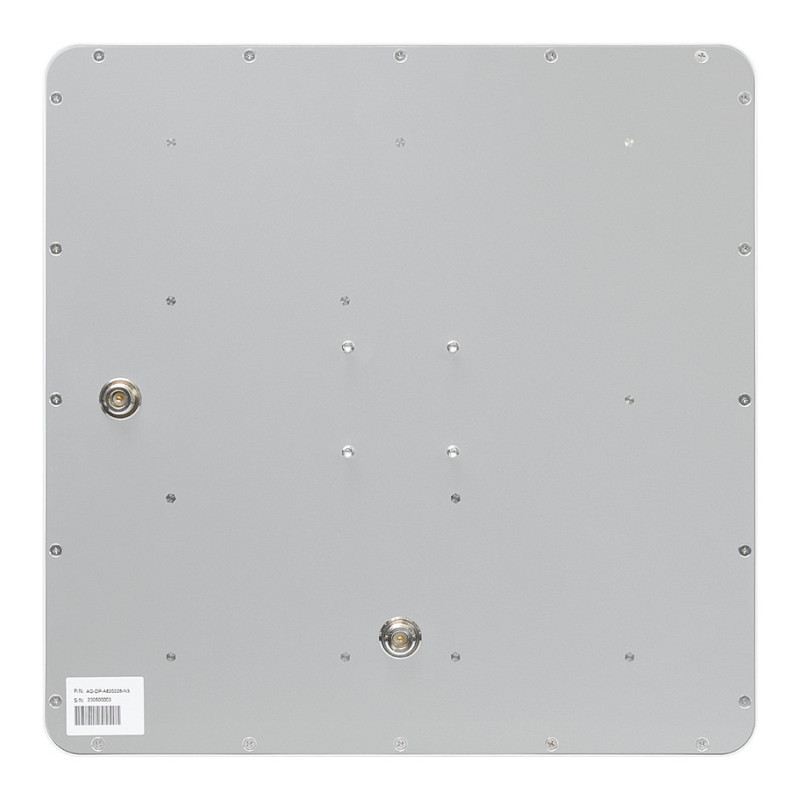

Antenna connector type: N-type
Polarization: Dual linear polarization
Voltage Standing Wave Ratio (VSWR): 1.5:1 - 2.0:1
Product colour: Light grey
Housing material: Plastic
Ultraviolet (UV) resistant: Yes
Cable length: 1 m
Cable type: NP-NP
Mounting: Wall/Pole
Purpose: Indoor outdoor
Compatible products: AirLancer NJ-NP, AirLancer AN-RPSMA-NJ, AirLancer SurgeProtect

Operational conditions

Operating temperature (T-T): -40 - 85 °C

Weight dimensions

Width: 370 mm
Depth: 30 mm
Height: 370 mm
Weight: 1.9 kg

Packaging data

Package width: 385 mm
Package depth: 385 mm
Package height: 105 mm
Package weight: 2.8 kg

Packaging content

Quantity per pack: 1 pc(s)
Mounting kit: Yes

Logistics data

Customs product code (TARIC): 85177000
Country of origin: Taiwan
