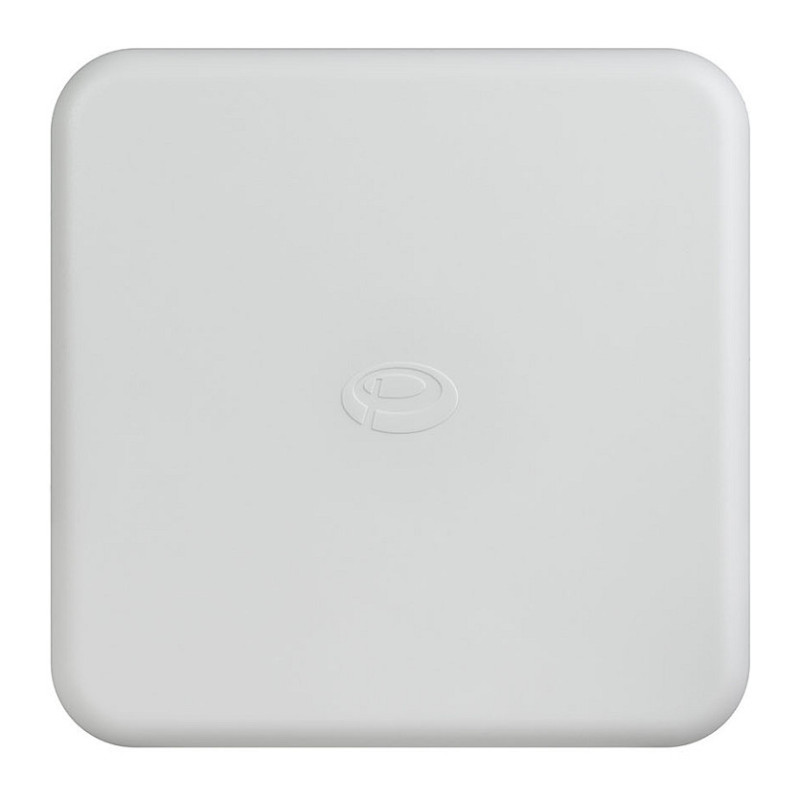

AirLancer O-360D-5G network antenna

AirLancer O-360D-5G. Antenna gain level (max): 5 dBi, Frequency band: 698-960 MHz / 1.710-3.800 MHz, Gain: 2.5 / 4 / 5 dBi. Antenna type: Omni-directional antenna, Antenna connector type: SMA, Product colour: White. Width: 155 mm, Height: 155 mm. Package width: 232 mm, Package depth: 350 mm, Package height: 100 mm. Quantity per pack: 1 pc(s), Cables included: SMA

Performance

Frequency band: 698-960 MHz / 1.710-3.800 MHz
Gain: 2.5 / 4 / 5 dBi
Impedance: 50 Ω
Horizontal beam width: 360°
Vertical beam width: 360°
Antenna gain level (max): 5 dBi

Features

Antenna type: Omni-directional antenna
Antenna connector type: SMA
Product colour: White
Housing material: Acrylonitrile butadiene styrene (ABS)
Protection features: UV resistant
Power handling: 20 W
Cable length: 5 m
Isolation: 20 dB

Operational conditions

Operating temperature (T-T): -30 - 80 °C

Weight dimensions

Width: 155 mm
Height: 155 mm

Packaging data

Package width: 232 mm
Package depth: 350 mm
Package height: 100 mm
Package weight: 1.11 kg

Packaging content

Quantity per pack: 1 pc(s)
Cables included: SMA
Mounting kit: Yes

Logistics data

Customs product code (TARIC): 85177000
Harmonized System (HS) code: 85177100
Country of origin: China
