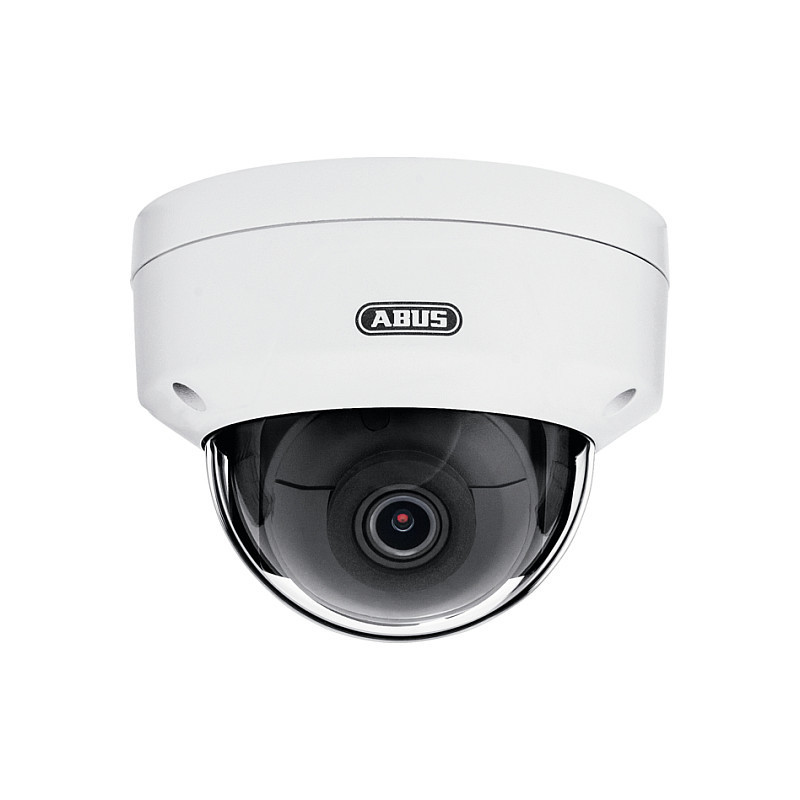

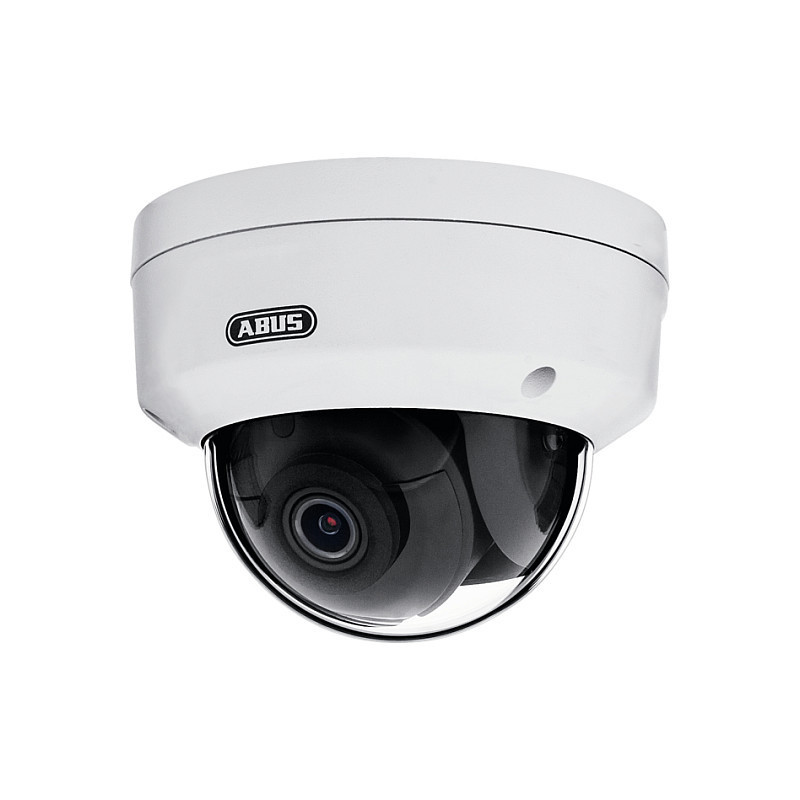

ABUS TVIP44511 security camera

ABUS TVIP44511. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired & Wireless. Mounting type: Ceiling, Product colour: White, Form factor: Dome. Lens viewing angle, horizontal: 103°, Lens viewing angle, vertical: 55°. Sensor type: CMOS, Optical sensor size: 25.4 / 3 mm (1 / 3"), Number of effective pixels (H x V): 2688 x 1520 pixels. Fixed focal length: 2.8 mm

Cost-saving PoE technology

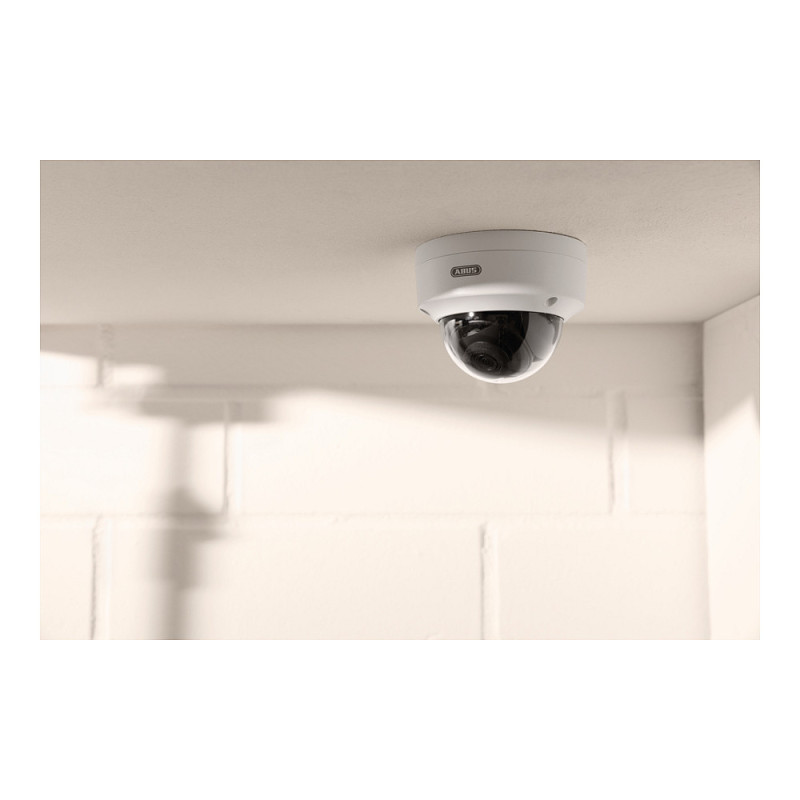

For company premises, business, office or home: The 4MPx IP PoE mini dome camera is ideal for both indoor and outdoor use. and discreet monitoring from the wall. Power can be supplied via network cable, e.g. router or recorder (Power over Ethernet, PoE) - esp. useful in hard-to-reach spots, saving installation costs.

Efficient start-up & clever video surveillance
The surveillance camera differentiates fully automatically between person and vehicle - it only stores and reports what interests users. This and the strong data compression ensure highly efficient storage (recorder, NAS or microSD card). Even start-up is brief: Camera's user interface is quickly accessed from a PC/browser or recorder/monitor and ABUS IP Installer and displays the first live image within minutes. Settings can also be customised quickly (e.g. schedules, privacy zones, etc.).

Powerful WDR function & IR LEDs for consistently sharp images
The IP camera also manages heavily fluctuating light conditions, e.g. strong backlight in entries or outdoors in general (WDR 120 dB). It also has infrared LEDs for good visibility in the dark/at night.

Mobile app access
Users receive a push notification from the ABUS Link Station app in the event of a motion alarm. App's Pro version offers unlimited mobile access. Free with Lite version: up to 60 mins/month data stream (live view/playback).

Performance

Type: IP security camera
Placement supported: Indoor & outdoor
Connectivity technology: Wired & Wireless
Feature: Day/night mode
Feature: Infrared (IR) cut-off filter
Number of languages: 6
Languages support: German, French, Italian, Ukrainian
Dynamic range: 120 dB

Design

Form factor: Dome
Mounting type: Ceiling
Product colour: White
LED indicators: Activity
Housing material: Metal
Protection features: Dust resistant, Waterproof
International Protection (IP) code: IP67
IK code: IK10
Feature: Weatherproof

Camera

Lens viewing angle, horizontal: 103°
Lens viewing angle, vertical: 55°

Image sensor

Optical sensor size: 25.4 / 3 mm (1 / 3")
Sensor type: CMOS
Number of effective pixels (H x V): 2688 x 1520 pixels

Lens system

Fixed focal length: 2.8 mm

Night vision

Feature: Night vision
Night vision distance: 30 m

Video

Maximum resolution: 2688 x 1520 pixels
Total megapixels: 4 MP
Video compression formats: H.264, H.265, M-JPEG
Feature: Video recording
Frame rate: 30 fps
Feature: Noise reduction
Noise reduction technology: 3D noise reduction

Network

Networking standards: IEEE 802.3af
Number of users: 32 user(s)
User access level: User

Storage

Compatible memory cards: MicroSD (TransFlash), MiniSDHC
Maximum memory card size: 256 GB

Ports & interfaces

Feature: DC-in jack

Security

Intelligent Video Surveillance (IVS) system features: Human detection, Pet detection

Management features

Feature: Web-based management
Feature: Cable management
Feature: Smartphone/tablet remote support

Power

Power source type: DC

Operational conditions

Operating temperature (T-T): -25 - 60 °C

Weight & dimensions

Width: 109 mm
Depth: 109 mm
Height: 85 mm
Weight: 550 g

Packaging content

Number of cameras: 1
