NETGEAR MS510TXM network switch

NETGEAR MS510TXM. Switch type: Managed, Switch layer: L2/L3/L4. Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000), Basic switching RJ-45 Ethernet ports quantity: 8. Full duplex. MAC address table: 32000 entries, Switching capacity: 140 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3x. Rack mounting

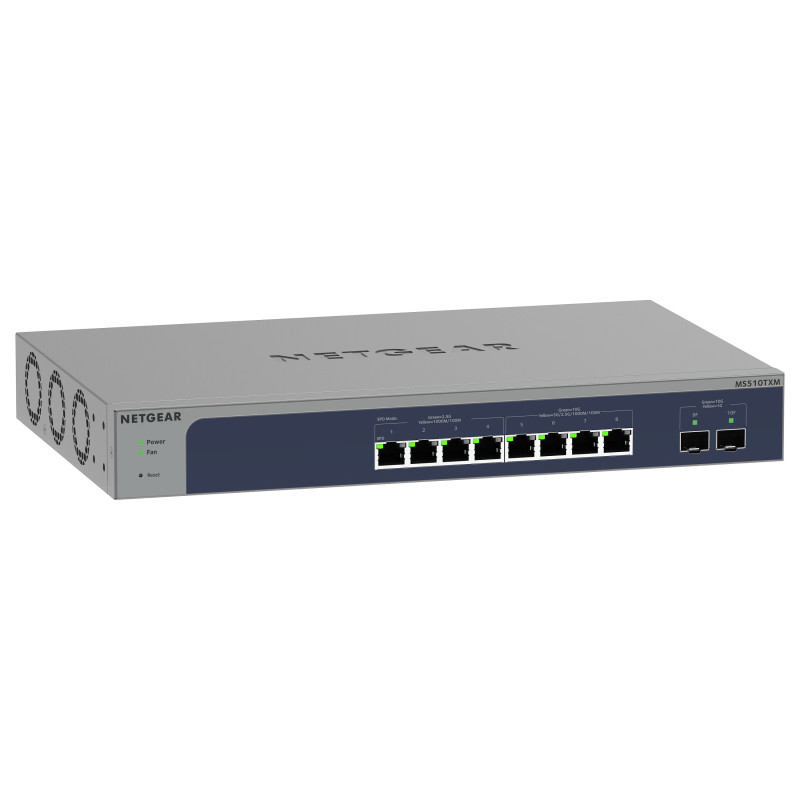

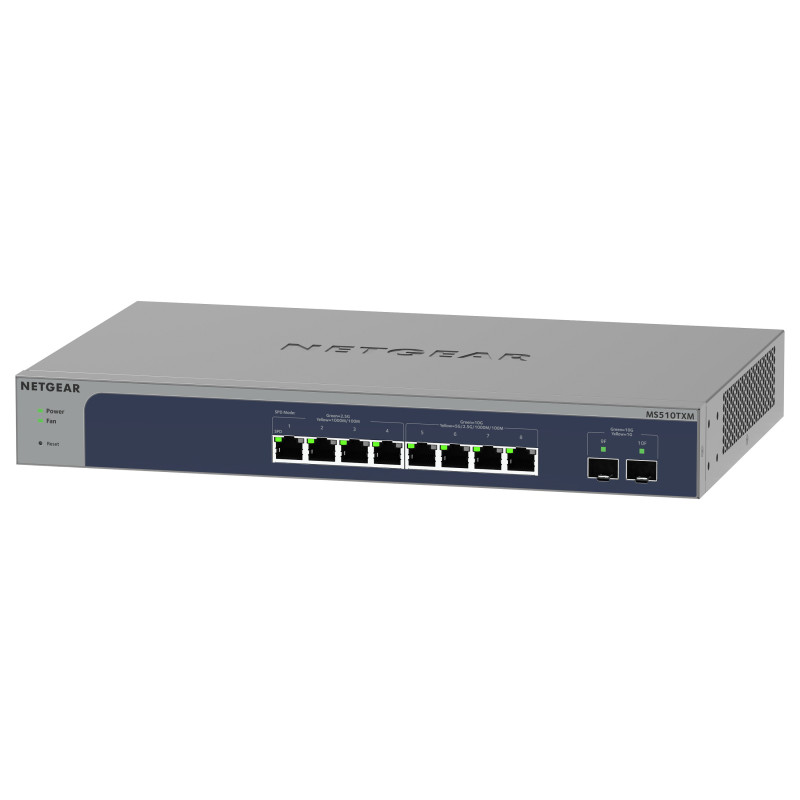

The NETGEAR® MS510TXM 8-Port Multi-Gigabit/10G Smart Managed Pro Switch offers 4 ports 1G/2.5G and 4 ports multi-Gig/10G with 2 dedicated 10 Gigabit fiber ports for WiFi 6 AP connectivity, IP surveillance and mobility. It is the ideal companion to the NETGEAR WAX610PA WiFi 6 Access Point that features a 2.5G Ethernet port and a power adapter.

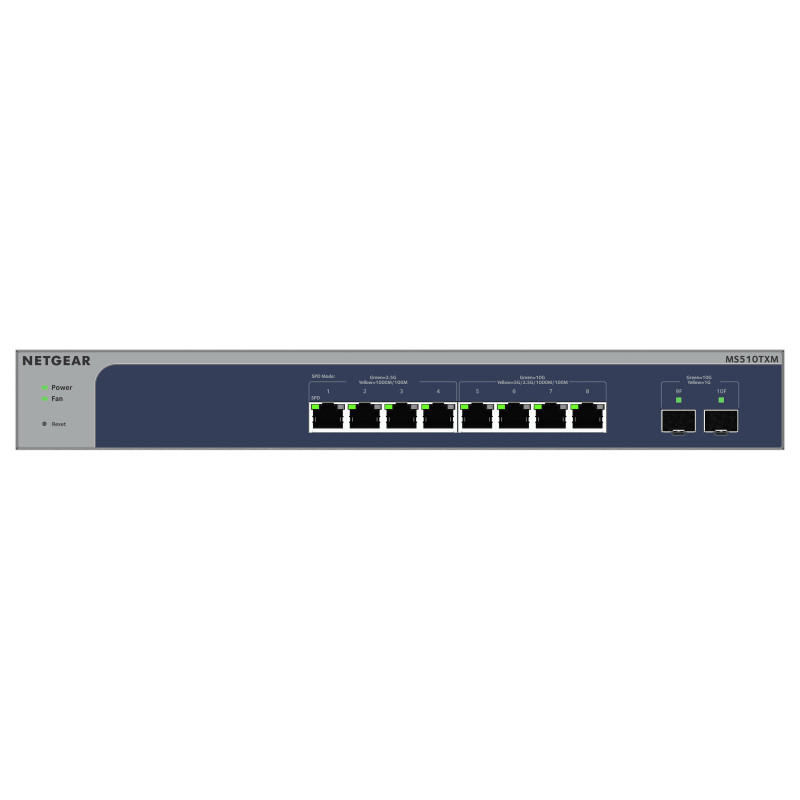

MS510TXM provides four auto-adapt multispeed Gigabit RJ-45 ports that support 2.5G, and 1G; another four multi-speed Gigabit RJ-45 ports that support 10G, 5G, 2.5G and 1G, and two dedicated SFP+ fiber uplink port that supports 10G and 1G. Each of the 5 Multi-Gig Ethernet ports automatically detects which speed is needed by the connected device and provides the adequate connection speed.

Management features

Switch type: Managed
Switch layer: L2/L3/L4
Feature: Quality of Service (QoS) support
Feature: Web-based management
Feature: Cloud-managed

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 8
Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000)
SFP+ module slots quantity: 2

Network

Networking standards: IEEE 802.1D, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3x
Feature: 10G support
Copper ethernet cabling technology: 1000BASE-T
Feature: Port mirroring
Feature: Full duplex
Feature: Flow control support
Feature: Link aggregation
Feature: Broadcast storm control
Feature: Spanning tree protocol
Ethernet LAN data rates: 100,1000,2500,5000,10000 Mbit/s
Feature: VLAN support
Number of VLANs: 256

Data transmission

Switching capacity: 140 Gbit/s
MAC address table: 32000 entries
Feature: Jumbo frames support
Jumbo frames: 10000

Security

DHCP features: DHCP client, DHCP server
Feature: Access Control List (ACL)
Access Control List (ACL) ingress: 100
Feature: IGMP snooping
Security algorithms: HTTPS, SSL/TLS
Feature: Loop protection

Multicast features

Feature: Multicast support

Protocols

Management protocols: SNMP v1/v2c,SNMP v3

Design

Feature: Rack mounting
Product colour: Grey, Blue
LED indicators: Activity, Power, Speed

Performance

Feature: Built-in processor
Processor frequency: 1000 MHz
Internal memory: 256 MB
Flash memory: 64 MB

Power

Feature: Power supply included

Operational conditions

Operating temperature (T-T): 0 - 50 °C
Storage temperature (T-T): -20 - 70 °C
Operating relative humidity (H-H): 0 - 95%
Storage relative humidity (H-H): 0 - 95%
Operating altitude: 0 - 3000 m
Non-operating altitude: 0 - 3000 m

Weight & dimensions

Width: 330 mm
Depth: 206 mm
Height: 43 mm
