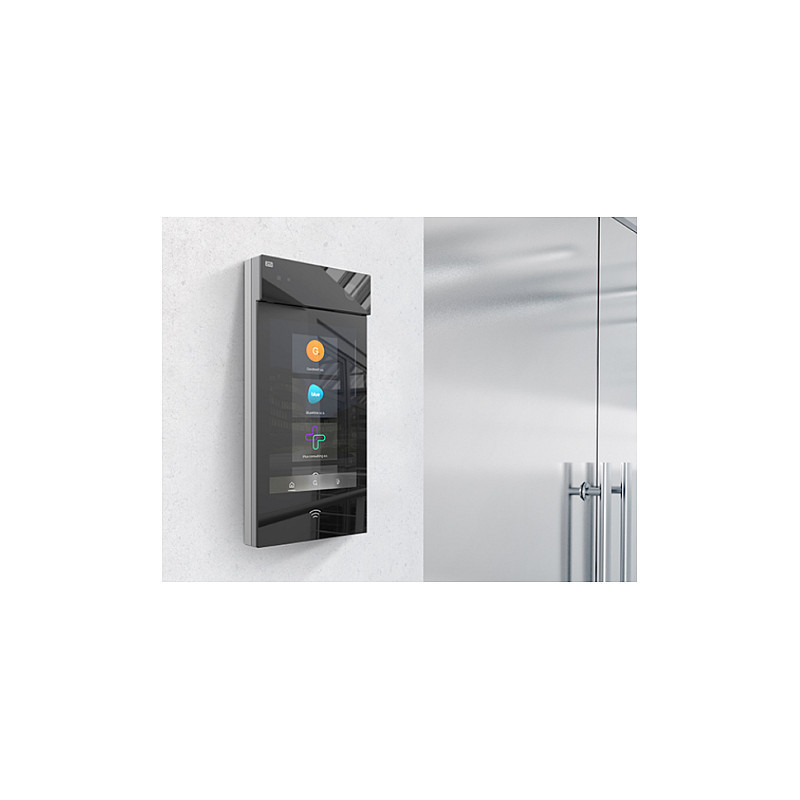

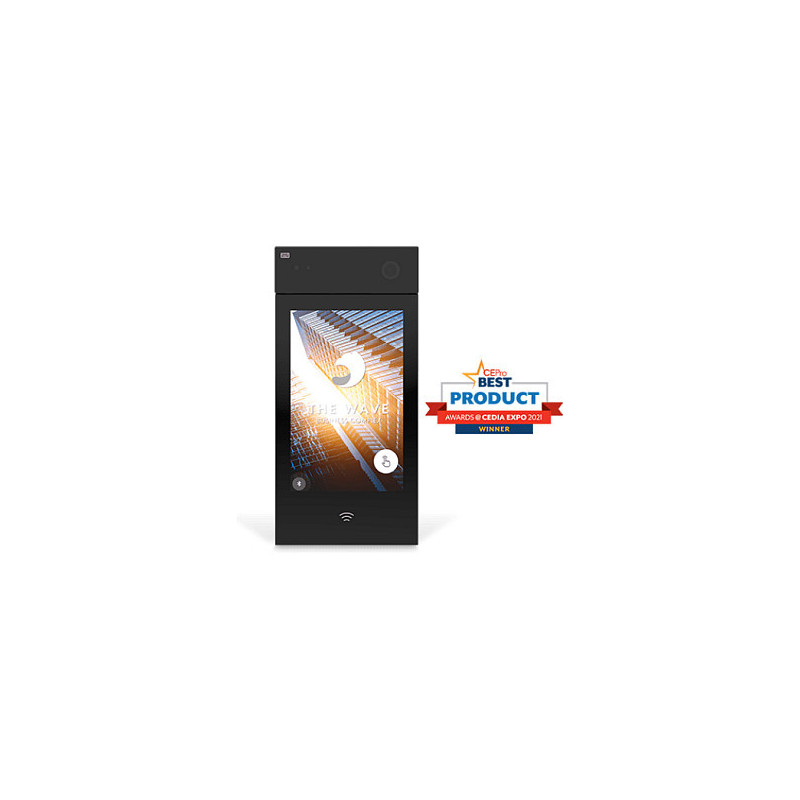

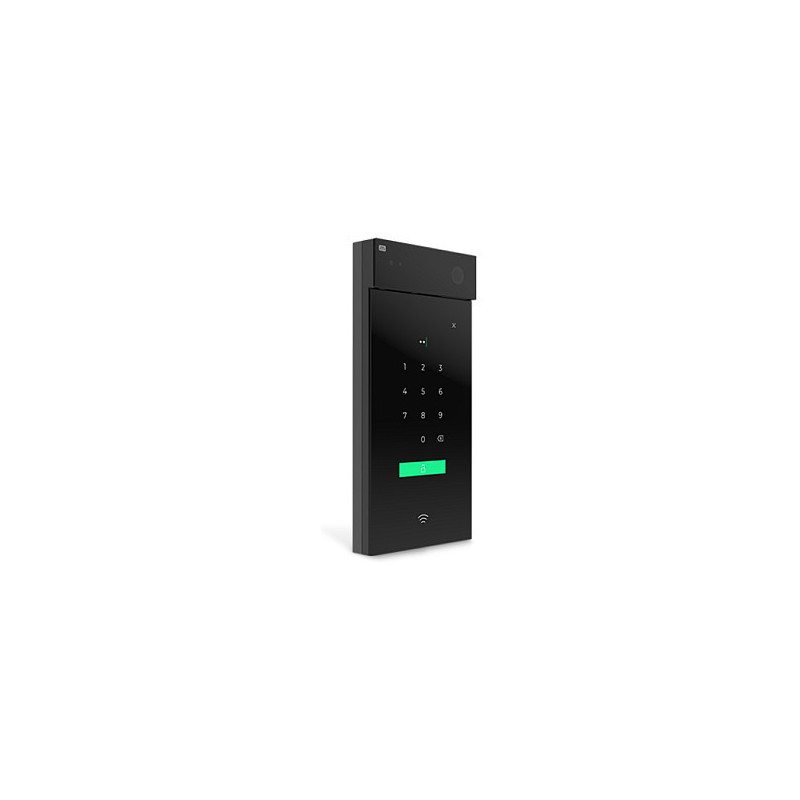

2N IP STYLE video intercom system

2N IP STYLE. Video codecs: H.264, MJPEG. Display diagonal: 25.6 cm (10.1"), Display technology: IPS, Display resolution: 1280 x 800 pixels. Maximum image resolution: 2560 x 1920 pixels, Maximum video resolution: 2560 x 1920 pixels, Maximum frame rate: 30 fps. Speaker power: 4 W, Voice codecs: G.711, G.722, G.729. Product colour: Black, International Protection (IP) code: IP65, IK code: IK08

Features

Feature: Colour
Number of displays supported: 1
Feature: Built-in microphone
Video codecs: H.264, MJPEG

Display

Display diagonal: 25.6 cm (10.1")
Display technology: IPS
Display resolution: 1280 x 800 pixels
Display aspect ratio: 16:9
Feature: Touchscreen

Camera

Maximum image resolution: 2560 x 1920 pixels
Maximum video resolution: 2560 x 1920 pixels
Maximum frame rate: 30 fps
Viewing angle, horizontal: 144°
Viewing angle, vertical: 126°

Audio

Feature: Built-in speaker(s)
Number of speakers: 2
Speaker power: 4 W
Volume control: Yes
Voice codecs: G.711, G.722, G.729

Design

Product colour: Black
International Protection (IP) code: IP65
IK code: IK08

Network

Ethernet LAN data rates: 10,100 Mbit/s
Feature: Bluetooth
Feature: Power over Ethernet (PoE)
Supported network protocols: SIP2.0, SIPS, DHCP opt. 66, SMTP, SNMP, TR069, 802.1x, RTSP, RTP, SRTP, TFTP, HTTP, HTTPS, Syslog, ONVIF
Networking standards: IEEE 802.3at

Operational conditions

Operating temperature (T-T): -30 - 60 °C
Storage temperature (T-T): -30 - 70 °C
Operating relative humidity (H-H): 10 - 95%

Weight & dimensions

Width: 170 mm
Depth: 40 mm
Height: 355 mm
Weight: 1.95 kg
