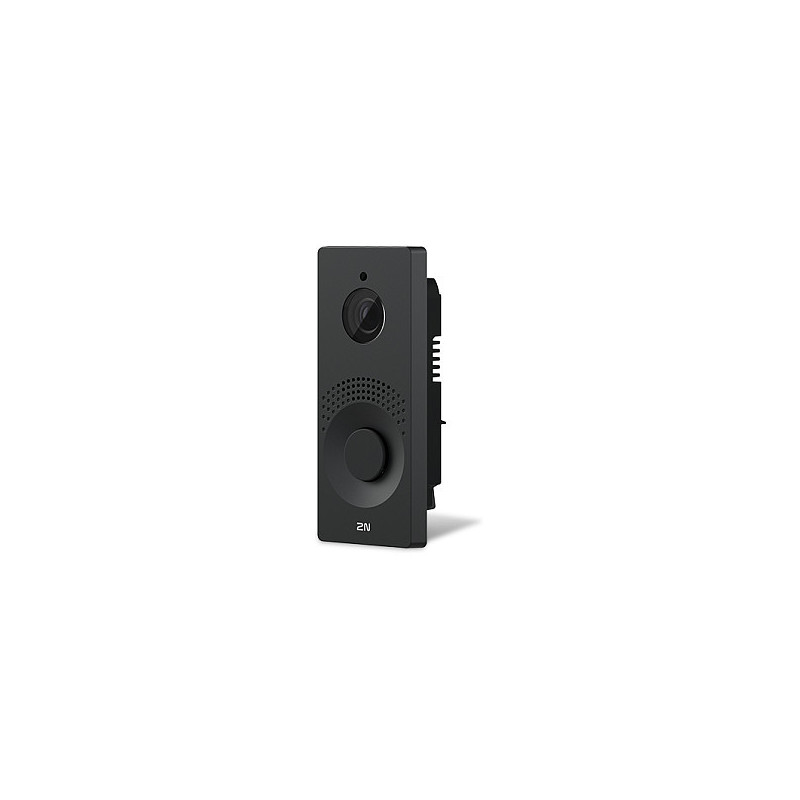

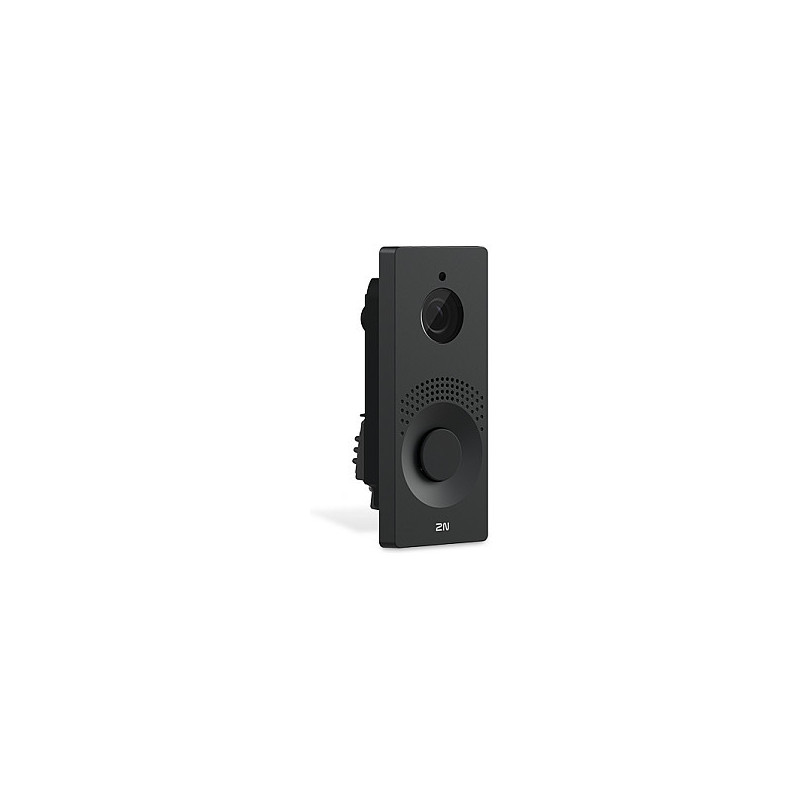

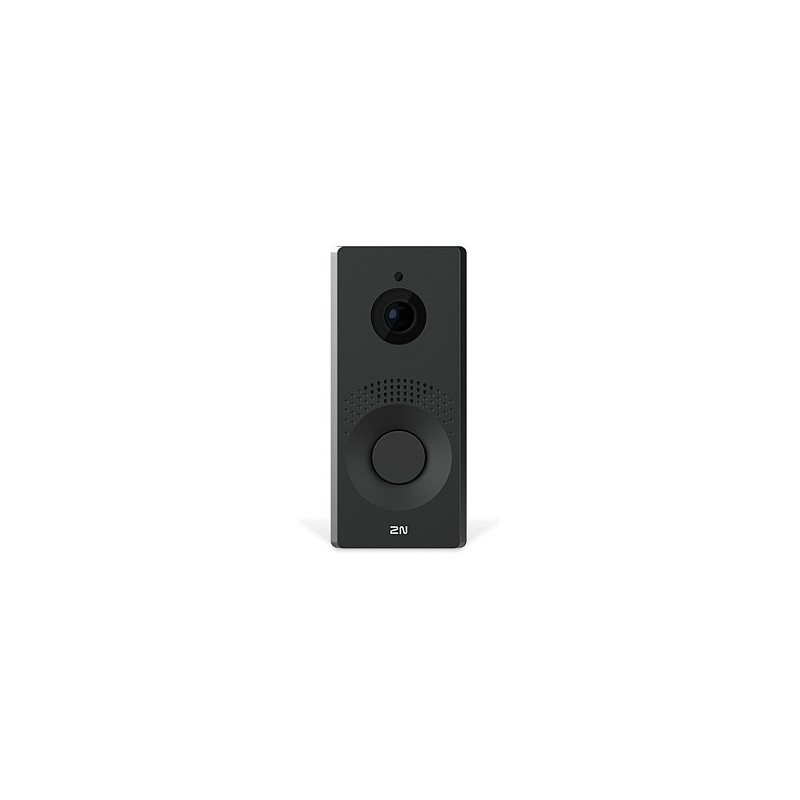

2N IP One video intercom system

2N IP One. Display resolution: 1920 x 1440 pixels, Display aspect ratio: 4:3. Sensor type: CMOS, Optical sensor size: 25.4 / 2.7 mm (1 / 2.7"), Maximum frame rate: 30 fps. Speaker power: 3 W, Voice codecs: G.711, G.722, G.729. Product colour: Black, International Protection (IP) code: IP66, IK code: IK08. Ethernet interface type: Fast Ethernet, Ethernet LAN data rates: 10,100 Mbit/s, Cabling technology: 10/100Base-T(X)

Technical details

Connectivity technology: Wired & Wireless
Feature: Speakerphone
Maximum number of cameras supported: 1
Feature: Built-in microphone
Video codecs: H.264, MJPEG, Zipstream
Number of buttons: 1 buttons
Feature: Backlight buttons
Warranty period: 5 year(s)

Display

Display resolution: 1920 x 1440 pixels
Display aspect ratio: 4:3
Feature: Wide Dynamic Range (WDR)

Camera

Sensor type: CMOS
Optical sensor size: 25.4 / 2.7 mm (1 / 2.7")
Maximum frame rate: 30 fps
Minimum illumination: 0.3 lx
Viewing angle, horizontal: 156°
Viewing angle, vertical: 116°
Fixed focal length: 1.93 mm

Night vision

Feature: Night vision

Audio

Feature: Built-in speaker(s)
Number of speakers: 1
Speaker power: 3 W
Voice codecs: G.711, G.722, G.729

Design

Product colour: Black
International Protection (IP) code: IP66
Feature: Smartphone support
IK code: IK08
Feature: Vandal-proof
Housing material: Aluminium
Control type: Buttons
Placement supported: Vertical
Proper use: Outdoor

Network

Ethernet interface type: Fast Ethernet
Ethernet LAN data rates: 10,100 Mbit/s
Ethernet LAN (RJ-45) ports: 1
Cabling technology: 10/100Base-T(X)
Feature: Power over Ethernet (PoE)
Supported network protocols: RTP, RTSP, SRTP
Networking standards: IEEE 802.3af

Power

Outdoor unit power type: DC/PoE
AC adapter input voltage: 20 V
AC adapter output voltage: 12 V
AC adapter output current: 2 A
Power consumption: 600 mA

Operational conditions

Operating temperature (T-T): -40 - 60 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 10 - 95%

Weight & dimensions

Width: 78 mm
Depth: 53 mm
Height: 172 mm
Weight: 355 g

Packaging data

Feature: Outdoor unit included

Logistics data

Quantity per pack: 1 pc(s)
