Mikrotik netPower 16P

Mikrotik netPower 16P. Switch layer: L2/L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 16. Switching capacity: 72 Gbit/s. Networking standards: IEEE 802.3af, IEEE 802.3at. DC input voltage: 18 - 57 V. Power connector: DC-in jack. Power over Ethernet (PoE)

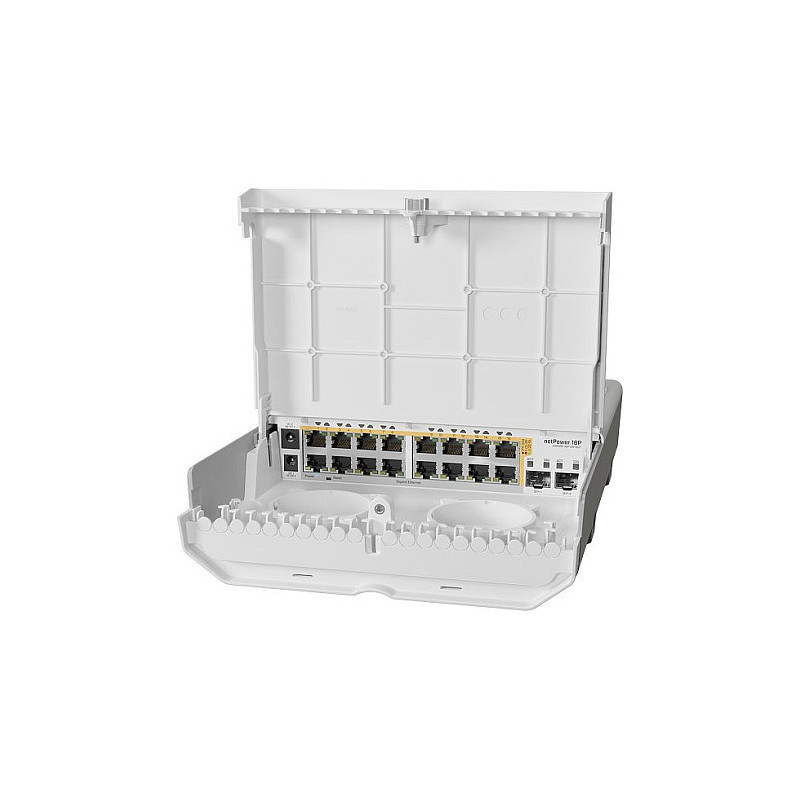

Powering a bunch of access points or IP cameras and a few uplinks on a tower has never been easier. netPower 16P has 16 Gigabit Ethernet ports with PoE-out and two SFP+ ports for 10G fiber uplinks.

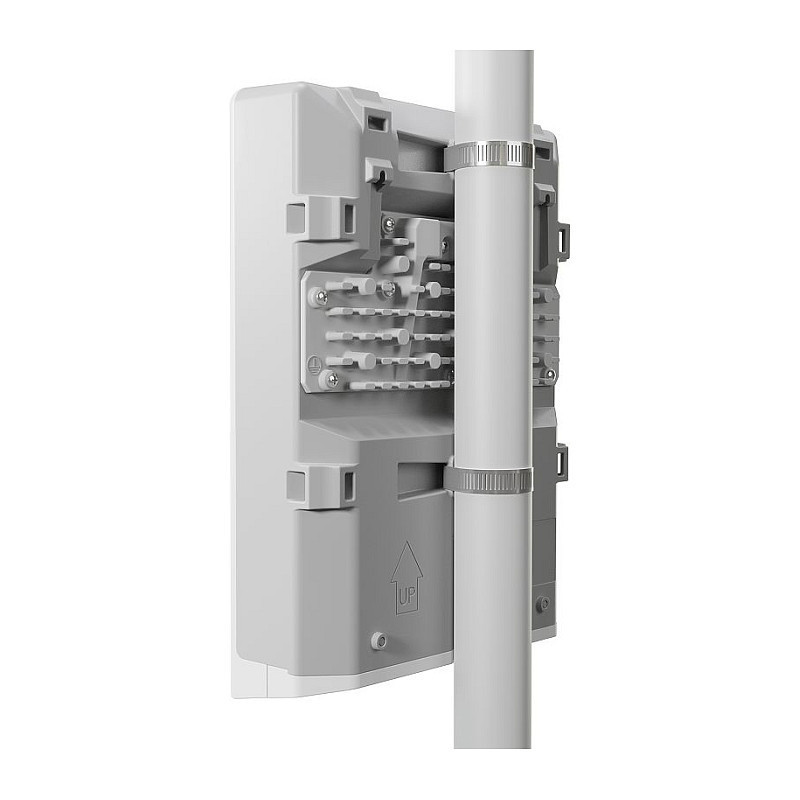

Its sturdy and compact outdoor enclosure allows the switch to be mounted in all kinds of environments - from damp attics and shafts to towers, masts and poles with hose clamps.

netPower 16P has a non-blocking throughput of 36 Gbps, switching capacity of 72 Gbps and forwarding rate of 53.6 Mpps.

Device itself does not have onboard voltage converter. You need 24V PSU to have 24V PoE out and/or 48V PSU to have 48V PoE out (IEEE 802.3 at/af).

* Power supply is NOT included with the product. You are welcome to use your preferred power option, like battery pack etc. Compatible also with MikroTik power supplies 24HPOW, 48POW and 48V2A96W

Management features

Switch layer: L2/L3

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 16
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
SFP+ module slots quantity: 2
Power connector: DC-in jack

Network

Networking standards: IEEE 802.3af, IEEE 802.3at

Data transmission

Switching capacity: 72 Gbit/s
Forwarding rate: 53.6 Mpps

Design

Product colour: White
Feature: Temperature sensor

Performance

Feature: Built-in processor
Processor model: 98DX226S
Processor frequency: 800 MHz
Internal memory: 256 MB
Flash memory: 16 MB

Power

Feature: Power supply included
DC input voltage: 18 - 57 V
Power consumption (max): 316 W

Power over Ethernet (PoE)

Feature: Power over Ethernet (PoE)
Power over Ethernet (PoE) ports quantity: 16

Operational conditions

Operating temperature (T-T): -40 - 70 °C

Weight & dimensions

Width: 212 mm
Depth: 78 mm
Height: 303 mm

Certificates

Certification: CE/RED, EAC, RoHS
