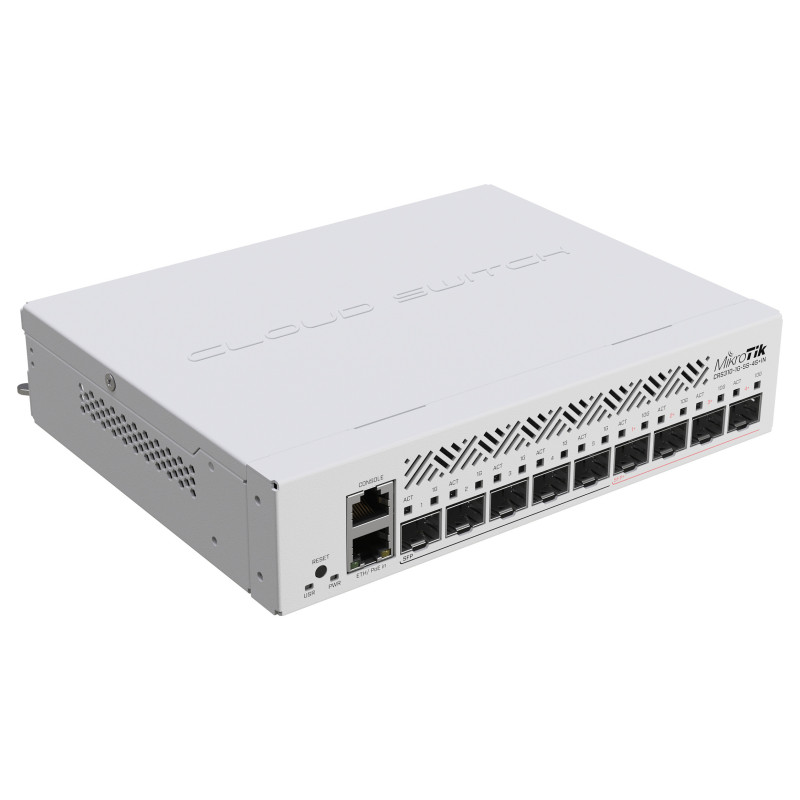

Mikrotik CRS310-1G-5S-4S+IN network switch

Mikrotik CRS310-1G-5S-4S+IN. Switch type: Managed, Switch layer: L3. Console port: RJ-45. Networking standards: IEEE 802.3af, IEEE 802.3at. DC input voltage: 18 - 57 V. Power over Ethernet (PoE). Rack mounting, Form factor: 1U

10 Gigabit fibre connectivity way over a 100 meters - for small offices or ISPs. Hardware offloaded VLAN-filtering and even some L3 routing on a budget!

This switch is an indoor variation of the prominent netFiber 9 switch - used by many small and medium ISPs for reliable 10 Gigabit fibre connections stretching over a 100 meters. With five 1G SFP ports, four 10G SFP+ ports, and an additional Gigabit Ethernet port, this is the perfect upgrade for existing CRS212 setups. You're getting the modern ARM v7 CPU, 256 MB of RAM, and better cooling. The new Marvell switch-chips bring phenomenal performance to the table!

The Gigabit Ethernet port has a direct connection to the switch chip - so you can enjoy full gigabit speed there. And it supports PoE-in, giving you an additional powering option in tricky spots.

You can mount this switch in a standard 1U rack to keep everything organized. And it has all the power you would expect from a rackmount device: CRS310 supports hardware offloaded VLAN- filtering. And even some hardware offloaded Layer-3 routing.

CRS310-1G-5S-4S+IN is a fantastic tool for anyone working with indoor connections over 100 meters while keeping data loss and ping low. Optical fiber can be a great alternative to copper if you are worried about electromagnetic interference, tampering or eavesdropping.

Management features

Switch type: Managed
Switch layer: L3

Ports & interfaces

SFP module slots quantity: 5
SFP+ module slots quantity: 4
Console port: RJ-45

Network

Networking standards: IEEE 802.3af, IEEE 802.3at
Feature: 10G support

Design

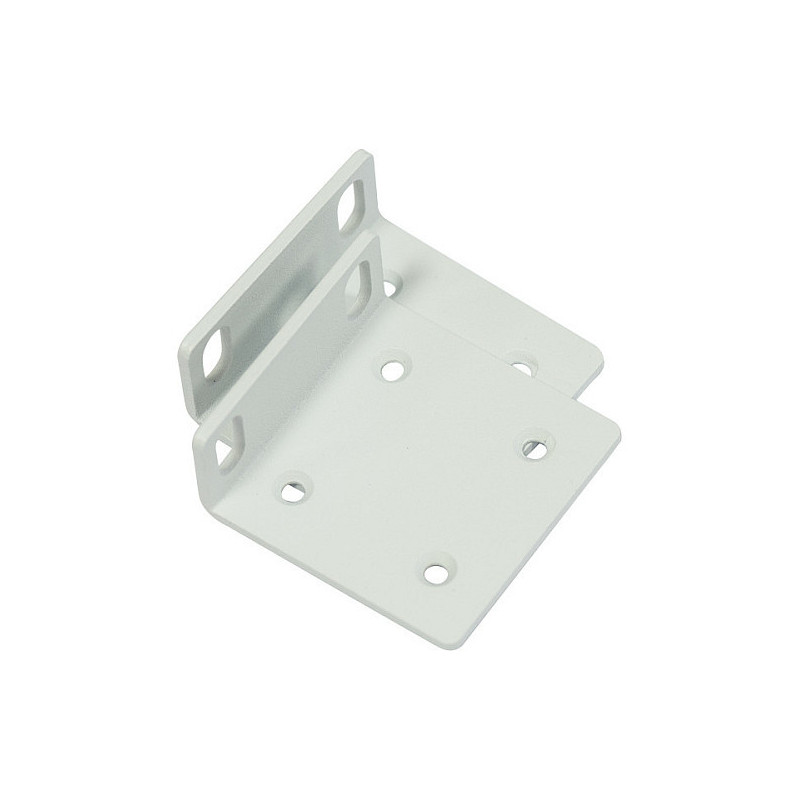

Feature: Rack mounting
Form factor: 1U
Feature: Reset button

Performance

Feature: Built-in processor
Processor model: 98DX226S
Processor frequency: 800 MHz
Internal memory: 256 MB
Flash memory: 16 MB
Mean time between failures (MTBF): 200000 h

Power

Power source: DC/PoE

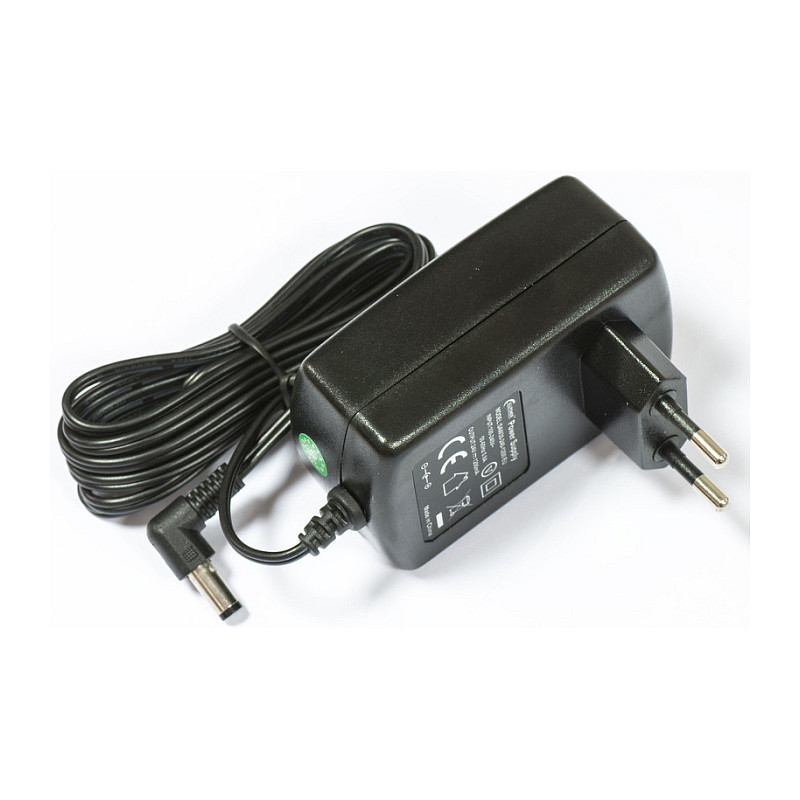

Feature: Power supply included

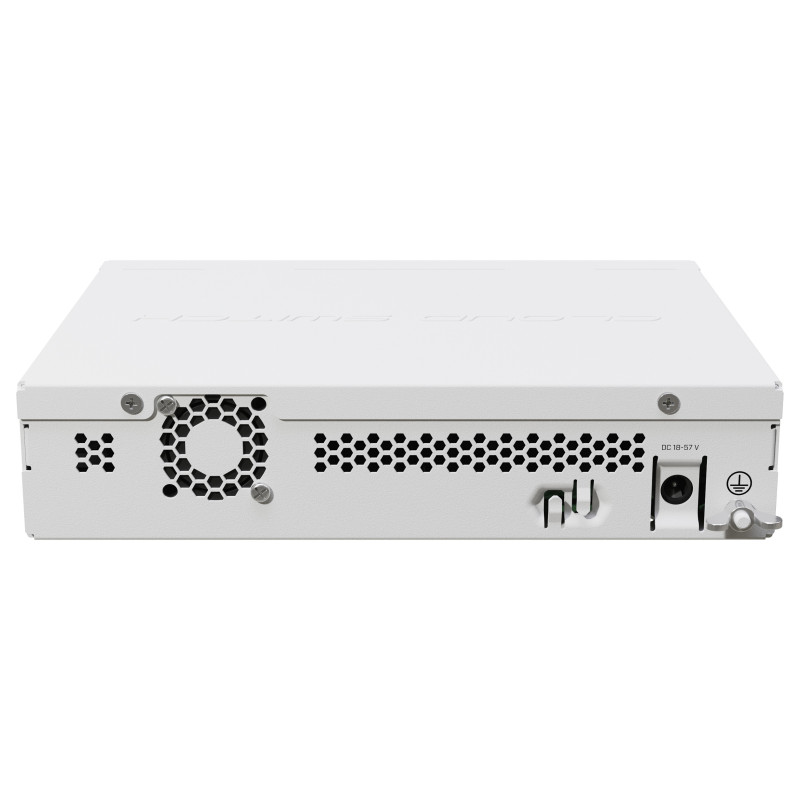

DC input voltage: 18 - 57 V
Power consumption (max): 20 W

Power over Ethernet (PoE)

Feature: Power over Ethernet (PoE)

Operational conditions

Operating temperature (T-T): -40 - 70 °C

Weight & dimensions

Width: 200 mm
Depth: 166 mm
Height: 45 mm

Certificates

Certification: CE, EAC, ROHS

Logistics data

Harmonized System (HS) code: 85176990
