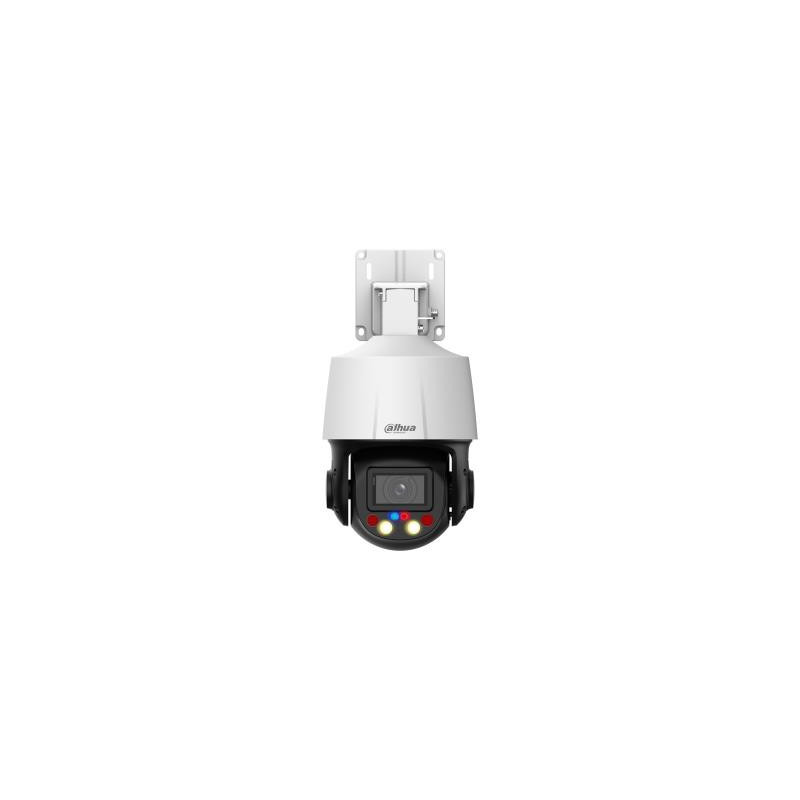

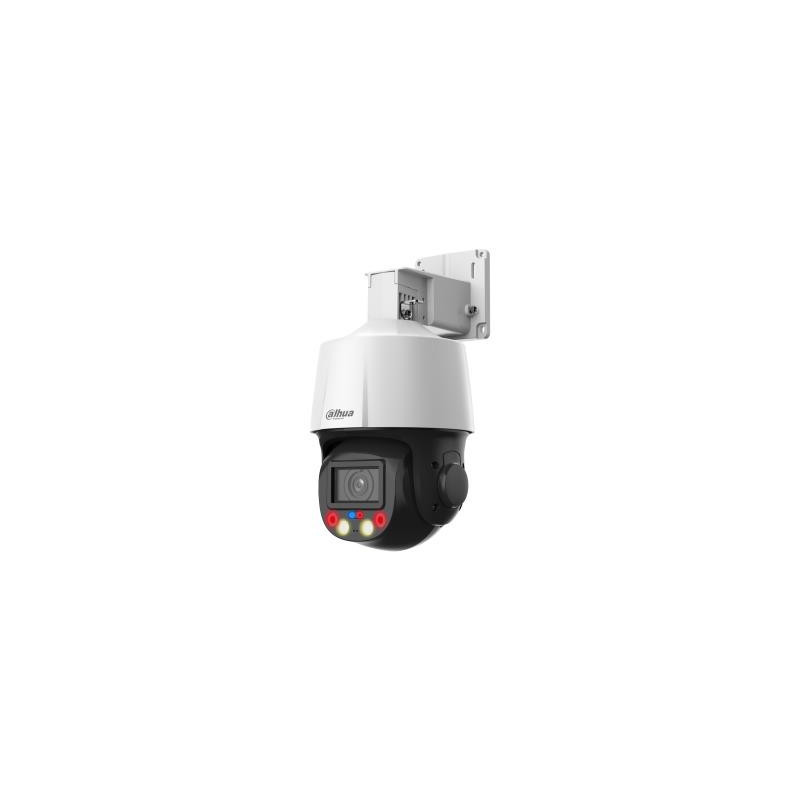

NET CAMERA 4MP PTZ DOME / SD3E405DB-GNY-A-PV1 DAHUA
Product reference:
2-SD3E405DB-GNY-A-PV1
NET CAMERA 4MP PTZ DOME / SD3E405DB-GNY-A-PV1 DAHUA
Product reference:
2-SD3E405DB-GNY-A-PV1
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
36 month
Delivery from Europe in
13 - 15
business days
- 1/2.8" 4Megapixel CMOS
- 5x optical zoom
- Max. 25/30fps@4M
- IR distance up to 50 m
- Warm light illumination distance up to 30 m
- SMD 3.0
- Perimeter protection
- Face detection
- Alarm: 1 in, 1 out; audio: 1 in, 1 out
- Built-in Mic and Speaker for Two-way Talk
- 12 VDC/PoE power supply
- IP66
- Sound and light alarm (red and blue lights)
| Summary | Dahua Technology WizSense SD3E405DB-GNY-A-PV1. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: White, Form factor: Turret. Minimum illumination: 0.0005 lx, Tilt angle range: -15 - 90°, Tilt speed: 25.8 °/sec. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Optical zoom: 5x, Digital zoom: 16x, Detect distance: 270 m |
| Vendor Homepage | https://www.dahuasecurity.com/products/All-Products/PTZ-Cameras/WizSense-Series/SD3/SD3E405DB-GNY-A-PV1 |
| Form factor | Turret |
| International Protection (IP) code | IP66 |
| Mounting type | Ceiling/wall |
| Product colour | White |
| Auto-tracking | Yes |
| Certification | CE: EN55032/EN55024/EN50130-4 FCC: Part15 B, ANSI C63.4-2014 |
| Connectivity technology | Wired |
| Placement supported | Indoor & outdoor |
| Preset points | Yes |
| PTZ control | Yes |
| Type | IP security camera |
| Wide Dynamic Range (WDR) | Yes |
| Camera shutter speed | 1/1 - 1/30000 s |
| Minimum illumination | 0.0005 lx |
| Pan preset speed | 35.7 °/sec |
| Pan range | 0 - 355 ° |
| Pan speed | 36 °/sec |
| Tilt angle range | -15 - 90 ° |
| Tilt preset speed | 27.1 °/sec |
| Tilt speed | 25.8 °/sec |
| White balance | Indoor/Manual/Natural/Outdoor/Sodium lamp/Street lamp |
| Optical sensor size | 1/2.8 " |
| Progressive scan | Yes |
| Sensor type | CMOS |
| Auto focus | Yes |
| Closest focusing distance | 1.5 m |
| Detect distance | 270 m |
| Digital zoom | 16 x |
| Focal length range | 2.7 - 13.5 mm |
| Focus | Motorized/Manual |
| Identify distance | 27 m |
| Maximum aperture number | 3 |
| Minimum aperture number | 1.6 |
| Number of lenses | 1 |
| Observe distance | 106.6 m |
| Optical zoom | 5 x |
| Recognize distance | 54 m |
| Zoom capability | Yes |
| Night vision | Yes |
| Night vision distance | 50 m |
| Number of illumination LEDs | 6 |
| Back Light Compensation (BLC) | Yes |
| Bit rate control | Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Frame rate | 30 fps |
| Gain control type | Auto/Manual |
| Highlight Compensation (HLC) | Yes |
| Image stabilizer | Yes |
| Maximum resolution | 2560 x 1440 pixels |
| Noise reduction | Yes |
| Noise reduction technology | 2D noise reduction,3D noise reduction |
| Region of Interest (ROI) encoding | Yes |
| Supported graphics resolutions | 1280 x 720 (HD 720)/1280 x 960/1920 x 1080 (HD 1080)/2304 x 1296/2560 x 1440/352 x 288/640 x 480 (VGA)/704 x 576 |
| Total megapixels | 4 MP |
| Video compression formats | H.264/H.264+/H.264B/H.265/H.265+/M-JPEG |
| Video streaming | Yes |
| Audio input channels | 1.0 channels |
| Audio output channels | 1.0 channels |
| Signal-to-Noise Ratio (SNR) | 55 dB |
| Voice codecs | G.711a/G.711Mu/G.722.1/G.726/MP2L2/PCM |
| Bluetooth | No |
| Ethernet LAN | Yes |
| Number of users | 20 user(s) |
| Streaming method | Multicast/Unicast |
| Supported network protocols | FTP;RTMP;IPv6;Bonjour;IPv4;DNS;RTCP;PPPoE;NTP;RTP;802.1x;HTTPS;SNMP;TCP/IP;DDNS;UPnP;NFS;ICMP;UDP;IGMP;SMB;HTTP;SSL;DHCP;SMTP;Qos;RTSP;ARP |
| Wi-Fi | No |
| Built-in HDD | No |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
| Maximum memory card size | 512 GB |
| RAM capacity | 512 MB |
| ROM capacity | 128 MB |
| Ethernet LAN (RJ-45) ports | 1 |
| Active tampering alarm | Yes |
| Alarm input channels | 1 |
| Alarm output channels | 1 |
| Intelligent Video Surveillance (IVS) system features | Abandoned object/Face detection/Human detection/Intrusion/Missing object/Tripwire/Vehicle detection |
| Video motion detection | Yes |
| Management software | DMSS;DSS Pro |
| DC output voltage | 12 |
| Power consumption (max) | 15 W |
| Power consumption (typical) | 4.5 W |
| Power source type | DC,PoE |
| Operating relative humidity (H-H) | 0 - 95 % |
| Operating temperature (T-T) | -30 - 60 °C |
| Mobile operating systems supported | Android/iOS |
| Depth | 142.6 mm |
| Height | 236.1 mm |
| Weight | 1500 g |
| Width | 140 mm |
| Package weight | 2100 g |
| Number of cameras | 1 |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.01896 cubm |
| Unit Calculated Weight | 4.4 kg |
