Neoline Fuse Cord X72 - zestaw zasilania z ACC do X72

Neoline Fuse Cord X72: The original Neoline X7 series power supply kit (cable, power supply, recorder mount) allows you to create a hidden installation in your vehicle that provides the dashcam with a continuous +12/24V power supply, e.g., from the fuse box, as well as ignition-switched voltage (ACC or ignition). This allows the dashcam to automatically switch to parking mode when the ignition is turned off, and to re-engage normal recording mode when the vehicle's engine is started (after turning on the ignition/ACC).

The "Fuse Cord X72" kit is designed for Neoline G-Tech X72 DVRs with serial numbers above GX720319C0000 and G-Tech X73 (not available in Poland). For proper operation, the magnetic DVR mounting bracket included in this kit must be used. The DVR must have the latest system software installed, which can be downloaded from the manufacturer's website or from the Polish website https://neoline-polska.pl/aktualacje/.

Activating the automatic parking mode on/off option in Neoline G-Tech X72:

Update your dashcam's system software to the latest available version. Install the magnetic mount included in the "Fuse Cord X72" kit and connect it to your vehicle's wiring using a 3-wire cable. In the dashcam's menu, set the "Parking Mode" function to "On" and configure additional settings for this mode according to the user manual. After turning the vehicle's ignition off/on (ignition/ACC), the dashcam will automatically turn on/off parking mode. If you don't want to use parking mode when the ignition is off, briefly press the dashcam's power button (ON/OFF).

BASIC TECHNICAL DATA:

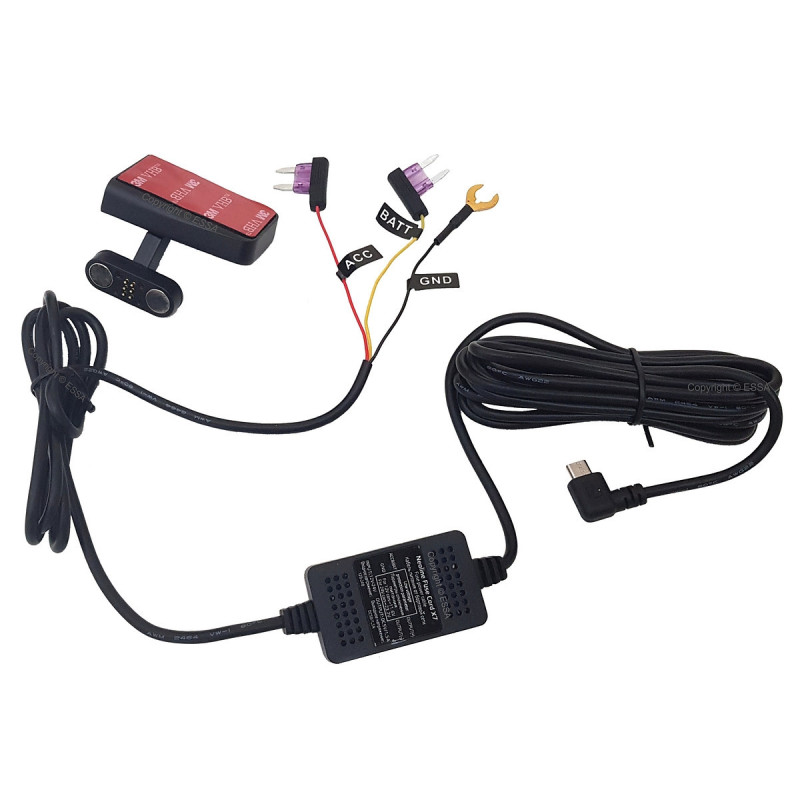

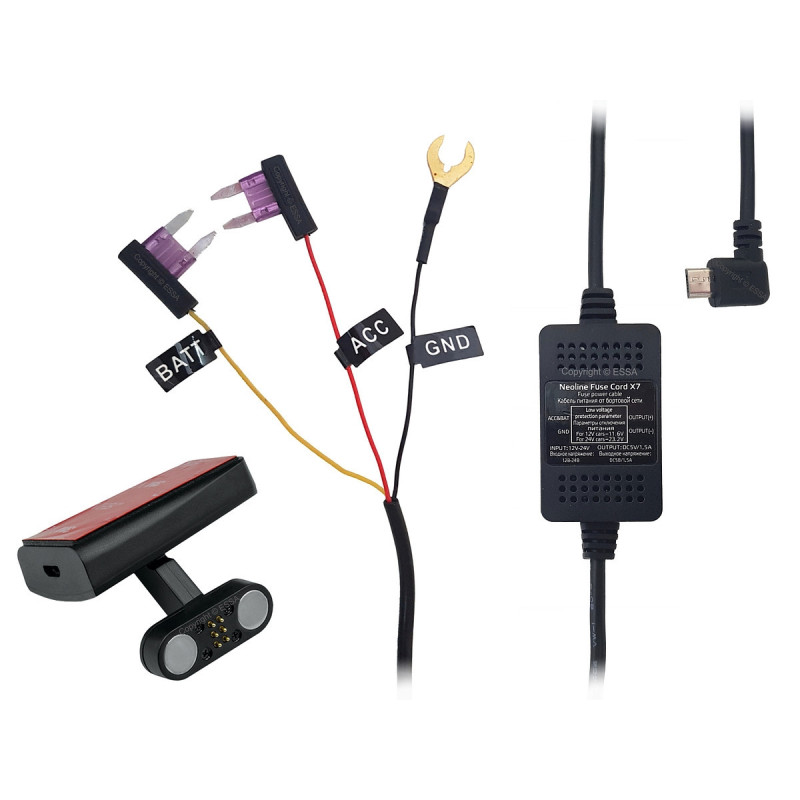

• 3-wire cable with power supply and micro-USB plug for continuous power supply of Neoline G-Tech X72 video recorders:
• BATT - yellow wire: +12/24V voltage that does not disappear after turning off the car's ignition
• ACC - red wire: +12/24V voltage (ACC or ignition), which disappears when the ignition is turned off
• GND - black wire: power supply ground (-12V/24V), e.g. metal parts of the car body

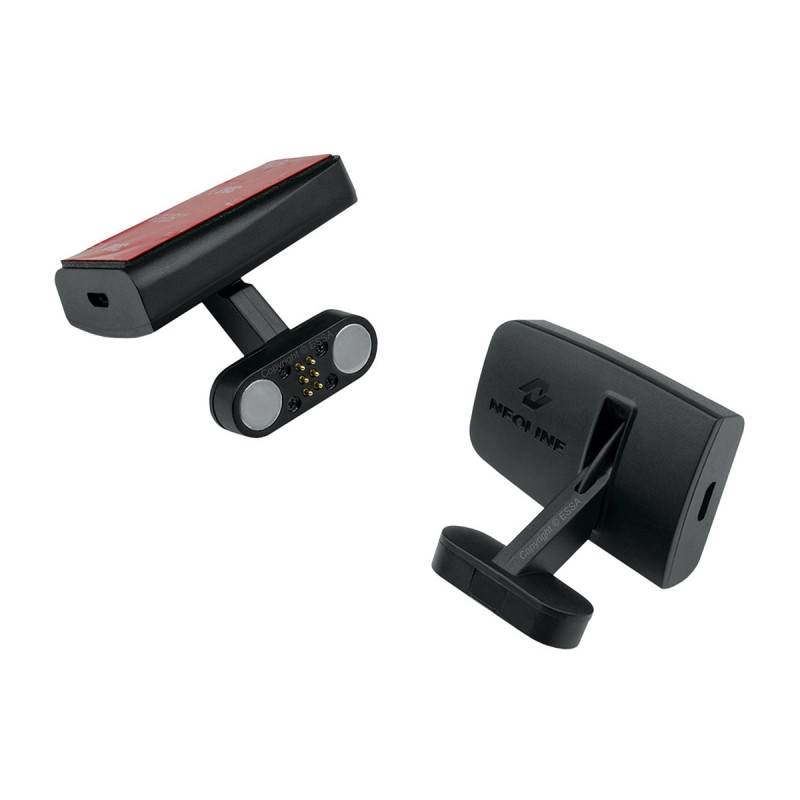

• Magnetic holder for mounting the recorder, which should be mounted in place of the holder supplied with the recorder.
• Automatically turns parking mode on and off when the car ignition is turned off/on.
• It allows for an aesthetically concealed power supply connected to the socket in the recorder mounting bracket.
• It does not take up space in the car cigarette lighter socket, allowing you to connect other devices to it.
• The previously used holder can be mounted in a second car and the recorder can be used interchangeably in both vehicles.
• Power supply input voltage: 12 - 24 V.
• Power supply output voltage: 5V/1.5A
• A system that protects the battery against deep discharge, which disconnects the recorder's power supply when the voltage in the installation drops below:
• 11.6 V for vehicles with 12 V installation
• 23.2 V for vehicles with 24 V installation
• Fuses mounted on wires.
• Cable length: 3 m.
• Cable diameter: 3.5 mm.
• Warranty: 24 months.

NOTE! Correct operation of the power supply kit with the Neoline G-Tech X72 video recorder is only possible when using the magnetic mount included in the "Fuse Cord X72" kit. The mount supplied with the recorder must be replaced with the mount from the "Fuse Cord X72" kit.

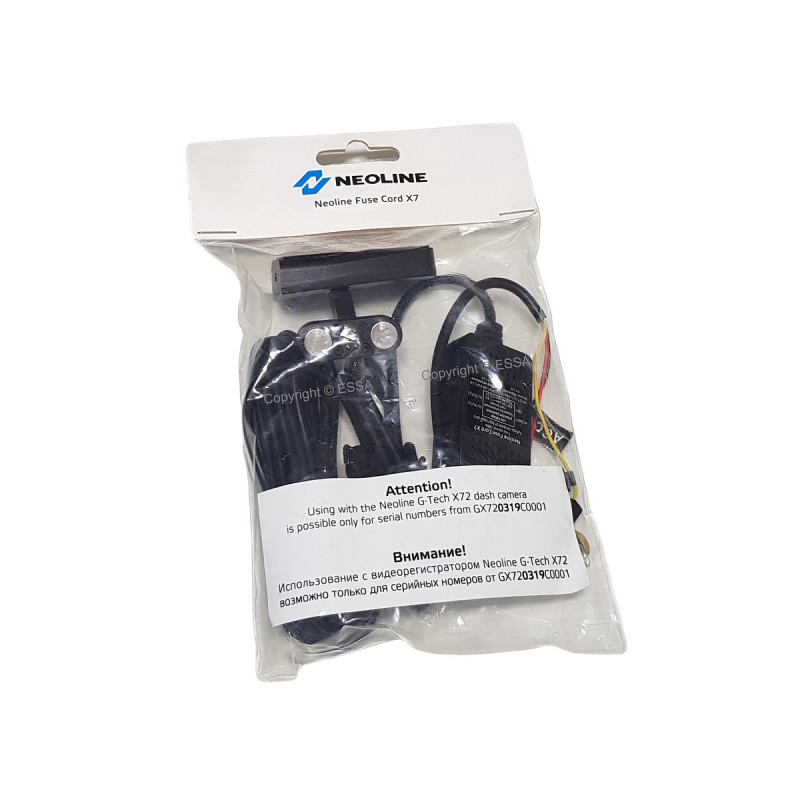

The set includes:

Power supply with a 3-wire power cable that connects directly to the vehicle's electrical system. A magnetic holder that attaches to the windshield and identifies the ignition switch status, with a power connector for G-Tech X72 recorders. Instructions in Polish.
