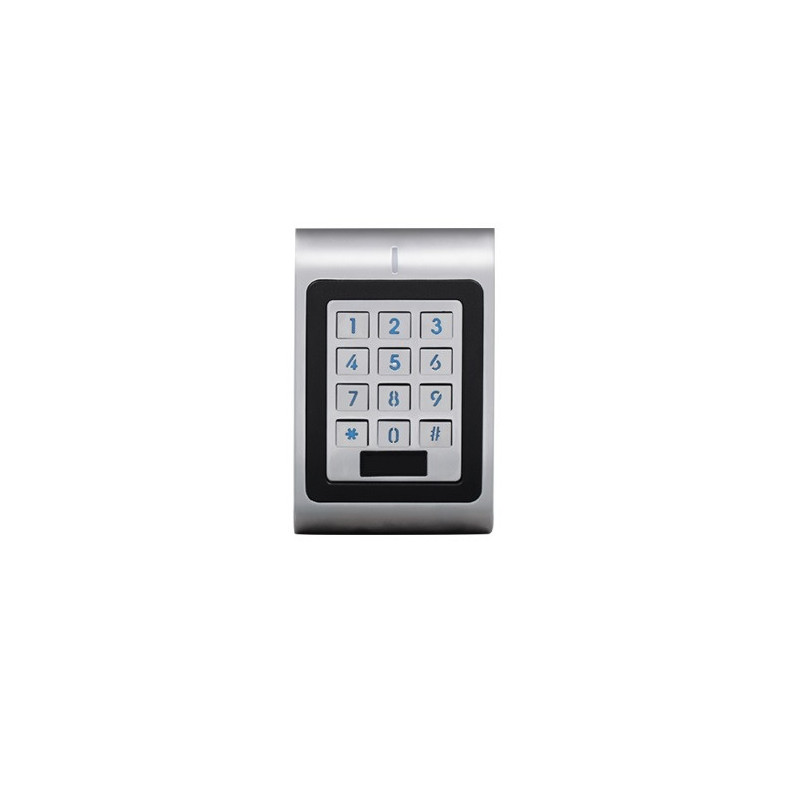

Multifunctional keyboard with RFID card reader and integrated controller.

Multifunctional keyboard with proximity card reader and integrated controller, 125KHz EM / Mifare, IP66.
Features:
This is a compact standalone access control with a keypad and a proximity card reader.
The RFID access control controller is designed for extreme weather conditions (-40°C~+60°C), has IP66 water and dust resistance, suitable for outdoor or indoor use.
Optionally 125KHz or 13.56MHz Mifare cards are supported.
Robust metal vandal-proof housing. Alarm in case of burglary.
Backlit keyboard, convenient to use in the dark.
Supports 10 visitors, who are allowed to enter from 1 to 10 times.
Access control in 3 ways: card, PIN code or card+PIN.
Technical data:
Number of users (cards/PIN codes): 1,000 (990 permanent + 10 visitors).
PIN code length: 4-6 digits.
Supported card frequency: 13.56MHz (Mifare) or 125KHz EM card.
Voltage: DC 9~18V.
Power consumption - standby / working: <50mA / <80mA..
Card scanning distance: 3~6 cm.
Number of doors supported: 1.
Wire connections: for lock, exit button, door sensor, alarm.
Relay: 1 (for lock, No, Nc, Com contacts).
Adjustable relay activation time: 0-99 seconds (5 seconds by default).
Safety class: IP66.
Mounting: on the wall.
Material: zinc alloy.
Operating temperature: -40°C~+60°C.
Relative humidity: 10%~90%RH.
Dimensions: 117 x 76 x 25 mm.
Weight: 470g.
Warranty: 24 months
