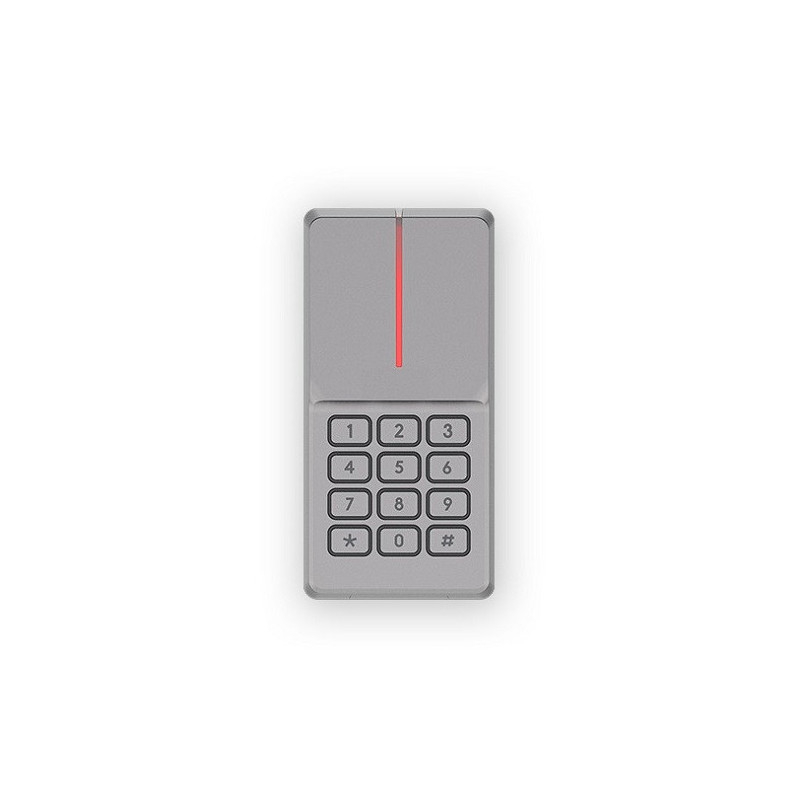

Multifunctional keyboard with EM / HID / MF / NFC / CPU card reader and integrated controller

Multifunctional keyboard with proximity card reader and integrated controller sKey 2, EM/HID/MF/NFC/CPU, IP65.
Features:
This is a standalone access control with a keypad and a proximity card reader.
The access control controller is designed for outdoor use (-20°C~+60°C temperature), has IP65 water and dust resistance, suitable for outdoor or indoor use.
Optionally 125KHz EM/HID or 13.56MHz Mifare/NFC/CPU cards are supported.
Access control in 3 ways: card, PIN code or card+PIN.
Technical data:
Number of users (cards/PIN codes): 2000.
PIN code length: 4-6 digits.
Supported card frequencies: 125KHz (EM/HID cards) / 13.56MHz (Mifare/NFC/CPU cards; ISO14443A).
Power supply voltage: DC 12~24 V.
Standby power consumption: <50mA.
Card scanning distance: 2~5 cm.
Number of doors supported: 1.
Output protocol: 26/37bit Wiegand.
Wire connections: for lock, exit button, door sensor, doorbell, alarm.
Relay: 1 (for lock, No, Nc, Com contacts).
Adjustable relay activation time: 0-99 seconds.
Safety class: IP65.
Mounting: on the wall.
Material: zinc alloy.
Operating temperature: -20°C~+60°C.
Relative humidity: 0%~95%RH.
Dimensions: 170x 83x 26 mm.
Warranty: 24 months
