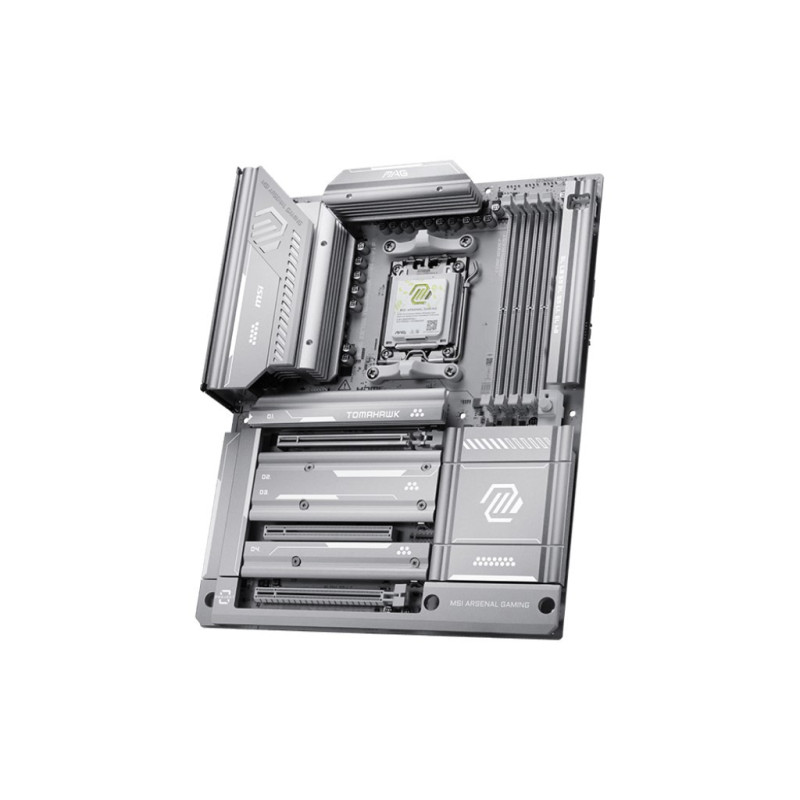

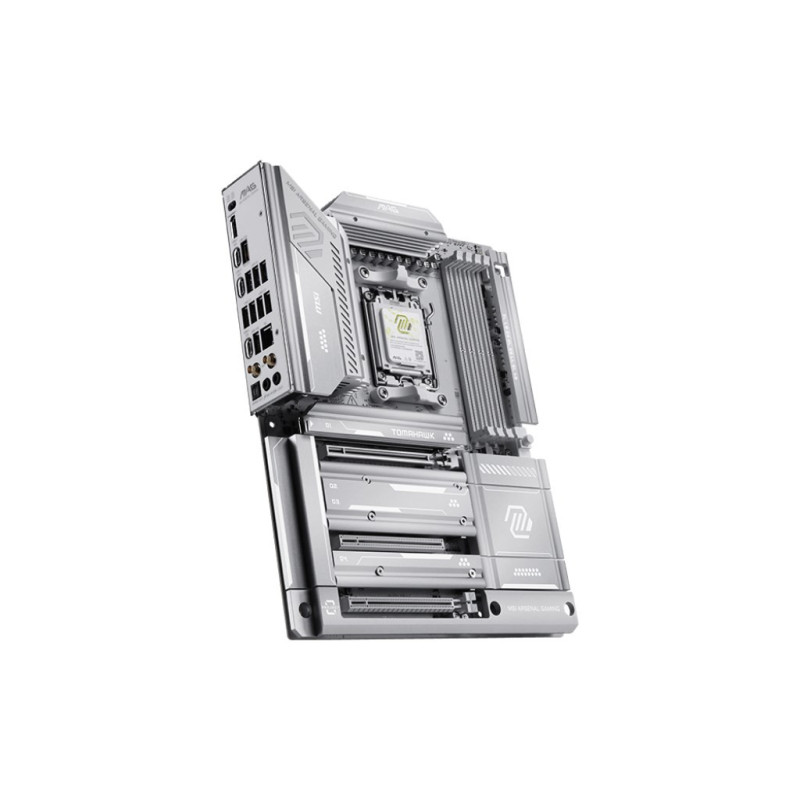

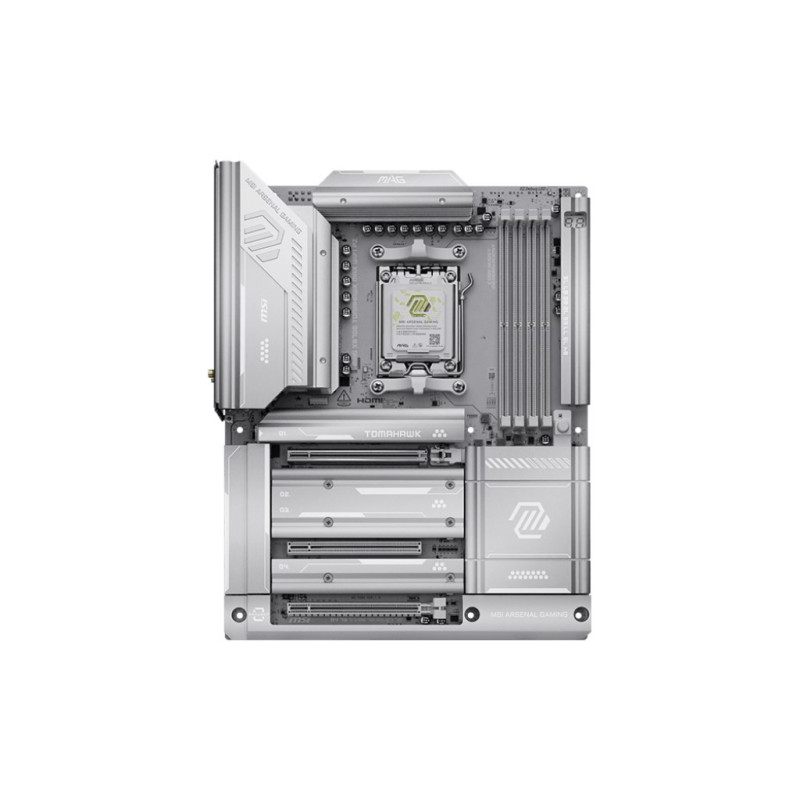

MSI MAG X870E TOMAHAWK MAX WIFI PZ motherboard AMD X870E Socket AM5 ATX
Product reference:
6-MAG X870E TOMAHAWK MAX WIFI PZ
MSI MAG X870E TOMAHAWK MAX WIFI PZ motherboard AMD X870E Socket AM5 ATX
MSI MAG X870E TOMAHAWK MAX WIFI PZ motherboard AMD X870E Socket AM5 ATX
Product reference:
6-MAG X870E TOMAHAWK MAX WIFI PZ
MSI MAG X870E TOMAHAWK MAX WIFI PZ motherboard AMD X870E Socket AM5 ATX
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
36 month
Delivery from Europe in
6 - 11
business days
| Compatible processor series | AMD Ryzen 9000 Series, AMD Ryzen 8000 Series, AMD Ryzen 7000 Series |
| Processor manufacturer | AMD |
| Processor socket | Socket AM5 |
| Supported processor sockets | Socket AM5 |
| On-board graphics card | No |
| PC health monitoring | Temperature, Voltage, CPU, Fan |
| Audio output channels | 7.1 channels |
| Motherboard chipset family | AMD |
| Motherboard form factor | ATX |
| Motherboard chipset | AMD X870E |
| Product colour | White |
| Memory slots type | DIMM |
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 4 |
| Memory channels | Dual-channel |
| Supported memory clock speed (max) | 8400 MHz |
| Unbuffered memory | Yes |
| ECC сompatibility | Non-ECC |
| Supported memory clock speeds | 5600, 8400 MHz, 4800, 6400 |
| Maximum internal memory | 256 GB |
| Width | 243.8 mm |
| Depth | 304.8 mm |
| Wi-Fi standards | Wi-Fi 5 (802.11ac), Wi-Fi 7 (802.11be), 802.11b, 802.11a, Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 4 (802.11n), 802.11g |
| Ethernet interface type | 5 Gigabit Ethernet |
| Bluetooth version | 5.4 |
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| LAN controller | Realtek RTL8126 |
| Bluetooth | Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| Total number of SATA connectors | 4 |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 4 |
| Number of SATA III connectors | 4 |
| EPS power connector (8-pin) | Yes |
| Front panel audio connector | Yes |
| Front panel connector | Yes |
| USB 2.0 connectors | 4 |
| BIOS type | UEFI AMI |
| Number of HDDs supported | 4 |
| Number of storage drives supported | 8 |
| Supported storage drive interfaces | M.2, SATA III |
| RAID support | Yes |
| RAID levels | 1, 10 |
| Supported storage drive types | HDD & SSD |
| Microphone in | Yes |
| USB4 Gen 2x2 ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI version | 2.1 |
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| DisplayPorts quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| S/PDIF out port | Yes |
| HDMI ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| DisplayPort version | 1.4 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| 3rd M.2 largest key size | 2280 |
| PCI Express x16 (Gen 3.x) slots | 1 |
| 4th M.2 largest key size | 2280 |
| 3rd M.2 highest PCI Express generation | 4.0 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| 4th M.2 highest PCI Express generation | 4.0 |
| Number of M.2 (M) slots | 4 |
| 1st M.2 largest key size | 22110 |
| 2nd M.2 largest key size | 2280 |
| 1st M.2 highest PCI Express generation | 5.0 |
| 2nd M.2 highest PCI Express generation | 5.0 |
| Warnings | Do not disassemble to avoid damage to internal components and loss of warranty., Dispose of in accordance with local regulations for electronic waste., Avoid contact with liquids to prevent electronic damage. |
