Vision VFM-C6X4 / V2 signage display mount

Vision VFM-C6X4/V2. Maximum weight capacity: 50 kg, Minimum screen size: 50.8 cm (20"), Maximum screen size: 190.5 cm (75"), Minimum VESA mount: 100 x 100 mm, Maximum VESA mount: 600 x 400 mm. Height adjustment range: 0 - 870 mm, Tilt angle range: -25 - 5°, Swivel angle: 60°. Product colour: Black

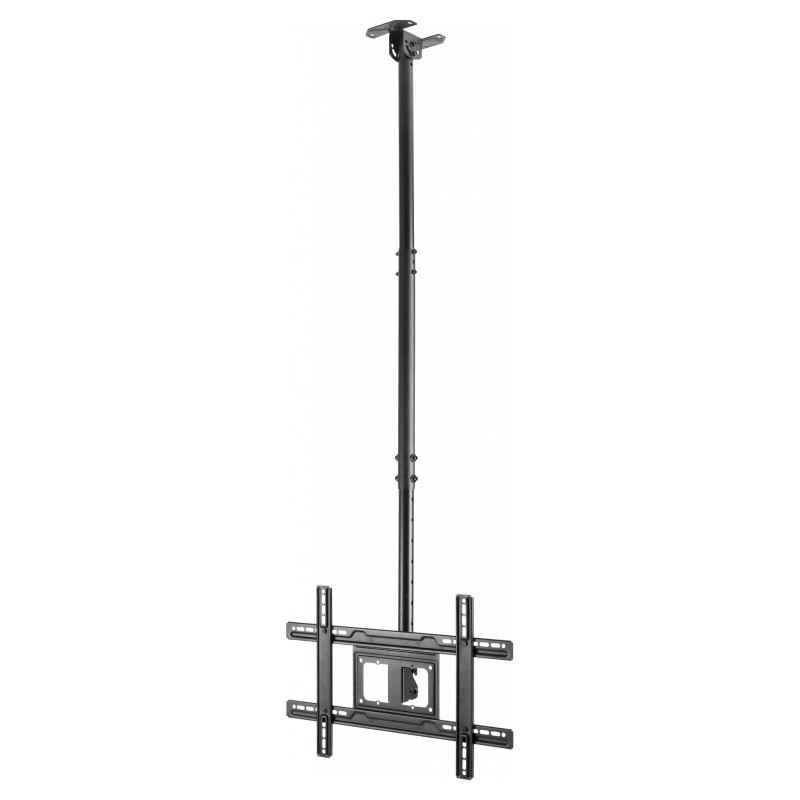

Flat-Panel Ceiling Mount 600×400

Vision's VFM-C (Vision Flat-Panel Mount - Ceiling) is functional and flexible. This mount fits any flat-panel display which has rear mounting holes up to 600 wide x 400 mm tall apart. This is a true one-size-fits-all ceiling mount.

VESA

This mount is designed for flat panels which have holes up to 600 wide x 400 mm apart - known as VESA 600×400.

MASSIVE range of drop

This distance from the ceiling to the centre of the display ranges from 707-1577 mm / 27.8-62.1″.

Detachable VESA

Vision agonise over making the installation process as easy as possible. The universal VESA bracket attaches to the display on the ground, then the assemble hangs in place.

Cable Management

The 38 mm / 1.5″ drop pole easily allows cables to drop down inside.

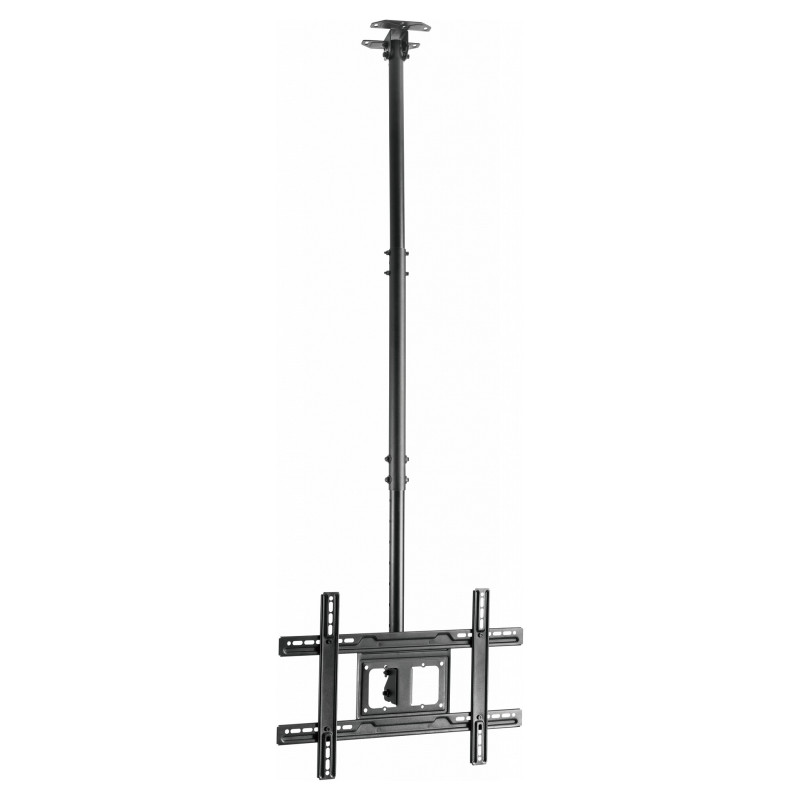

3-Part Pole

The pole can be assembled with either 2 or 3 sections which gives it an incredible range of telescopic adjustment. Installers can turn up to site and get the job down, no matter what they encounter onsite.

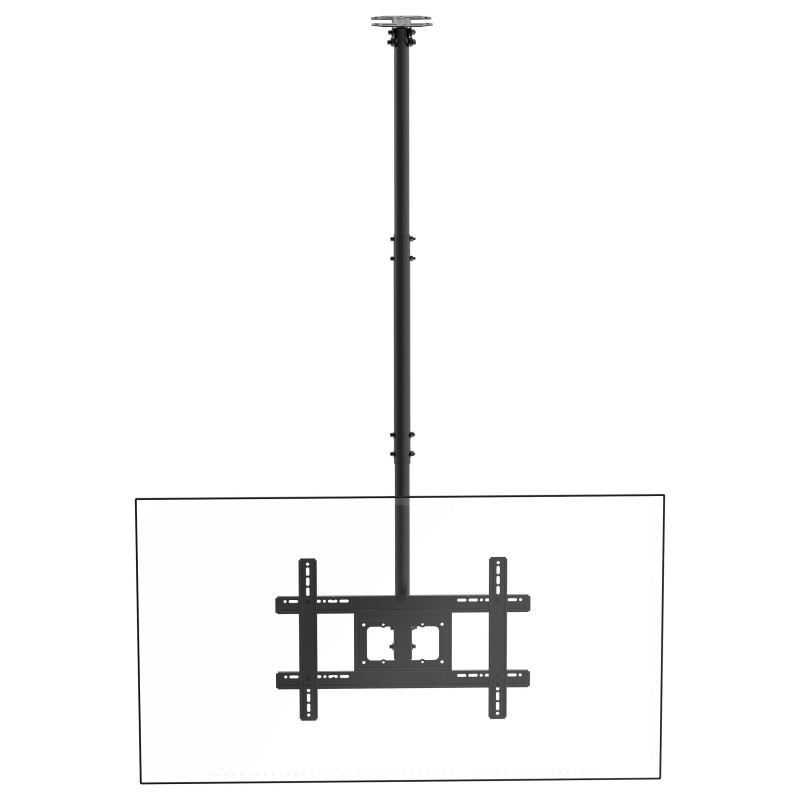

MASSIVE VESA range

Fits small monitors from 20″ all the way up to 75″. If a larger display has the correct mounting points and weighs less than the SWL this mount can support it safely.

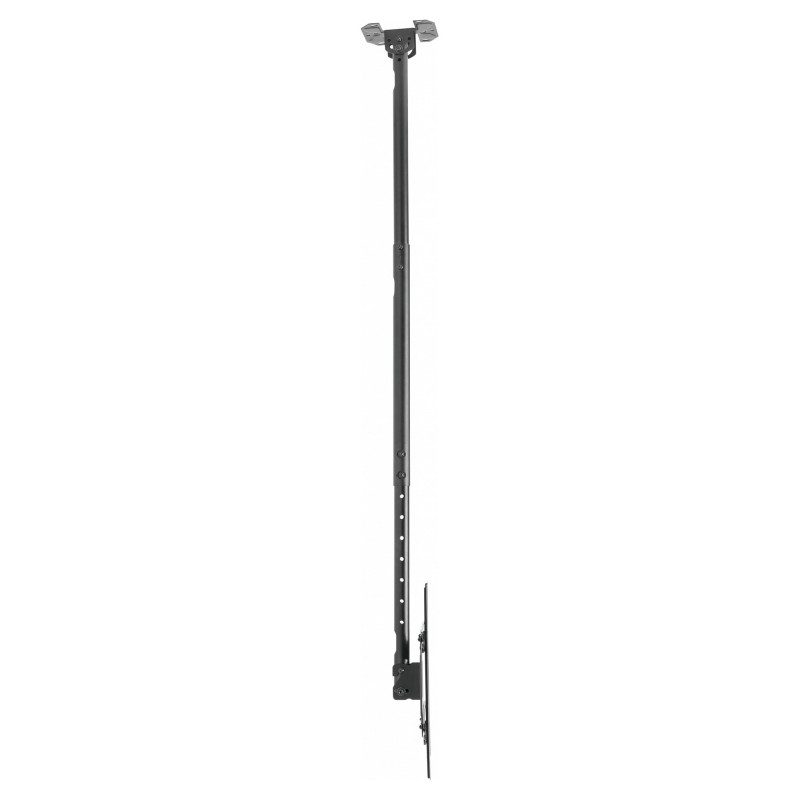

Tilt

The tilt adjustment allows the display to be directed at the audience to avoid glare and optimise the viewing angle. It can tilt 5 degrees up, or 25 degrees down.

Swivel with display in place

60 degrees of swivel range makes it really easy to install. Loosening the swivel adjustment bolts will not drop the display.

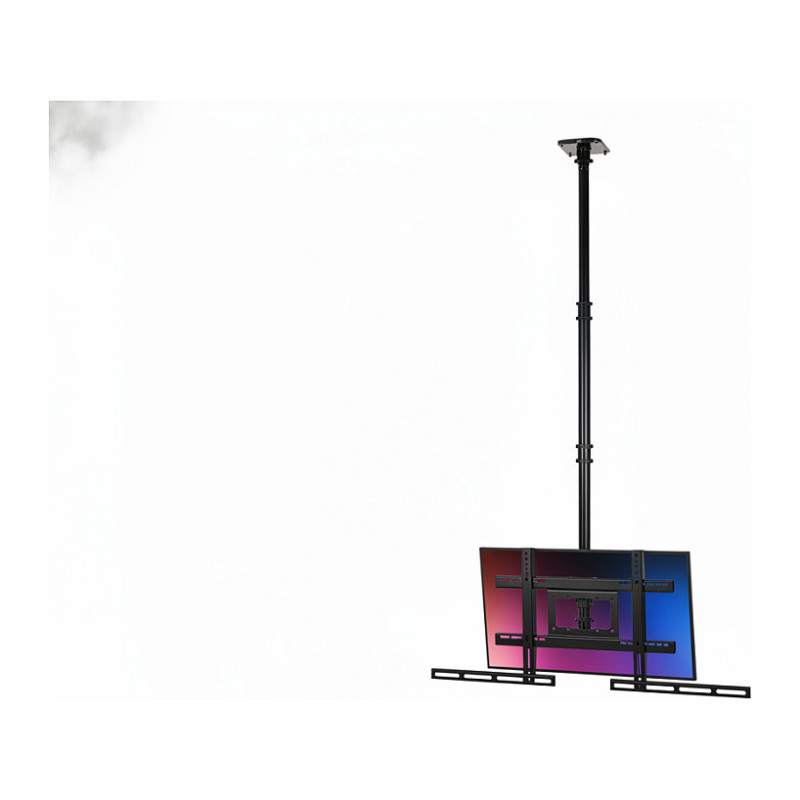

Retail Applications

Ideal for doctors waiting rooms, dentist's ceilings, or to deliver digital signage in any retail environment.

Cathedral Ceiling

The ceiling fixture tilts to accommodate sloping ceilings. It can tilt to 90 degrees to fix to the side of a ceiling joist.

Mounting

Maximum weight capacity: 50 kg
Minimum screen size: 50.8 cm (20")
Number of displays supported: 1
Maximum screen size: 190.5 cm (75")
Mounting type: Ceiling
Minimum VESA mount: 100 x 100 mm
Maximum VESA mount: 600 x 400 mm
Panel mounting interface: 100 x 100,100 x 200,200 x 100,200 x 200,300 x 400,300 x 300,400 x 400,400 x 300,500 x 400,600 x 400

Ergonomics

Feature: Height adjustment
Height adjustment range: 0 - 870 mm
Tilt angle range: -25 - 5°
Swivel angle: 60°
Swivel angle range: -30 - 30°
Feature: Cable management
Ceiling mounting tube length (min): 70.7 cm
Ceiling mounting tube length (max): 157.7 cm

Design

Product colour: Black
Housing material: Steel
Certification: REACH

Weight & dimensions

Width: 650 mm
Depth: 185 mm
Height: 1792 mm
Weight: 7.3 kg

Packaging data

Package width: 780 mm
Package depth: 180 mm
Package height: 245 mm
Package weight: 9.1 kg

Logistics data

Harmonized System (HS) code: 85299097
