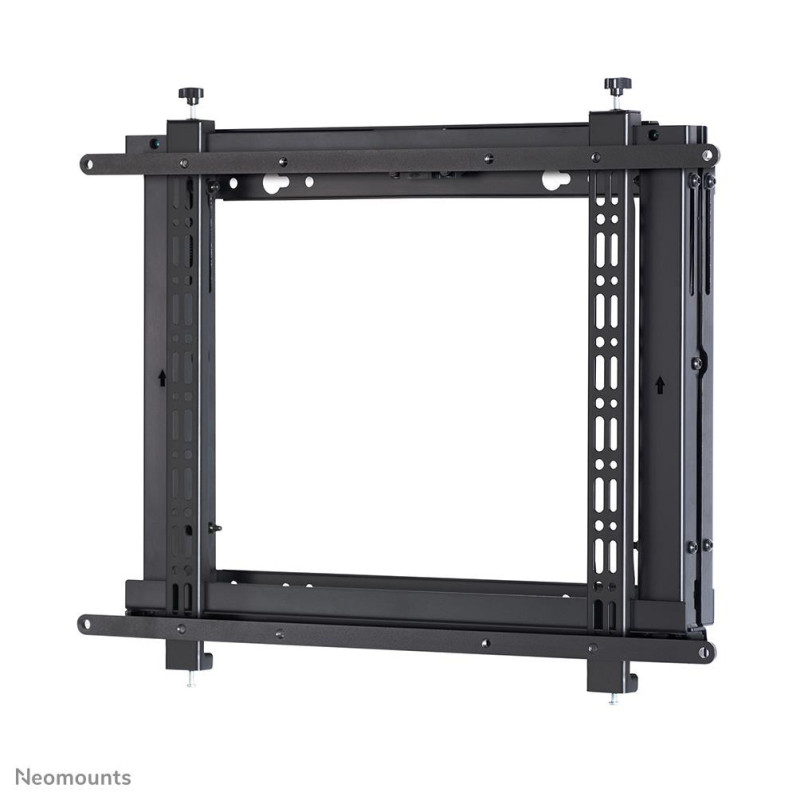

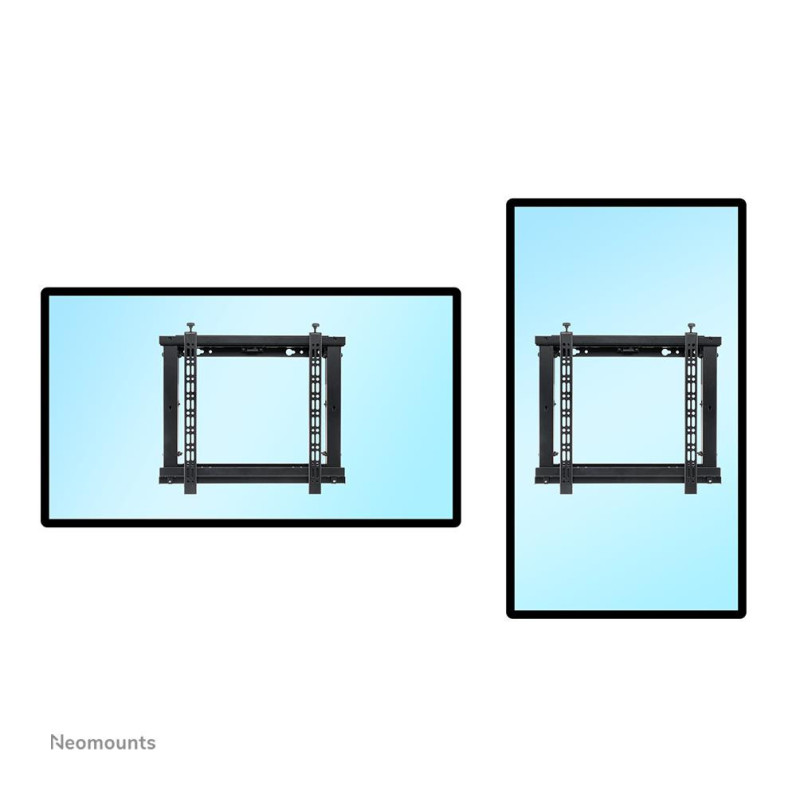

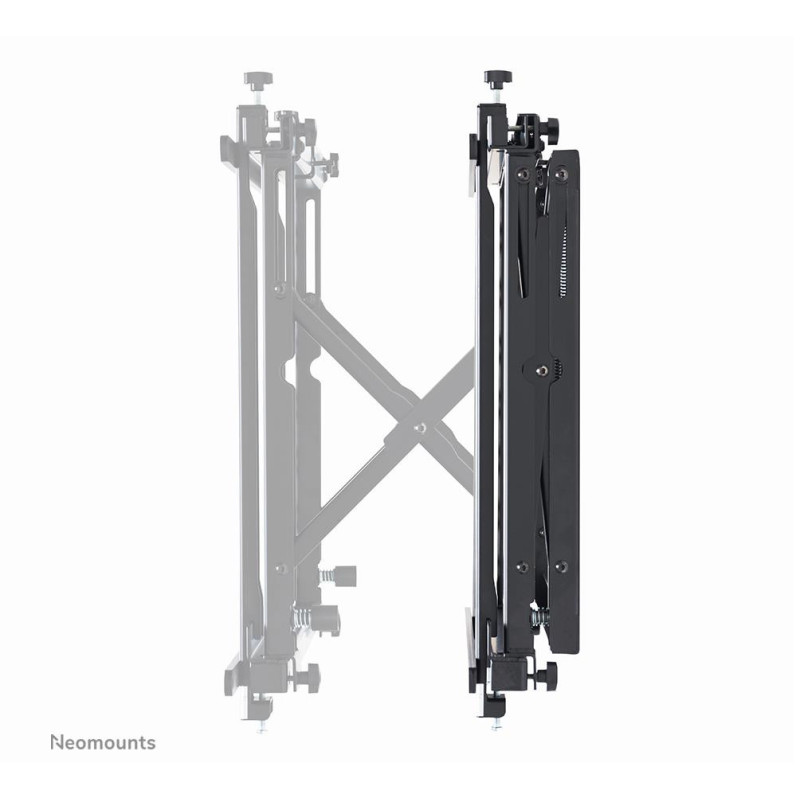

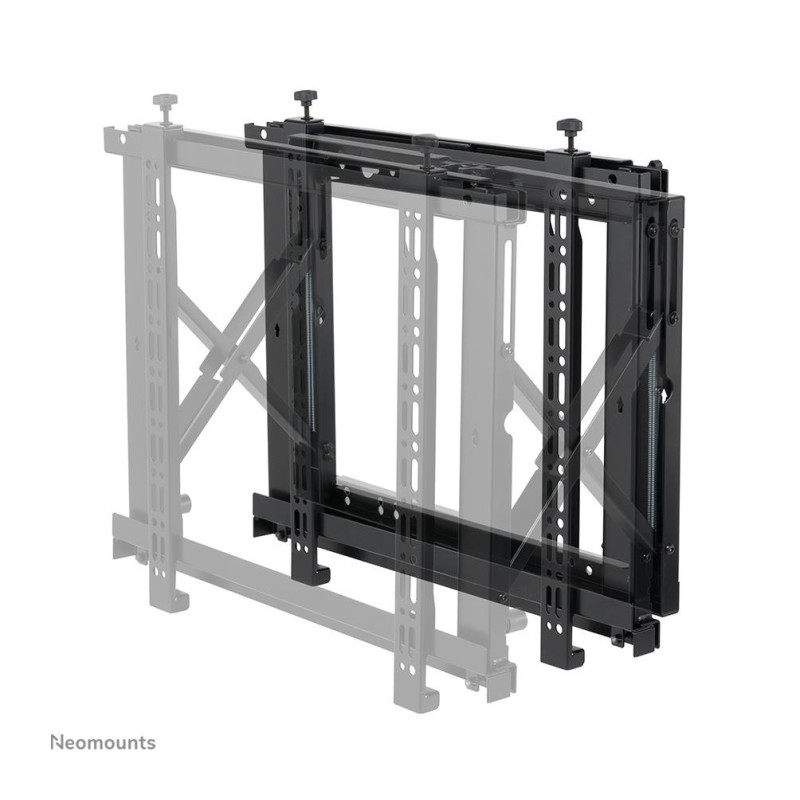

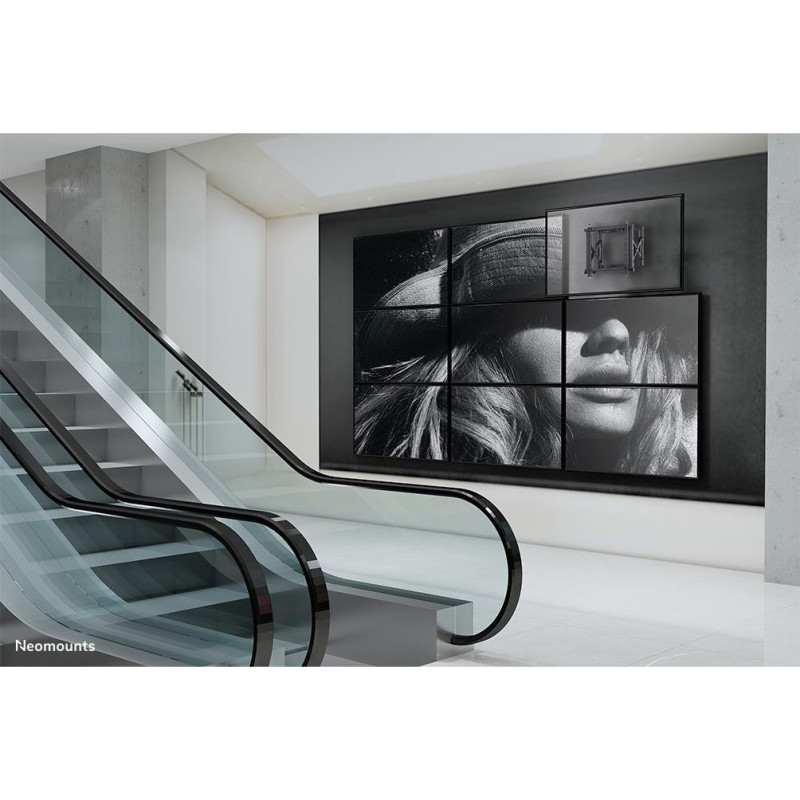

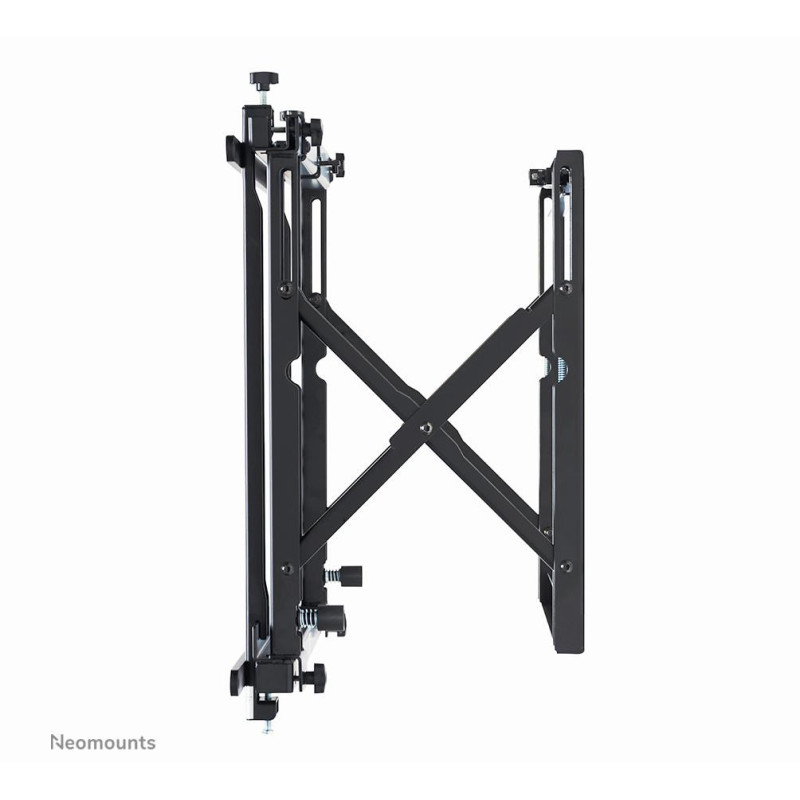

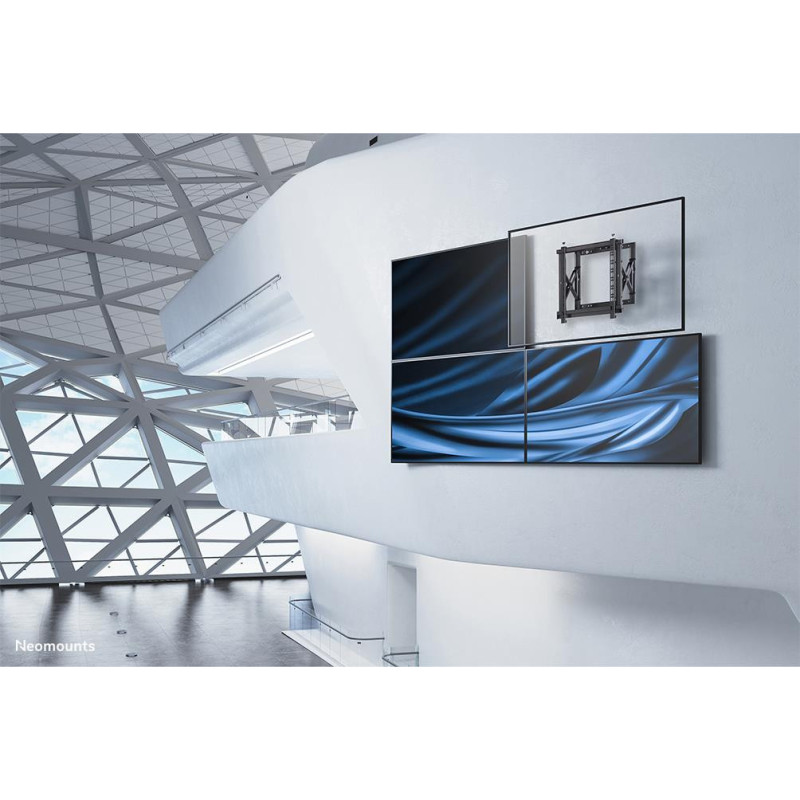

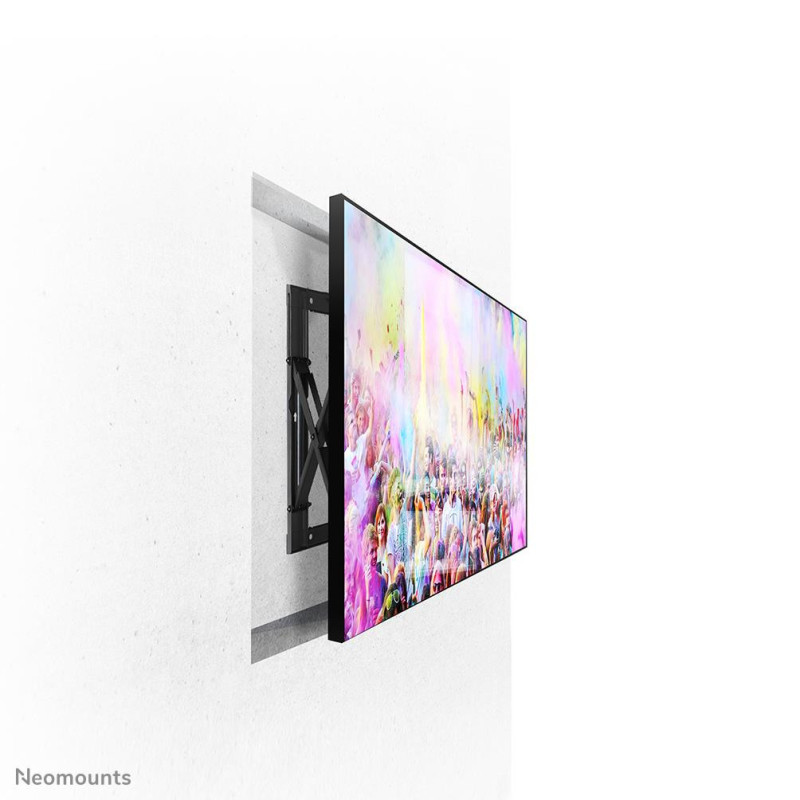

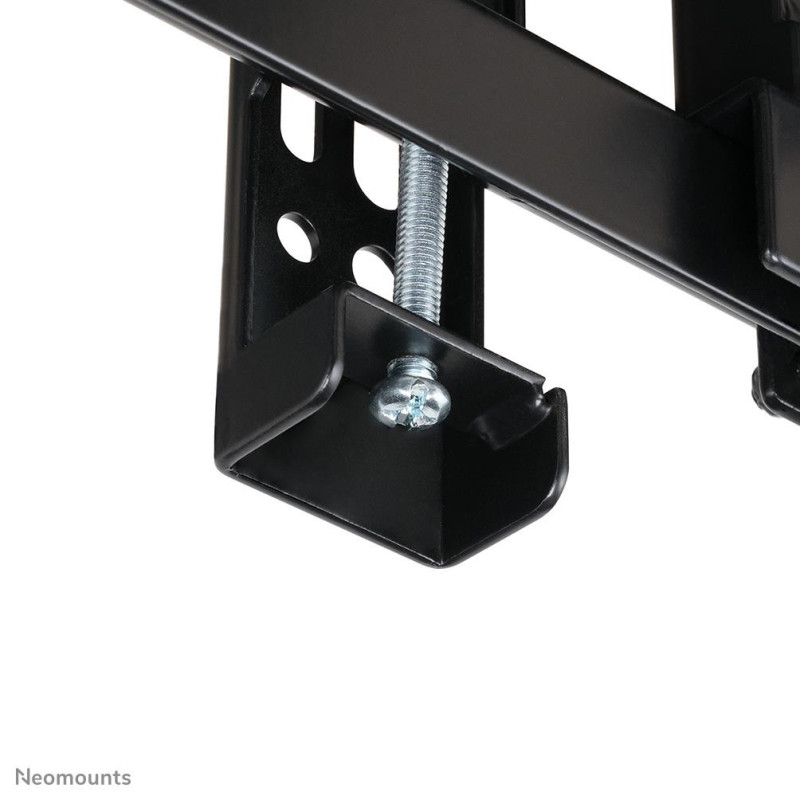

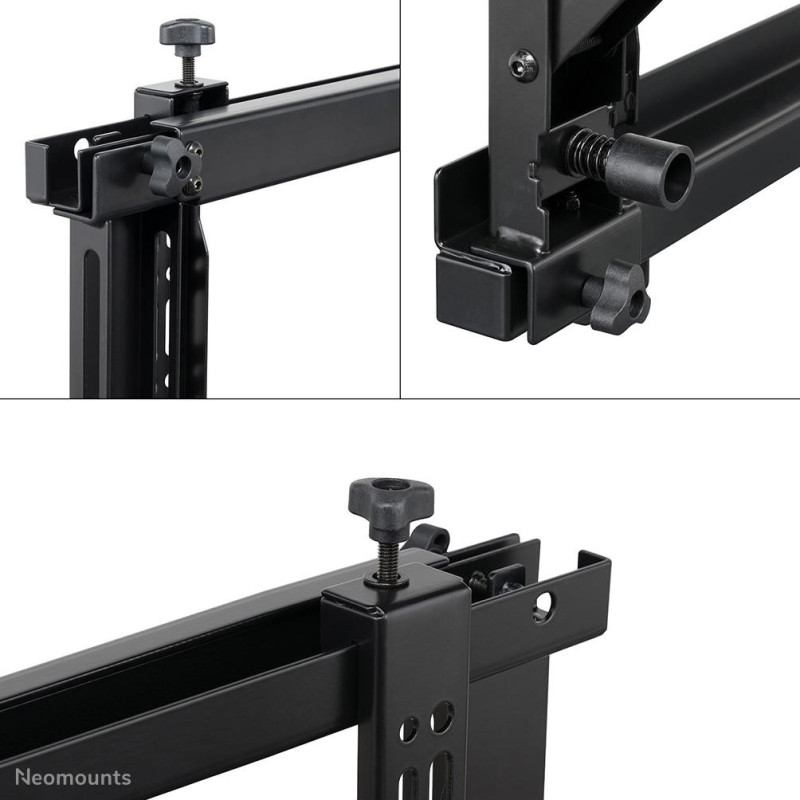

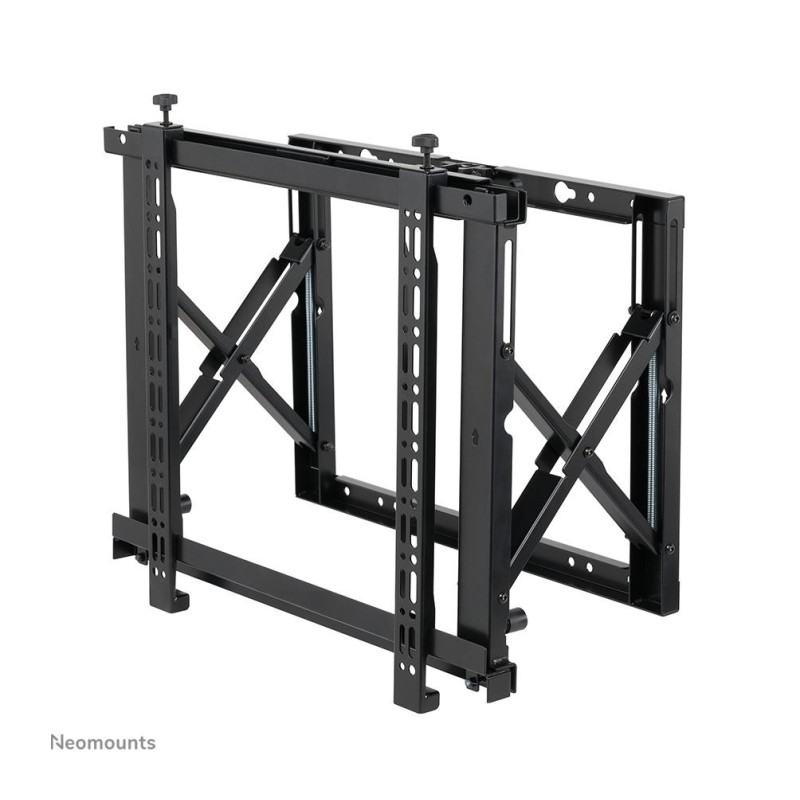

The Neomounts WL95-800BL1 is a push to pop out video wall mount for screens up to 70". The screen can be installed both in portrait and landscape orientation and additionally, toolless micro adjustment in height, depth, tilt and swivel is available for the perfect alignment.

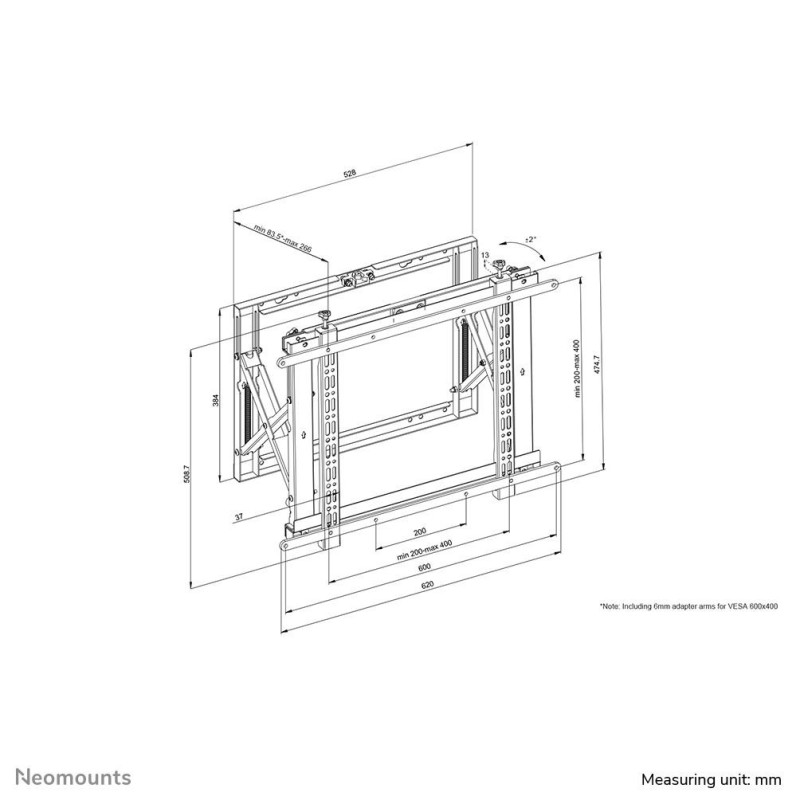

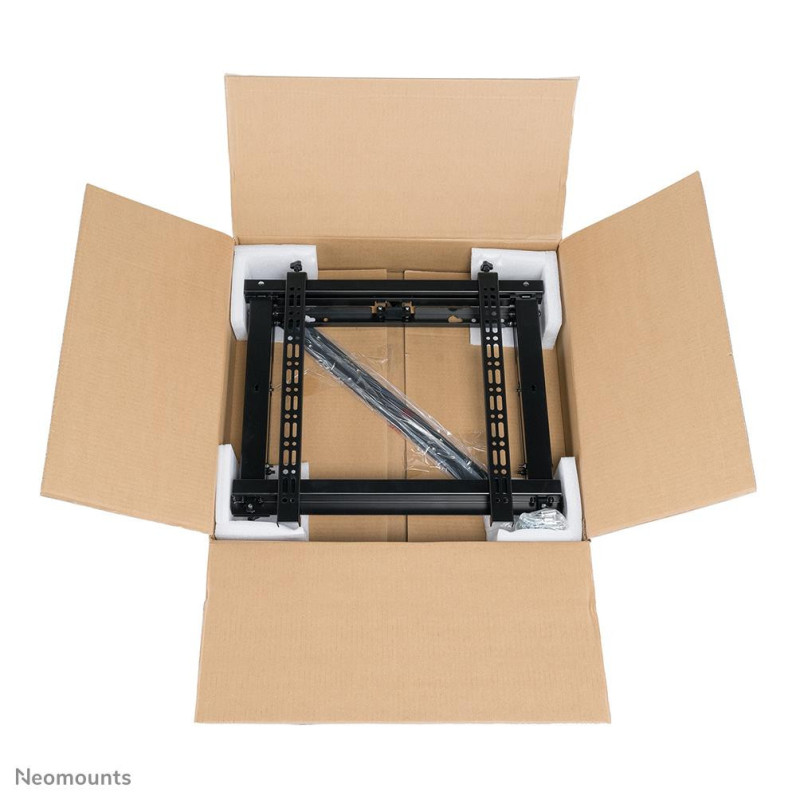

The WL95-800BL1 has a depth of 7,8-26 cm and is suitable for screens that meet VESA hole pattern 200x200 up to 600x400 mm (landscape) or 400x600 mm (portrait). The video wall mount is packed pre-assembled and features keyhole slots to ensure fast and easy installation.
| Accepts padlock | No |
| Cable management | No |
| Country of origin | China |
| Depth | 84 mm |
| Depth adjustment | 4 mm |
| Depth adjustment range | 0 - 4 mm |
| Distance to the wall (max) | 266 mm |
| Distance to the wall (min) | 78 mm |
| Easy to install | Yes |
| Harmonized System (HS) code | 7326909890 |
| Height | 510 mm |
| Height adjustment | 13 mm, Yes |
| Height adjustment range | 0 - 13 mm |
| Height adjustment type | Manual |
| Housing material | Steel |
| Master (outer) case gross weight | 9800 g |
| Master (outer) case height | 620 mm |
| Master (outer) case length | 110 mm |
| Master (outer) case net weight | 8500 g |
| Master (outer) case width | 570 mm |
| Maximum screen size | 70 " |
| Maximum VESA mount | 600 x 400 mm |
| Maximum weight capacity | 35 kg |
| Maximum weight capacity (per display) | 35 kg |
| Minimum screen size | 42 " |
| Minimum VESA mount | 200 x 200 mm |
| Model | WL95-800BL1 |
| Mounting type | Wall |
| Number of displays supported | 1 |
| Orientation | Landscape/Portrait |
| Package depth | 110 mm |
| Package height | 620 mm |
| Package net weight | 9800 g |
| Package type | Box |
| Package weight | 9800 g |
| Package width | 570 mm |
| Panel mounting interface | 200 x 200/200 x 300/200 x 400/300 x 100/300 x 200/300 x 300/350 x 350/400 x 200/400 x 300/400 x 400/400 x 600/600 x 200/600 x 300/600 x 400 mm |
| Product colour | Black |
| Products per master (outer) case | 1 pc(s) |
| Products per pallet (EU) | 24 pc(s) |
| Quantity per master (outer) case | 1 pc(s) |
| Summary | Neomounts WL95-800BL1 Videowall wall mount 42-70" - pop-out - max 35 kg. Maximum weight capacity: 35 kg, Minimum screen size: 106.7 cm (42"), Maximum screen size: 177.8 cm (70"), Minimum VESA mount: 200 x 200 mm, Maximum VESA mount: 600 x 400 mm. Height adjustment range: 0 - 13 mm. Product colour: Black |
| Swivelling | Yes |
| Tilt adjustment | Yes |
| Unit Box Height | 0.11 |
| Unit Box Length | 0.615 |
| Unit Box Width | 0.565 |
| Unit Calculated Volume | 0.03822 cubm |
| Unit Calculated Weight | 9.8 kg |
| Units per Shipping Box | 1 |
| Vendor Homepage | https://www.neomounts.com/default.asp?pageid=44&artdetail=WL95-800BL1 |
| Warranty period | 5 year(s) |
| Weight | 7720 g |
| Width | 620 mm |
| Width adjustment | 40 mm |
| Width adjustment range | 0 - 40 mm |
