StarTech.com MDP2DPMM1M DisplayPort cable

StarTech.com 1m (3.3ft) Mini DisplayPort to DisplayPort 1.2 Cable - 4K x 2K UHD Mini DisplayPort to DisplayPort Adapter Cable - Mini DP to DP Cable for Monitor - mDP to DP Converter Cord. Cable length: 1 m, Connector 1: Mini DisplayPort, Connector 2: DisplayPort. Compliance certificates: CE, RoHS. Weight: 44 g. Package width: 199 mm, Package depth: 138 mm, Package height: 20 mm. Quantity per pack: 1 pc(s)

Create a high-resolution 4k x 2k connection with HBR2 support between your Mini DisplayPort™-equipped laptop and a standard DP monitor

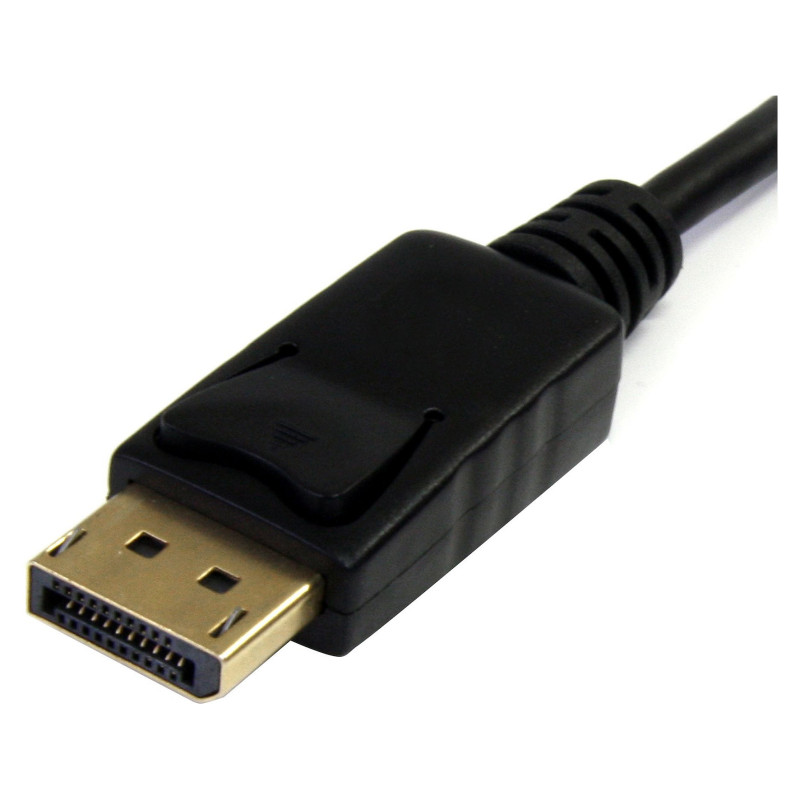

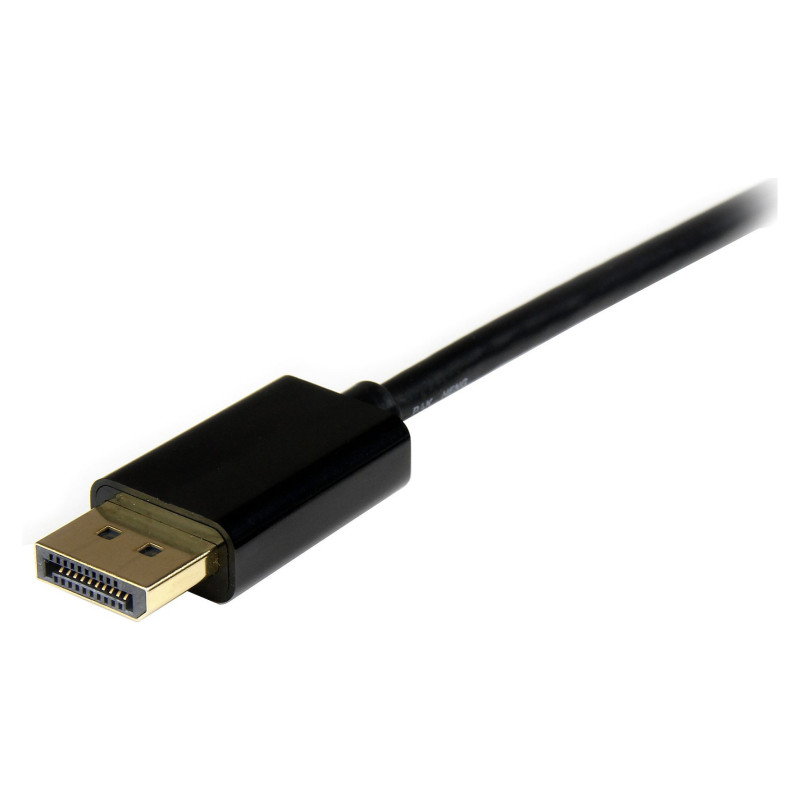

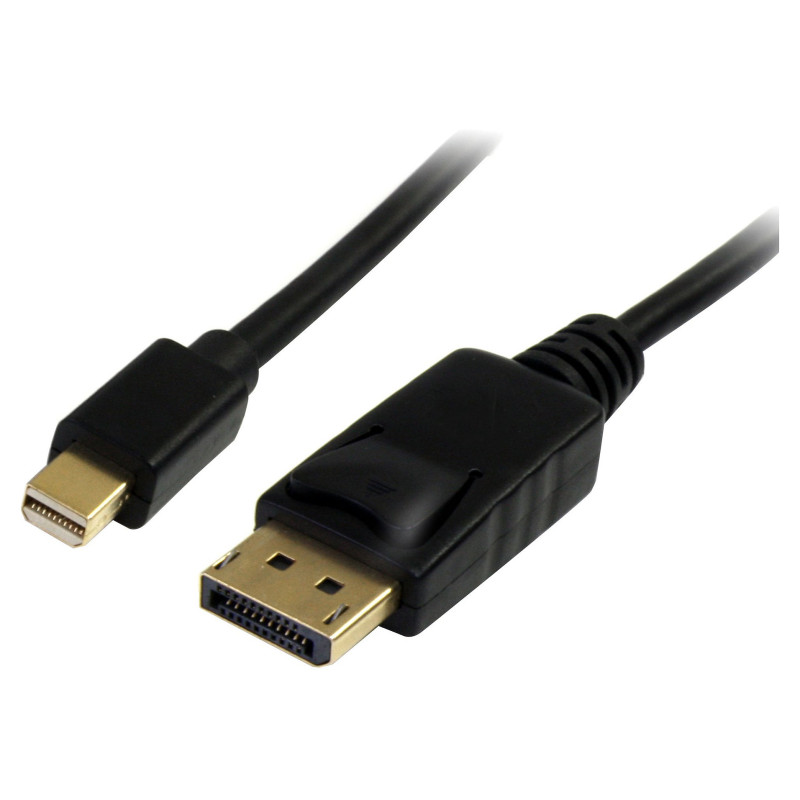

The MDP2DPMM1M 1m Mini DisplayPort™ to DisplayPort Adapter Cable, features a Mini DP male connector on one end, and a DP male connector on the other, allowing you to connect any Mini DisplayPort-equipped laptop (including the Mac® family of products) to an HDTV, monitor or projector that uses a standard DisplayPort connection.

The mDP to DP cable supports high resolutions of up to 4k x 2k (3840 x 2160) @ 60Hz with a maximum HBR2 bandwidth of 21.6 Gbps. The cable also supports Multi-Stream (MST) for daisy chaining multiple monitors and provides optional audio support.

The MDP2DPMM1M is backed by StarTech.com's Lifetime Warranty, for guaranteed reliability and ensures that digitally protected content is displayed properly, with both HDCP and DPCP capability.

Please Note : Newer laptop and desktop computers (e.g. Apple®) come equipped with Thunderbolt™ ports only. Our Mini DP to DP Cables can be connected to the Thunderbolt ports, enabling you to connect your DP compatible displays.

Features

Connector 1 form factor: Straight
Connector 2 form factor: Straight
Connector contacts plating: Nickel
DisplayPort version: 1.2
Maximum resolution: 3840 x 2400 pixels
Supported graphics resolutions: 3840 x 2400, 2560 x 1600 (WQXGA)
Maximum refresh rate: 120 Hz
Cable length: 1 m
Connector 1: Mini DisplayPort
Connector 2: DisplayPort
Connector 1 gender: Male
Connector 2 gender: Male
Product colour: Black
Cable rating: CMG (CM)
Cable shielding: Aluminum mylar foil
Jacket material: Polyvinyl chloride (PVC)
AWG wire size: 32
Bandwidth: 21600 MB/s
Feature: Plug and Play
Feature: Multi-Stream Transport (MST)
Number of conductors: 19

Operational conditions

Operating temperature (T-T): 0 - 35 °C
Storage temperature (T-T): -10 - 80 °C
Operating relative humidity (H-H): 5 - 80%

Certificates

Compliance certificates: CE, RoHS

Weight & dimensions

Weight: 44 g

Packaging data

Package width: 199 mm
Package depth: 138 mm
Package height: 20 mm
Package weight: 52 g

Packaging content

Quantity per pack: 1 pc(s)

Logistics data

Harmonized System (HS) code: 84733080
Master (outer) case width: 320 mm
Master (outer) case length: 500 mm
Master (outer) case height: 210 mm
Products per master (outer) case: 100 pc(s)
