StarTech.com FPCEILPTBLP signage display mount

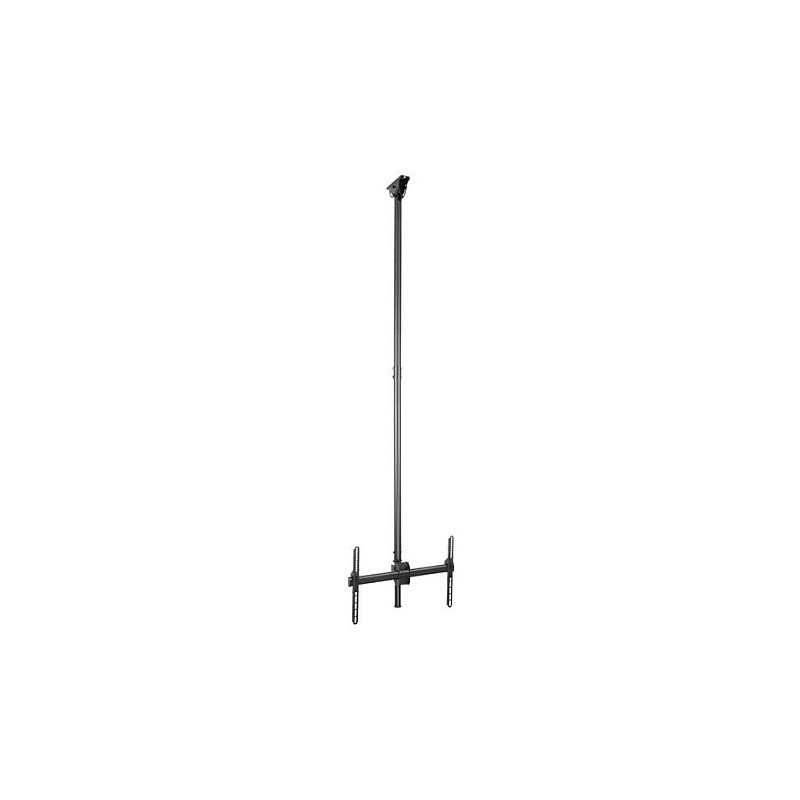

StarTech.com TV Ceiling Mount - Full-Motion Universal Hanging Single Screen Mount with Adjustable Telescopic Long Pole - Tilt / Swivel - VESA Bracket for 32"-75" Displays. Maximum weight capacity: 50 kg, Minimum screen size: 81.3 cm (32"), Maximum screen size: 190.5 cm (75"), Minimum VESA mount: 200 x 200 mm, Maximum VESA mount: 600 x 400 mm. Height adjustment range: 2500 - 3000 mm, Tilt angle range: -25 - 0°. Product colour: Black

Display Ceiling Mount | Full Motion | For 32" to 75" Displays

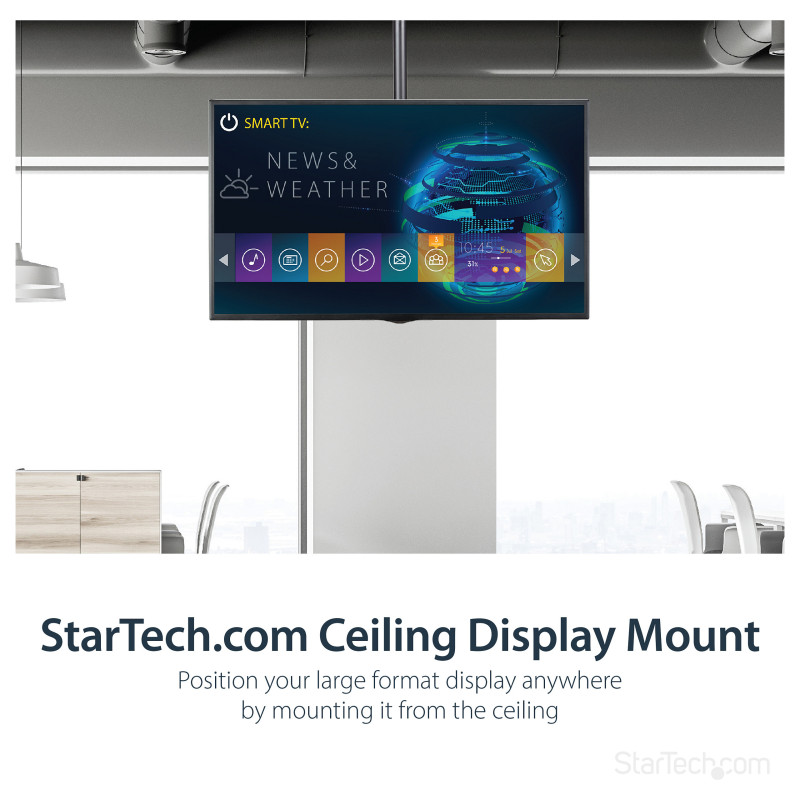

This ceiling TV mount supports VESA mount compatible TVs from 32" to 75" in size, with a weight capacity of up to 110 lb. (50 kg). It lets you save wall and floor space by hanging your flat-panel LCD, LED or plasma TV from the ceiling in a prominent area.

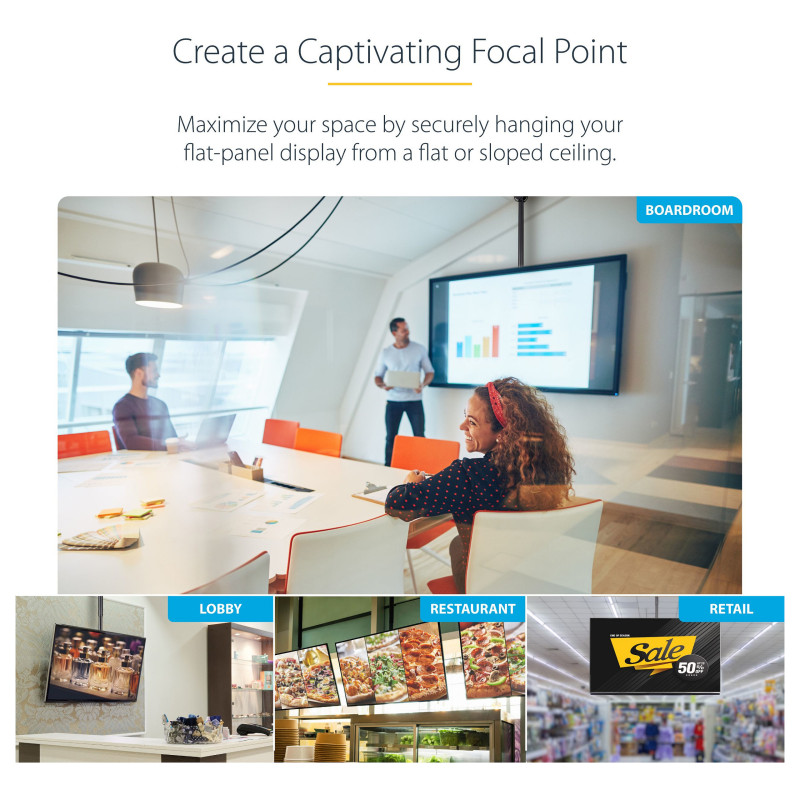

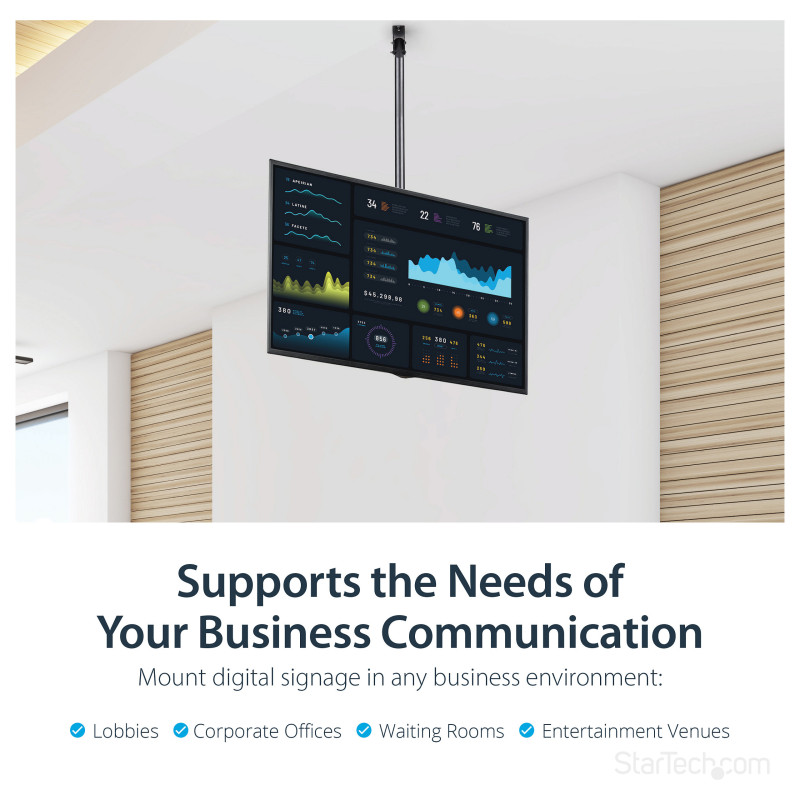

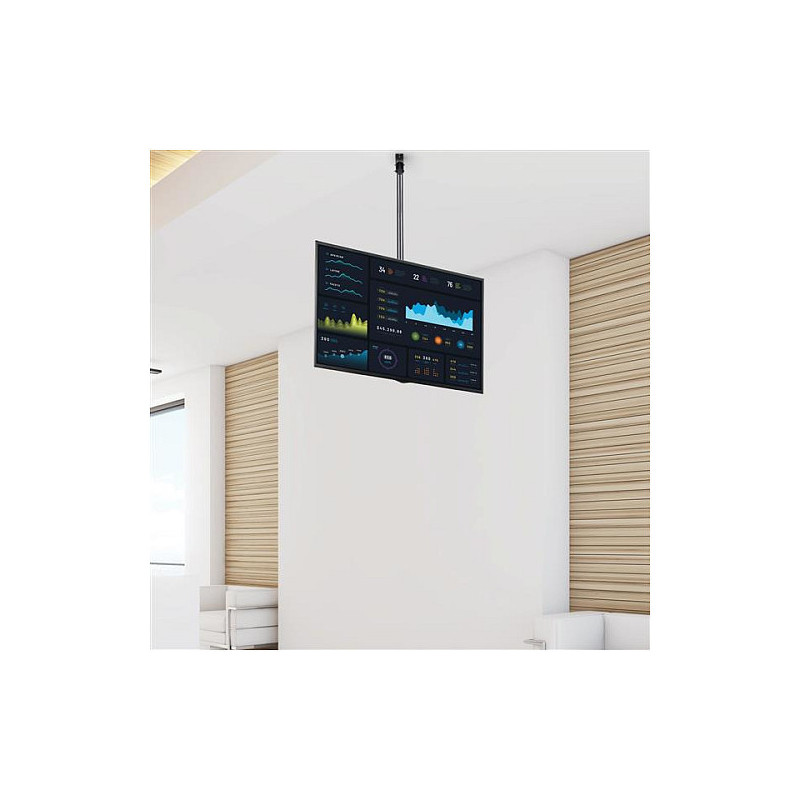

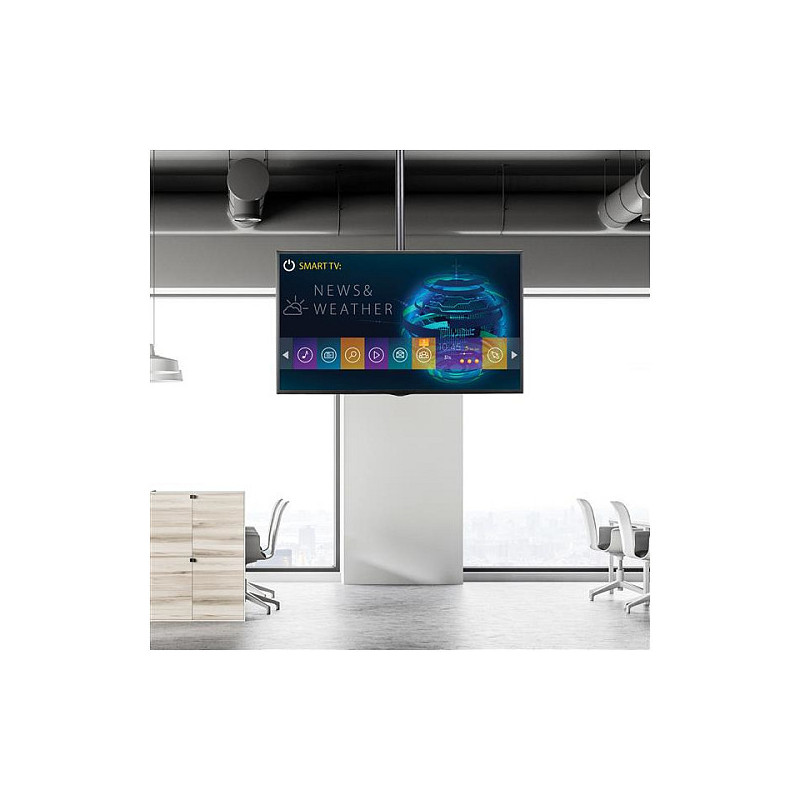

The ceiling mount is ideal for use in lobbies, entrances or other areas with high ceilings.

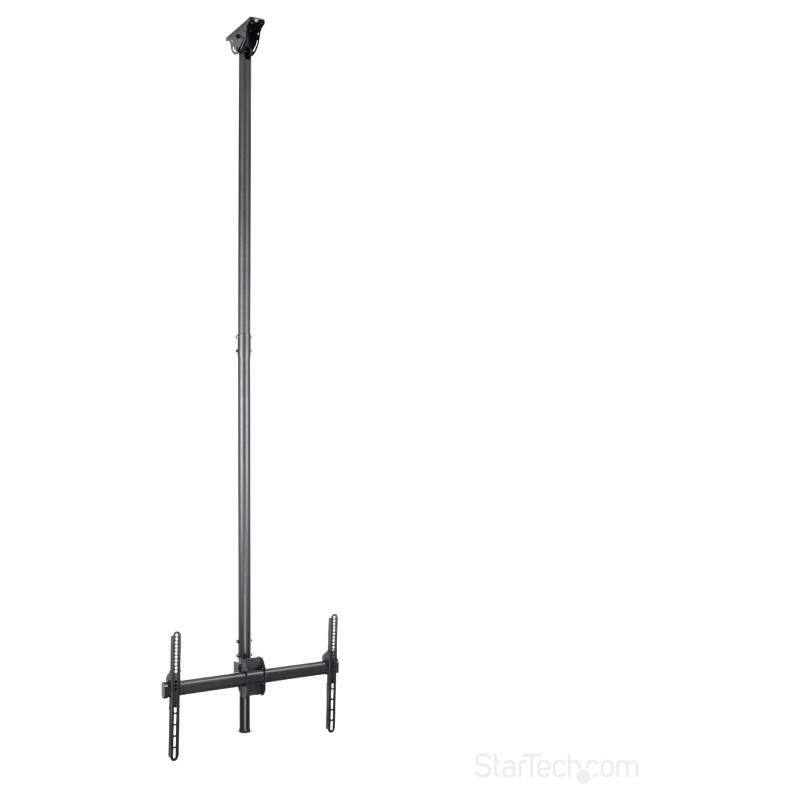

Adjustable Height

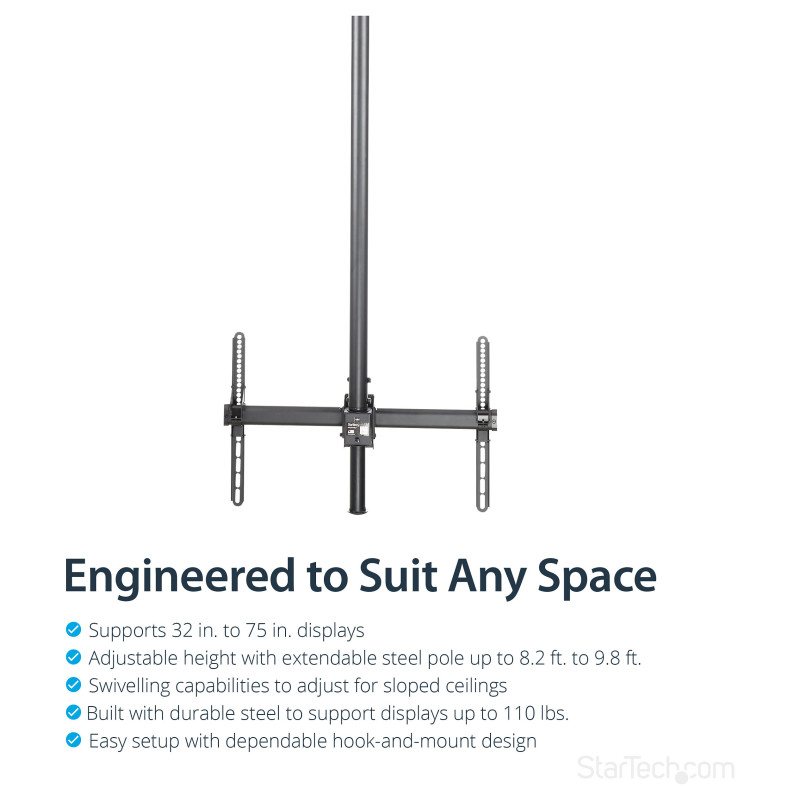

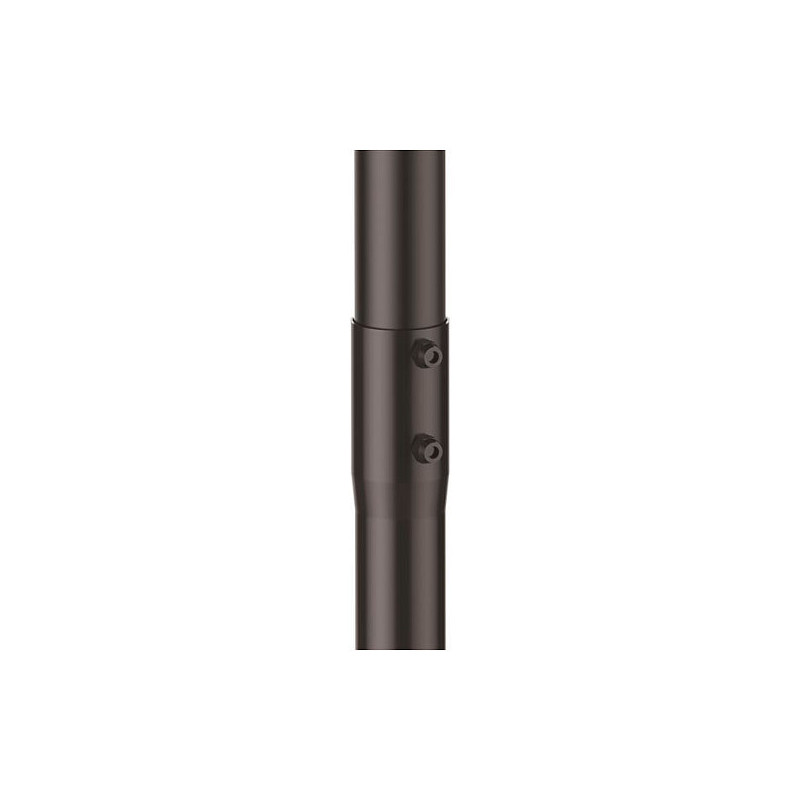

With a telescopic pole, the TV mount lets you suspend a display at your desired distance from the ceiling. This works well with a range of ceiling heights. The steel pole can extend from 8.2 to 9.84 ft. (2.5 to 3 m), with a total lift (height extension) of 19.6" (.5 m).

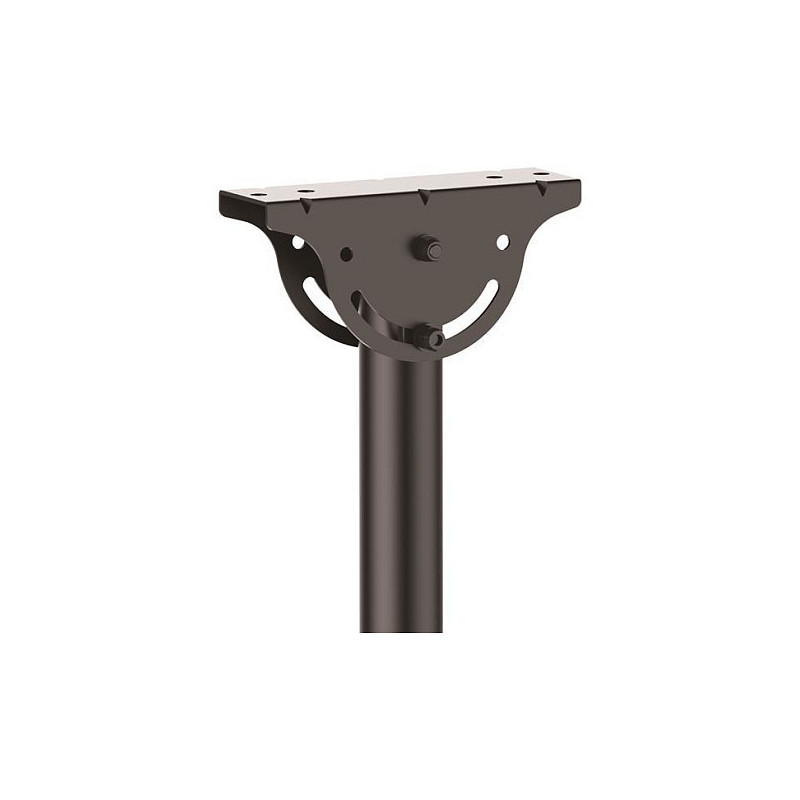

Swivels to Suit Your Ceiling

The flat-screen ceiling mount accommodates a wide variety of ceiling types. You can swivel the TV to work with virtually any type of ceiling for level viewing, including sloped ceilings (up to 60 degrees), and pitched or horizontal (flat) ceilings.

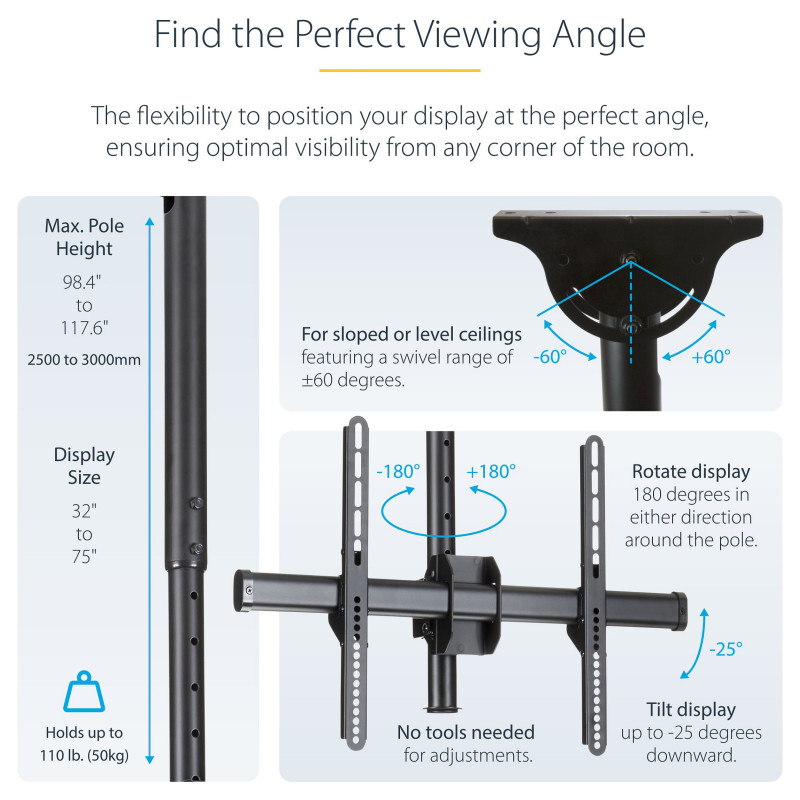

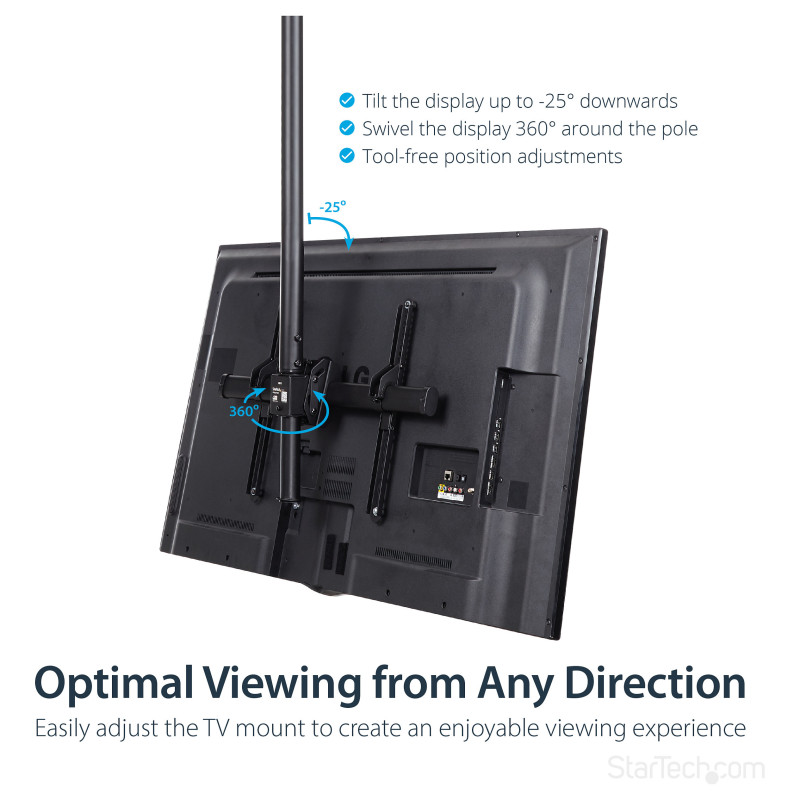

Viewable from Any Direction

You can adjust your TV to create a comfortable viewing angle, by tilting it up to -25 degrees down towards your audience for optimum visibility. Plus, the full-motion mount lets you swivel your display around the pole + 180 / - 180 degrees, without using tools.

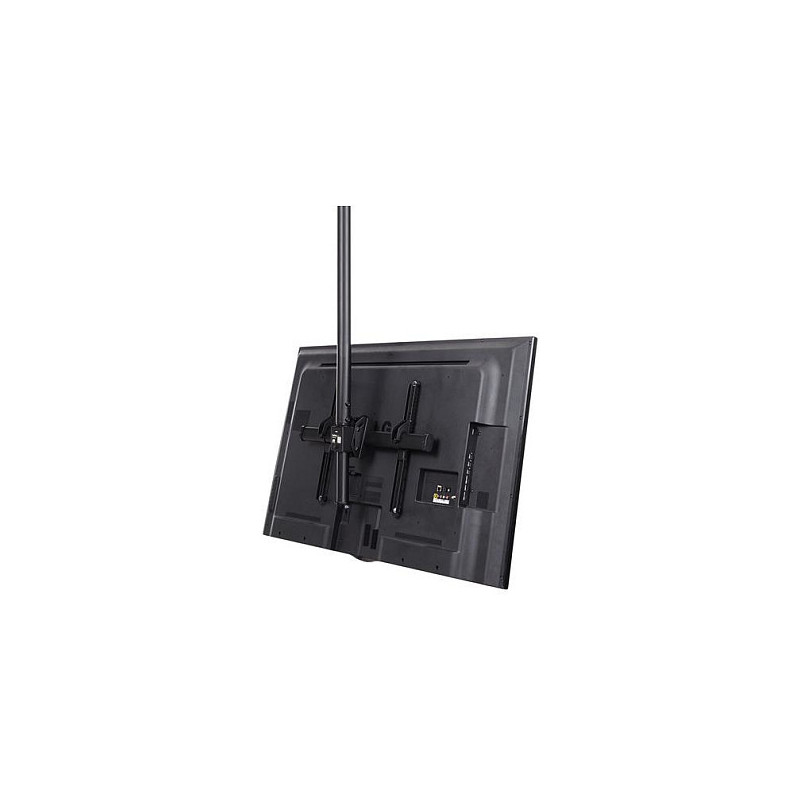

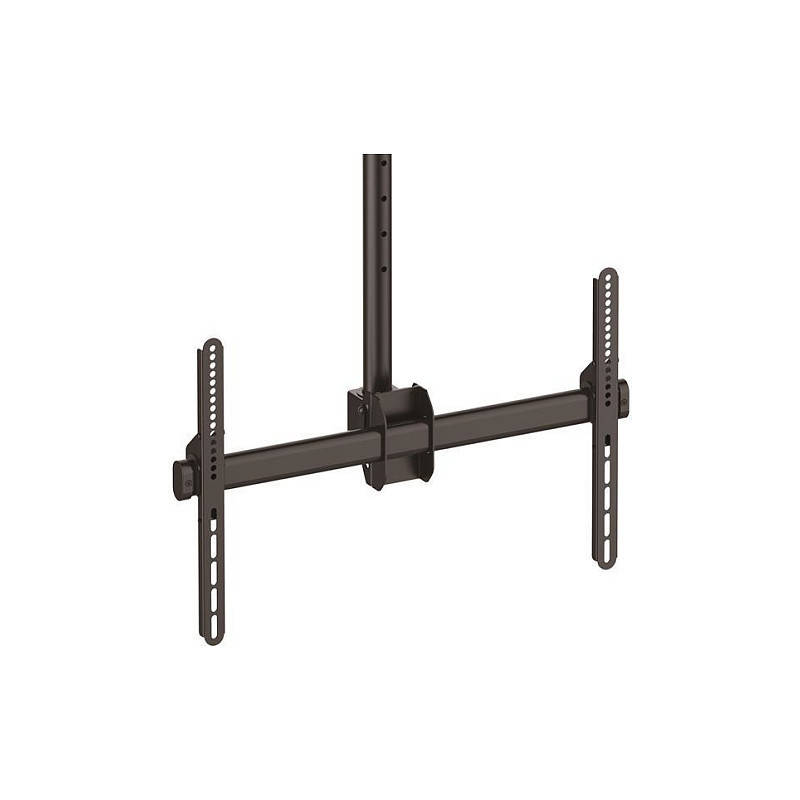

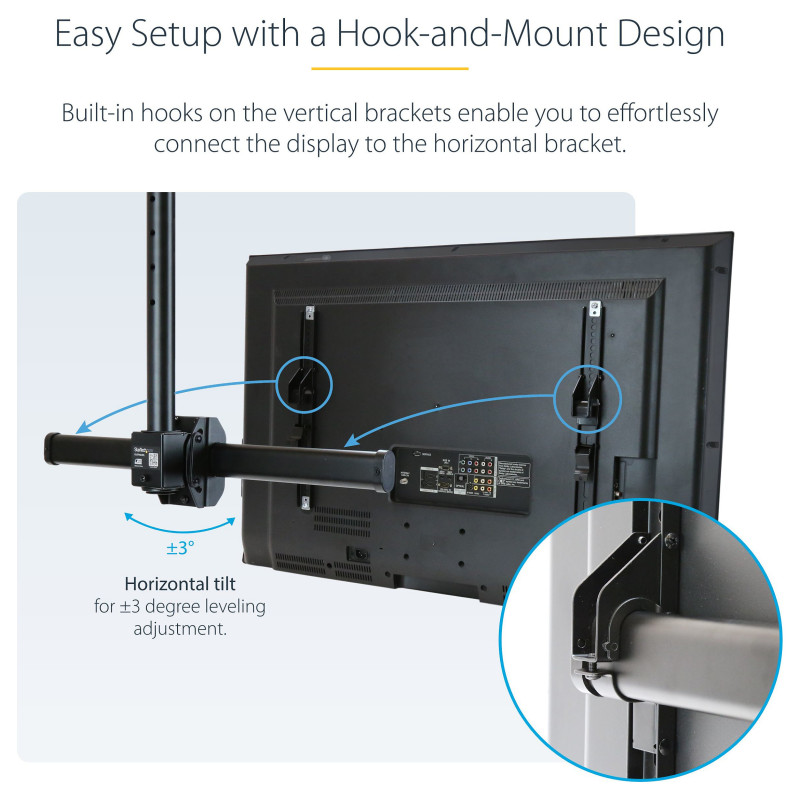

Hook-and-Mount Design

Simply attach the included vertical brackets, with built-in hooks, to the back of your TV. Once attached, hang your TV securely onto the ceiling mount. The +/-3 degree post-installation leveling adjustments ensure ideal positioning after hanging.

FPCEILPTBLP is backed by a StarTech.com 5-year warranty and free lifetime technical support.

Mounting

Maximum weight capacity: 50 kg
Minimum screen size: 81.3 cm (32")
Number of displays supported: 2
Maximum screen size: 190.5 cm (75")
Mounting type: Ceiling

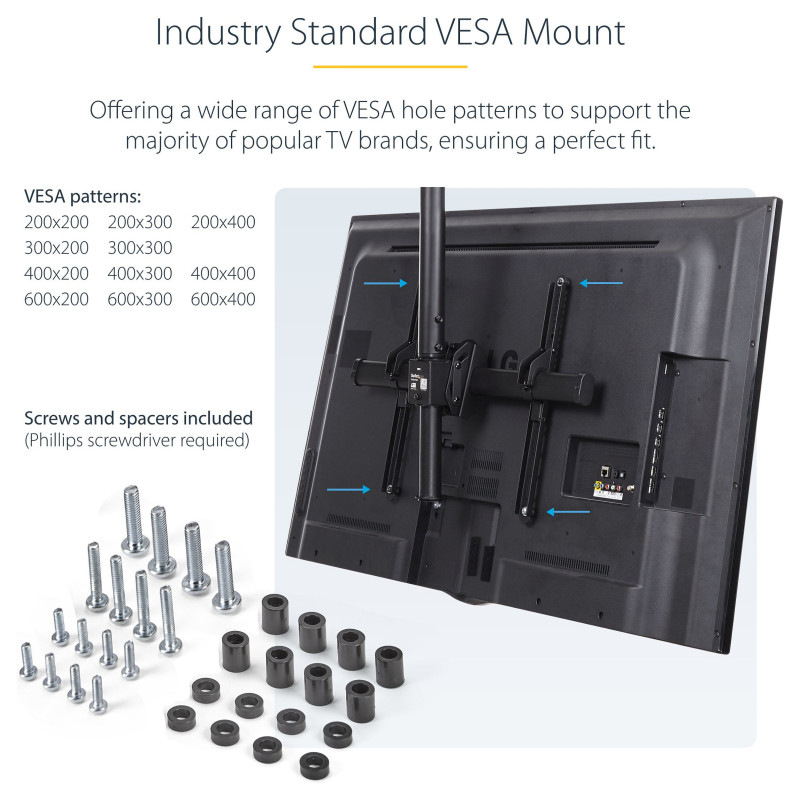

Minimum VESA mount: 200 x 200 mm
Maximum VESA mount: 600 x 400 mm
Panel mounting interface: 200 x 200,300 x 300,400 x 200,400 x 400,600 x 400

Ergonomics

Feature: Height adjustment
Height adjustment range: 2500 - 3000 mm
Tilt angle range: -25 - 0°
Swivel angle range: -180 - 180°

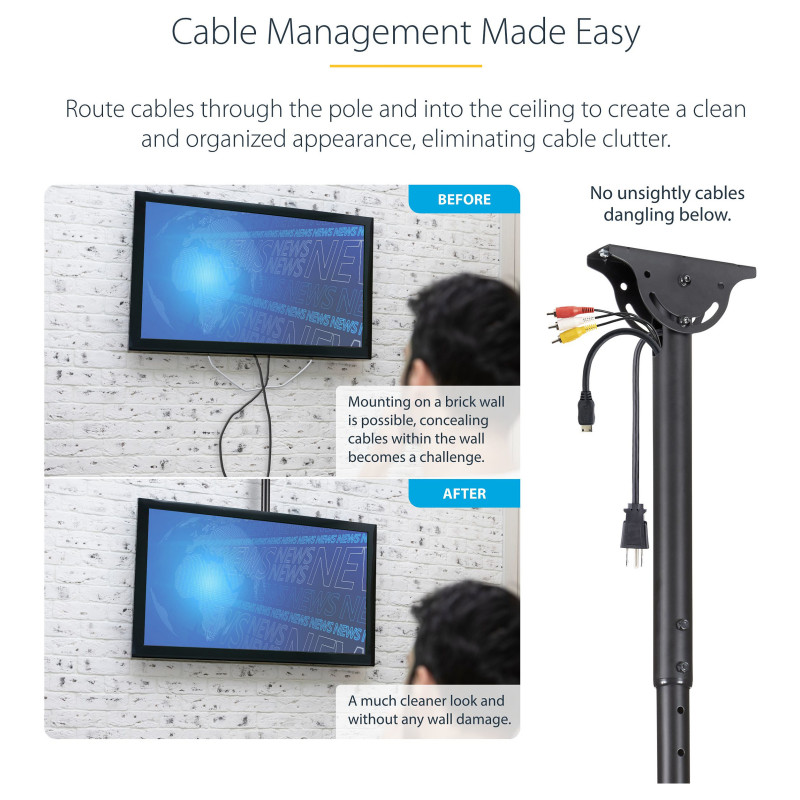

Feature: Cable management

Design

Product colour: Black
Housing material: Steel
Certification: CE, REACH

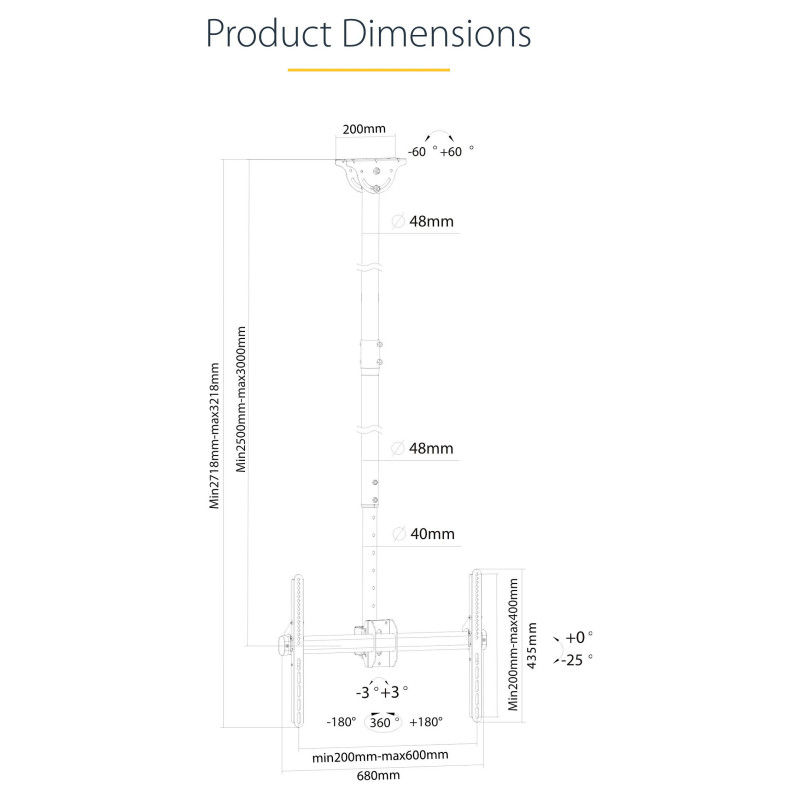

Weight & dimensions

Width: 435 mm
Depth: 680 mm
Depth (max): 68 cm
Height: 3200 mm
Weight: 10 kg

Packaging data

Package width: 323 mm
Package depth: 1280 mm
Package height: 123 mm
Package weight: 10.8 kg

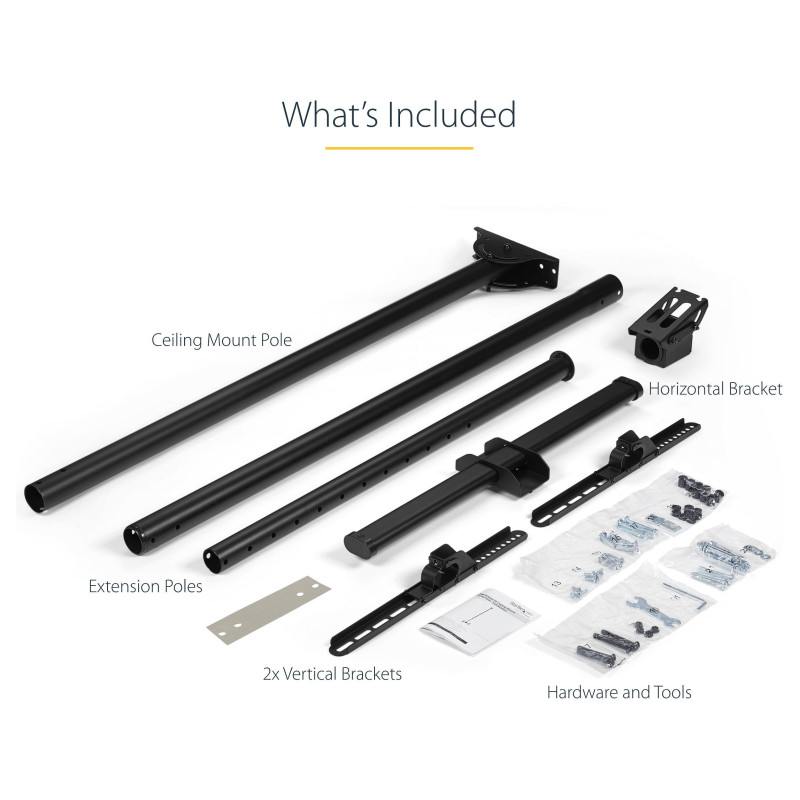

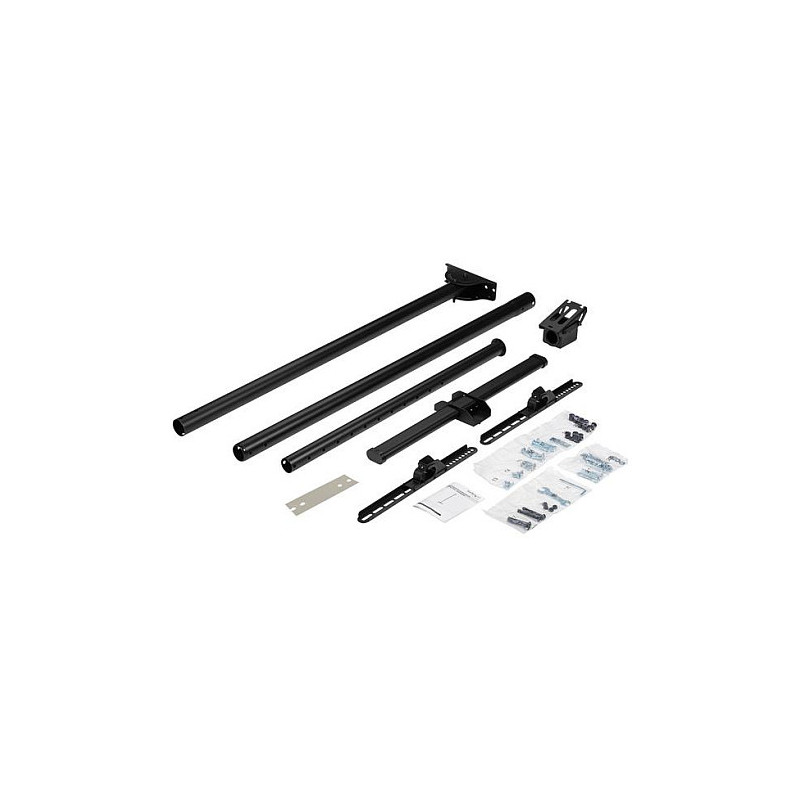

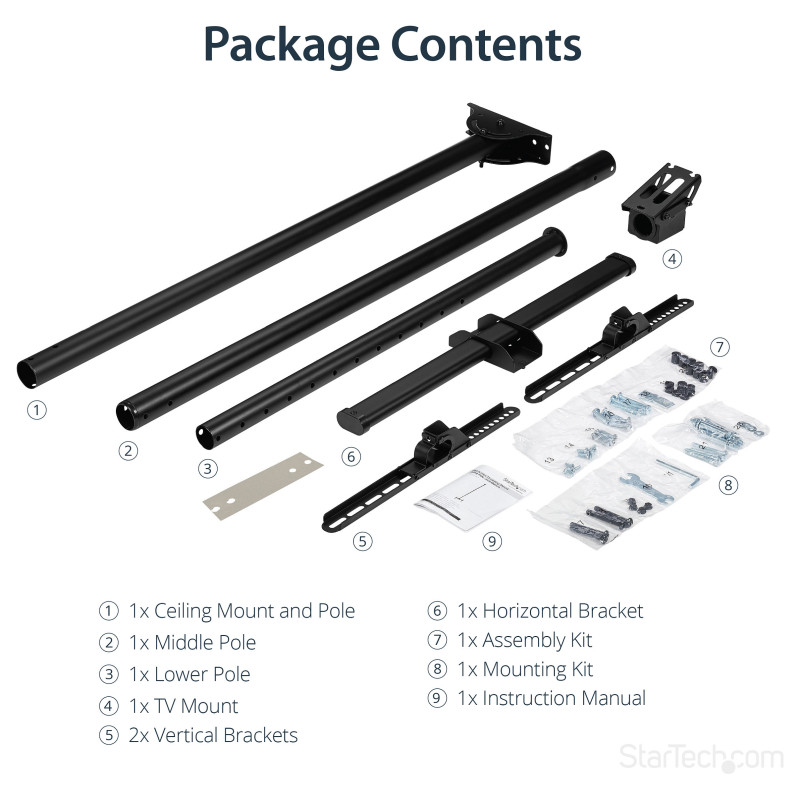

Packaging content

Feature: Manual
Feature: Screws included
Number of screws: 28
Feature: Wrench included
Feature: Washers included
Number of washers included: 8
Feature: Spacer included
Number of spacers included: 16

Technical details

Package dimensions (WxDxH): 320 x 1270 x 115 mm
Compliance certificates: RoHS

Logistics data

Harmonized System (HS) code: 85299097
Master (outer) case width: 323 mm
Master (outer) case length: 1280 mm
Master (outer) case height: 123 mm
Products per master (outer) case: 1 pc(s)
