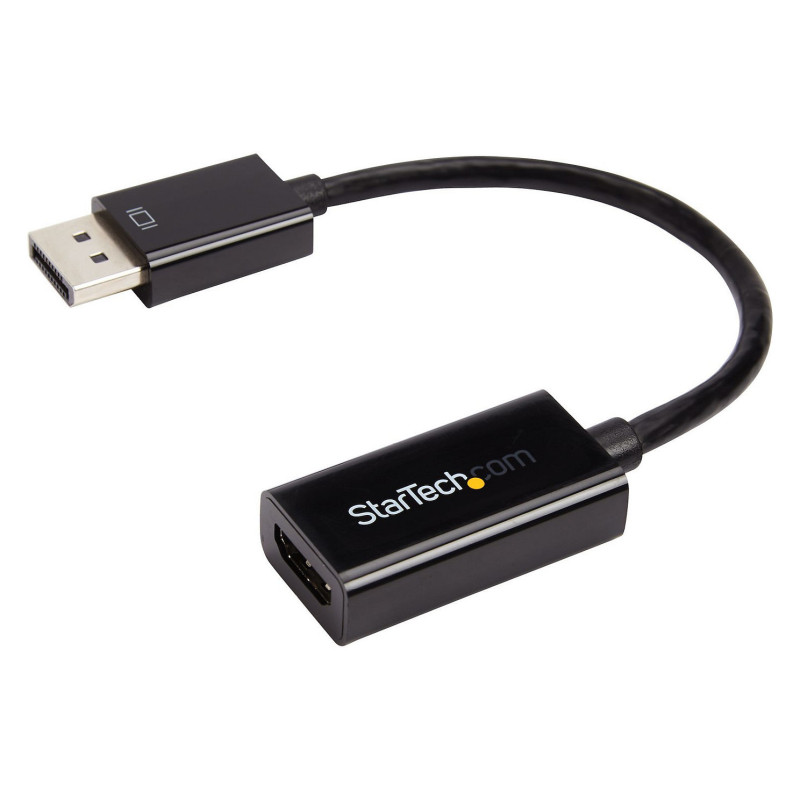

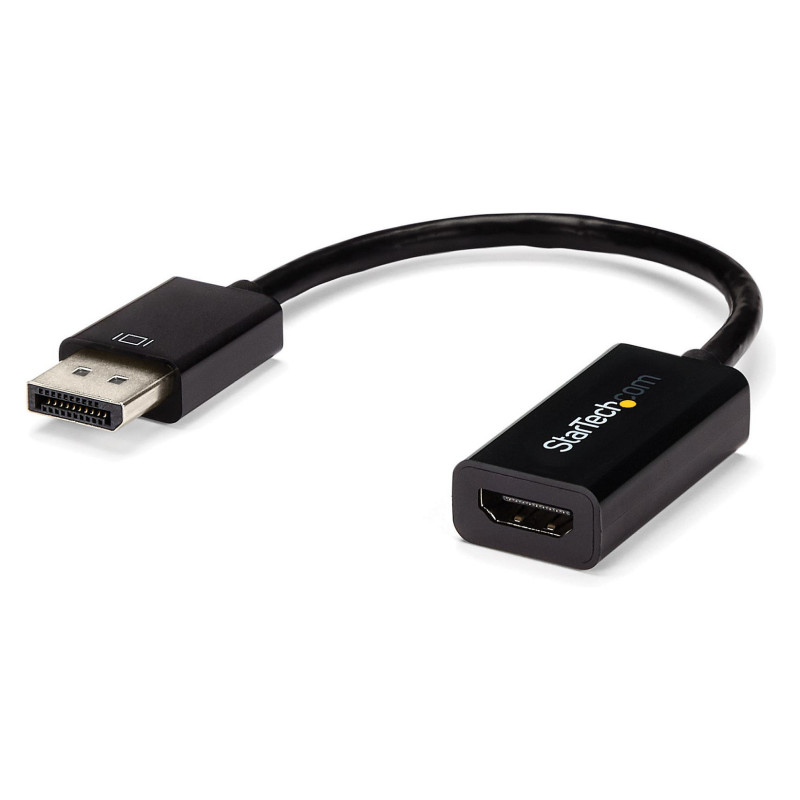

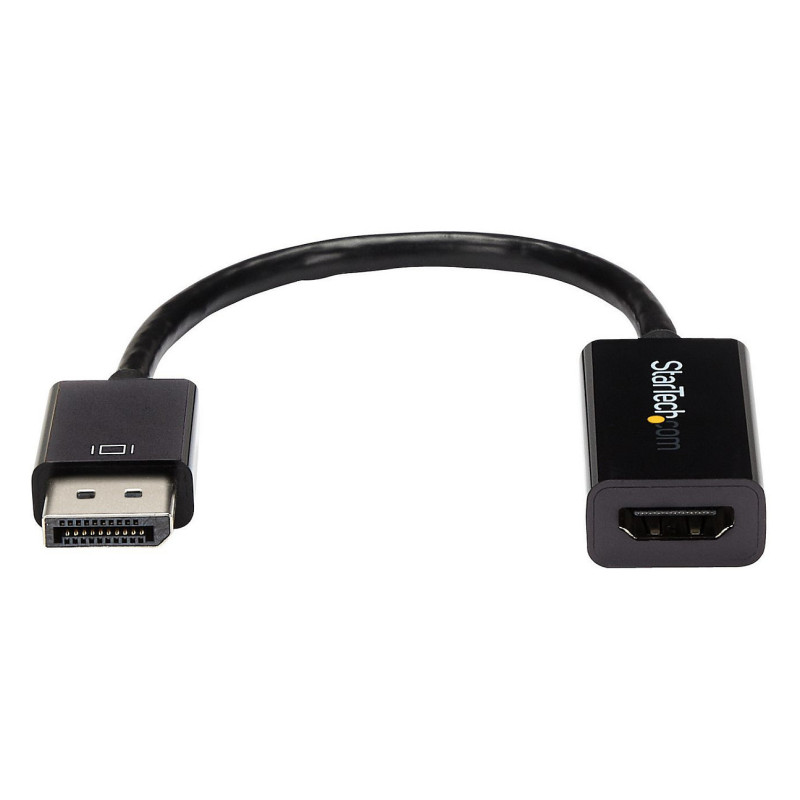

StarTech.com DP2HD4KS video cable adapter

StarTech.com DisplayPort to HDMI Adapter - 4K 30Hz Active DisplayPort to HDMI Video Converter - DP to HDMI Monitor/TV/Display Cable Adapter Dongle - Ultra HD DP 1.2 to HDMI 1.4 Adapter. Cable length: 0.15 m, Connector 1: DisplayPort, Connector 2: HDMI Type A (Standard). Compliance certificates: CE, RoHS. Weight: 22 g, Width: 21 mm, Depth: 64 mm. Package width: 122 mm, Package depth: 133 mm, Package height: 16 mm. Quantity per pack: 1 pc(s)

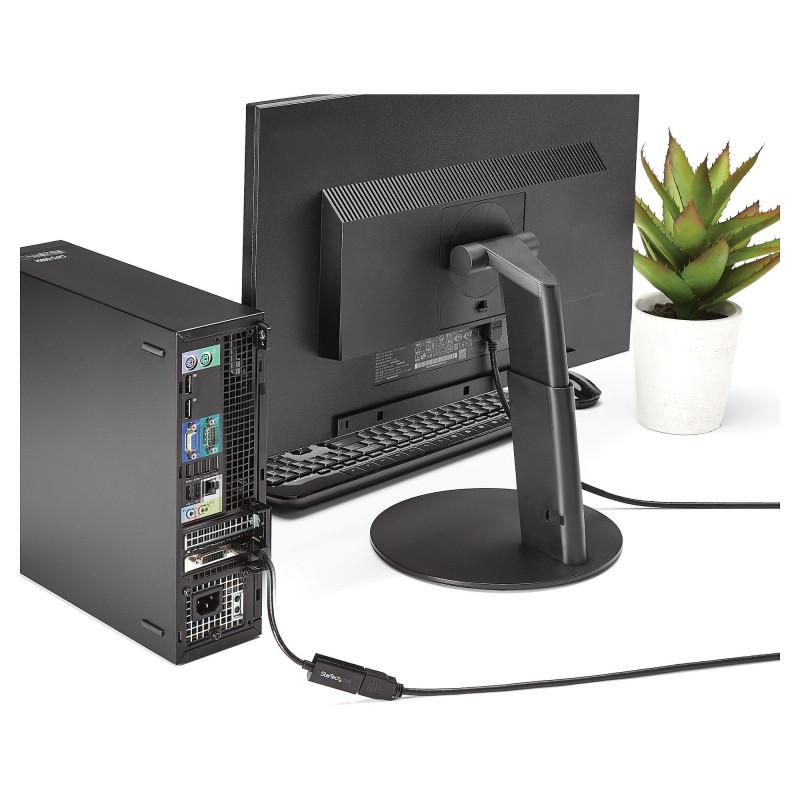

Connect an HDMI monitor to a DisplayPort video source

The DP2HD4KS DisplayPort to HDMI adapter enables you to connect a DisplayPort-equipped desktop or laptop computer, such as the HP EliteBook 8570p / 8470p, to an HDMI display. This adapter is compatible with DisplayPort 1.2 & HDMI 4K @ 30 Hz and as a result can support video resolutions up to Ultra HD (4K) as well as the accompanying digital audio up to 7.1 channel surround sound.

With support for resolutions up to Ultra HD (4K) the DP to HDMI adapter ensures you can convert DisplayPort to HDMI while maintaining an astonishing picture quality four times the resolution of high-definition 1080p. The adapter is also backward compatible with previous DisplayPort revisions 1.0/1.1 with support for resolutions up to 1080p.

For a hassle-free setup the DisplayPort to HDMI adapter allows for plug-and-play installation without any additional software or drivers. Plus, with a small footprint and lightweight design, the adapter maximizes portability.

To ensure compatibility with any DisplayPort output the DP adapter offers an active conversion. Active video conversion is required to maintain 4K resolutions when converting DisplayPort to HDMI. An active DP adapter is also ideal for outputting 1080p video resolutions by ensuring compatibility with graphics cards that are not capable of outputting multi-mode DP++ signals (e.g. ATI Eyefinity).

The DP2HD4KS is backed by a 3-year StarTech.com warranty, and lifetime technical support.

Features

Connector 1 form factor: Straight
Connector 2 form factor: Straight
Cable length: 0.15 m
Connector 1: DisplayPort
Connector 2: HDMI Type A (Standard)
Connector 1 gender: Male
Connector 2 gender: Female
HDMI version: 1.4
Feature: HDCP
HDCP version: 1.4
DisplayPort version: 1.2
Feature: DisplayPort Content Protection (DPCP)
Maximum resolution: 4096 x 2048 pixels
Supported graphics resolutions: 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA)
Maximum refresh rate: 30 Hz
Product colour: Black
Supported audio channels: 7.1

Operational conditions

Operating temperature (T-T): 0 - 45 °C
Storage temperature (T-T): -10 - 70 °C
Operating relative humidity (H-H): 10 - 85%

Certificates

Compliance certificates: CE, RoHS

Weight & dimensions

Weight: 22 g
Width: 21 mm
Depth: 64 mm
Height: 11 mm

Packaging data

Package width: 122 mm
Package depth: 133 mm
Package height: 16 mm
Package weight: 27 g

Packaging content

Quantity per pack: 1 pc(s)

Logistics data

Harmonized System (HS) code: 84733080
Master (outer) case width: 517 mm
Master (outer) case length: 337 mm
Master (outer) case height: 223 mm
Products per master (outer) case: 320 pc(s)
