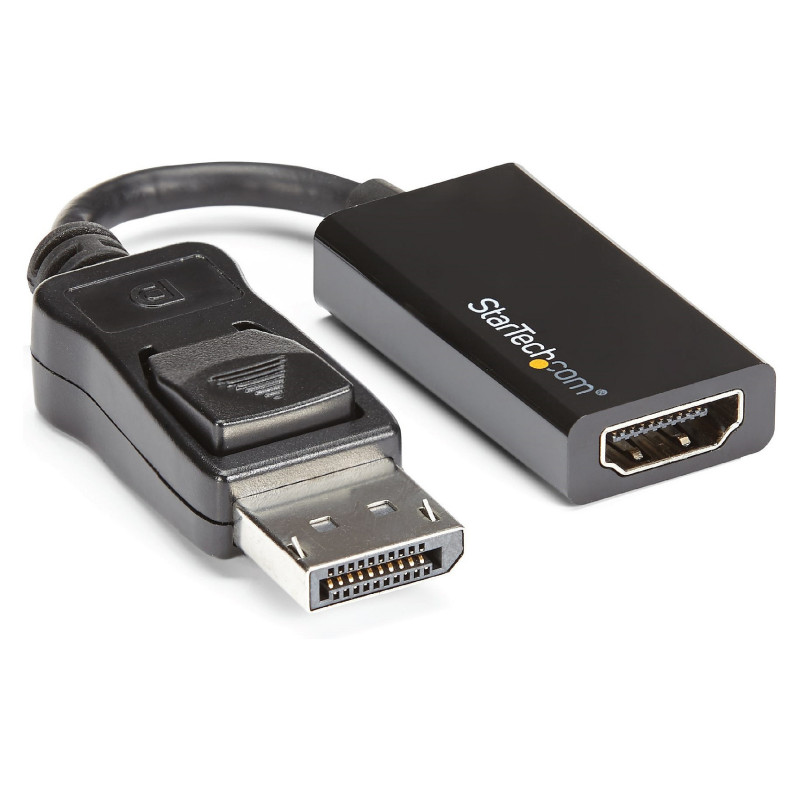

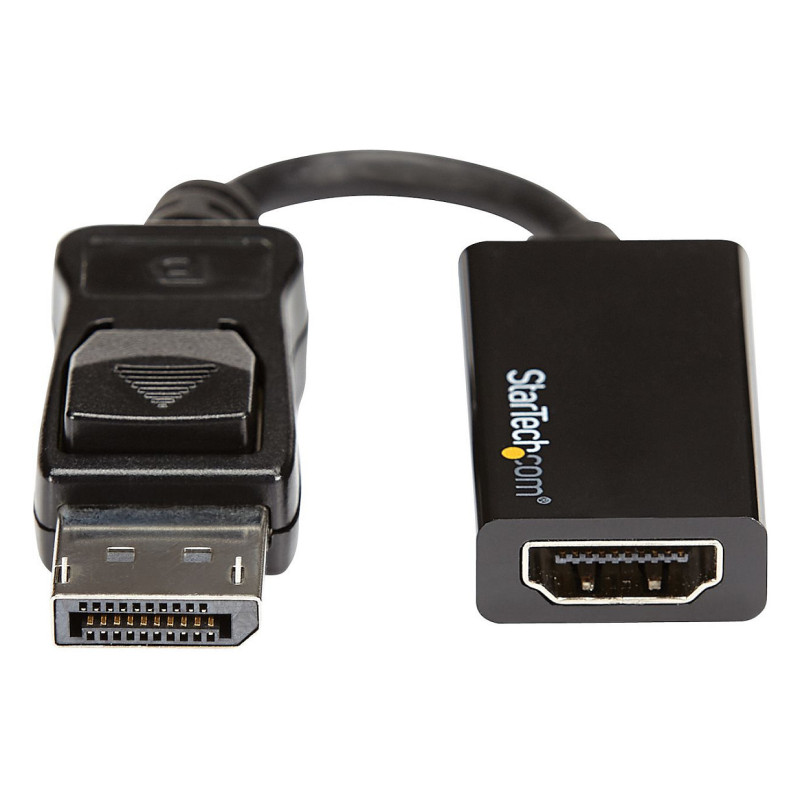

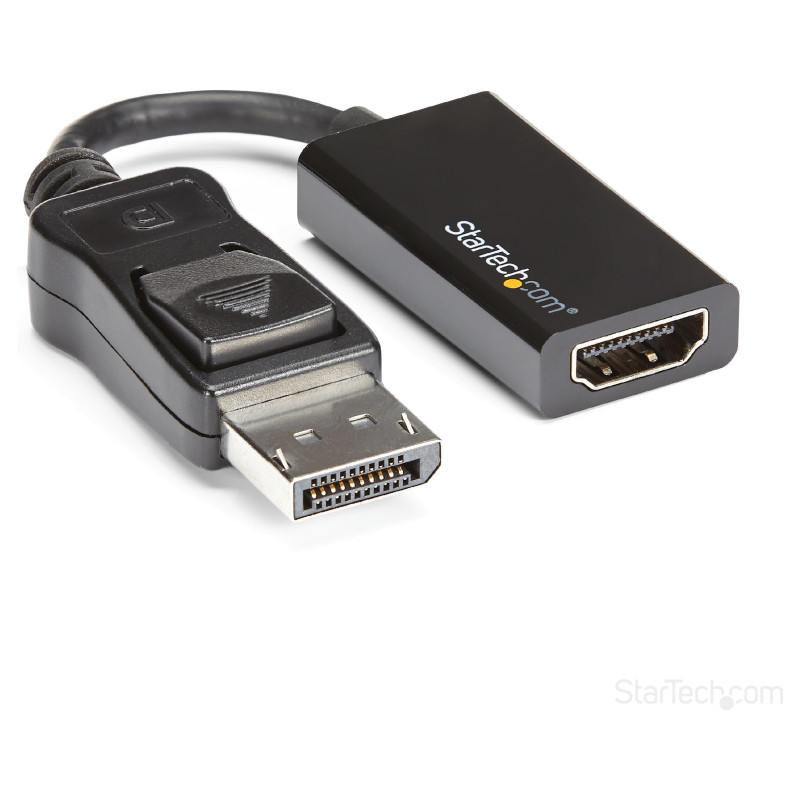

StarTech.com DP2HD4K60S video cable adapter

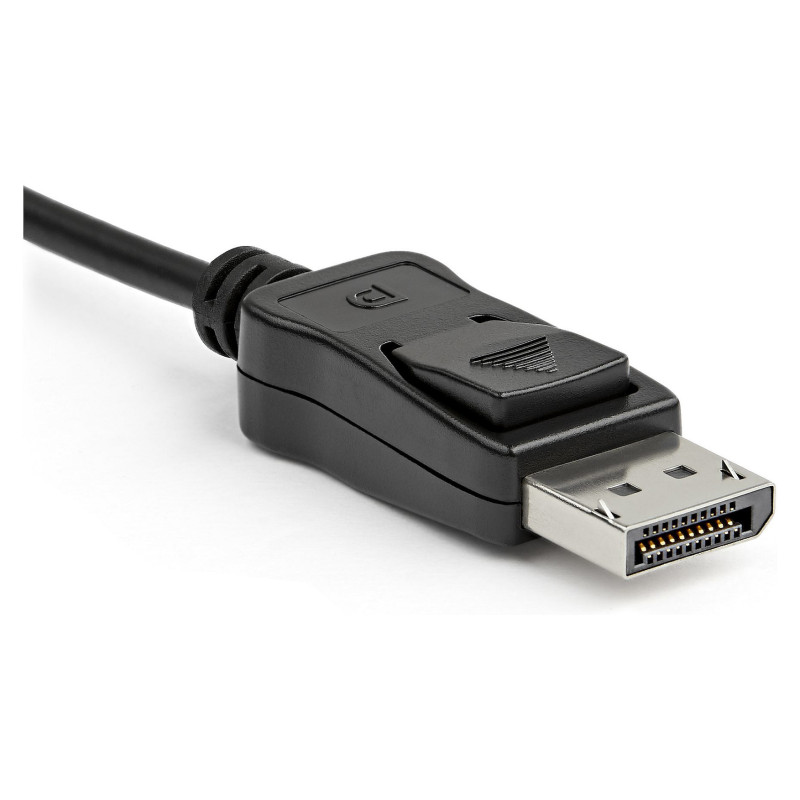

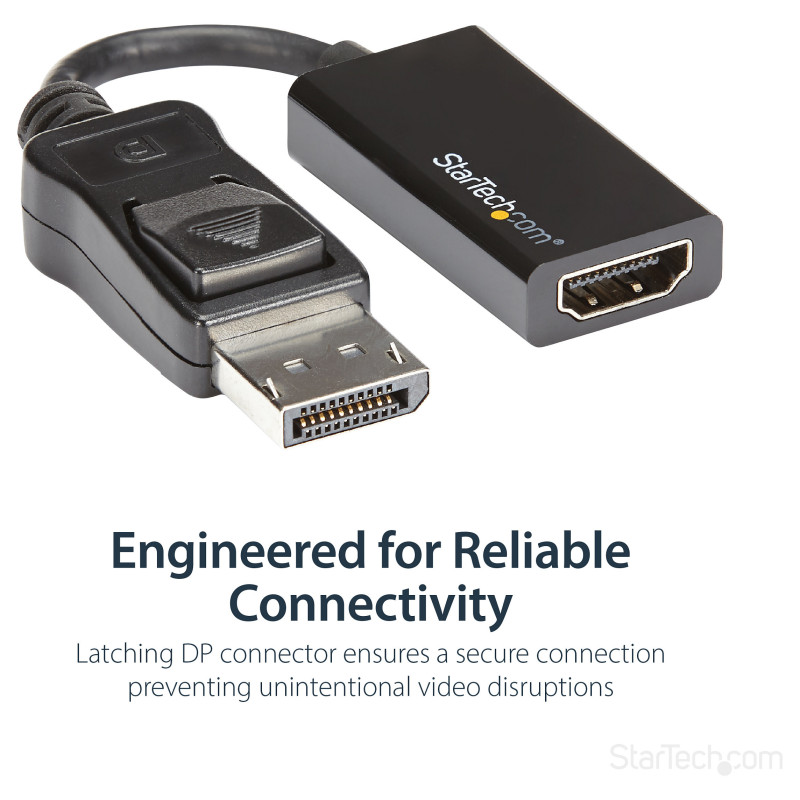

StarTech.com DisplayPort to HDMI Adapter - 4K 60Hz Active DP 1.4 to HDMI 2.0 Video Converter - DP to HDMI Monitor/TV/Display Cable Adapter Dongle - Latching DP Connector. Cable length: 0.215 m, Connector 1: DisplayPort, Connector 2: HDMI. Compliance certificates: CE, RoHS. Weight: 24 g, Width: 195 mm, Depth: 215 mm. Package width: 126 mm, Package depth: 127 mm, Package height: 17 mm. Quantity per pack: 1 pc(s)

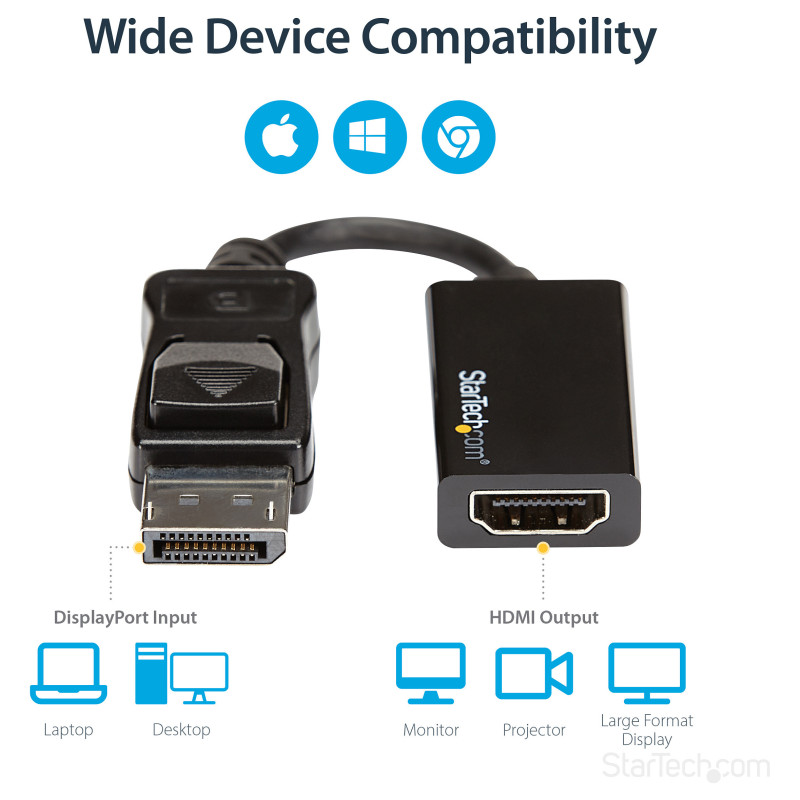

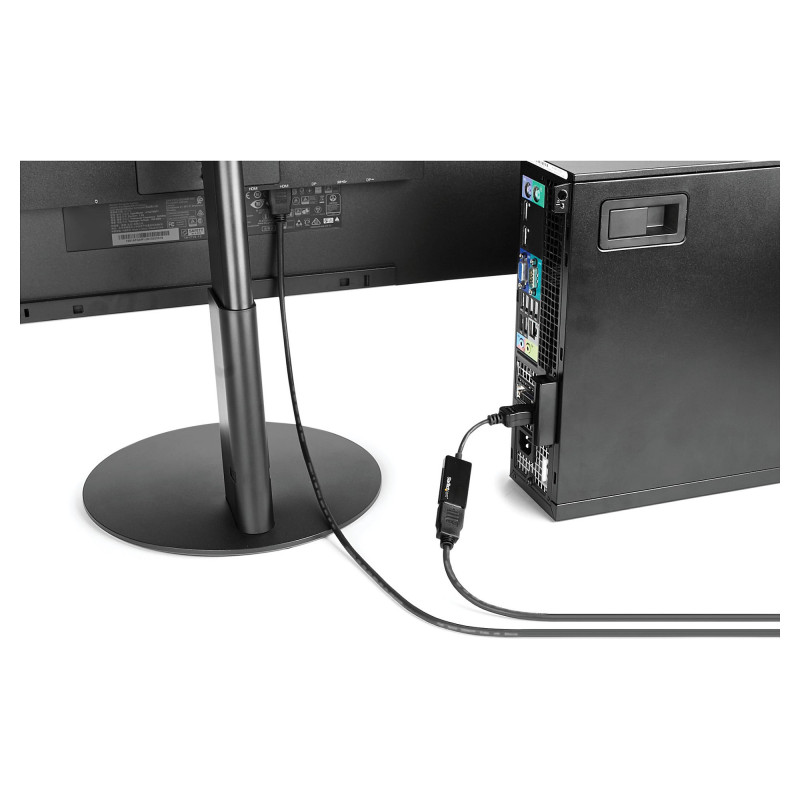

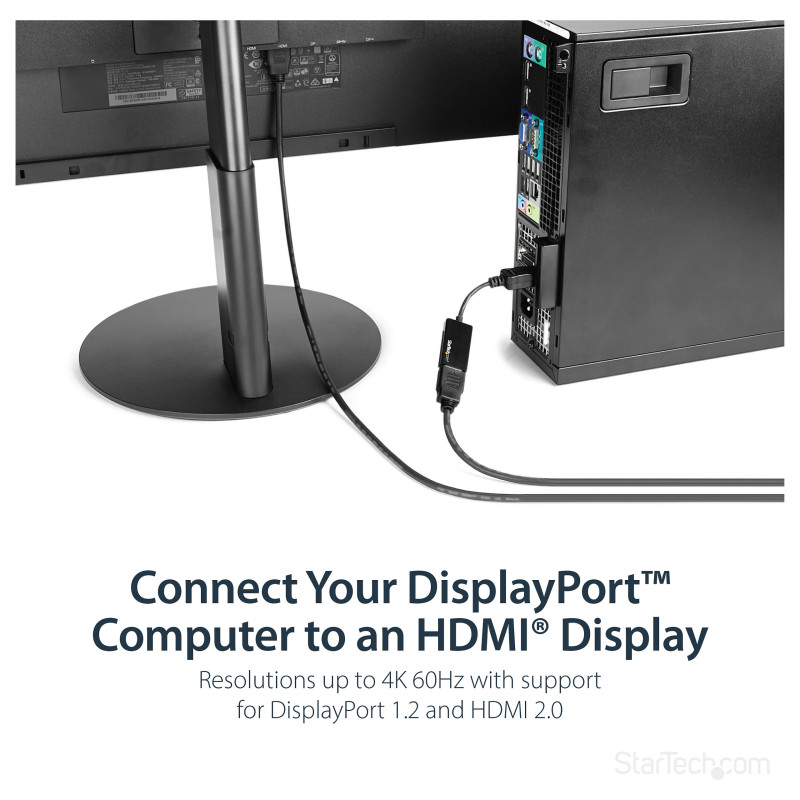

Connect your DP computer to an HDMI display using this converter, which supports UHD resolutions up to 4K at 60Hz

This DisplayPort to HDMI® adapter lets you output HDMI video and audio from a DP device, with support for Ultra HD 4K at 60Hz.

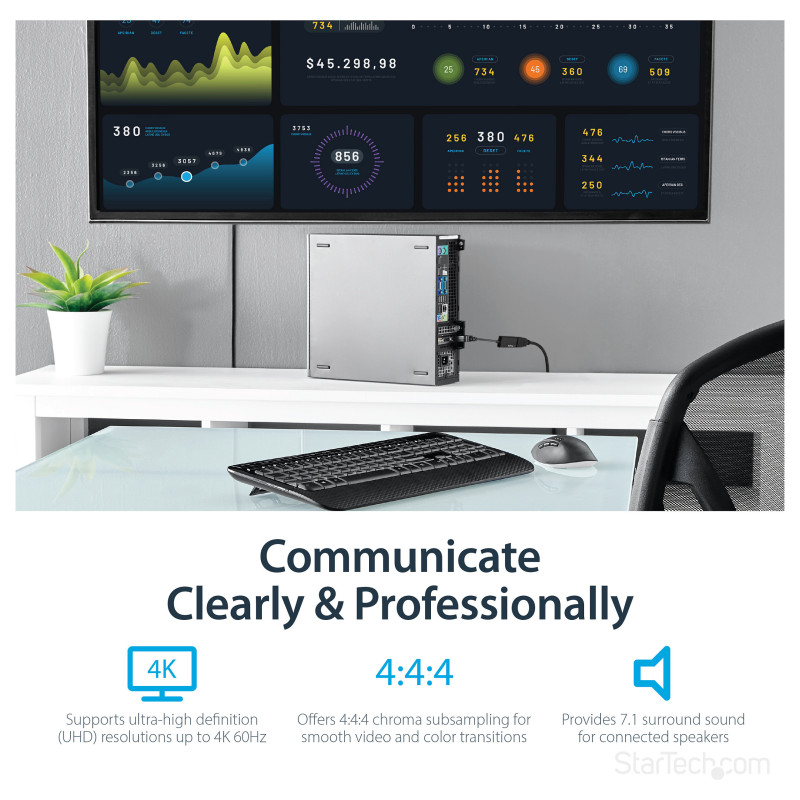

Astonishing picture quality with support for Ultra HD 4K at 60 Hz

The adapter lets you harness the video capabilities that are built into your DisplayPort connection, to deliver the astonishing quality of UHD to your 4K 60Hz display. This makes it easier for you to multitask while using multiple monitors to work on resource-demanding applications.

Unlike many 4K DisplayPort to HDMI adapters that only support a 30Hz refresh rate, this adapter works with HDMI 2.0 displays that can deliver output resolutions of up to 3840 x 2160p at 60Hz. Support for HDMI 2.0 means this adapter can support bandwidth up to 18Gbps, making it the ideal solution for performing high-resolution tasks such as editing 4K video.

The adapter is backward compatible with 1080p displays, which ensures that it will work with lower resolution displays such as TVs or projectors around your home or office.

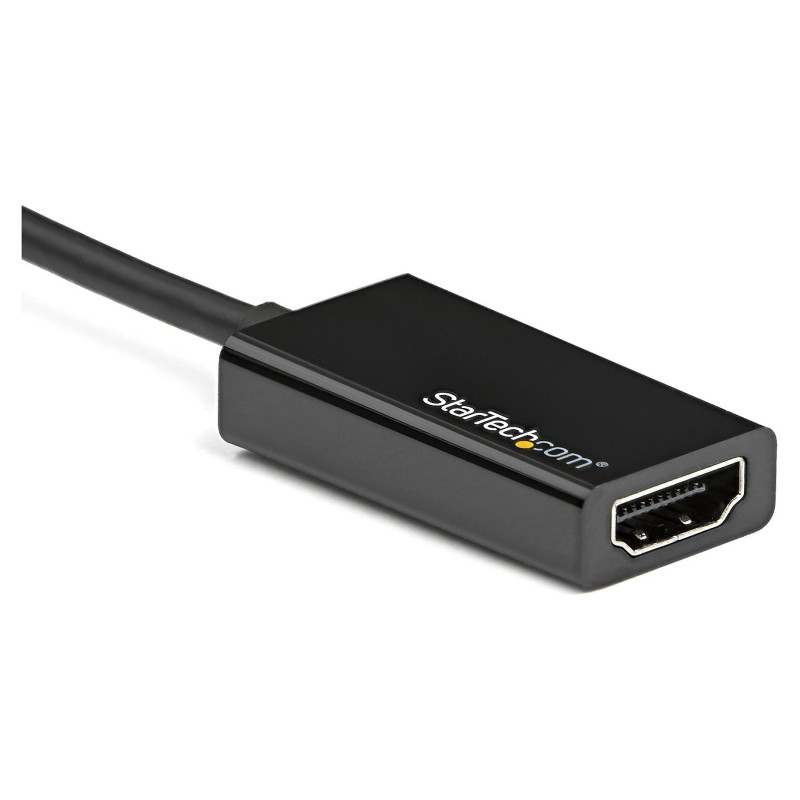

Ultimate portability with a compact, lightweight design

The compact video adapter is highly portable and lightweight. It's the perfect accessory for your portable DP devices, fitting easily into your laptop bag or carrying case.

The portable adapter is a convenient addition when deploying company computers because it enables your employees to interface with BYOD (Bring Your Own Device) HDMI applications around the office, such as working at a hot-desk with an HDMI display or sharing your laptop's screen on a boardroom projector.

Hassle-free setup with an active adapter that features plug-and-play installation

To ensure compatibility with any DisplayPort output, the DP adapter offers active conversion. Active video conversion is required to maintain 4K resolutions when converting DisplayPort to HDMI. An active DP adapter is ideal for outputting 1080p resolutions because it will work with graphics cards that can't output multimode DP++ signals, such as ATI Eyefinity™ cards.

For a hassle-free setup, the DisplayPort to HDMI adapter allows for plug-and-play installation without any additional software or drivers.

Note: To achieve 4K resolution at 60 Hz, a DisplayPort 1.4 output and an HDMI 2.0 display are required.

The DP2HD4K60S is backed by a 3-year StarTech.com warranty and free lifetime technical support.

Features

Connector 1 form factor: Straight
Connector 2 form factor: Straight
Cable length: 0.215 m
Connector 1: DisplayPort
Connector 2: HDMI
Connector 1 gender: Male
Connector 2 gender: Female
HDMI version: 2.0
Feature: HDCP
HDCP version: 2.2
DisplayPort version: 1.4
Feature: DisplayPort Content Protection (DPCP)
Maximum resolution: 3840 x 2160 pixels
Supported graphics resolutions: 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 3840 x 2160
Supported video modes: 720p, 1080p, 2160p
Maximum refresh rate: 60 Hz
Product colour: Black
Chipset: Parade - PS176
Supported audio channels: 7.1
Feature: Plug and Play
Converter type: Active

Operational conditions

Operating temperature (T-T): 5 - 35 °C
Storage temperature (T-T): -25 - 70 °C

Certificates

Compliance certificates: CE, RoHS

Weight & dimensions

Weight: 24 g
Width: 195 mm
Depth: 215 mm
Height: 10 mm

Packaging data

Package width: 126 mm
Package depth: 127 mm
Package height: 17 mm
Package weight: 33 g

Packaging content

Quantity per pack: 1 pc(s)

Logistics data

Harmonized System (HS) code: 84733080
Master (outer) case width: 509 mm
Master (outer) case length: 344 mm
Master (outer) case height: 225 mm
Products per master (outer) case: 250 pc(s)
