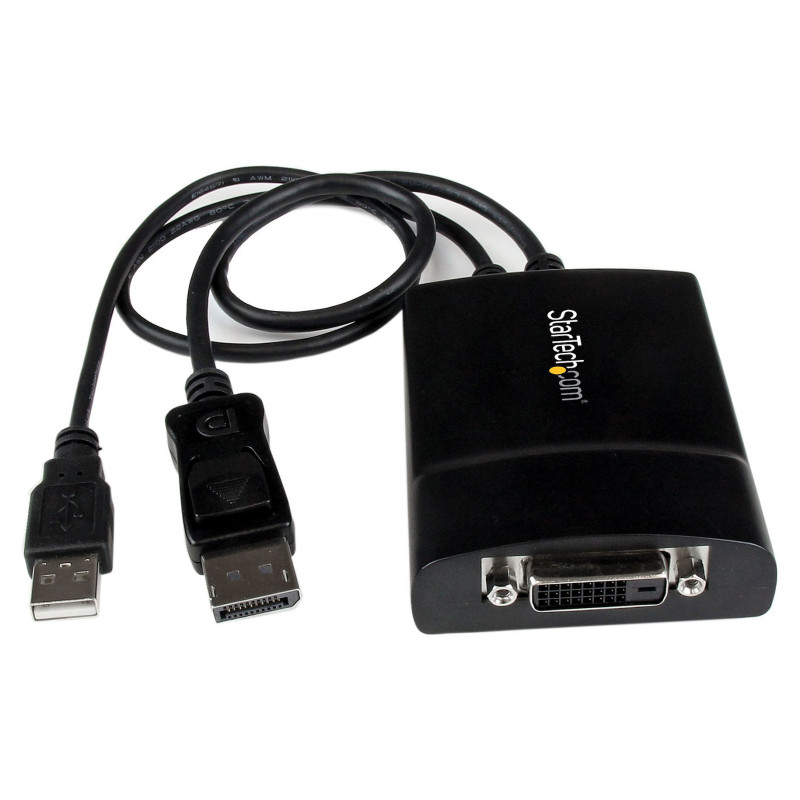

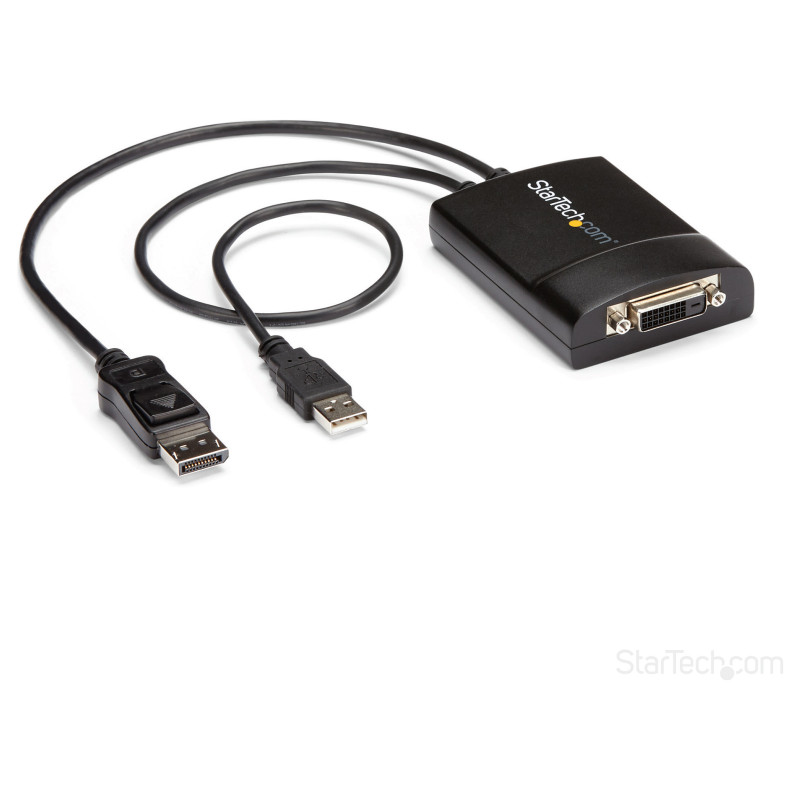

StarTech.com DP2DVID2 video cable adapter

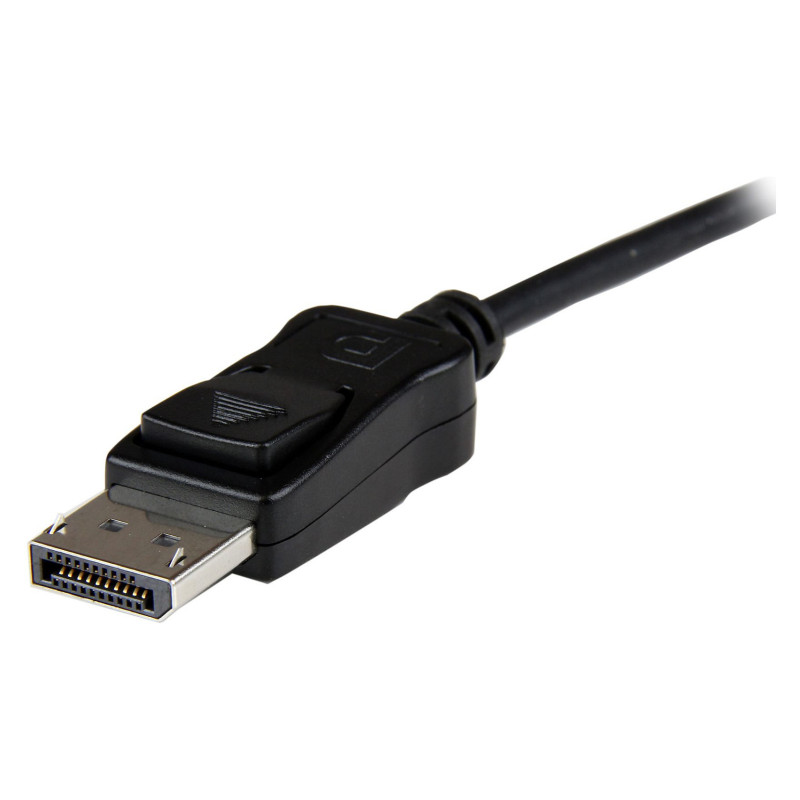

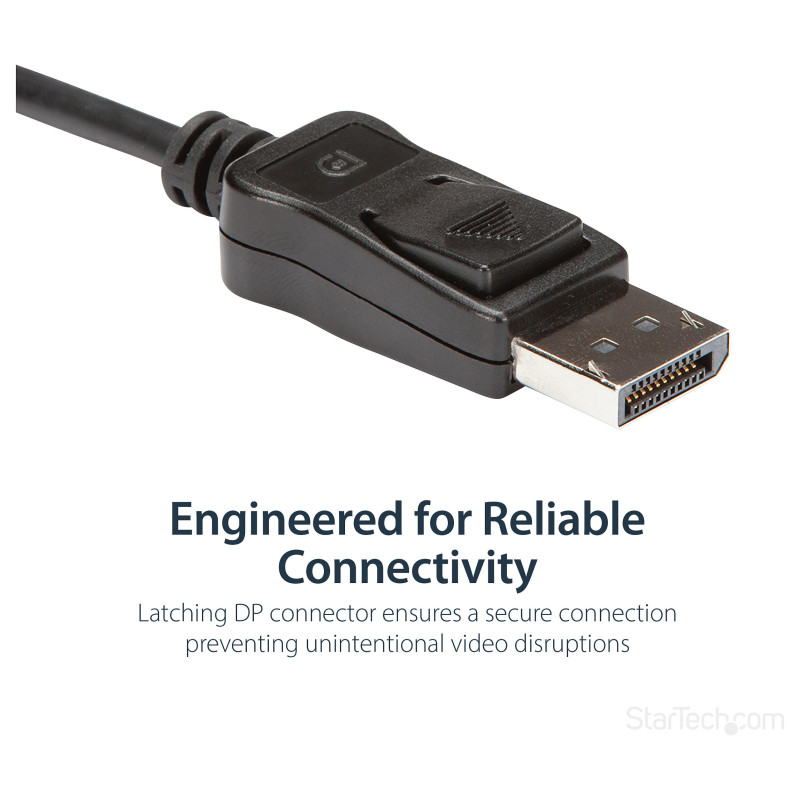

StarTech.com DisplayPort to DVI Dual Link Active Adapter - DisplayPort to DVI-D Adapter Video Converter 2560x1600 60Hz - DP 1.2 to DVI Monitor - USB Powered - Latching DP Connector. Cable length: 0.37 m, Connector 1: DisplayPort, Connector 2: DVI-D. Compliance certificates: CE, RoHS, Certification: RoHS. Weight: 160 g, Width: 64 mm, Depth: 549 mm. Package width: 174 mm, Package depth: 143 mm, Package height: 35 mm. Master (outer) case width: 337 mm, Master (outer) case length: 497 mm, Master (outer) case height: 220 mm

Connect your DVI Dual Link display to a DisplayPort® video source, for high resolution applications

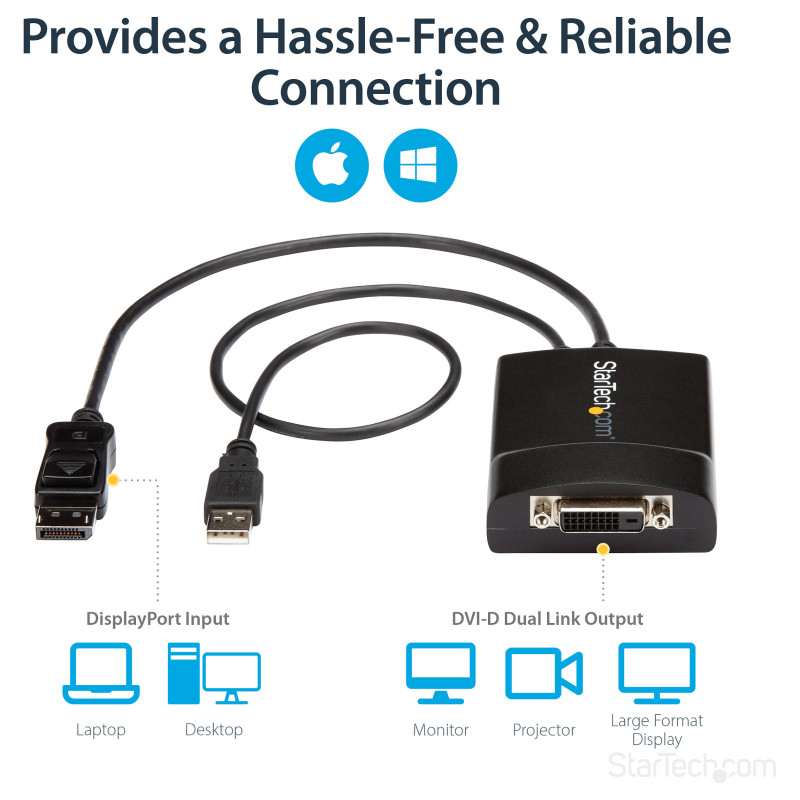

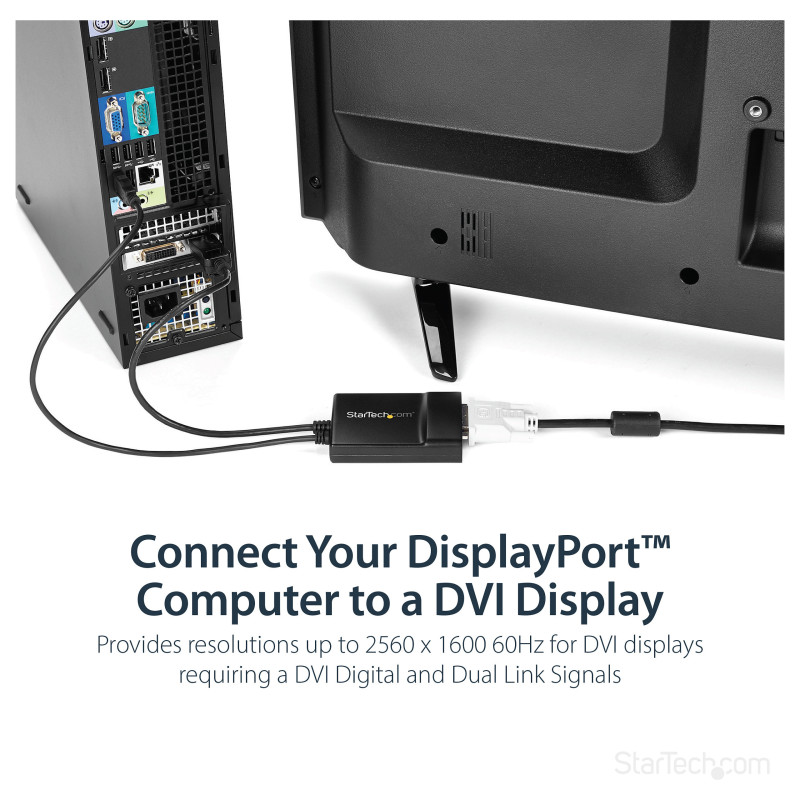

The DP2DVID2 DisplayPort® to DVI (Dual-Link) Adapter actively converts the output signal from a DisplayPort video source for use with a DVI-D display (monitor, etc.) or projector, helping to eliminate the equipment costs of upgrading a DVI display to a newer model for the sake of compatibility.

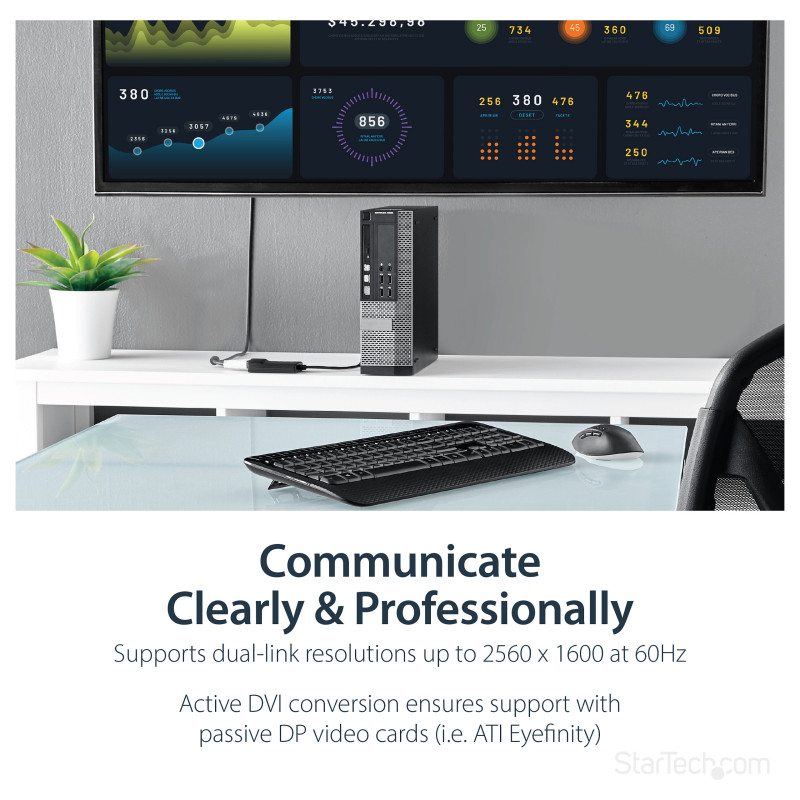

The adapter supports high resolution video (up to 2560x1600 at 60Hz), maintaining the outstanding graphical performance from a DisplayPort-equipped desktop video card, laptop or MacBook®.

DP2DVID2 performs an active DisplayPort-DVI conversion that is suitable for video sources that output either multimode (DP++) or single-mode DisplayPort signals. This ensures the adapter can be used even with graphics cards that aren't capable of outputting multimode DP++ signals, such as ATI® Eyefinity cards.

Back by StarTech.com 3-year warranty, with free lifetime technical support.

The StarTech.com Advantage

Features

Connector 1 form factor: Straight
Connector 2 form factor: Straight

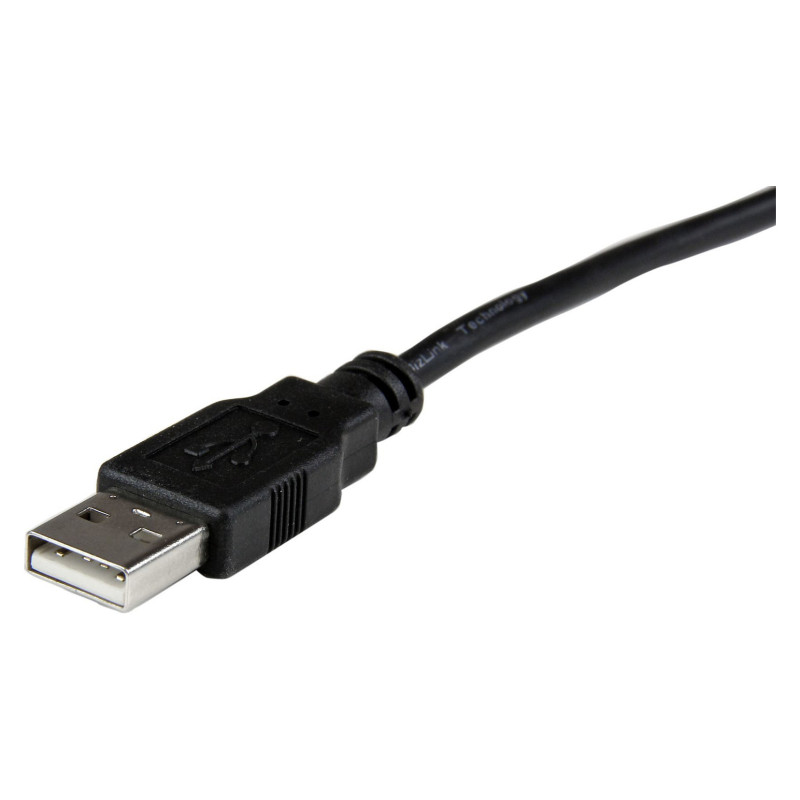

Power source: USB
Cable length: 0.37 m
Connector 1: DisplayPort

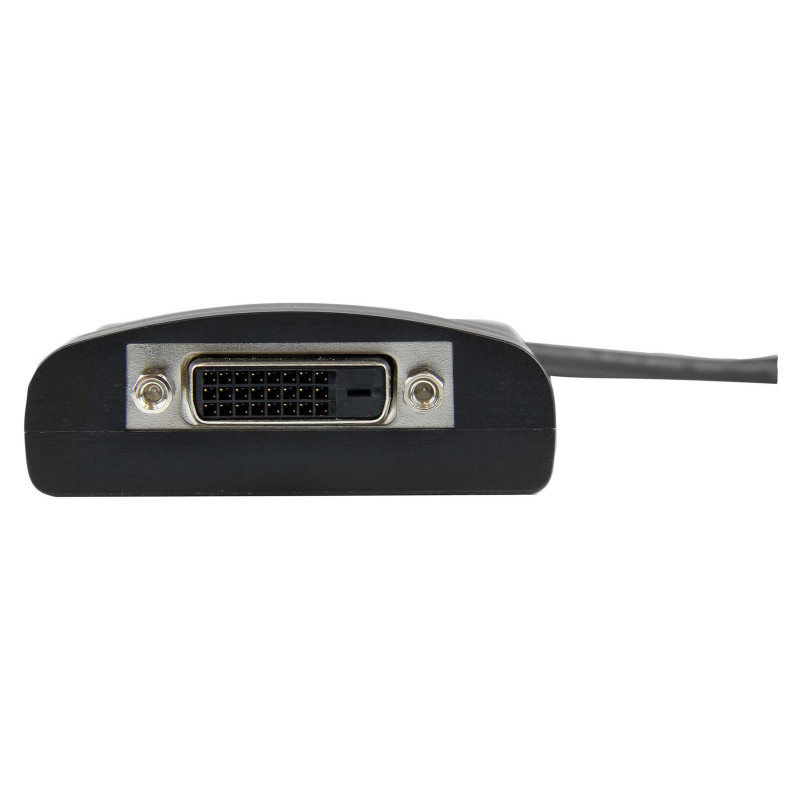

Connector 2: DVI-D
Connector 1 gender: Male
Connector 2 gender: Female
Feature: HDCP
DisplayPort version: 1.2
Feature: Dual Link DVI
Maximum resolution: 2560 x 1600 pixels
Supported graphics resolutions: 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1600 (WQXGA)
Maximum refresh rate: 120 Hz
Feature: HBR2 support
Product colour: Black
Converter type: Active video converter

Operational conditions

Operating temperature (T-T): 0 - 45 °C
Storage temperature (T-T): -20 - 70 °C

Certificates

Compliance certificates: CE, RoHS
Certification: RoHS

Weight & dimensions

Weight: 160 g
Width: 64 mm
Depth: 549 mm
Height: 22 mm

Packaging data

Package width: 174 mm
Package depth: 143 mm
Package height: 35 mm
Package weight: 232 g

Logistics data

Harmonized System (HS) code: 84733080
Master (outer) case width: 337 mm
Master (outer) case length: 497 mm
Master (outer) case height: 220 mm
Products per master (outer) case: 28 pc(s)
