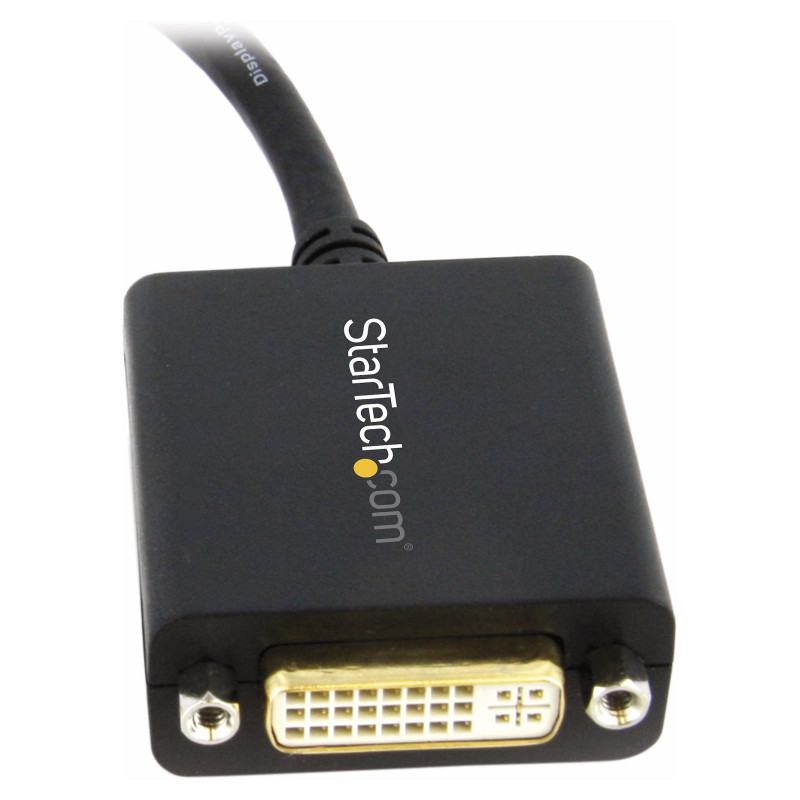

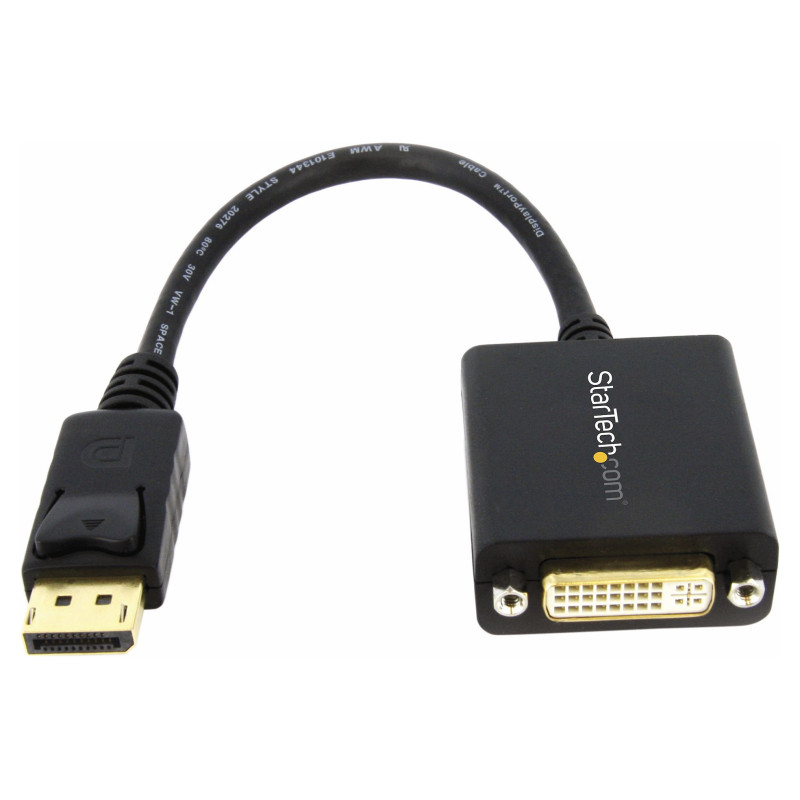

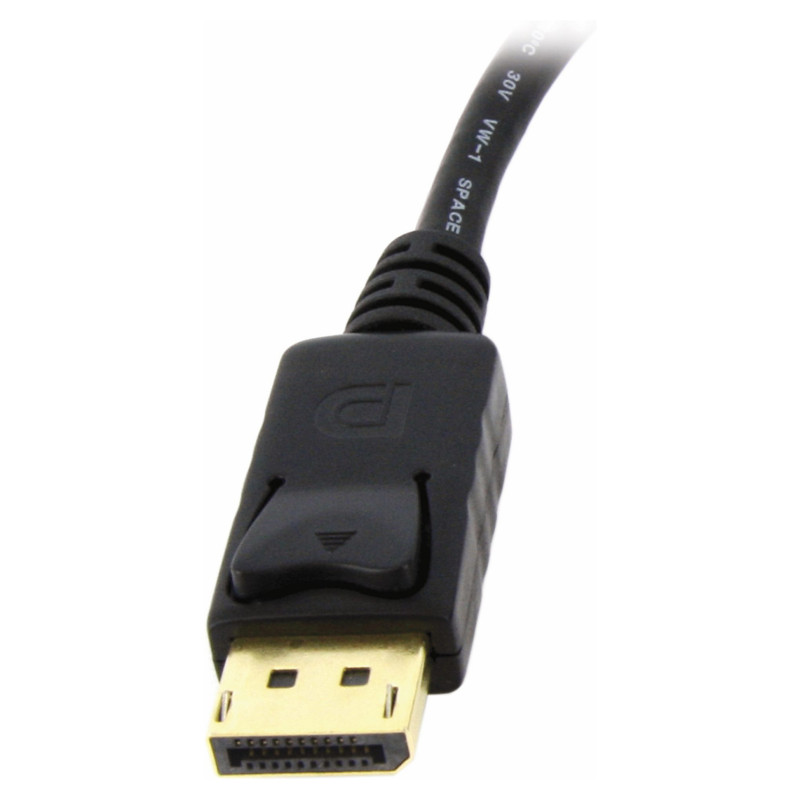

StarTech.com DP2DVI2 video cable adapter

StarTech.com DisplayPort to DVI Adapter - DisplayPort to DVI-D Adapter Video Converter 1080p - DP 1.2 to DVI Monitor/Display Cable Adapter Dongle - DP to DVI Adapter - Latching DP Connector. Cable length: 0.152 m, Connector 1: DisplayPort, Connector 2: DVI-I. Compliance certificates: RoHS, Certification: CE, FCC, REACH. Weight: 43 g, Width: 42 mm, Depth: 254 mm. Package width: 196 mm, Package depth: 197 mm, Package height: 25 mm. Quantity per pack: 1 pc(s)

Connect your DVI monitor to a DisplayPort equipped computer

The DP2DVI2 DisplayPort® to DVI Video Adapter Converter lets you connect a DVI monitor to DisplayPort-enabled desktop or laptop computers.

Supporting display resolutions of up to 1920x1200 allowing you to take full advantage of single link DVI capability. DP2DVI2 is a passive adapter that requires a DP++ port (DisplayPort++), meaning that DVI and HDMI signals can also be passed through the port.

StarTech.com also offers the DP2DVIS, an Active DisplayPort to DVI adapter.

Backed by a StarTech.com 3-year warranty and free lifetime technical support.

Features

Connector 1 form factor: Straight
Connector 2 form factor: Straight
Cable length: 0.152 m
Connector 1: DisplayPort
Connector 2: DVI-I
Connector 1 gender: Male
Connector 2 gender: Female
Feature: HDCP
HDCP version: 1.4
DisplayPort version: 1.2
Maximum resolution: 1920 x 1200 pixels
Supported video modes: 480p, 720p, 1080p
Maximum refresh rate: 60 Hz
Feature: HBR2 support
Product colour: Black
Feature: Plug and Play
Converter type: Passive video converter

Operational conditions

Operating temperature (T-T): 0 - 70 °C
Storage temperature (T-T): -10 - 80 °C
Operating relative humidity (H-H): 5 - 90%

Certificates

Compliance certificates: RoHS
Certification: CE, FCC, REACH

Weight & dimensions

Weight: 43 g
Width: 42 mm
Depth: 254 mm
Height: 17 mm

Packaging data

Package width: 196 mm
Package depth: 197 mm
Package height: 25 mm
Package weight: 52 g

Packaging content

Quantity per pack: 1 pc(s)

Logistics data

Harmonized System (HS) code: 84733080
Master (outer) case width: 516 mm
Master (outer) case length: 336 mm
Master (outer) case height: 226 mm
Products per master (outer) case: 140 pc(s)
