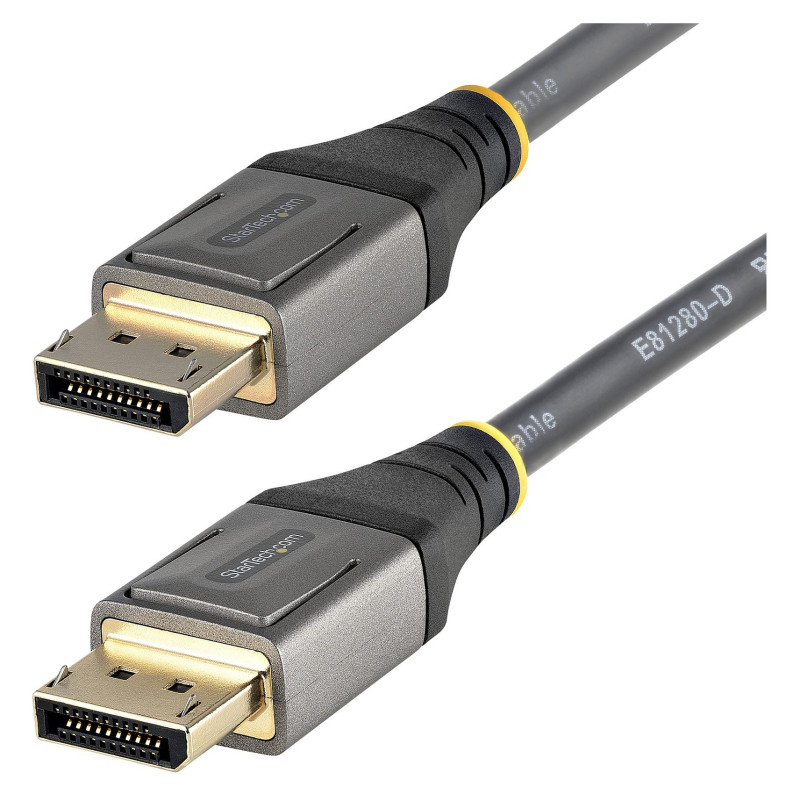

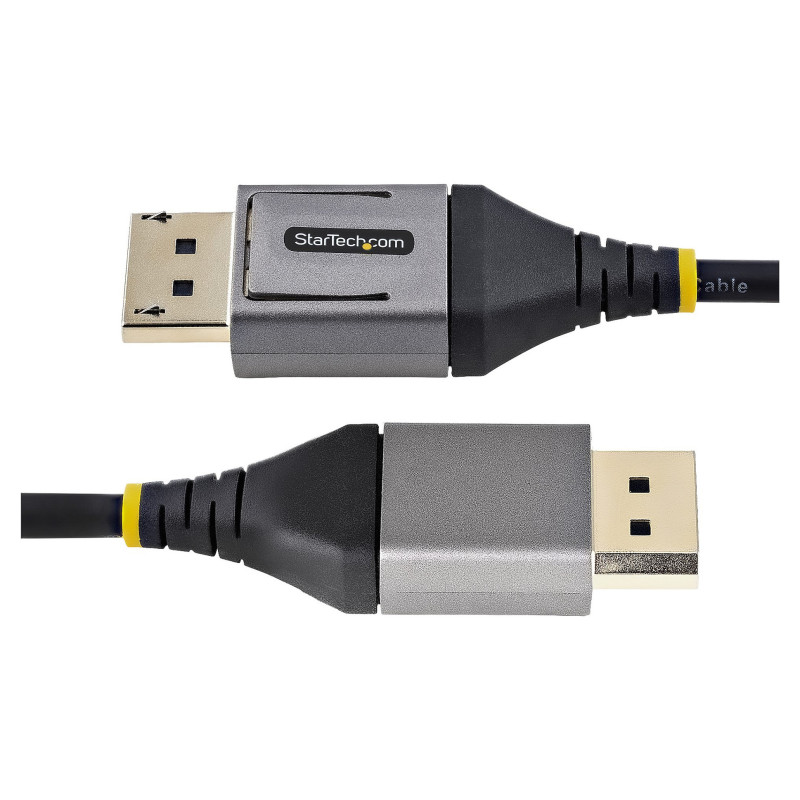

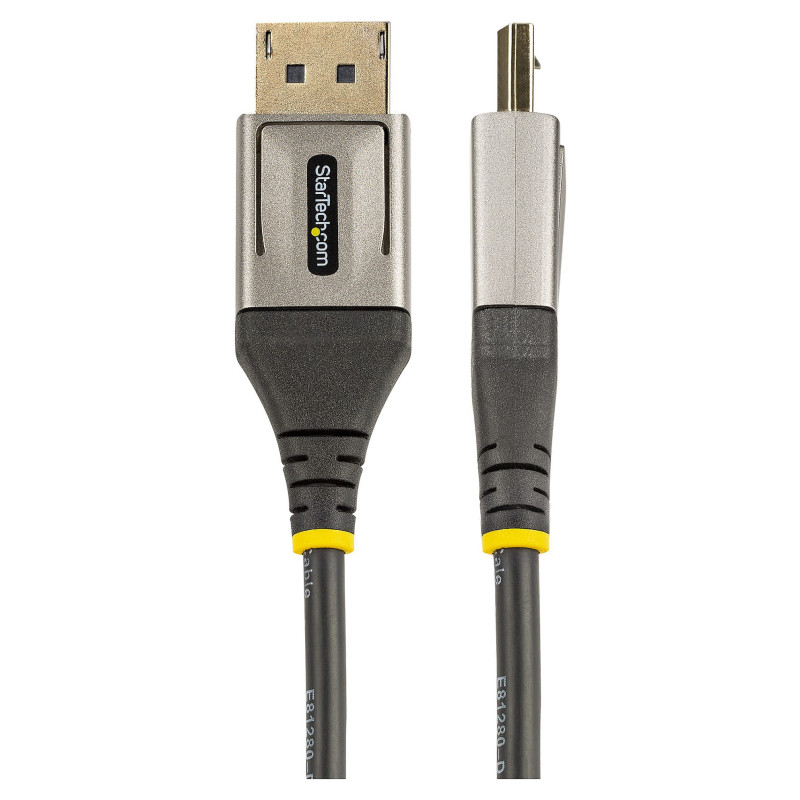

StarTech.com DP14VMM1F DisplayPort cable

StarTech.com 1ft (30cm) DisplayPort 1.4 Cable - 8K 60Hz HDR10 - Ultra HD 4K 120Hz Video - DP 1.4 Cable / Cord - For Monitors/Displays - DisplayPort to DisplayPort Cable - M/M. Cable length: 0.3 m, Connector 1: DisplayPort, Connector 2: DisplayPort. Compliance certificates: RoHS. Cable diameter: 4.5 mm. Package width: 198 mm, Package depth: 150 mm, Package height: 20 mm. Master (outer) case width: 330 mm, Master (outer) case length: 400 mm, Master (outer) case height: 270 mm

Enable reliable 8K 60Hz video using this DisplayPort 1.4 Cable

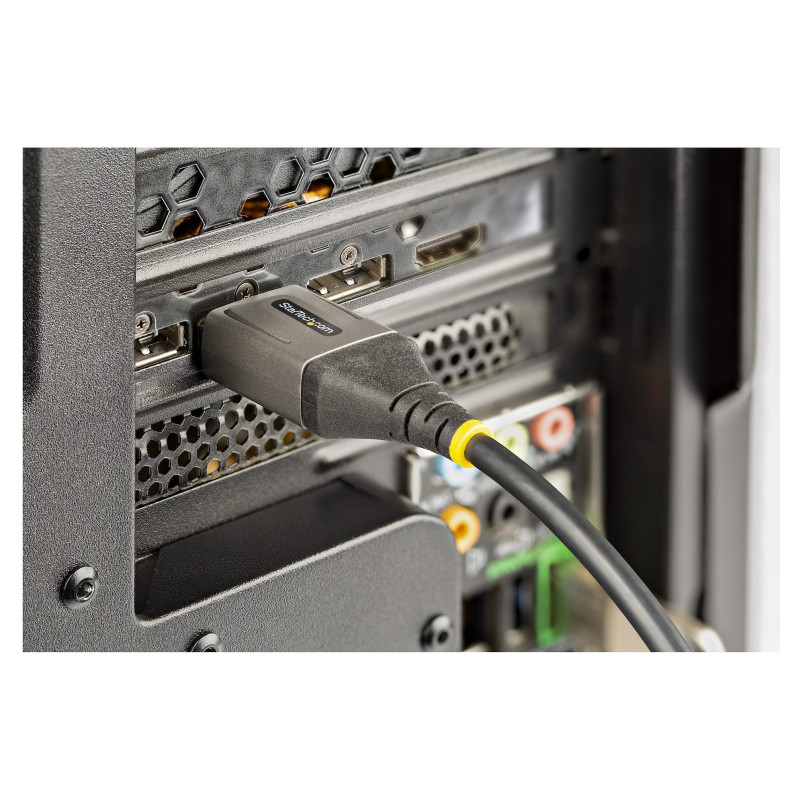

This DisplayPort 1.4 cable connects your DisplayPort™ laptop or desktop computer to an ultra-high definition 8K monitor, TV or projector. It supports resolutions up to 8K (7680 x 4320) at 60Hz.

The DisplayPort monitor cable provides the essential connection to support the next generation of ultra-high definition video.

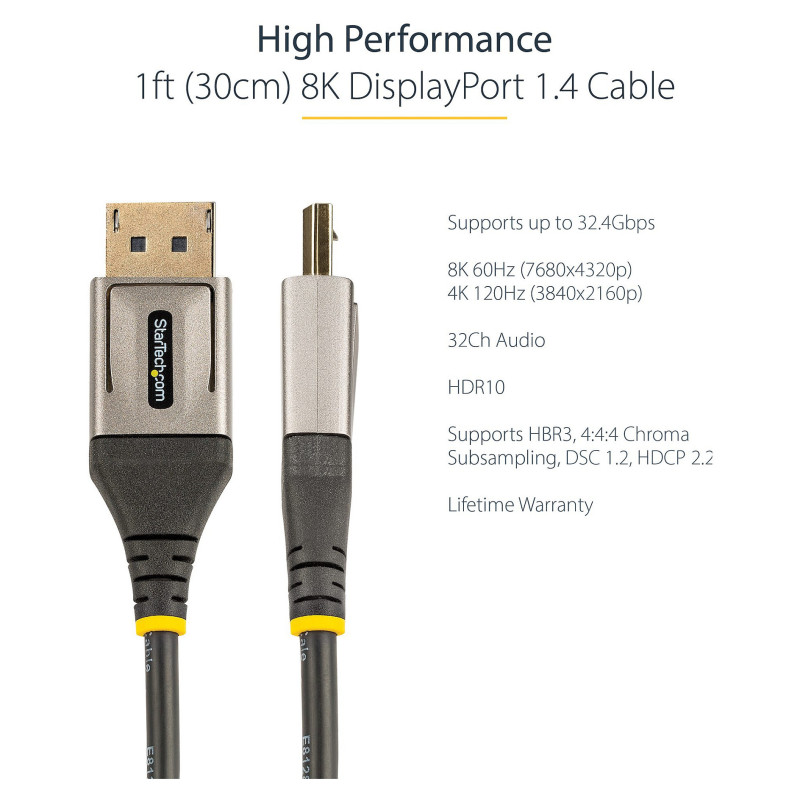

Full-Featured DisplayPort 1.4

This 8K DisplayPort cable supports all DP 1.4 features:

• High Bit Rate 3 (HBR3) Bandwidths of 32.4 Gbps supporting the latest in industry standards
• High Dynamic Range (HDR10) for higher contrast ratio and vivid colors
• Multi-Stream Transport (MST) for daisy-chaining multiple monitors
• Display Stream Compression 1.2 (DSC) for maximum resolution output
• Forward Error Correction to manage data transmission errors
• High-Bandwidth Digital Content Protection (HDCP 2.2) for a secure connection between source and display
• 32 Uncompressed Digital Audio Channels

Cable Key Features

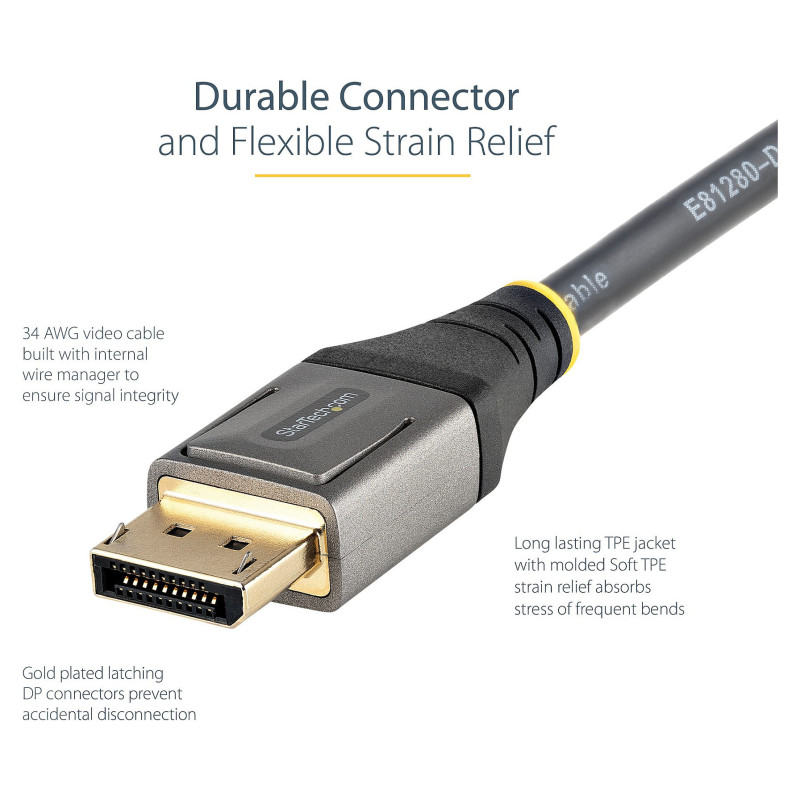

Aluminum-mylar foil with braided shielding improve EMI protection

Long lasting flexible TPE jacket & strain relief (TPE is non-toxic & halogen free for environmental sustainability)

Connector Key Features

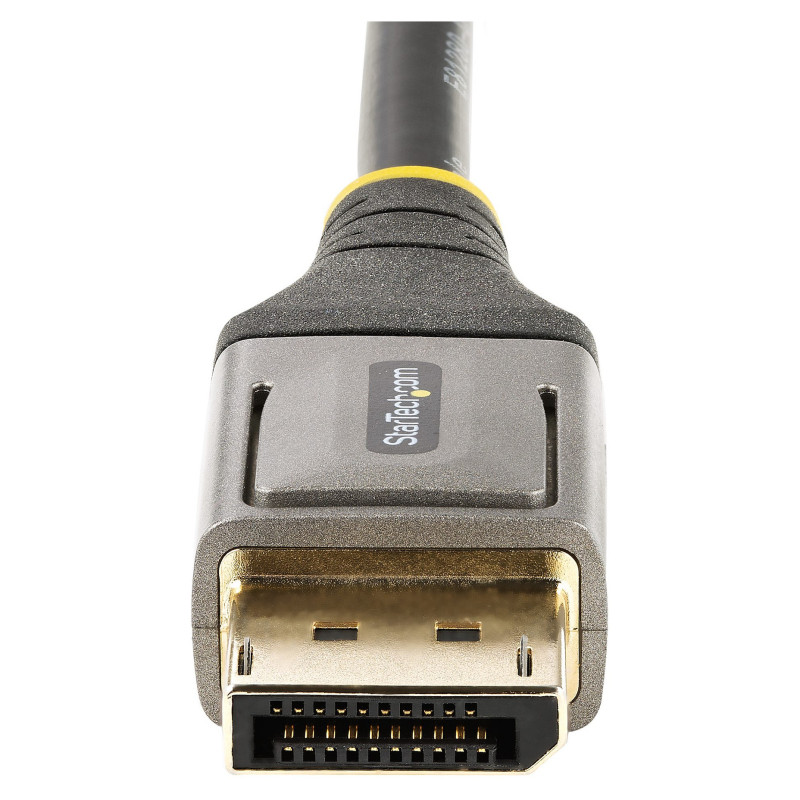

Die-cast aluminium sub-structure shielding improves signal integrity & prevents signal degradation

Corrosion-free gold-plated connectors ensure premium video quality & enhanced reliability

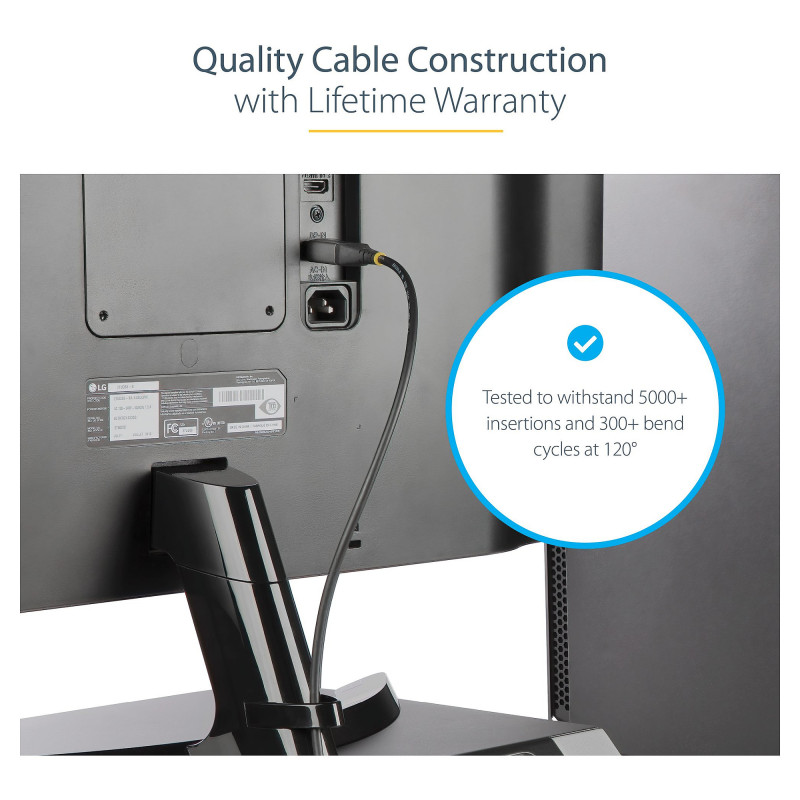

Tested to withstand 5000+ insertions

8K: Enabling Business Continuity

8K has a resolution of 7680 x 4320 and is also known as 4320p and Ultra High Definition (UHD). Suitable for digital signage and other commercial displays that require the highest available resolution. This cable is backward compatible with 4K and 5K displays making it the perfect peripheral to start futureproofing your cabling infrastructure.

Comprehensive Product Testing & Expert Technical Support

StarTech.com conducts thorough compatibility and performance testing on all our products to ensure we are meeting or exceeding industry standards and providing high-quality products to our customers. Our local StarTech.com Technical Advisors have a broad product expertise and work directly with StarTech.com Engineers to provide support for our customers both pre and post-sales.

DP14VMMV1M is backed by a StarTech.com lifetime warranty.

Features

Connector 1 form factor: Straight
Connector 2 form factor: Straight
Connector contacts plating: Gold
DisplayPort version: 1.4
Maximum resolution: 7680 x 4320 pixels
Supported graphics resolutions: 3840 x 2160, 7680 x 4320
Maximum refresh rate: 120 Hz
Feature: HDCP
HDCP version: 2.2
Feature: Display Stream Compression (DSC)
Display Stream Compression (DSC) version: 1.2
Cable length: 0.3 m
Connector 1: DisplayPort
Connector 2: DisplayPort
Connector 1 gender: Male
Connector 2 gender: Male
Feature: Latching connectors
Product colour: Black, Grey
Cable shielding: Aluminum mylar foil
Jacket material: Thermoplastic elastomer (TPE)
AWG wire size: 34
Feature: High Dynamic Range (HDR) supported
Bandwidth: 32400 MB/s
Channels quantity: 32 channels
Feature: HBR3 support
Feature: Multi-Stream Transport (MST)
Number of conductors: 19
Colour sampling: 4:4:4

Certificates

Compliance certificates: RoHS

Weight & dimensions

Cable diameter: 4.5 mm

Packaging data

Package width: 198 mm
Package depth: 150 mm
Package height: 20 mm
Package weight: 18.5 g

Logistics data

Master (outer) case width: 330 mm
Master (outer) case length: 400 mm
Master (outer) case height: 270 mm
Products per master (outer) case: 150 pc(s)
