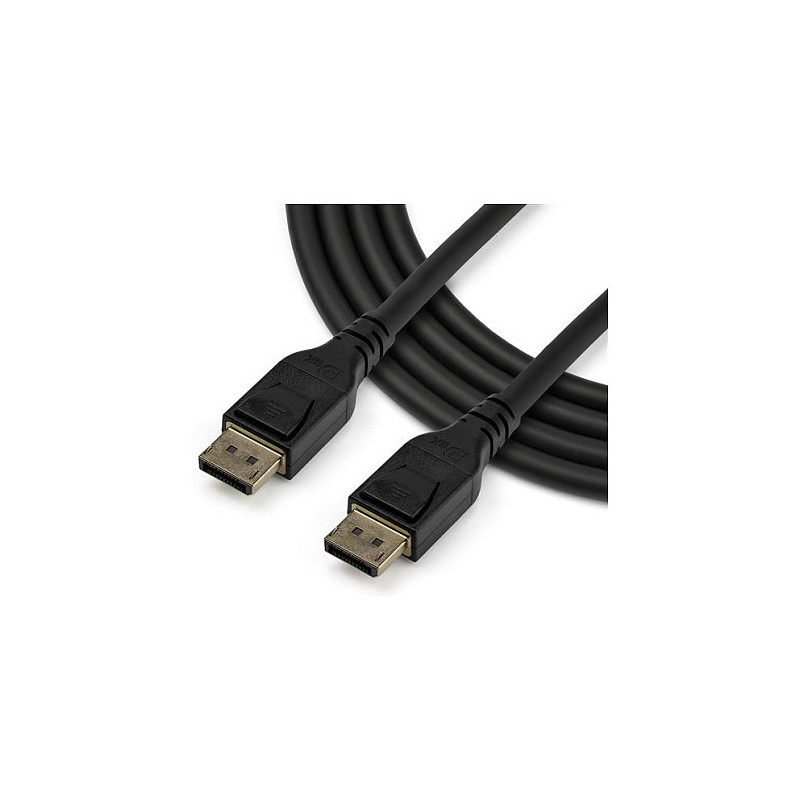

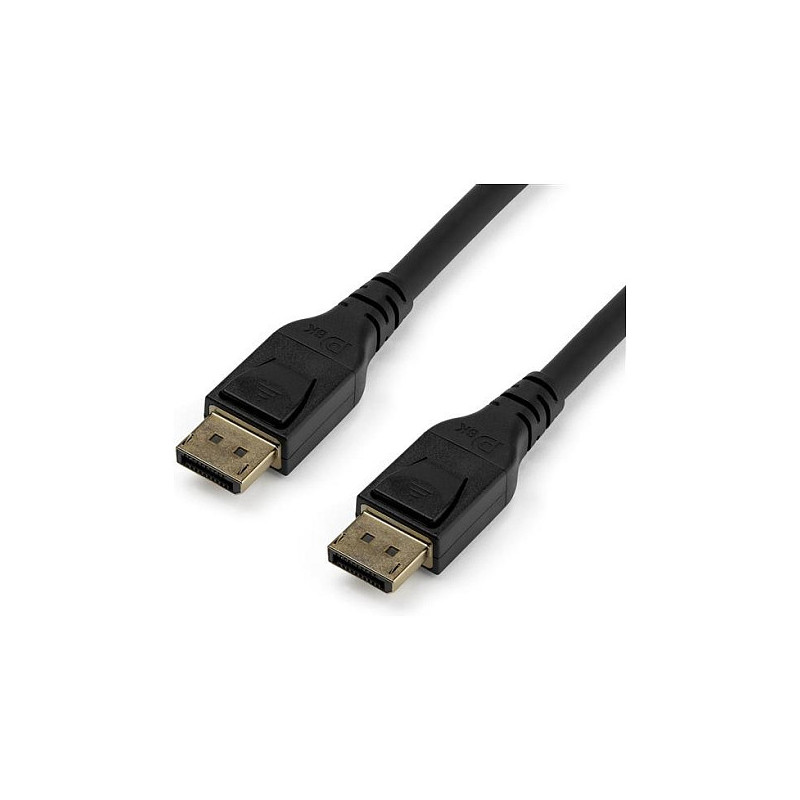

StarTech.com DP14MM3M DisplayPort cable

StarTech.com 10ft (3m) VESA Certified DisplayPort 1.4 Cable, 8K 60Hz HBR3 HDR, UHD DisplayPort to DisplayPort Monitor Cord, Ultra HD 4K 120Hz DP 1.4 Video Cable M/M DP Connector. Cable length: 3 m, Connector 1: DisplayPort, Connector 2: DisplayPort. Compliance certificates: RoHS, Certification: CE. Cable diameter: 7.5 mm, Weight: 270 g. Package width: 250 mm, Package depth: 267 mm, Package height: 32 mm. Quantity per pack: 1 pc(s)

DP Monitor Cable | 8K@60Hz | HBR3 | HDR | Gold-Plated | Lifetime Warranty

This DisplayPort 1.4 cable connects your DisplayPort™ laptop or desktop computer to a "super ultra-high definition" 8K monitor, TV or projector. It supports resolutions up to 8K (7680x4320) @ 60Hz.

The DisplayPort monitor cable provides the essential connection to support the next generation of super ultra-high definition video.

This cable is VESA® to ensure full compliance and efficient operation of the higher link rate of HBR3. It has been tested to meet all DP 1.4 specifications to ensure quality and reliability.

The Superior Performance of DisplayPort 1.4

This 8K DisplayPort cable supports all DP 1.4 features:

• High Bit Rate 3 (HBR3) Bandwidths of 32.4 Gbps supporting the latest in industry standards
• High Dynamic Range (HDR) for higher contrast ratio and vivid colors
• Multi-Stream Transport (MST) for daisy-chaining multiple monitors
• Display Stream Compression 1.2 (DSC) for maximum resolution output
• Forward Error Correction to manage data transmission errors
• High-Bandwidth Digital Content Protection (HDCP 2.2) for a secure connection between source and display
• 32 Uncompressed Digital Audio Channels

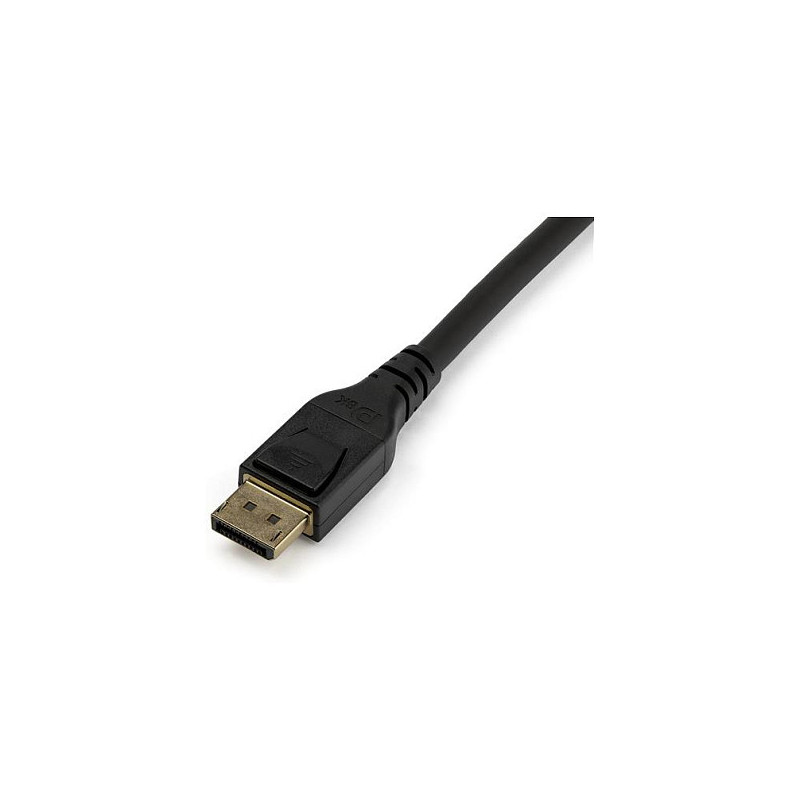

Flexible Cable with Reliable Latched Connectors

The cable has a slim professional grade 28 AWG construction that allows for flexible installation while offering superior reliability for a clean quality installation. Each connector features latches that provide secure connections between your devices.

8K: Enabling Business Continuity

8K has a resolution of 7680 x 4320 and is also known as 4320p and Super Ultra High Definition (SUHD). It is seen in digital signage and other commercial displays that require the highest available resolution. This cable is backward compatible with 4K and 5K displays making it the perfect peripheral to start futureproofing your cabling infrastructure.

Comprehensive Product Testing & Expert Technical Support

StarTech.com conducts thorough compatibility and performance testing on all our products to ensure we are meeting or exceeding industry standards and providing high-quality products to our customers. Our local StarTech.com Technical Advisors have a broad product expertise and work directly with StarTech.com Engineers to provide support for our customers both pre and post-sales.

DP14MM3M is backed by a StarTech.com lifetime warranty.

Features

Connector 1 form factor: Straight
Connector 2 form factor: Straight
Connector contacts plating: Gold
DisplayPort version: 1.4
Maximum resolution: 7680 x 4320 pixels
Supported graphics resolutions: 2560 x 1600 (WQXGA), 3840 x 2160, 7680 x 4320
Maximum refresh rate: 120 Hz
Feature: HDCP
Cable length: 3 m
Connector 1: DisplayPort
Connector 2: DisplayPort
Connector 1 gender: Male
Connector 2 gender: Male
Feature: Latching connectors
Product colour: Black
Cable shielding: Aluminum mylar foil
Jacket material: Polyvinyl chloride (PVC)
AWG wire size: 28
Feature: High Dynamic Range (HDR) supported
Bandwidth: 32400 MB/s
Feature: Plug and Play
Feature: HBR3 support
Feature: Multi-Stream Transport (MST)
Number of conductors: 19
Fire-resistance rating: VW-1

Certificates

Compliance certificates: RoHS
Certification: CE

Weight & dimensions

Cable diameter: 7.5 mm
Weight: 270 g

Packaging data

Package width: 250 mm
Package depth: 267 mm
Package height: 32 mm

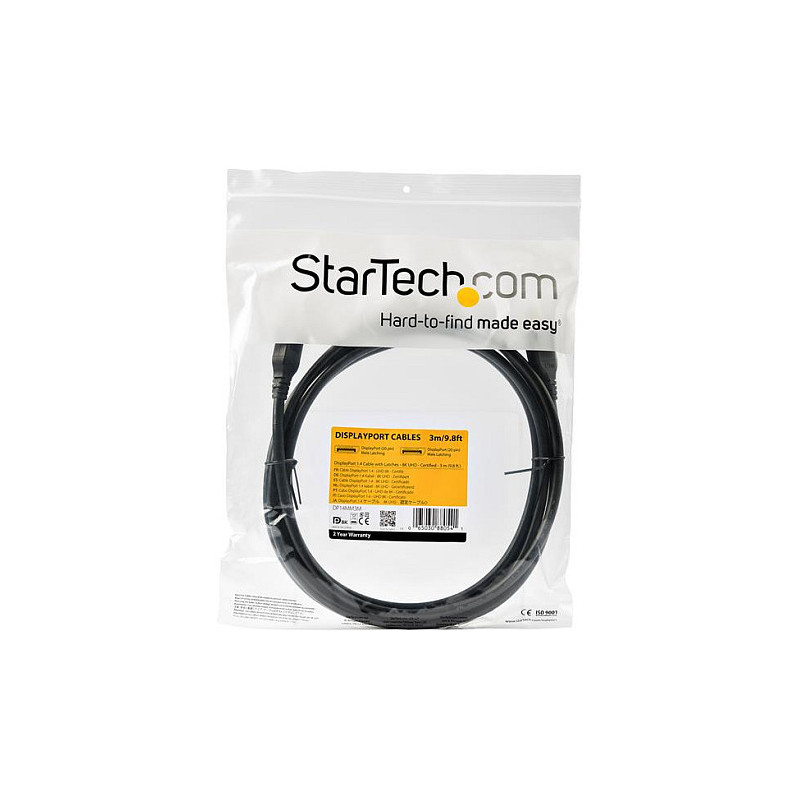

Packaging content

Quantity per pack: 1 pc(s)

Logistics data

Harmonized System (HS) code: 84733080
Master (outer) case width: 417 mm
Master (outer) case length: 342 mm
Master (outer) case height: 277 mm
Products per master (outer) case: 30 pc(s)
